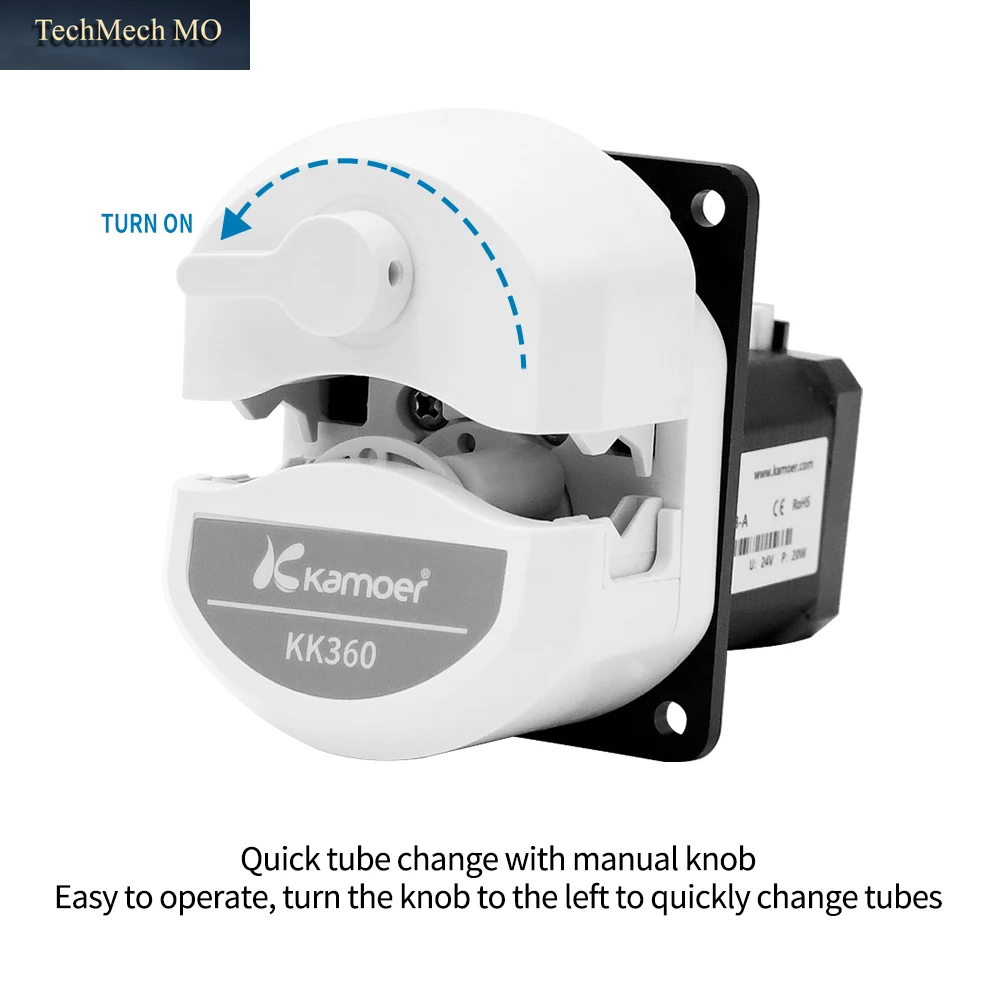

0~310Ml/Min KK360 24V Stepper Peristaltic Pump Self-Priming Pump Quick Tube Change 1.6Mm Tube Laboratory Dosing Pump

Project

TechnicalParameters

Motortype

Stepper motor

Flowrange

0-310ml/min

Power

20W

Ratedcurrent

1.5A

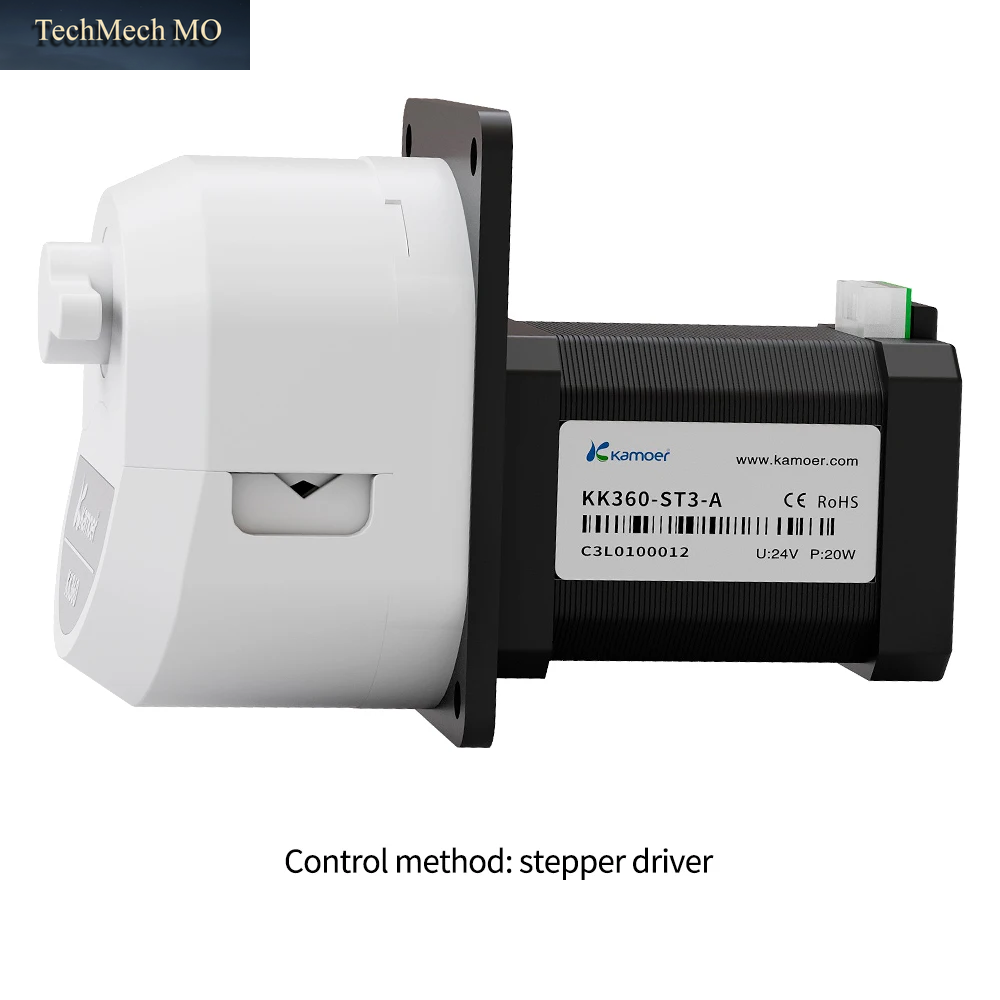

Control method

Stepperdriver

Weight

About715g

Ratedvoltage

24V

Pumptubelife

B:1000HS:200H

Motor life

6000H

Referenceflowrate(unit:ml/min)

Pumptubecode

B13

B14

B19

B16

B25

S13

S14

S19

S16

S25

Innerdiameter

x

Outerdiameter

0.8mm

×

4mm

1.6mm

×

4.8mm

2.4mm

×

5.6mm

3.2mm

×

6.4mm

4.8mm

×

8mm

0.8mm

×

4mm

1.6mm

×

4.8mm

2.4mm

×

5.6mm

3.2mm

×

6.4mm

4.8mm

×

8mm

Pumptubematerial

BPT

Silicone

Rotatingspeed

300RPM

3 rotors-Singletube

13

48

100

150

310

13

48

100

150

310

4 rotors-Singletube

12

43

85

135

250

12

43

85

135

250

3rotor-Dualchannel

13

48

100

150

/

13

48

100

150

/

Remark

The above parameters are measured with pure waterwithout pressure at room temperatureof20℃and standard atmospheric pressure.In actual practice,there will be certainerrorsin flowratedependingon different media,different outlet pressures,motor speed errors,etc.The data areforreference only;the repeatability is within 300 Measured at rpm,there will beacertainerrorduetochanges in rotation speed and running time.Thedataisforreferenceonly.3Rotor-Dualchannelshave the function of reducing pulsation when theliquid circuitsareconnectedin parallel,andtheparallel flow rate is single channel*2.In addition,itcan becustomizedaccordingtocustomerneeds

Reference noise

value

Under ambient noise of 35dB,the actual measurement atadistanceof50cmislessthan60dB
