1/4‘’ Thread Stainless Steel Fuel Atomizing Nozzle Burner Sprayer with Filter 1 Pcs

Specification:

Orifice: 0.1mm-2.0mm
Thread Size : 1/4” Male Thread
Name: Fuel Atomization Nozzle
Thread specification: 1/4 inch
Coverage area: One sprinkler with height of 1-3 meters and spray covering about 1-2 square meters
Main material: stainless steel
Working Pressure: 2-60 Bar
Application scope: humidification and cooling, dust removal and cooling fog test, artificial fog, atomized fuel, evaporation, cleaning and disinfection, as well as landscape fogging.

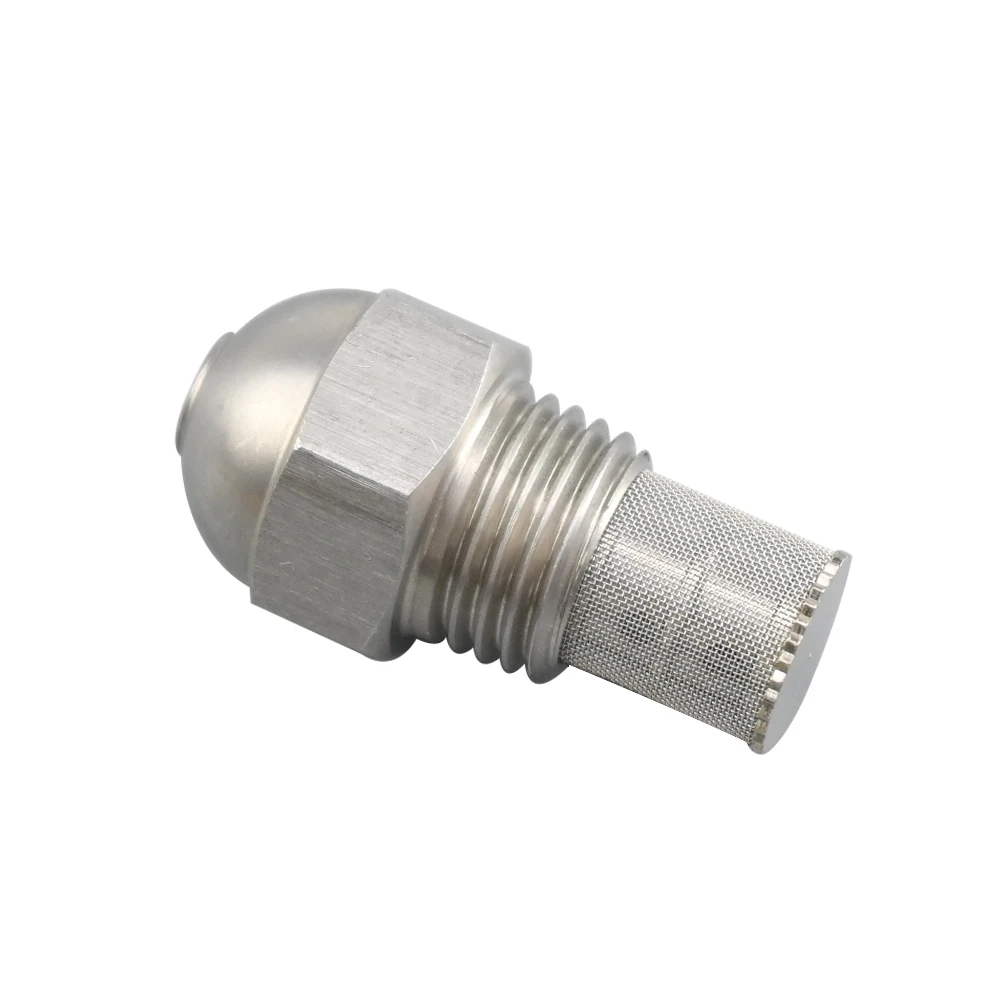

Product Show

Packing List:

1 pcs Fuel Atomizing Nozzle

Key Features:

1) The atomizing nozzle is internally equipped with a stainless steel nozzle core and a guide groove, which forms a centrifugal vortex in the guide groove. The spray is in the form of annular fog:
2) When the liquid sprays mist particles in a water pressure of 2-10 bar, it is considered moderate. When the pressure reaches 10-20 bar, the atomized particles are about 50um, and above 20 bar, it can reach suspended mist
3) The spray holes are small and imported from the United States, using American precision drilling machines to drill holes with diameters between 0.1mm-2mm. The main body is made of stainless steel precision machining:
4) When the pressure is 2-10kg/cm2 under ordinary civilian water pressure, the atomization effect is more ideal with higher pressure. The maximum pressure resistance is 50-70bar, and the flow rate is calculated in L/min
5) Generally, there are several spray angles of 45-80 degrees. Spray out in a circular mist shape. The coverage range is proportional to the distance, with a commonly used default angle of 60-80 degrees;,
6) Low cost of use, compared with gas dual fluid atomization, the cost is saved by more than 10 times. It uses threaded connections and is easy to disassemble and install;
