11Mm Straight Shank Hollow Paper Drill Bit 2.5/3/3.5/4/4.5/5/5.5/6/7/8Mm Punching Dia for Straight Shank Punch Punching Machine
Description:
For use with your paper drills
It would work for any similar application were a hole is needed in thin,such as the plastic sheet,non abrasive or metallic material, paper, thermoplastic, plastic foam…
Specification
Product Name: Hollow Paper Drill
Feature: Straight Shank(need to be screwed)
Main Color:Silver
Shank Diameter: 11mm
|

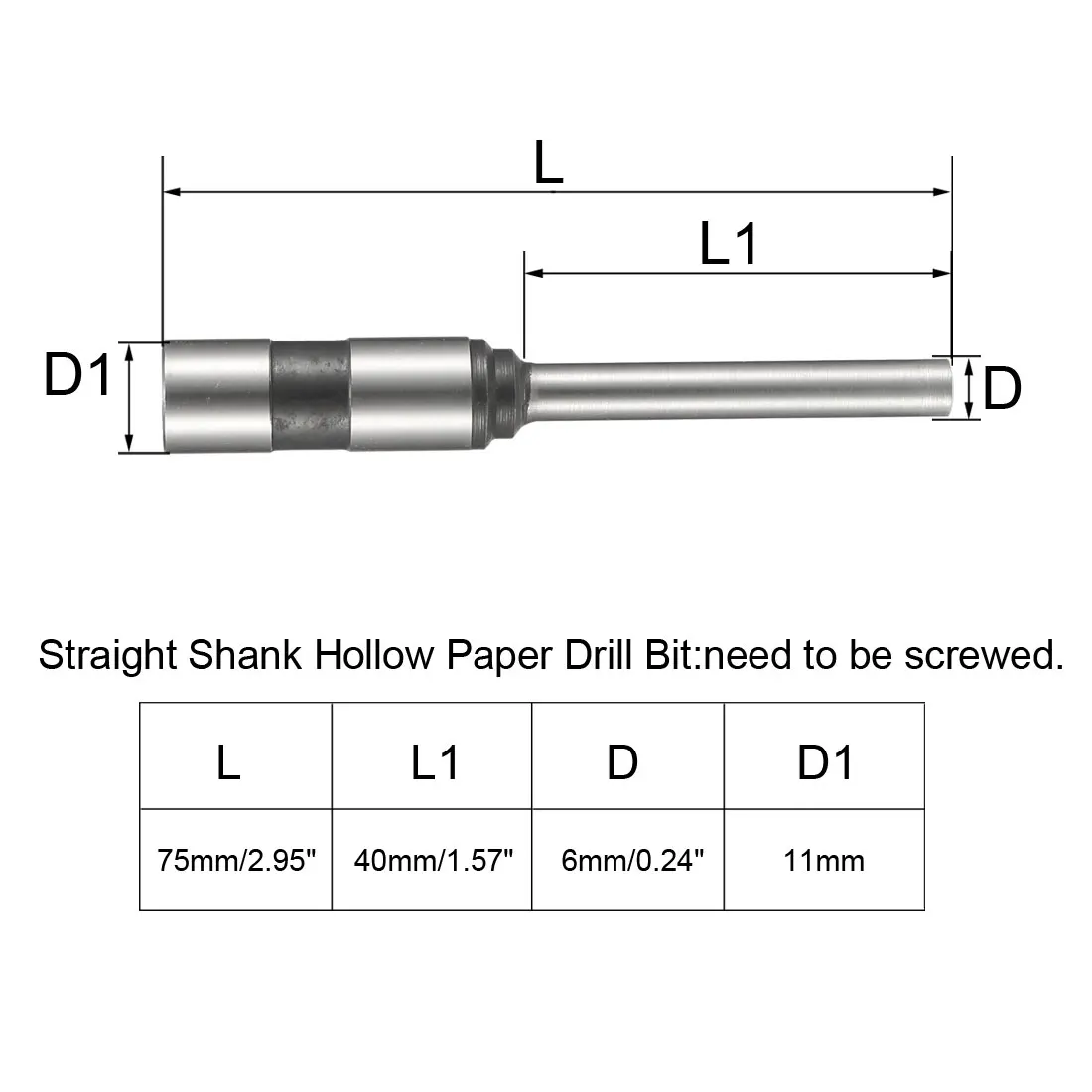

Punching Diameter |
Punching Length |
Total Length |
|
2.5mm/0.1″ |
21mm/0.83″ |
65mm/2.56″ |
|
3mm/0.12″ |
29mm/1.14″ |
70mm/2.75″ |
|

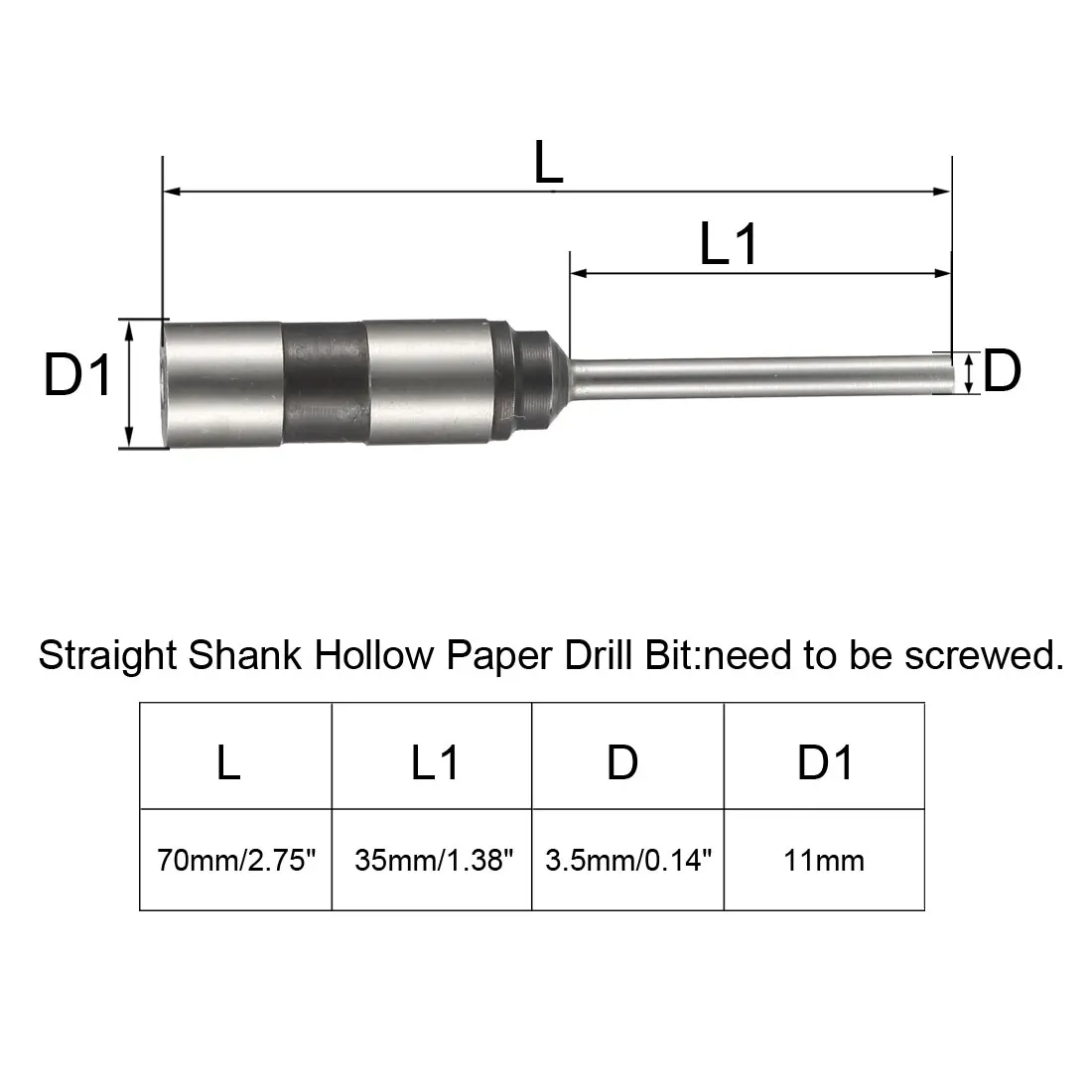

3.5mm/0.14″ |
33mm/1.3″ |
70mm/2.75″ |
|
4mm/0.16″ |
35mm/1.38″ |
70mm/2.75″ |
|
4.5mm/0.18″ |
34mm/1.34″ |
70mm/2.75″ |
|
5mm/0.2″ |
39mm/1.53″ |
75mm/2.95″ |
|

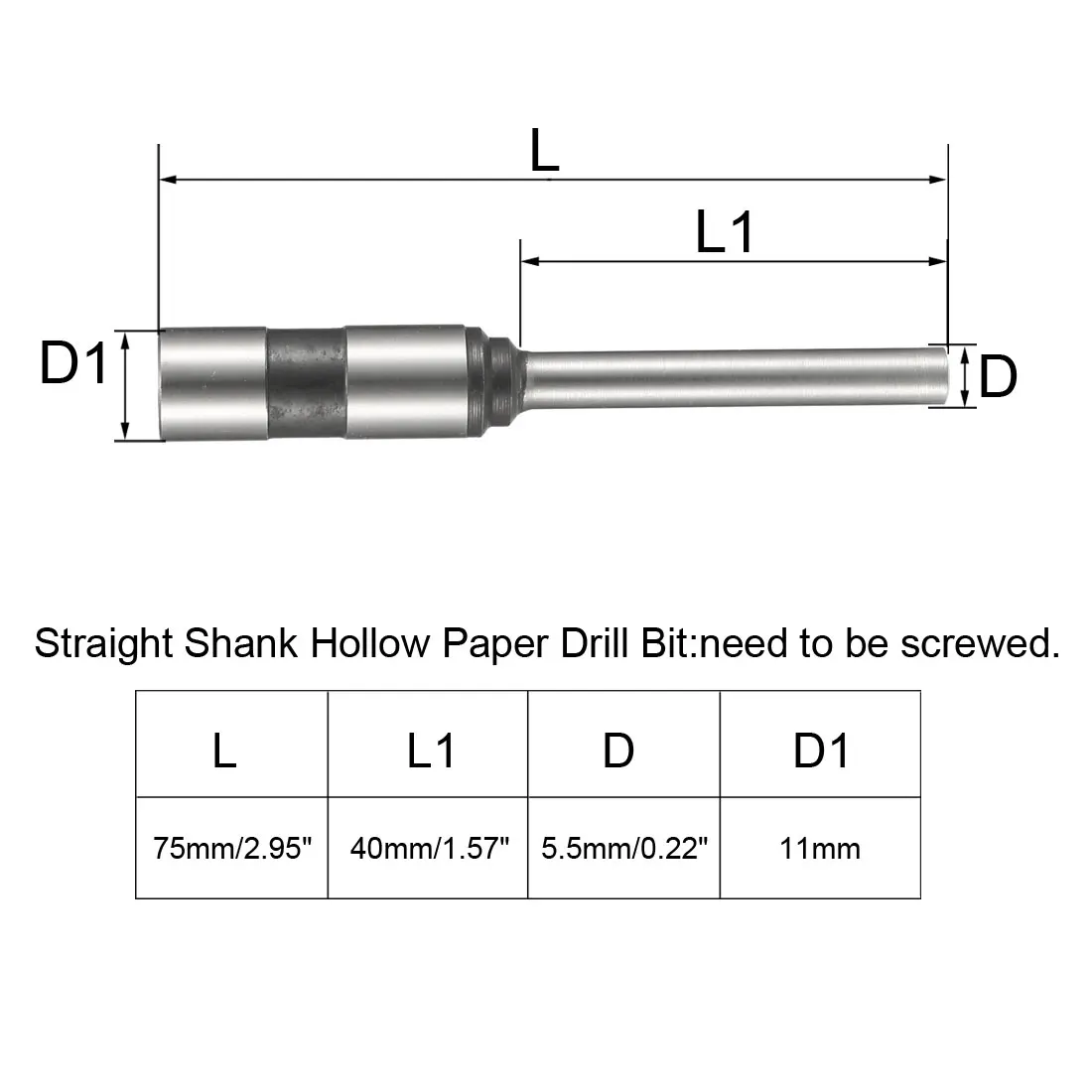

5.5mm/0.22″ |
40mm/1.57″ |
75mm/2.95″ |
|
6mm/0.24″ |
40mm/1.57″ |
75mm/2.95″ |
|
7mm/0.27″ |
40mm/1.57″ |
75mm/2.95″ |
|

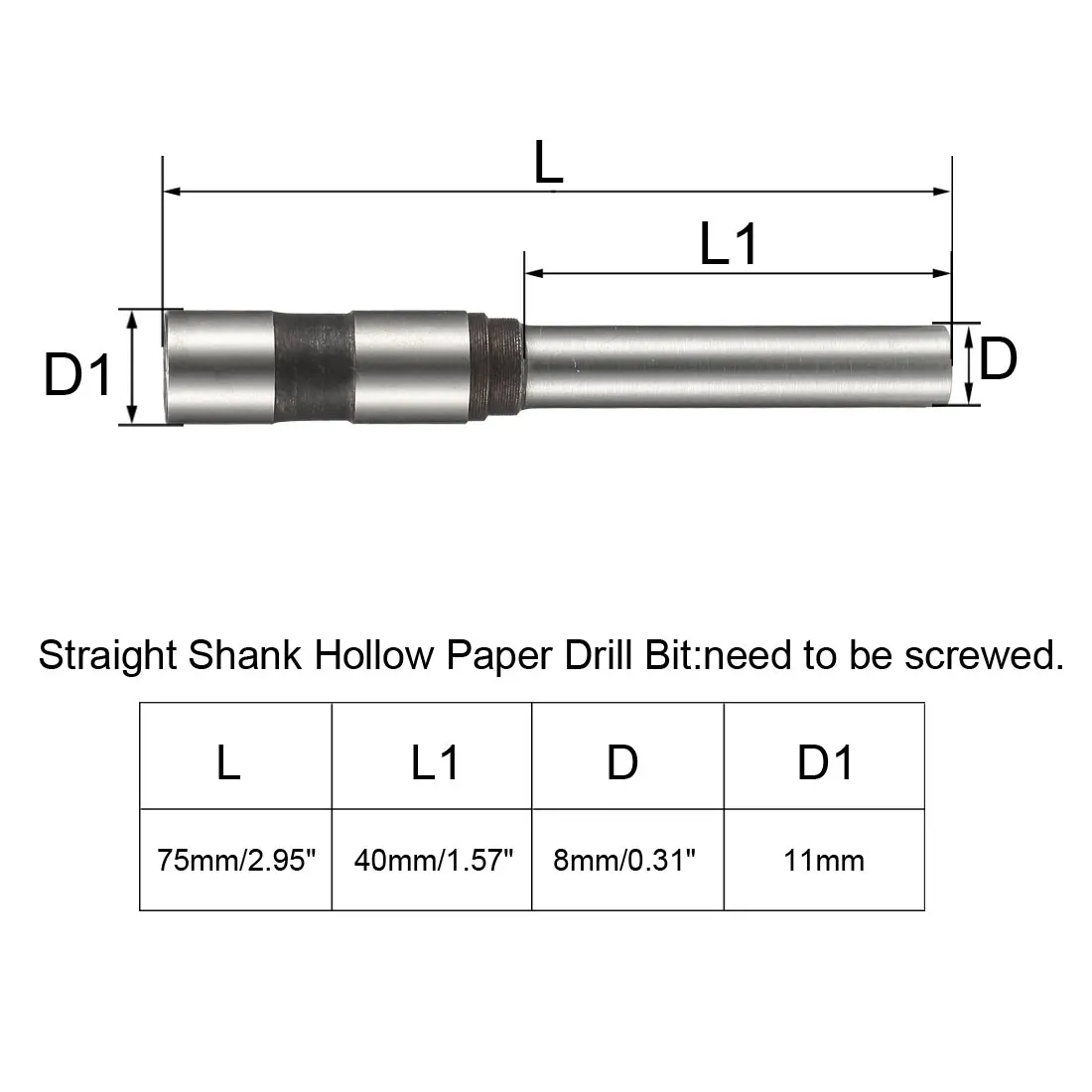

8mm/0.31″ |
40mm/1.57″ |
75mm/2.95″ |
Package Content:
1pcs x Hollow Paper Drill
Additional information
| Hole Diameter | 5Mm, 4Mm, 3.5Mm, 3Mm, 2.5Mm, 8Mm, 6Mm, 7Mm, 5.5Mm, 4.5Mm |
|---|
