12V DC Geared Motor Kit 66-960RPM Micro DC Reduction Motor for DIY Project with PWM Controller,Flange Coupling, Mounting Bracket

  • SKU: N/A
12V DC Geared Motor Kit 66-960RPM Micro DC Reduction Motor for DIY Project with PWM Controller,Flange Coupling, Mounting Bracket
Roll over image to zoom in
Click to open expanded view

100,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

Description
  • Product Name: Geared Motor Kit
  • Commutation: Brush
  • Rotation Direction: CW/CCW
  • Features:

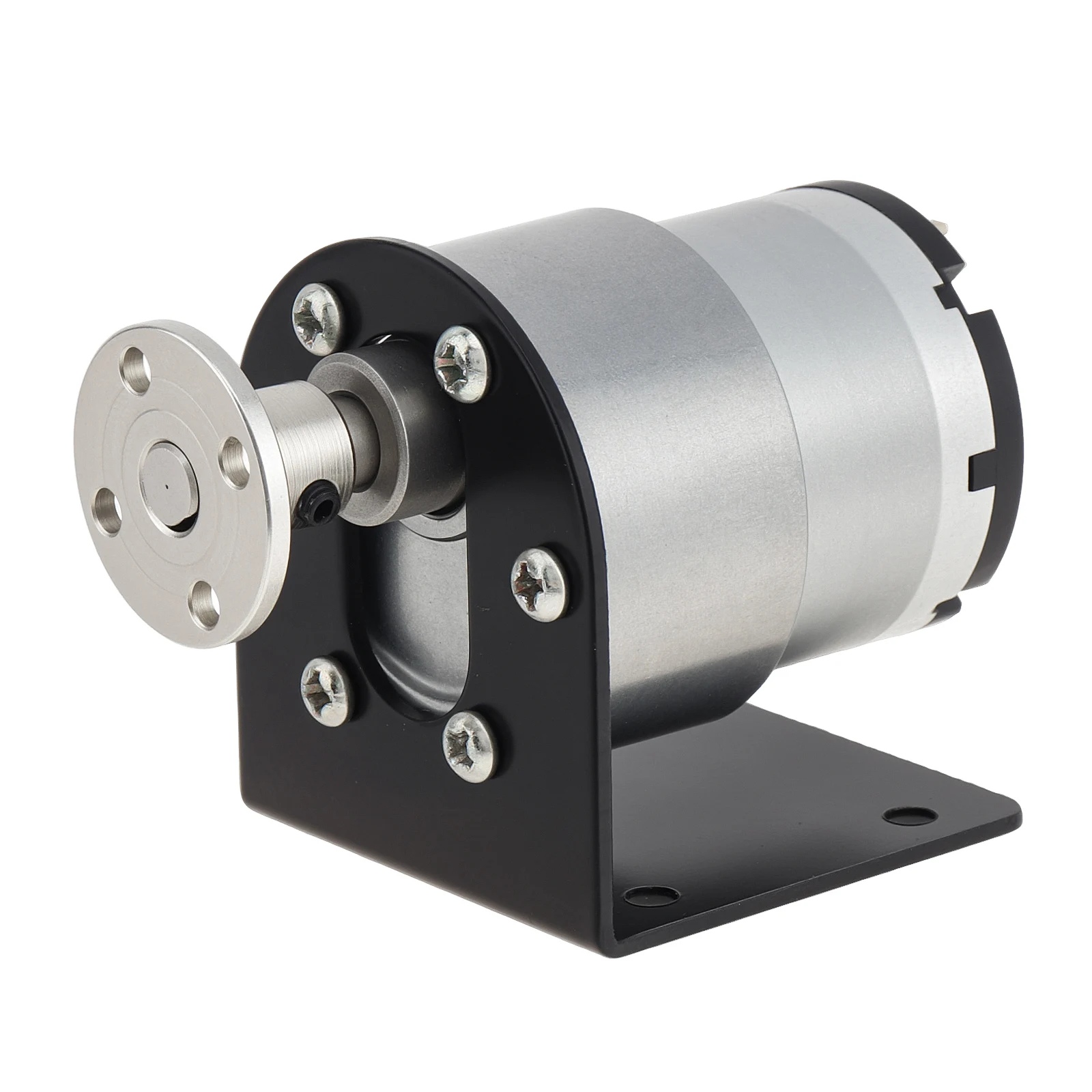

    – DC Geared Motor: DC reduction motor is made of zinc alloy housing and all metal gearbox, built in pure copper coil, ensuring greater torque and longer service life; The D-shaped output shaft offers good toughness and impact resistance, making the large torque reduction motor extremely durable; This reduction motor has the characteristics of low energy consumption and high safety; Its voltage is DC 12V, no-load speed is 600rpm, load torque is 0.5kgf.cm, max. power up to 18W.

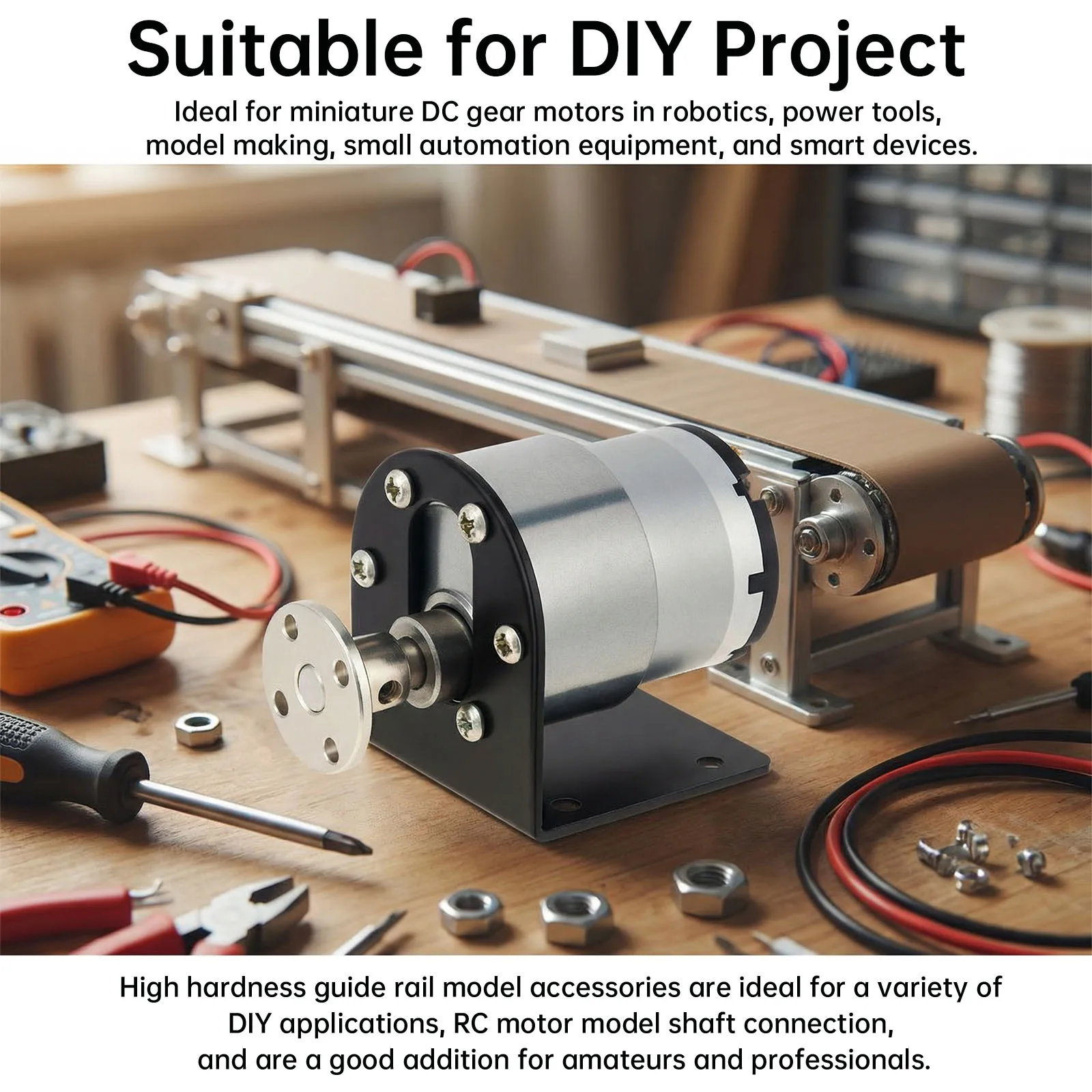

    – Widely Used: This micro geared motor and motor speed controllers are ideal for miniature DC gear motors in robotics, power tools, model making, small automation equipment, and smart devices; high hardness guide rail model accessories are ideal for a variety of DIY applications, RC motor model shaft connection, and are a good addition for amateurs and professionals.

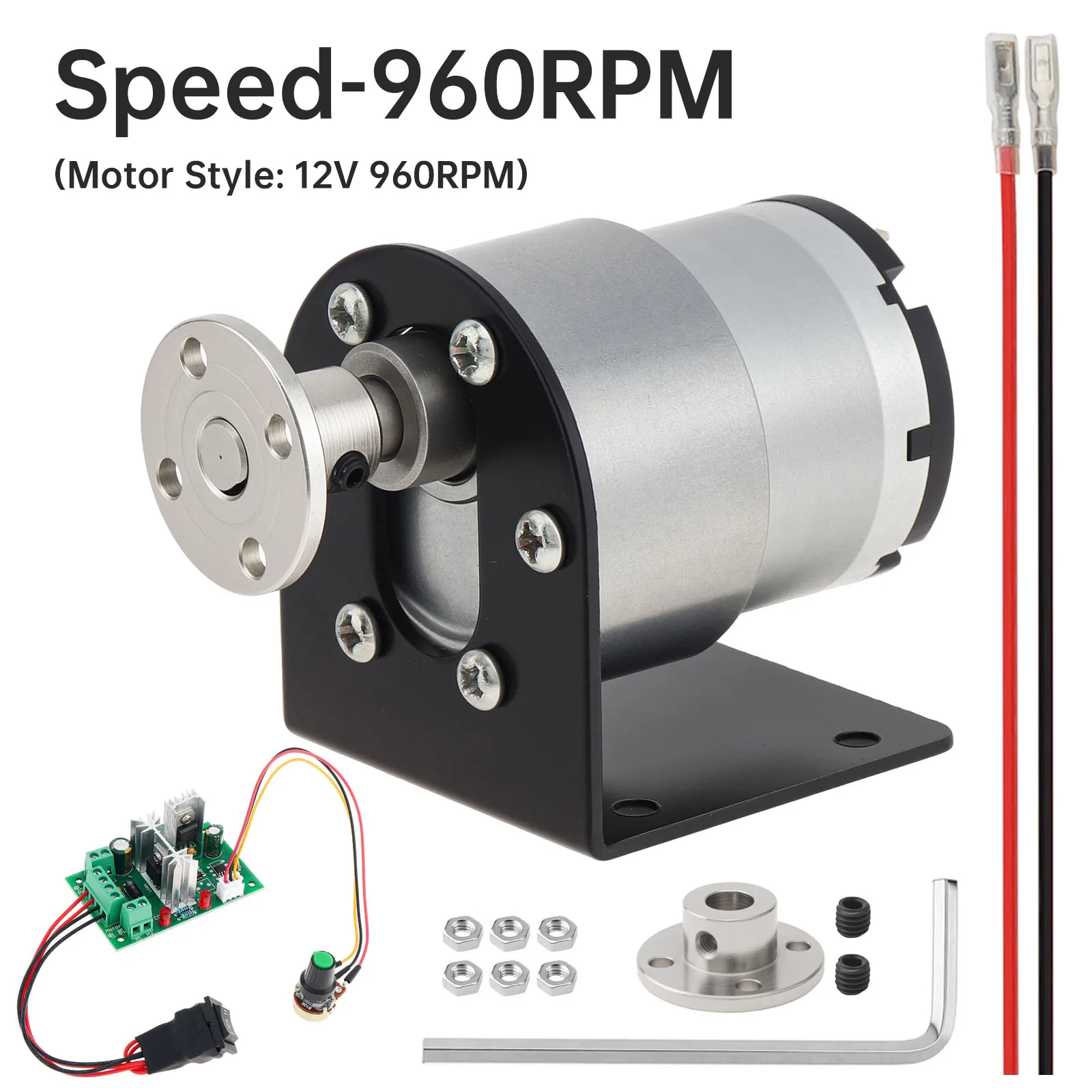

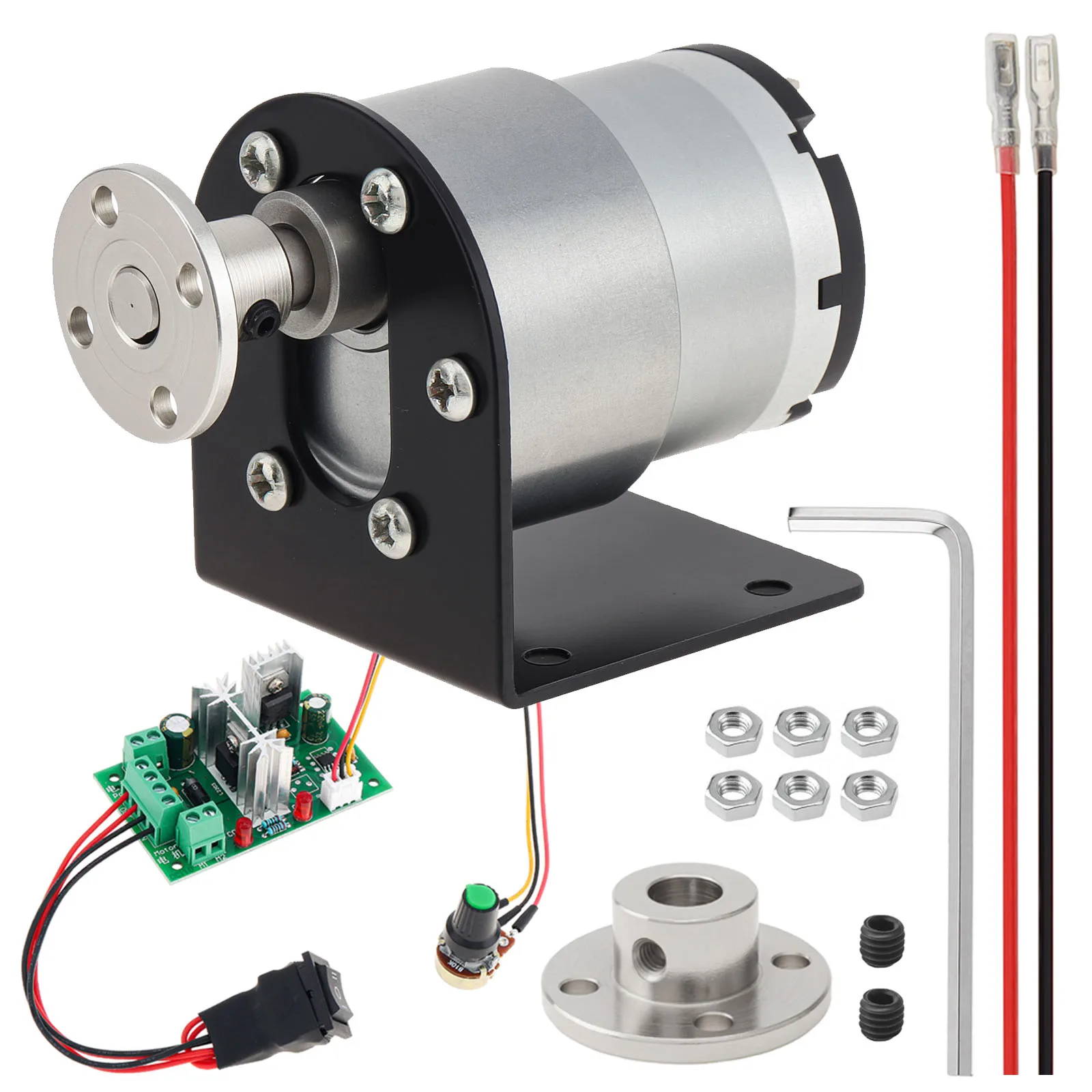

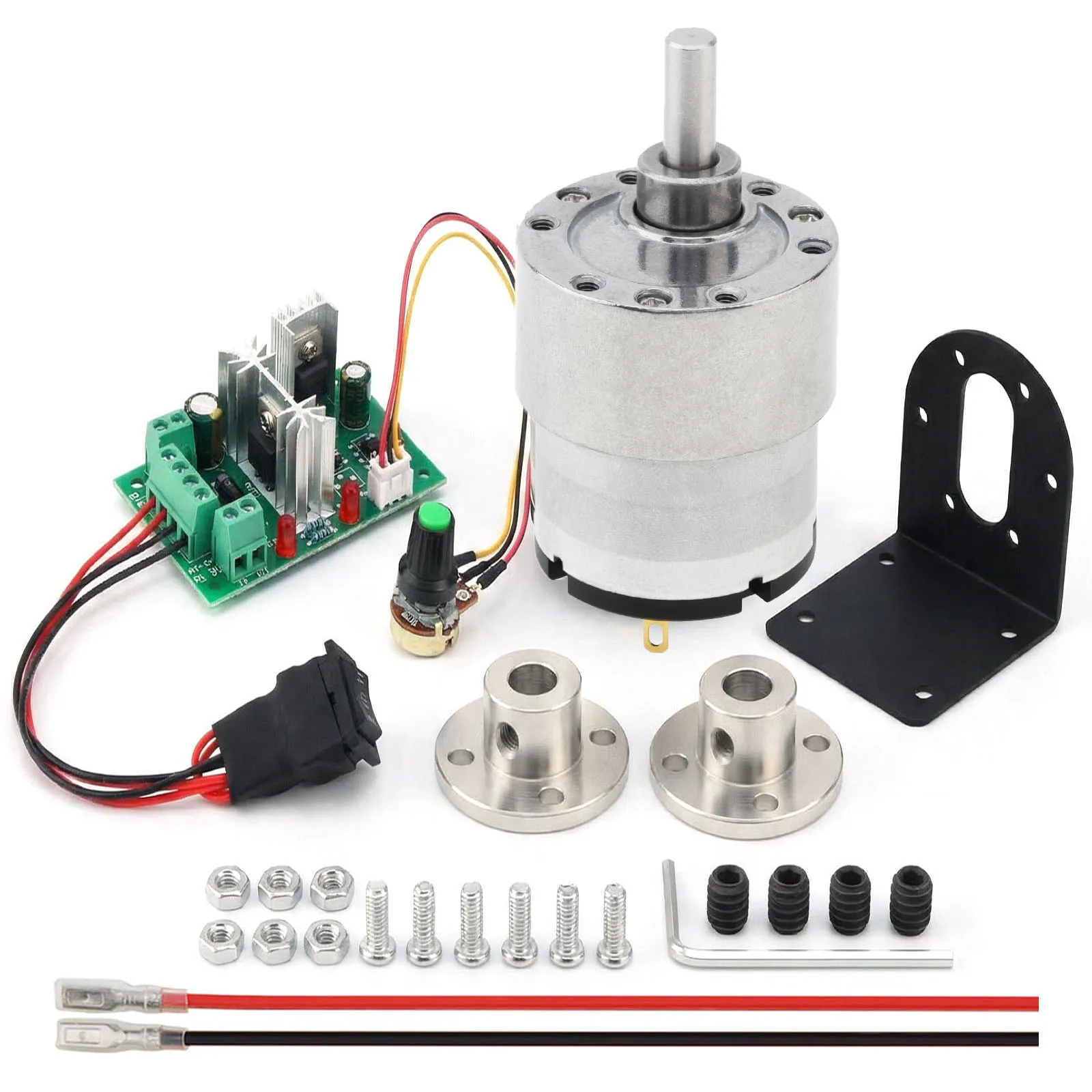

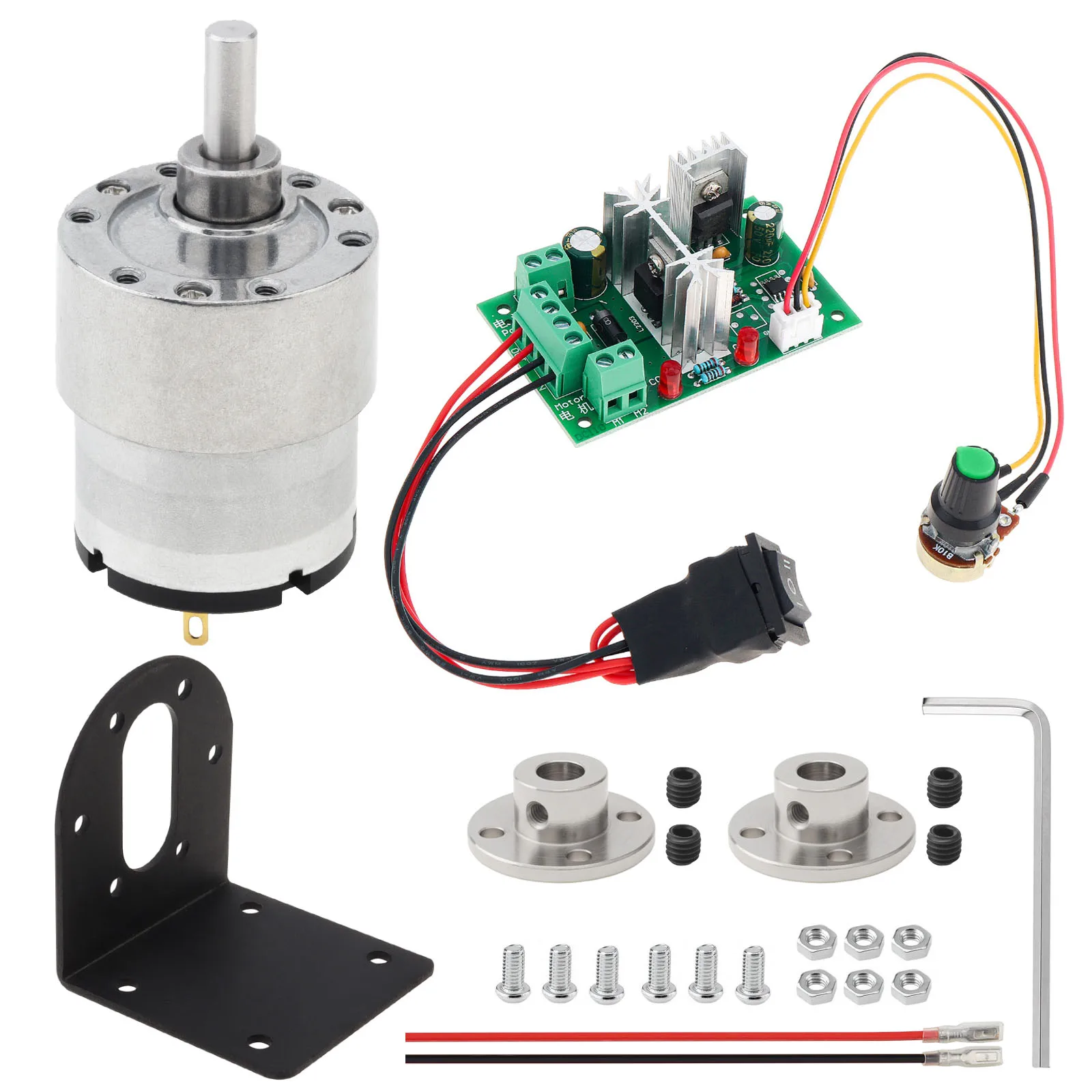

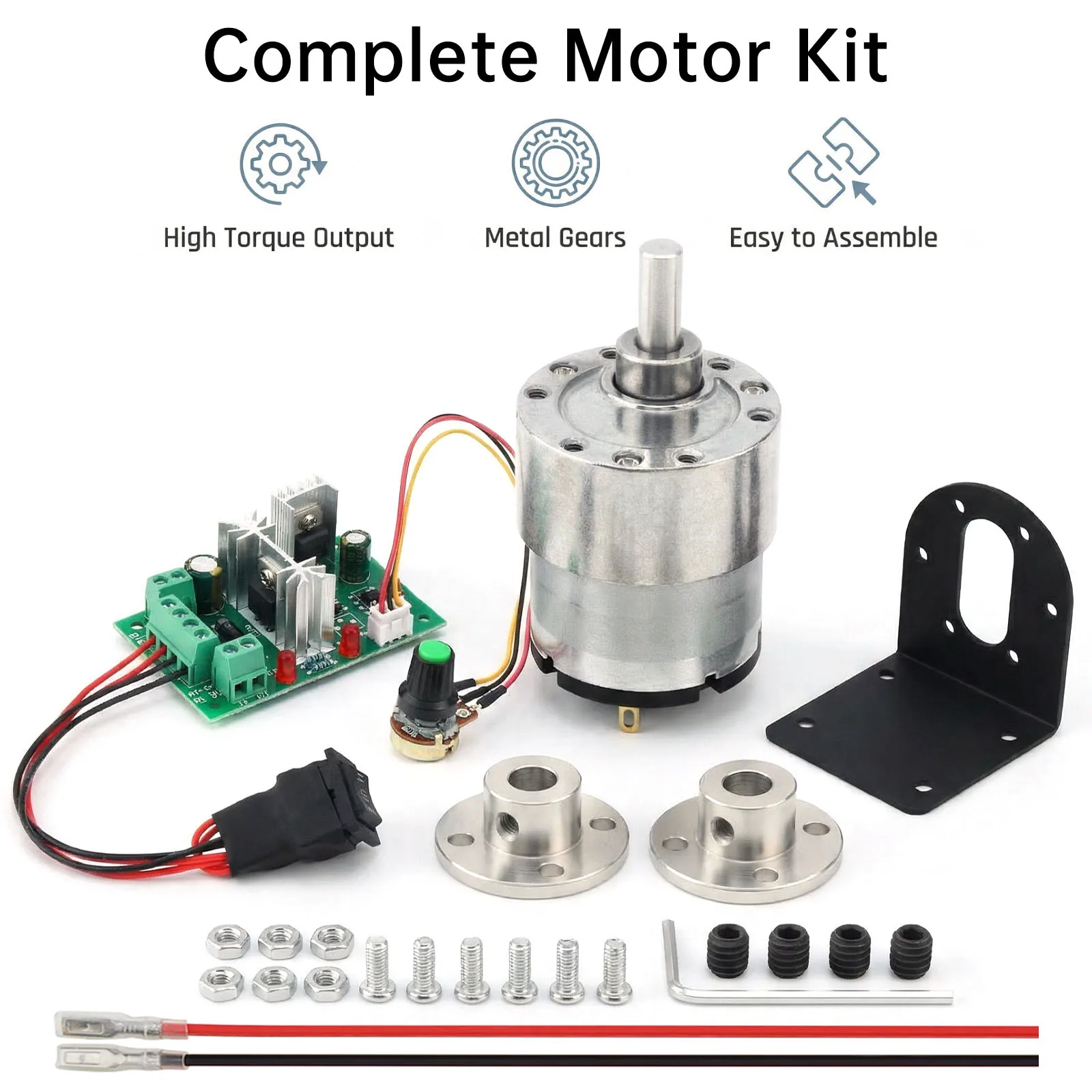

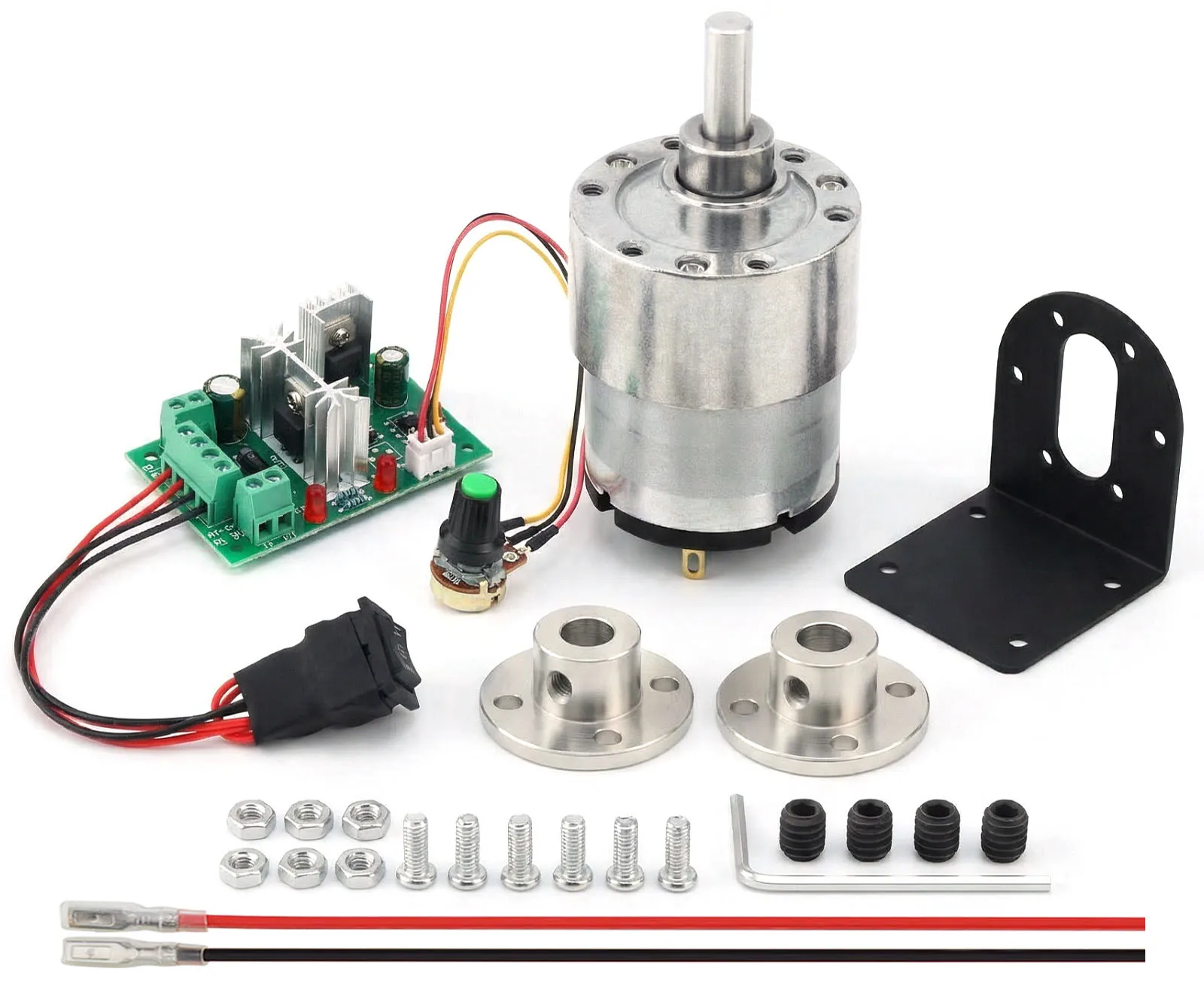

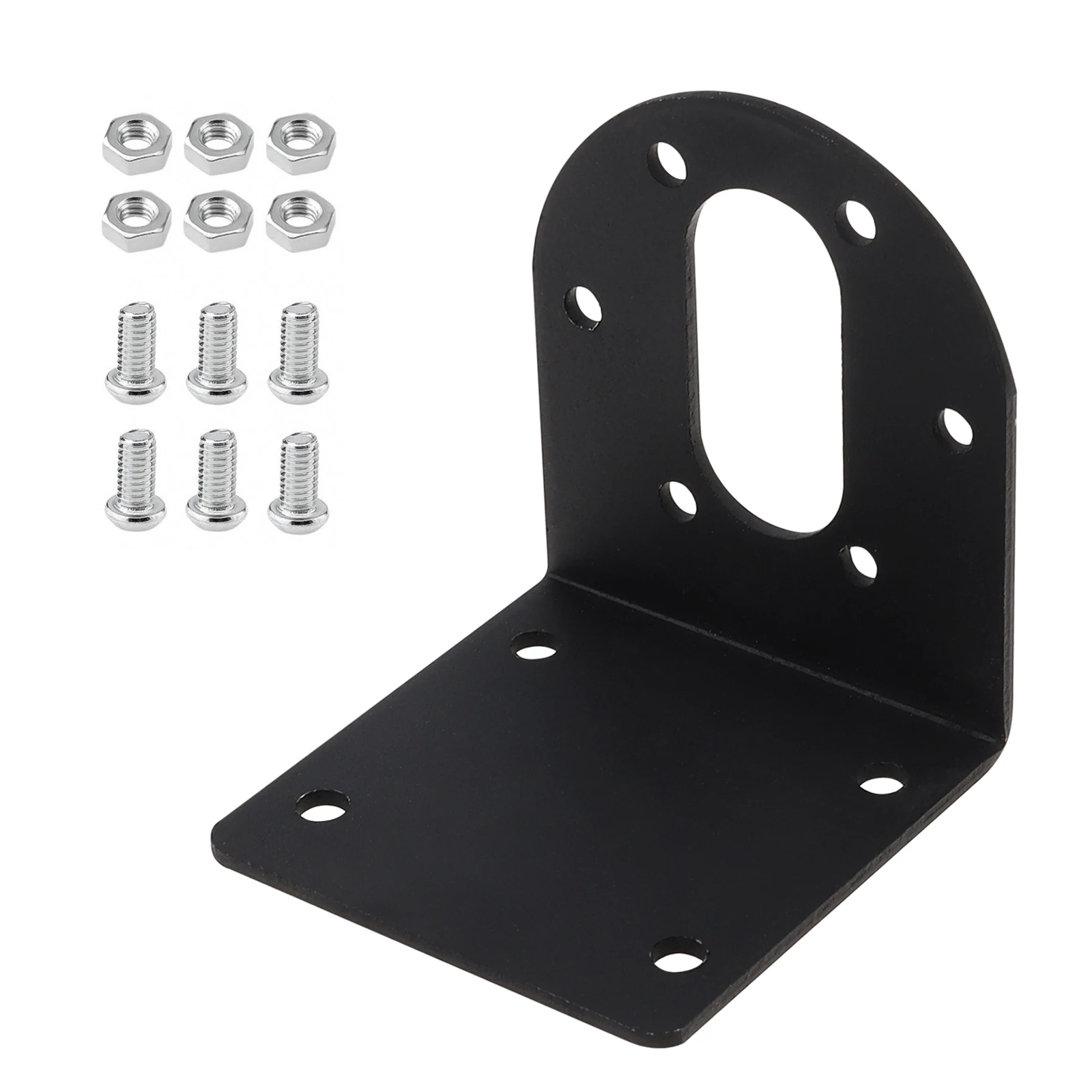

    – Complete Installation Kit. This kit includes: 1pc gear motor, , 1pc DC motor speed controller, 2 pcs flange coupling, 1pc motor bracket, 1 pc wrench and all necessary mounting screws. Sufficient quantity to meet your daily use and replacement needs.

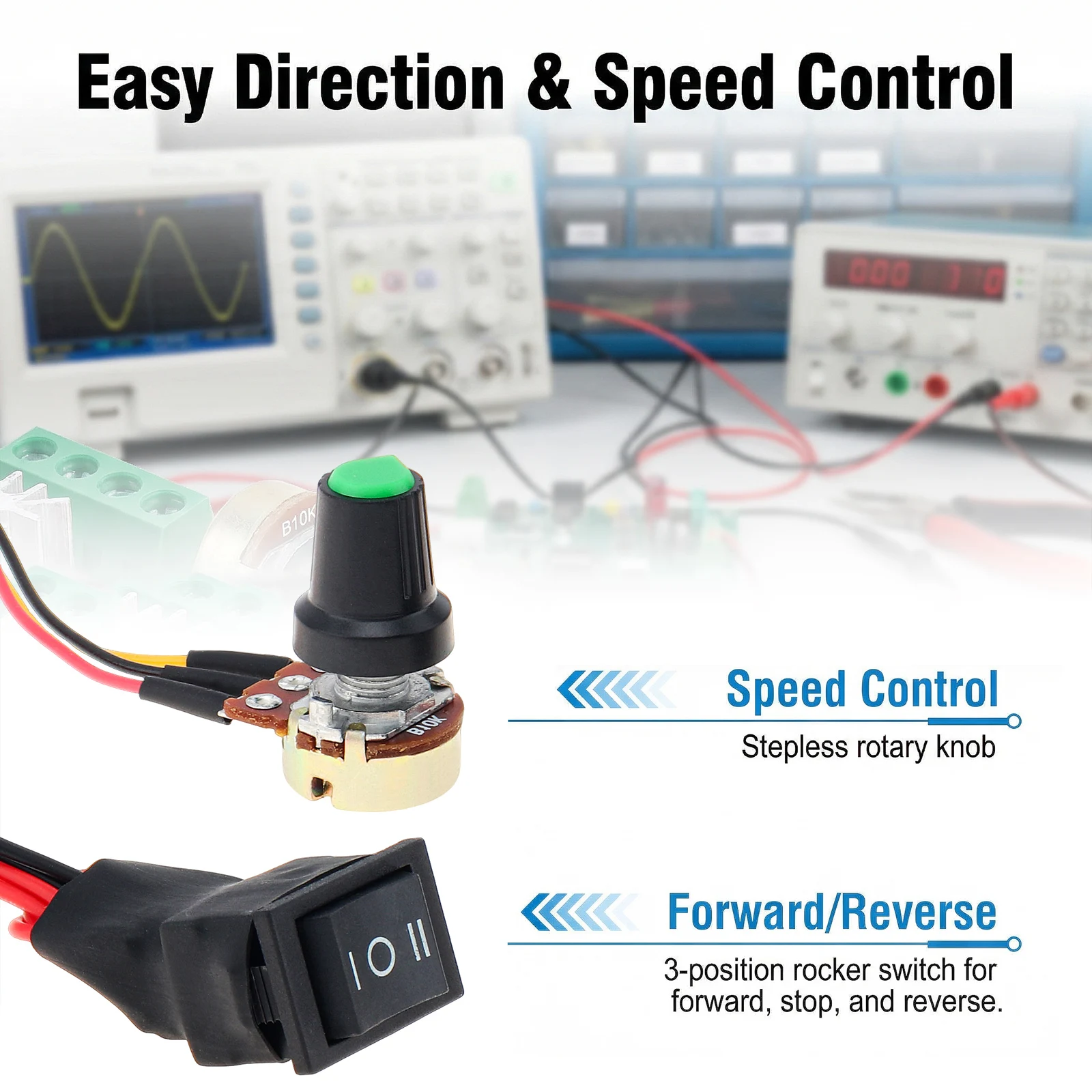

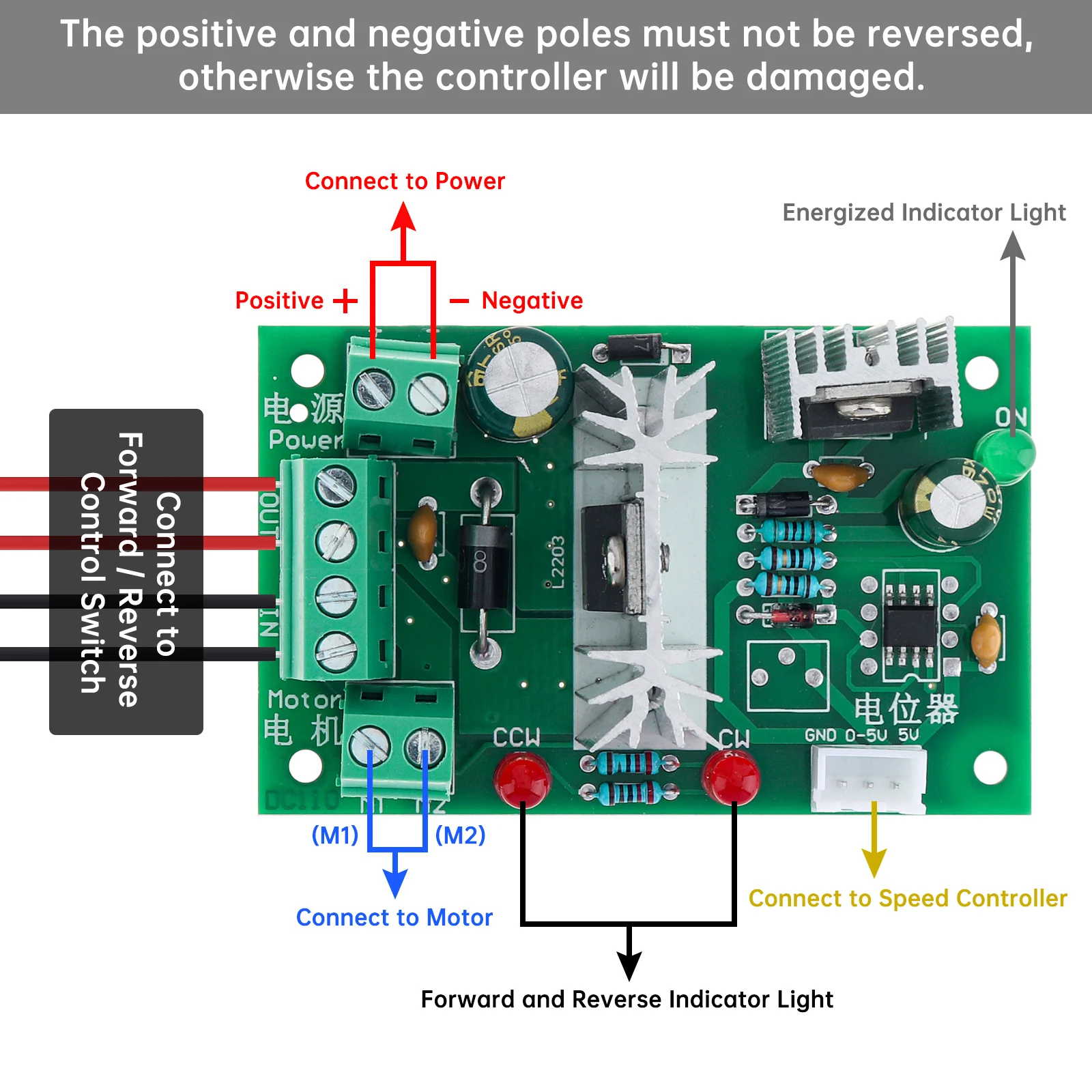

    – DC PWM Motor Speed Controller: The DC motor speed regulator has an operating voltage of 6V-30V DC, a rated current of 6A, maximum current up to 10A, maximum power up to 200W, and a speed regulation range of 0 to 100 percent; PWM frequency is 16 KHz, support PLC / MCU control, can be externally controlled for speed regulation via 0-5V signal; Easy to use, stable performance, high efficiency, and low noise.

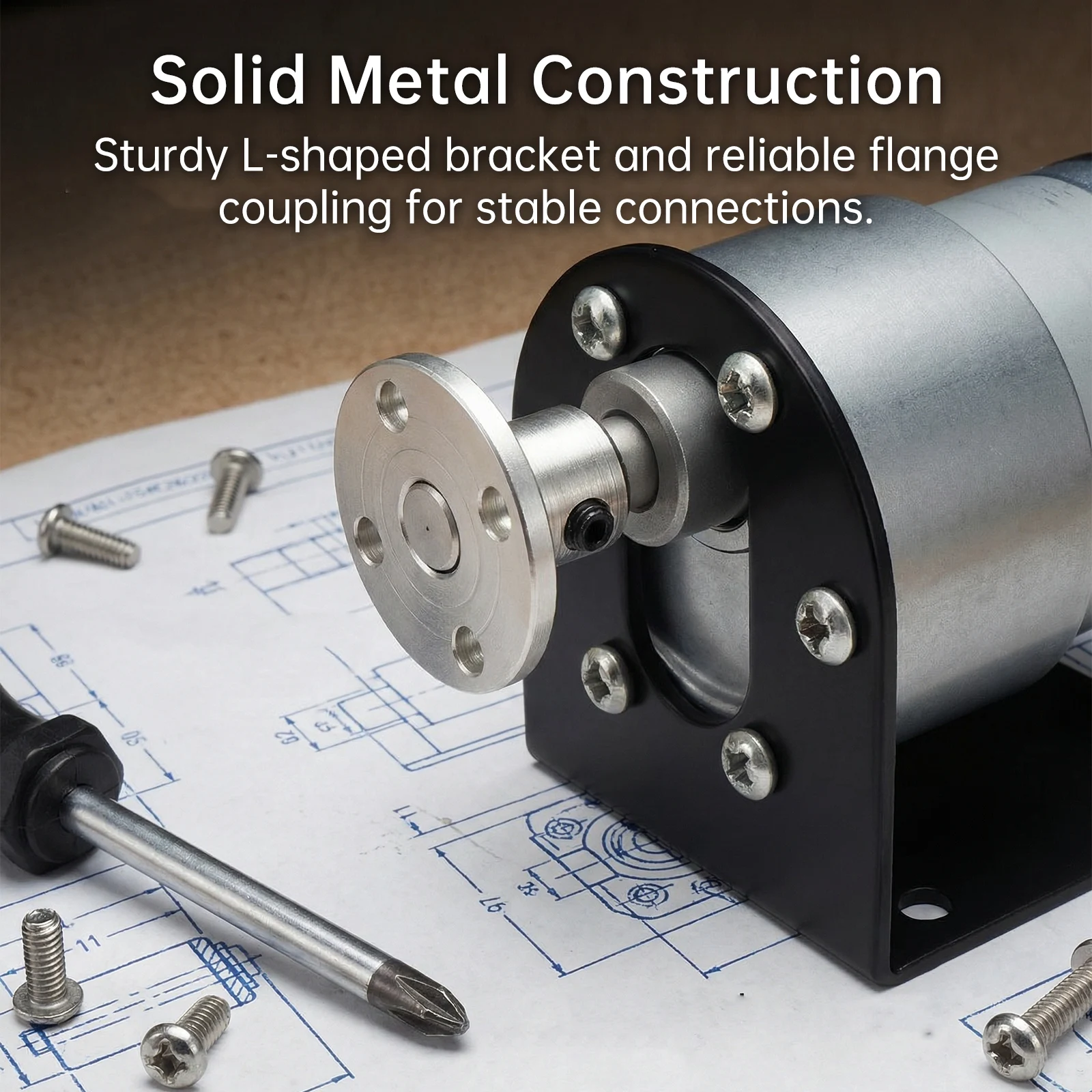

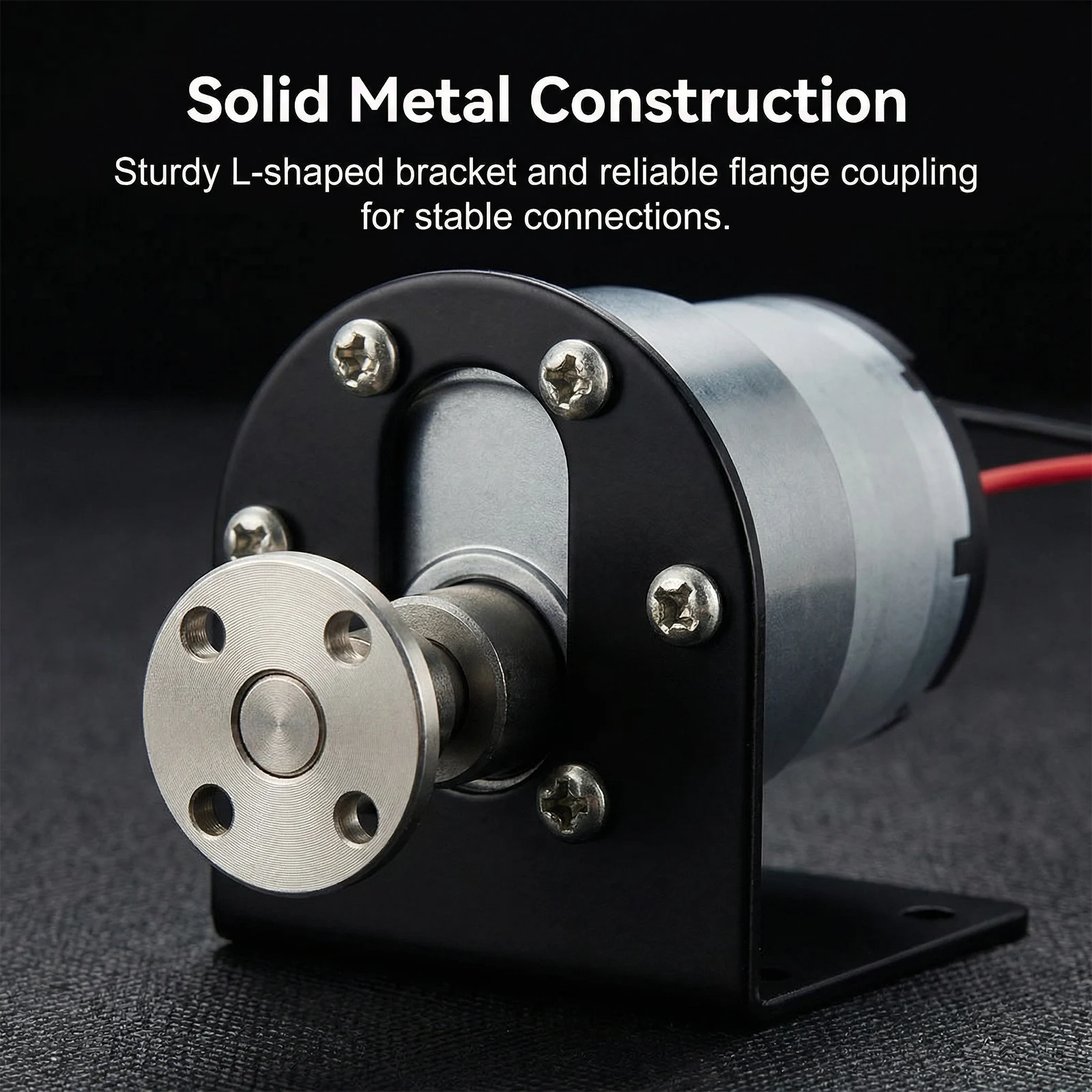

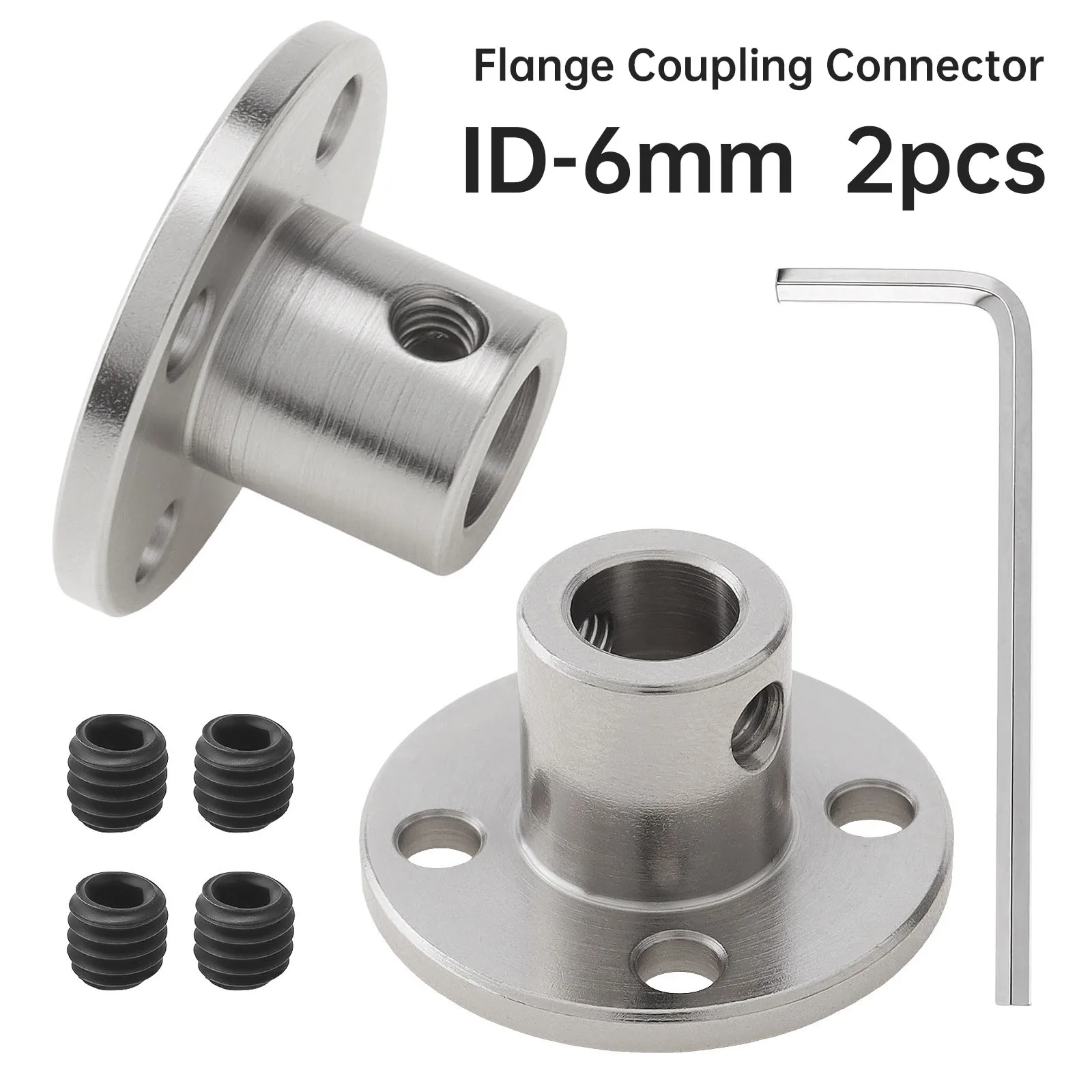

    – Flange Coupling Connector: The rigid flange coupling inner diameter is 6mm/0.24inch; It is made of carbon steel for excellent strength, durability, and wear resistance; The flange coupling is made with high-precision technology, which can achieve flat installation, and ensuring a tight connection between the two axes, prevent the model machine from falling off during work.

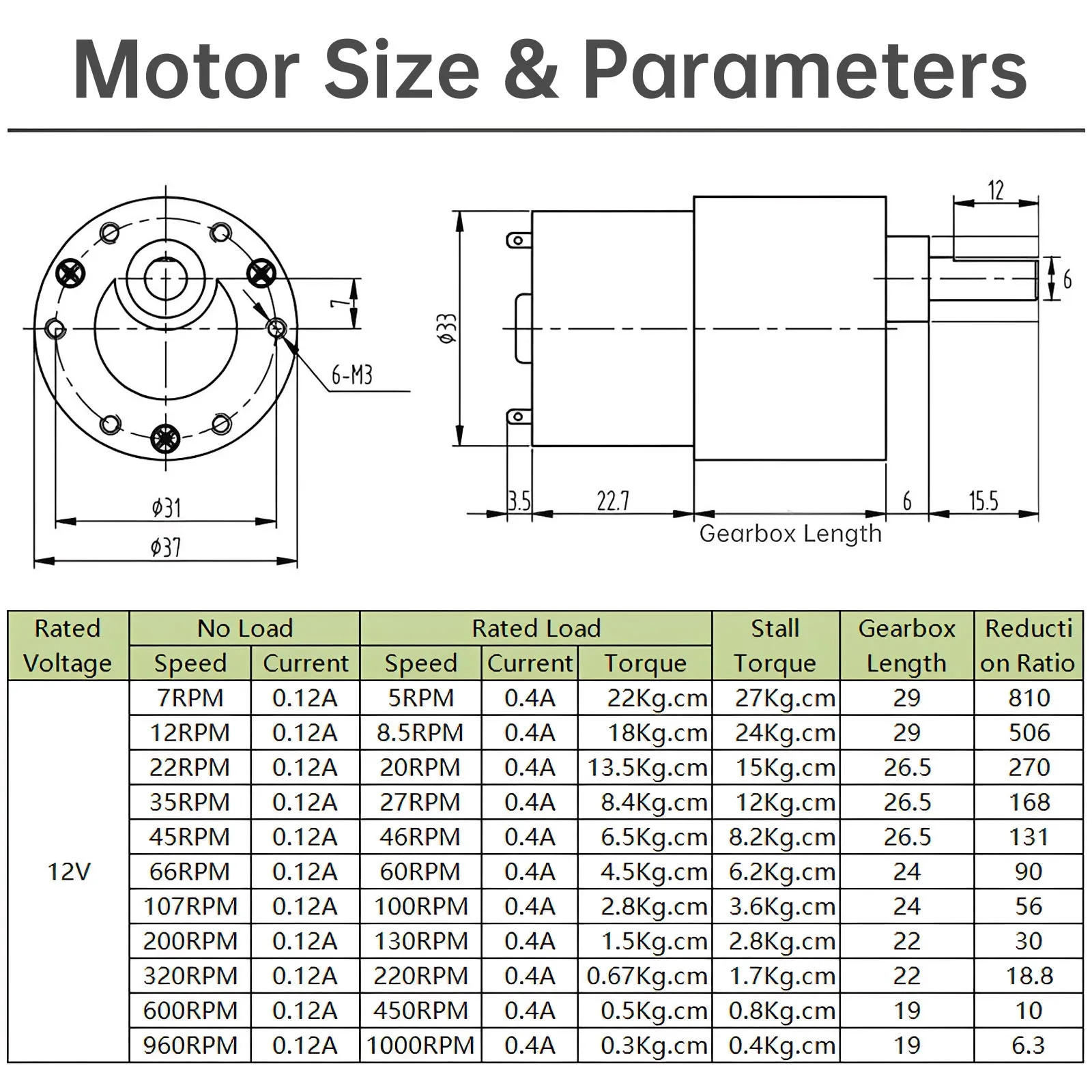

  • Motor Model: 37GB-520
    Motor Type: DC Geared Motor
    Rated Voltage: 12V DC
    No Load Speed: 66RPM, 107RPM, 200RPM, 319RPM, 600RPM, 960RPM
    No Load Current: 0.15A
    Working Current: 0.5A
    Torque: 0.5kg.cm
    Max. Power: 18W

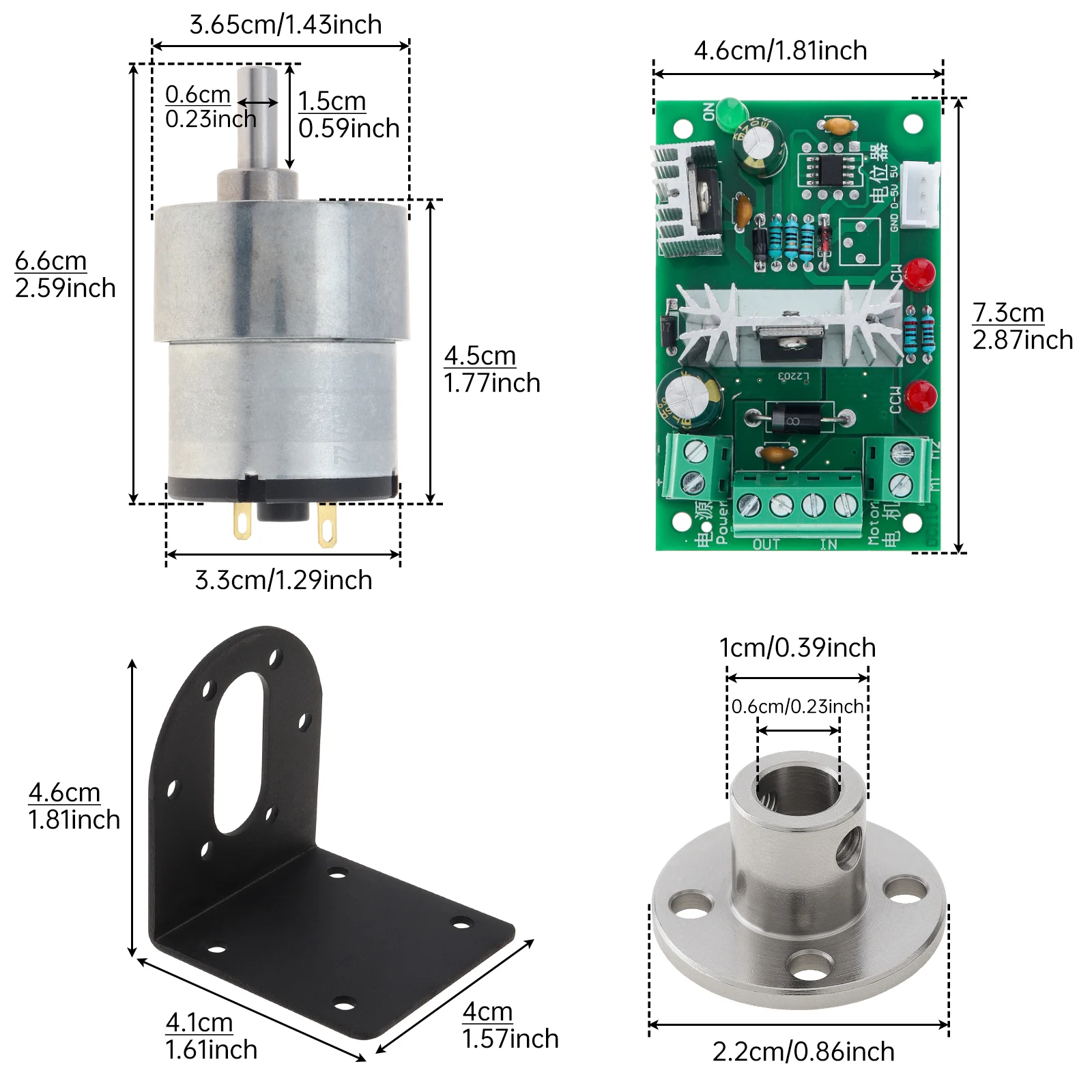

    Shaft Diameter: 6mm (D-shaft 5.4mm)
  • PWM Controller Model: CCM6N
    PWM Frequency: 16KHz
    Working Voltage: 6V – 30V DC
    Output Voltage: 0 – 100per cent of input voltage
    Rated Current: 6A
    Maximum Current: 10A
    Adjustable Speed Range: 0 – 100 percent
  • Product Weight: 299 G / 10.55 Ounces
  • Product Dimensions (L*W*H): 13.0*7.0*4.0 CM / 5.12*2.76*1.57 Inches
  • Package Weight: 300.0 G / 10.58 Ounces
  • Package Dimensions (L*W*H): 14.0*7.0*4.0 CM / 5.51*2.76*1.57 Inches
  • Retail Packaging: Yes, Colored Box
Package include
  • Package Including:
  • 1 x Geared Motor Kit

Additional information

Speed(RPM)

960Rpm, 107Rpm, 600Rpm, 66Rpm, 319Rpm, 200Rpm
Gear Count

Motor Kit
