28Mm High Precision High Torque Planetary Gear Reduction Box Speed Ratio 3-461 for CM28-385
Roll over image to zoom in

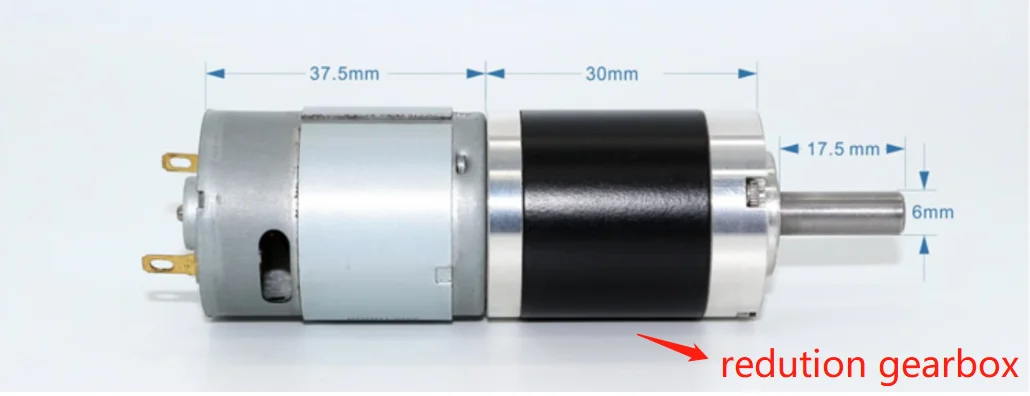

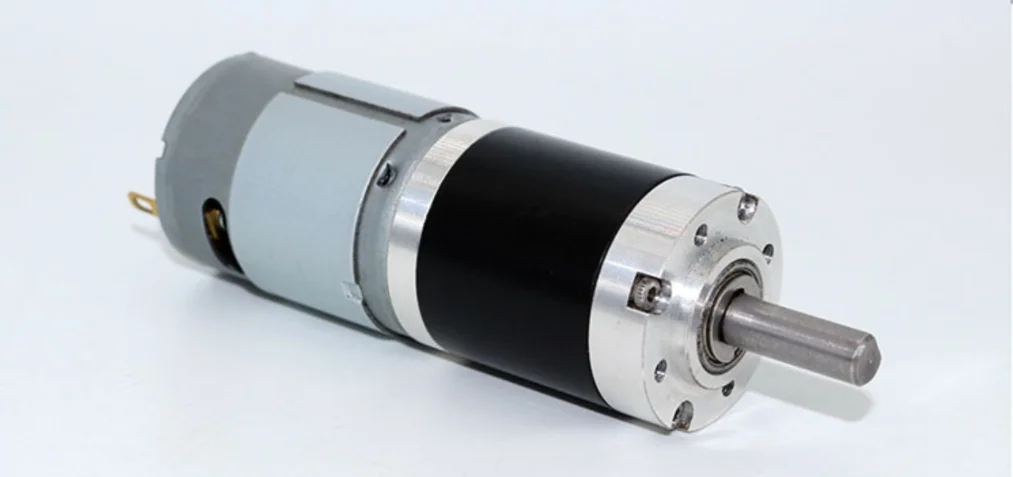

28mm High Precision High Torque planetary gear reduction box speed ratio 3-461 DC reduction motor gear box

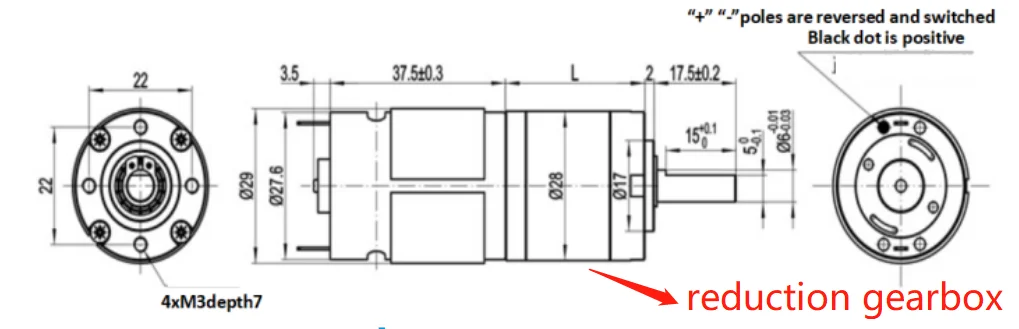

Dimensions：

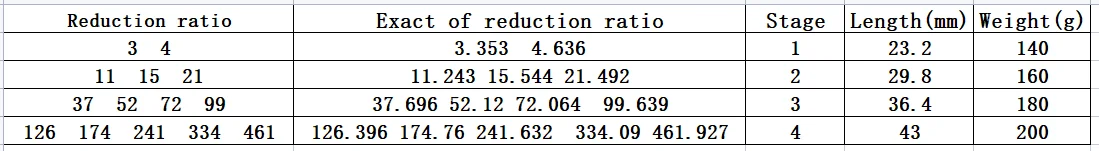

parameter：
The related product
which can match with CM28-385 Brushless gear motor
Scope of application
Mainly used in various industries, such as micro machinery, smart door locks, robots,
medical equipment, automatic equipment, CNC machine tools, high-precision measuring instruments, etc.

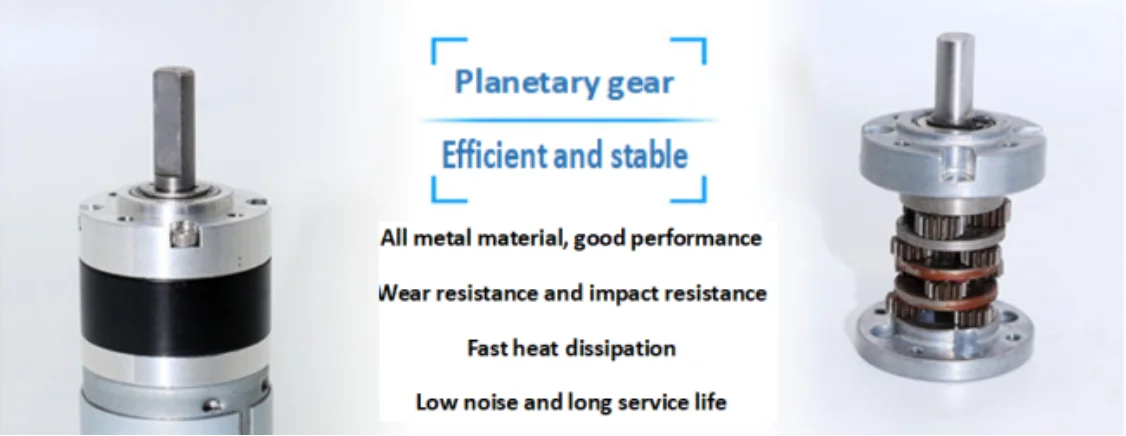

Planet wheel material :(1) powder metallurgy (2) plastic (3) metal (4) can be customized according to customer requirements
Specific size of output shaft can be customized according to customer’s actual requirements
Do not start the motor when assembling starting gear with first-stage gearsmso as to avoid damage to the first-stage gears.
Additional information
| Speed(RPM) | 1 To 37, 1 To 126, 1 To 241, 1 To 15, 1 To 461, 1 To 11, 1 To 99, 1 To 174, 1 To 3, 1 To 21, 1 To 72, 1 To 334, 1 To 4, 1 To 52 |
|---|---|
| Gear Count | Other |
