2P 4P 63A 125A ATS PV Dual Power Automatic Transfer Switch AC 230V 400V PC Class Auto Manual Sal Switches Circuit Breaker

Rated Voltage : 2P AC 220V / 4P AC400V 50/60HZ

Max Current: 63A/125A.

1. Dual power Automatic transfer switch can switch to Normal power or reserve power automatically. Please noted that the switch cant turn on or turn off the generator. This switch Normal power first. If normal power on, the switch will switch to Normal power. If normal power off, and reserve power on, the switch will switch to reserve power.

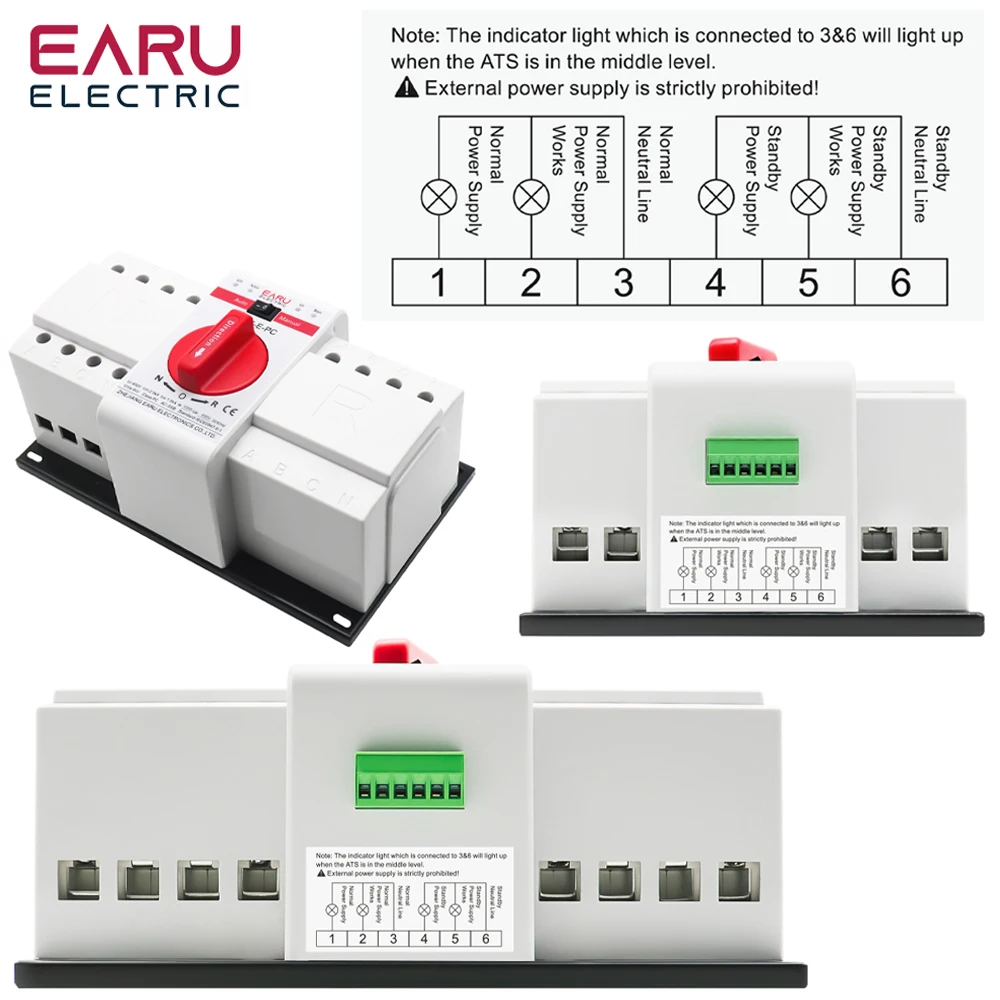

2.Wire

Press the button to Automatic, the switch will switch to Normal power or reserve power automatically.

Press the button to Manual, Then you have to switch the Direction manually.

1.Application

EAATS is terminal type automatic transfer device. Its suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A/125A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits.

The automatic transfer switch conforms to GB/T14048.11
