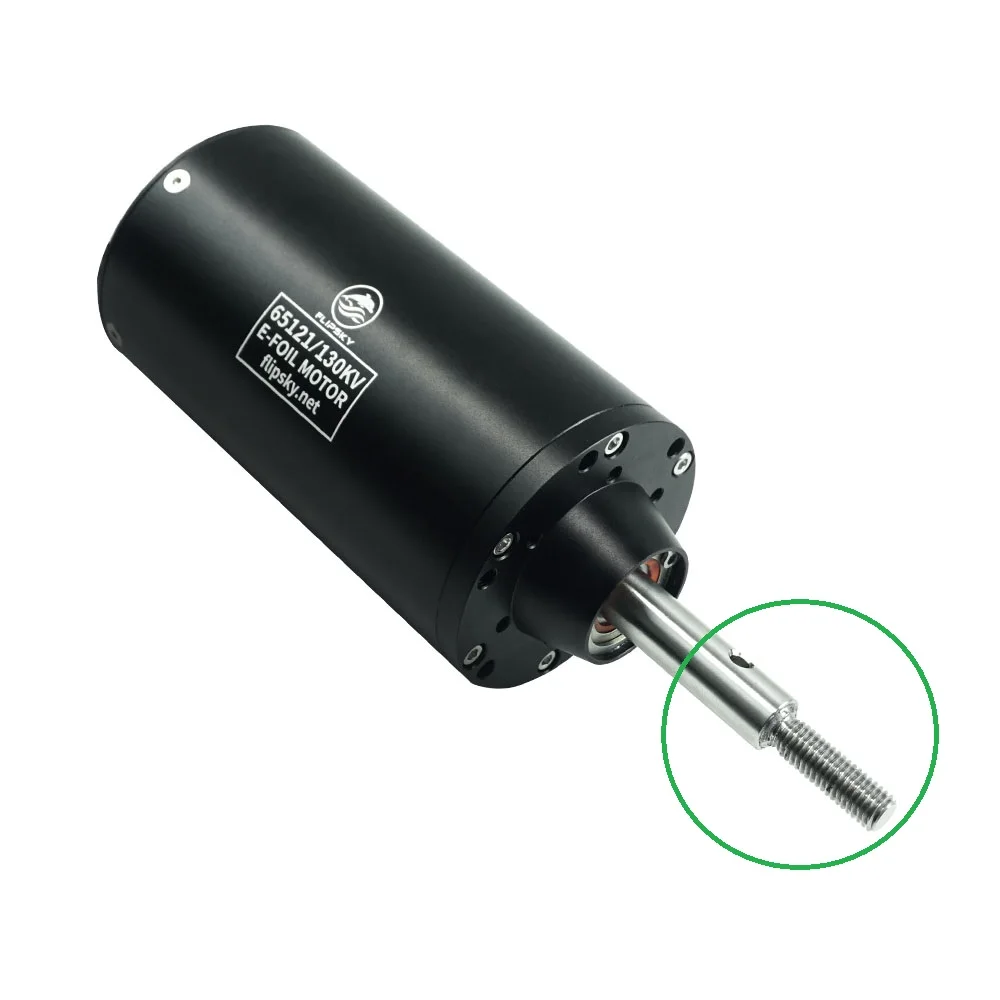

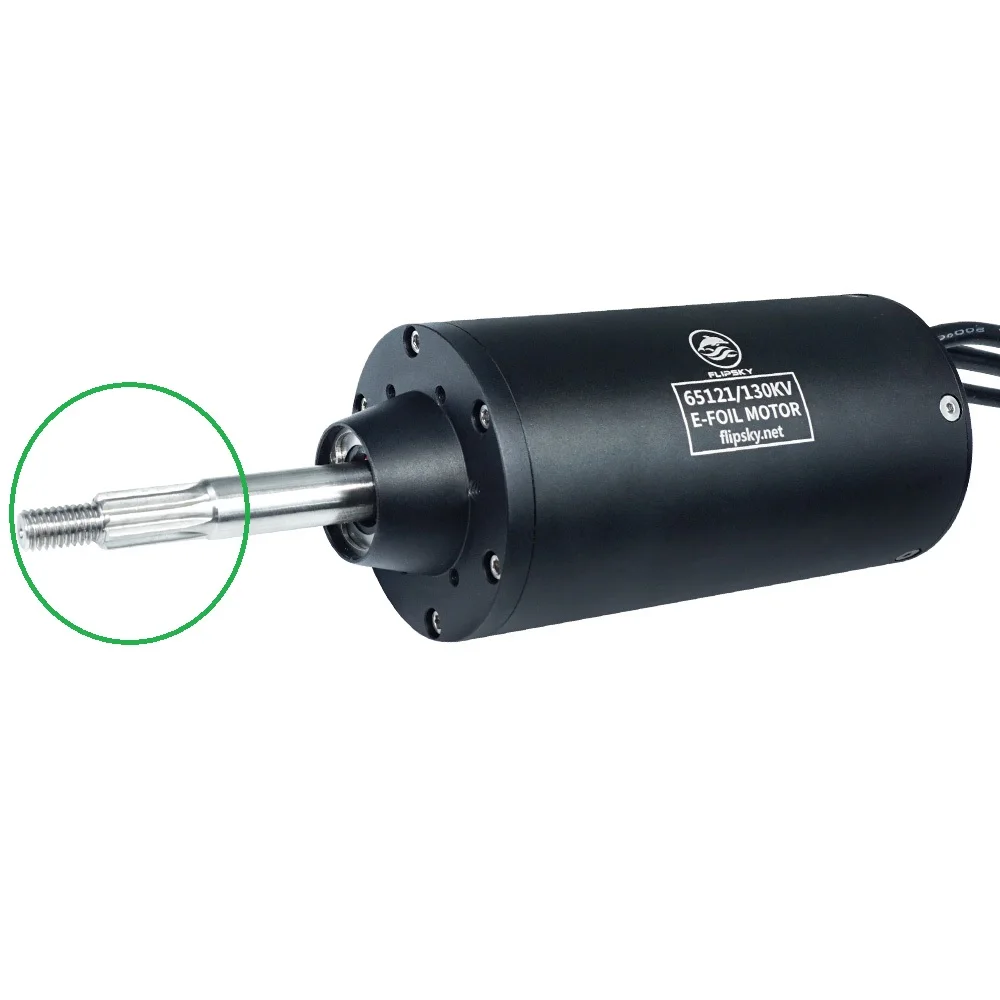

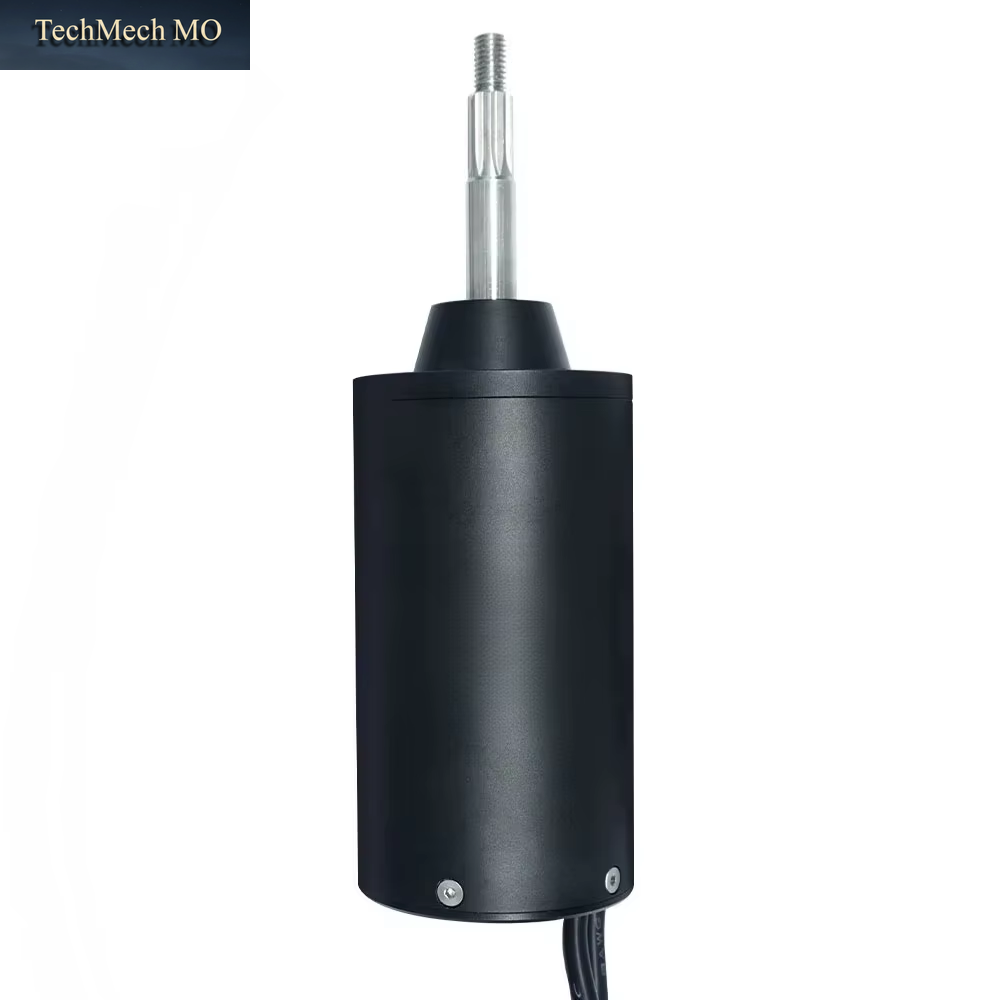

3700 Watt Brushless DC Motor 65121 130KV Spline Shaft round with Threaded Internal Thread for Underwater Hydrofoil

  • SKU: f09c5346-1c11-4610-b32a-b42c89369e34
3700 Watt Brushless DC Motor 65121 130KV Spline Shaft round with Threaded Internal Thread for Underwater Hydrofoil
Roll over image to zoom in
Click to open expanded view

2.604,99 €

Sold By: MostiOne Team

20 in stock

SKU: f09c5346-1c11-4610-b32a-b42c89369e34 Category:

3700W Brushless DC Motor 65121 130KV Splined Shaft Round With Thread Inrunner For Underwater Thruster Hydro Efoil

  • Voltage range: 6-20S (25.2-84V)
  • Max power: 3700W; Continuous power: 2000W
  • Peak current: 100A;
  • Motor KV: 130KV
  • Size: OD65*L121mm
  • Shaft diameter: 12mm*m8
  • Max output torque:5.5N*M
  • Waterproof rate: IP68
  • Connectors:8mm plug
  • Weight:1.62KG
  • Structure:18N/P

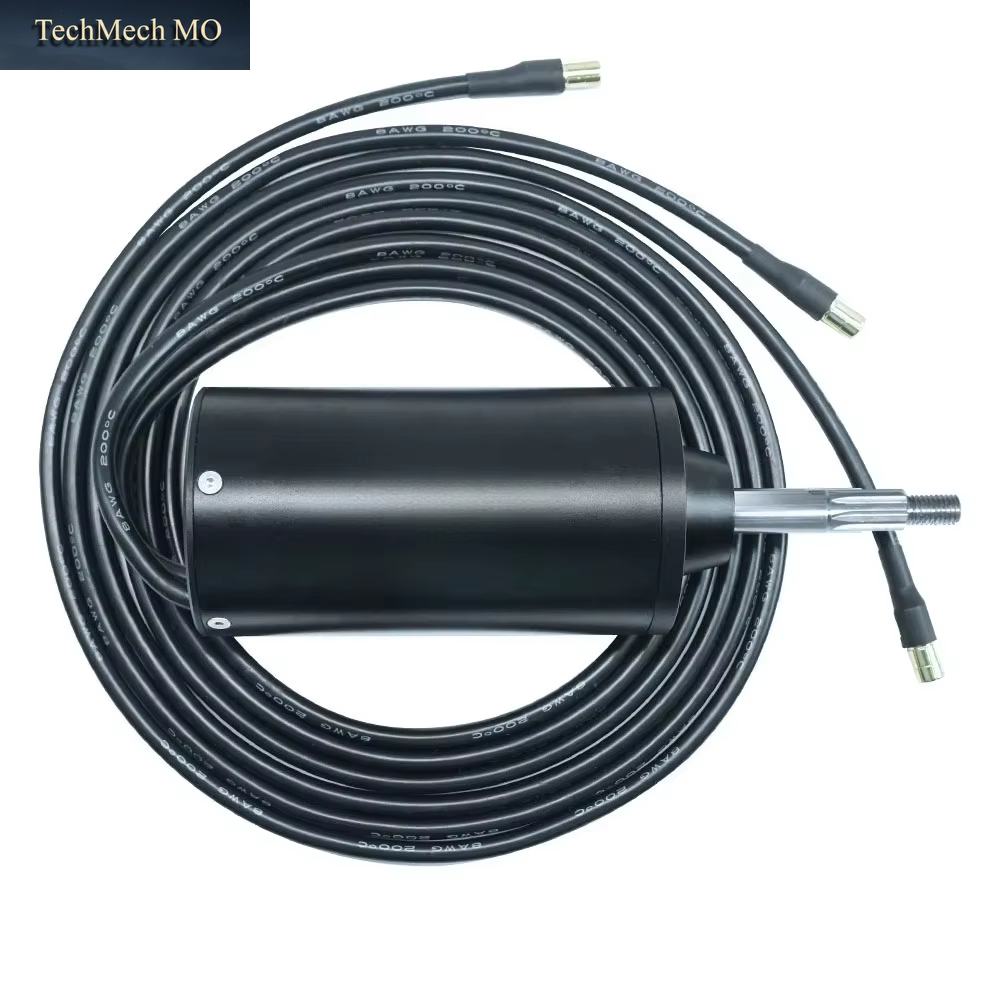

  • Lead wires extension: 8AWGx500mm
Motor Type Surfboard Motor Construction 18N/P
Voltage Range 6-20S (25.2-84V) Lead Wires Extension 8AWG*500mm
Motor KV 130KV Shaft 12mm
Max Power 3700W Max Working Temperature 120
Peak Current 100A Dimension D65*L121mm
Max Torque@60% 5.5N.m Weight 3KG

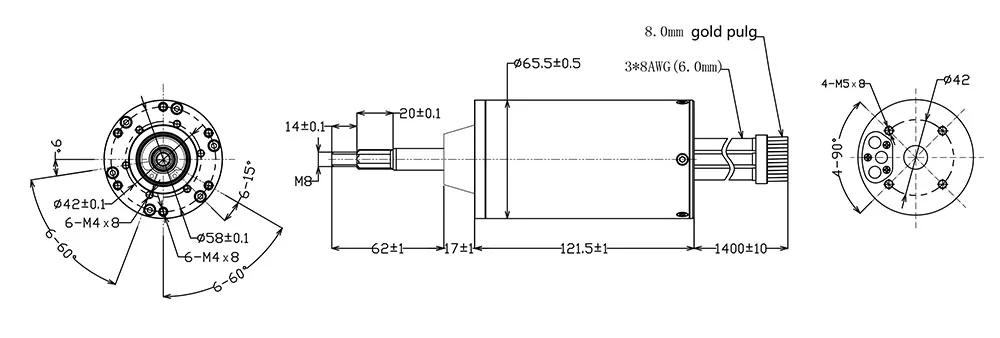

Wiring Diagram
