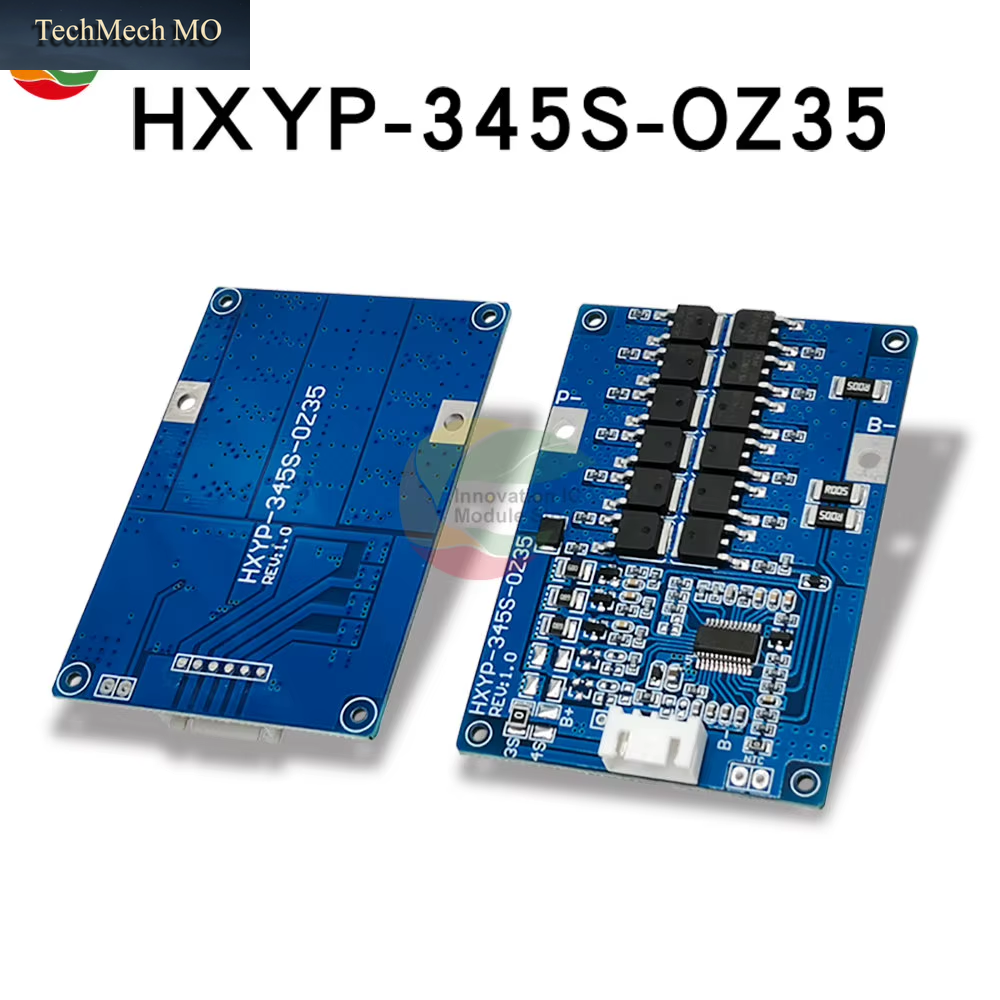

3S 4S 5S 35A Li-Ion Lithium Battery BMS 18650 Charger Protection Board with Equalizing Heat Sink anti Overcharge Flat Cable

3S 4S 5S 35A Li-ion Lithium Battery BMS 18650 Charger Protection Board with equalizing heat sink anti overcharge flat cable

Product selling point:

1. High quality materials with guaranteed quality
2. Prevent overcharge and overdischarge
3. Multi attribute optional
4. Belt equalization
5. With temperature control

Notice:

The lithium battery protection board cannot be used for lithium iron phosphate batteries, xenon lamps, hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children’s car batteries, motors or products with motors, 1W fisheye LED lights, for Customers who purchase the above combination please pay attention!

The power range described applies to the following products: massager battery packs, LED light backup power supplies, 12V electronics, solar street light battery packs, monitoring backup power supplies, and other products.

GXHA0188-001 Product parameters:

Model: HXYP-3S-0Z35
Size: 75MM * 52MM * 4MM
Continuous discharge current limiting: 35A ± 5A
(Single section) Overcharge voltage: 4.225V ± 0.025V
Discharge protection current limiting: 60A ± 5A
(Single section) Overcharge release voltage: 4.175V ± 0.03V
Charging limit voltage: 12.6V
(Single section) Over discharge voltage: 2.7V ± 0.05V
Charging continuous current limiting: 30A ± 5A
(Single section) Overdischarge release voltage: 3.0V ± 0.08V
Charging protection current limit: 50A ± 5A
Over temperature protection: – 10 ℃～+70 ℃

GXHA0188-002 Product parameters:

Model: HXYP-4S-0Z35
Size: 75MM * 52MM * 4MM
Continuous discharge current limiting: 35A ± 5A
(Single section) Overcharge voltage: 4.225V ± 0.025V
Discharge protection current limiting: 60A ± 5A
(Single section) Overcharge release voltage: 4.175V ± 0.03V
Charging limit voltage: 16.8V
(Single section) Over discharge voltage: 2.7V ± 0.05V
Charging continuous current limiting: 30A ± 5A
(Single section) Overdischarge release voltage: 3.0V ± 0.08V
Charging protection current limit: 50A ± 5A
Over temperature protection: – 10 ℃～+70 ℃

GXHA0188-003 Product parameters:

Model: HXYP-5S-0Z35
Size: 75MM * 52MM * 4MM
Continuous discharge current limiting: 35A ± 5A
(Single section) Overcharge voltage: 4.225V ± 0.025V
Discharge protection current limiting: 60A ± 5A
(Single section) Overcharge release voltage: 4.175V ± 0.03V
Charging limit voltage: 21V
(Single section) Over discharge voltage: 2.7V ± 0.05V
Charging continuous current limiting: 30A ± 5A
(Single section) Overdischarge release voltage: 3.0V ± 0.08V
Charging protection current limit: 50A ± 5A
Over temperature protection: – 10 ℃～+70 ℃

Package list:

Module X1
Flat cable X1
