400Ml/Min KPK400 High Flow Peristaltic Pump 12V 24V DC Motor Self-Priming Pump BPT Tubing Dosing Pump for Lab Analyzers

  • SKU: N/A
400Ml/Min KPK400 High Flow Peristaltic Pump 12V 24V DC Motor Self-Priming Pump BPT Tubing Dosing Pump for Lab Analyzers
Roll over image to zoom in
Click to open expanded view

Sold By: MostiOne Team

Out of stock

This product is currently out of stock and unavailable.

SKU: N/A Category:

260~400ml/min KPK400 Peristaltic Pump 12V 24V

DC Motor Self-priming Pump for Lab

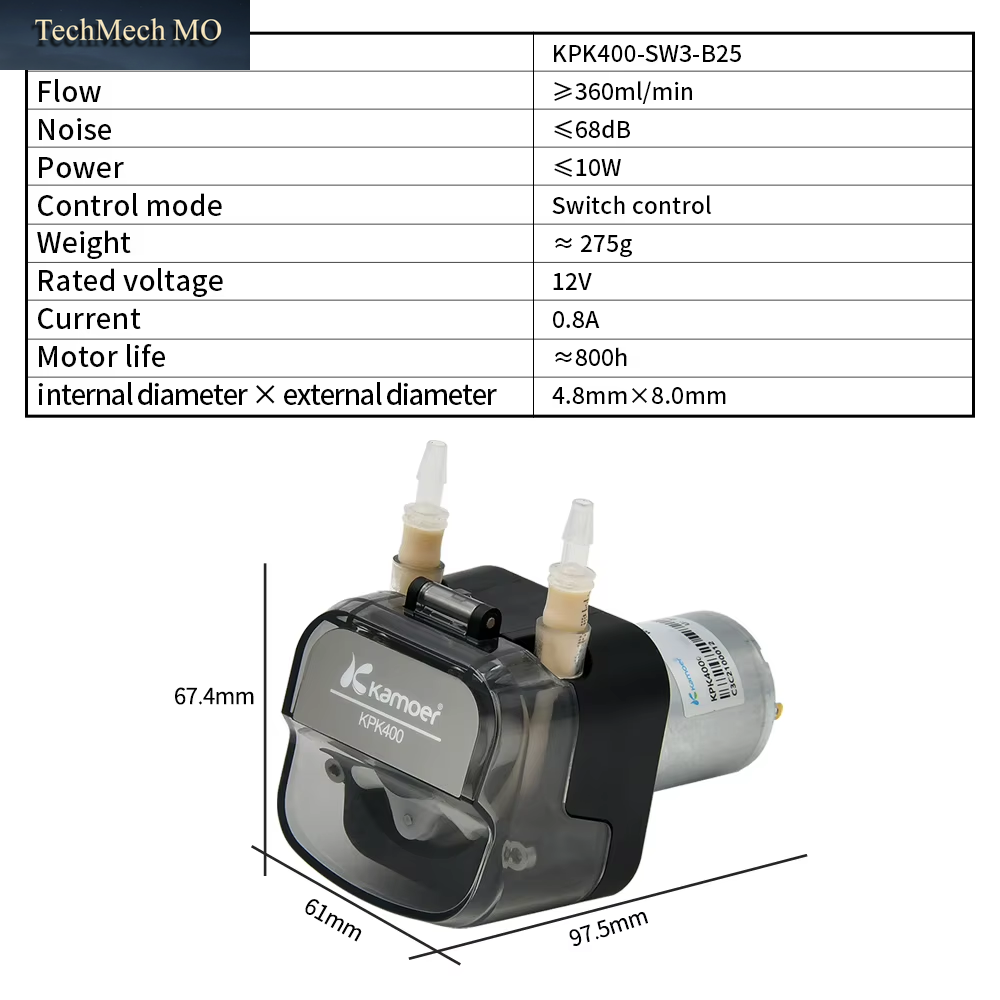

Basic Parameters


Basic Parameters

KPK400

Motor

DC brushed motor

Flow ml/min

≥ 260ml /min

Noise

≤ 68dB

Power

10W

Control method

Switch control

Weight

About 275g

Rated voltage

12V/24V

Pump tube life

BPT-1000H

Motor life

800H

Reference noise value

In a quiet room with an ambient noise of 35 dB, the distance between the product and

the noise tester is 50 cm , and the noise is 68 dB

Reference flow rate (in ml/min)

Tube size

B25

B40

ID x OD

Metric: 4.8 mm × 8.0 mm

Inch: 3/16in×5/16in

Metric : 4.0mm × 7.2mm

Inch: 5/32in×9/32in

12V/current: 0.8A

≥ 360ml /min

≥260ml /min

24V/current: 0.4A

≥400ml /min

≥280ml /min

Supplementary Note

The above parameters are measured with pure water without pressure at room

temperature and standard atmospheric pressure at 20°C. Actually, there will be certain

errors in the flow rate due to different media, different outlet pressures, and DC motor

speed errors. The data are for reference only. In addition, it can be customized

according to customer needs.

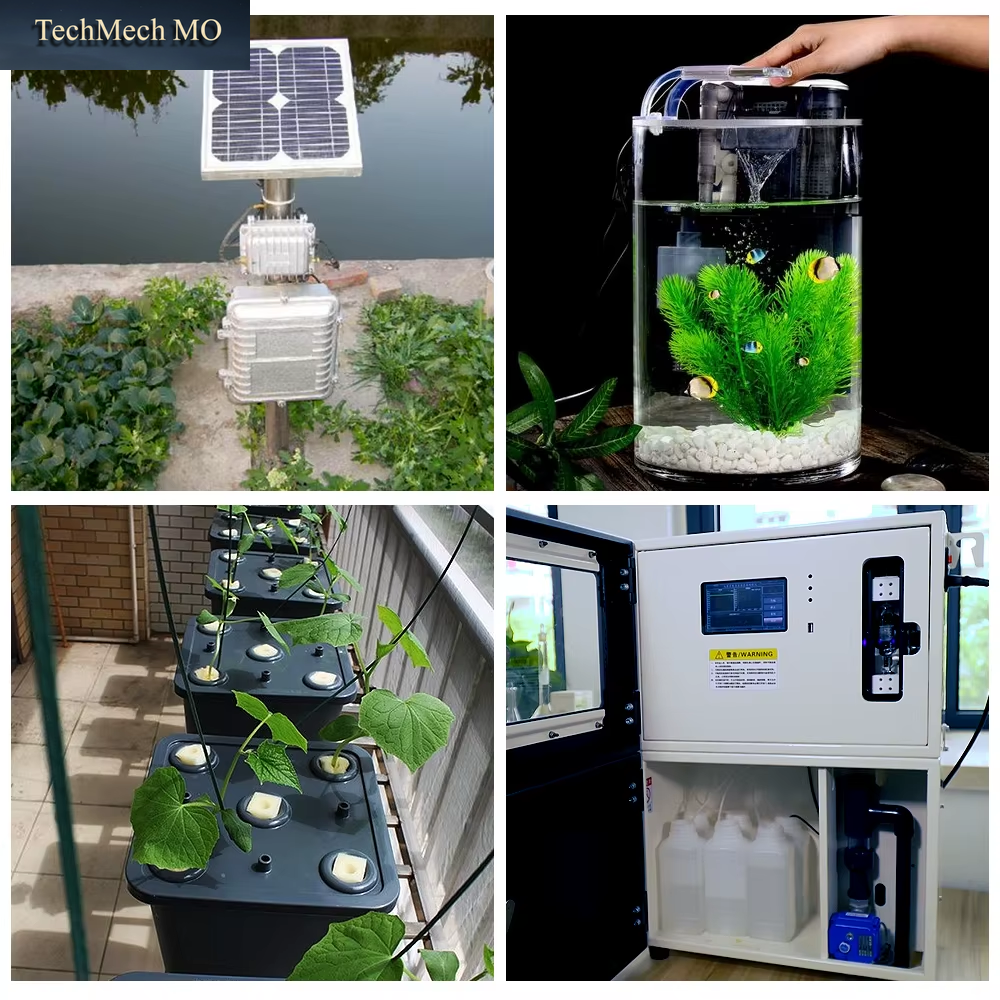

Peristaltic Pump Applications
Water quality analyzer;
Nutrient solution ratio;
Aquarium water change;etc
Waiting for customer application fields to be supplemented
1.6mm wall thickness

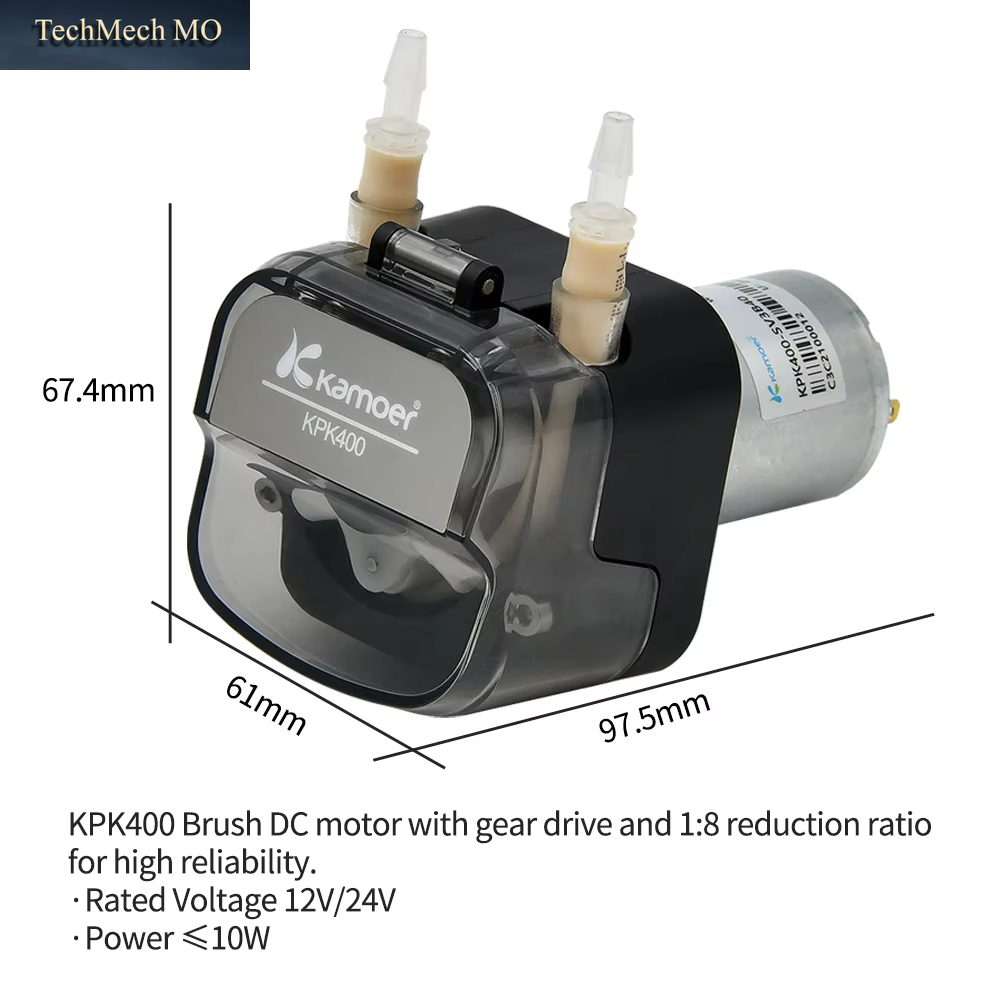

Gear transmission, the reduction ratio is 1:8
Easy to replace the tubing assembly

Motor lifetime 800H

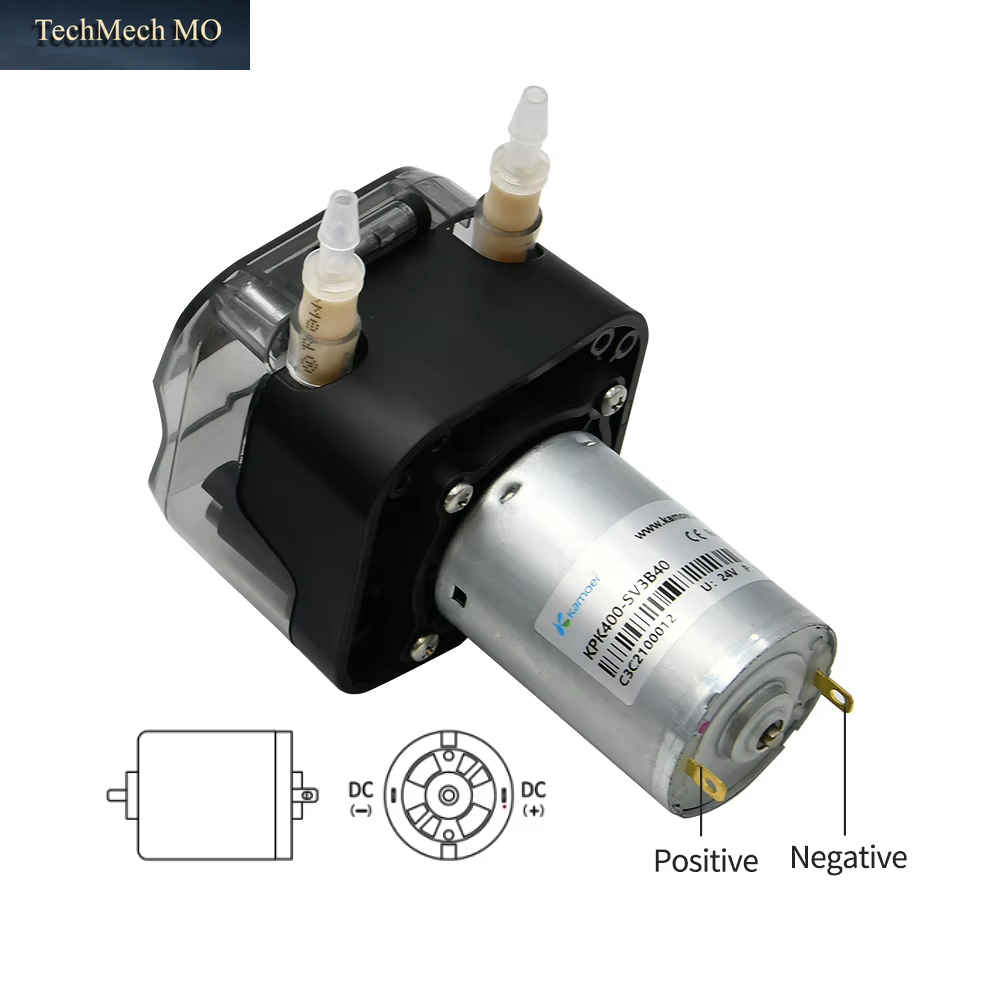

Note: According to the motor wiring diagram, the positive pole of the power supply is connected to the positive pole and the negative pole is connected to the negative pole.

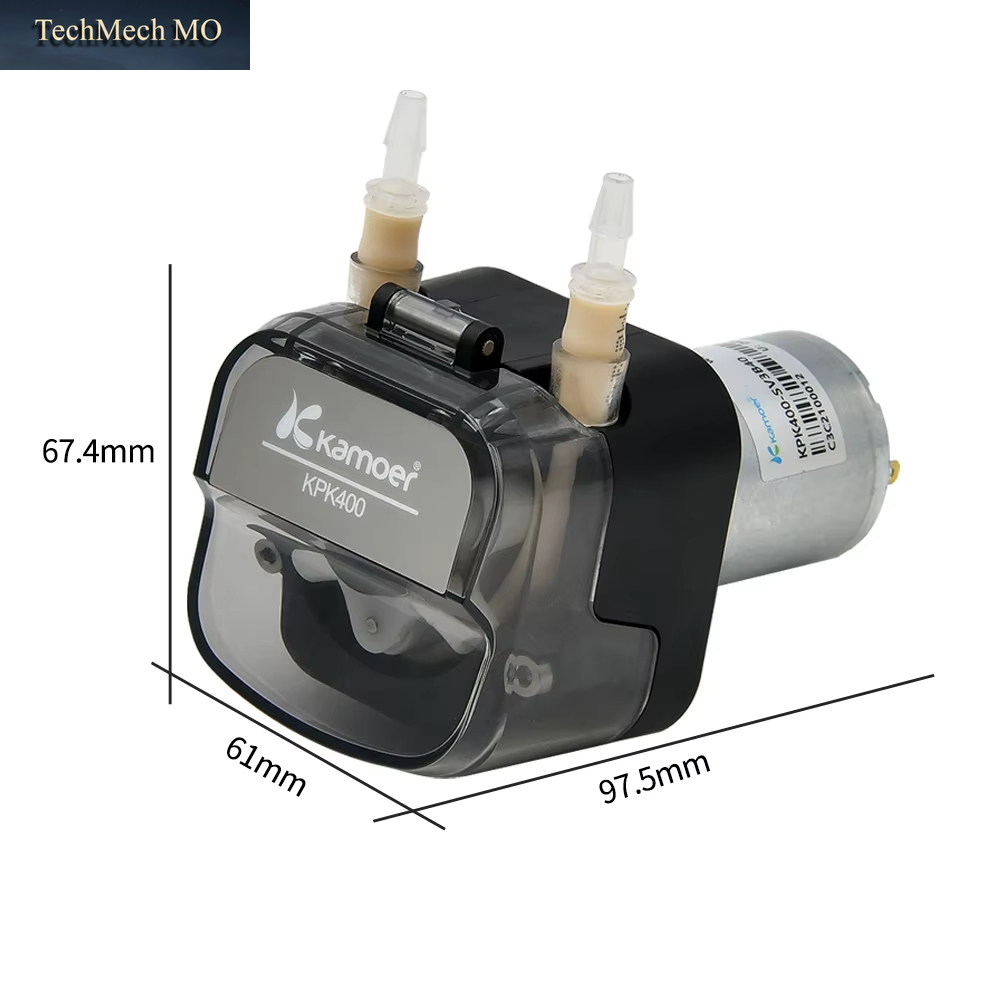

Dimensions

Other accessories

5/32 straight connector(Suitable for 4.0mmx7.2mm);
3/16 straight connector(Suitable for 4.8mmx8.0mm);

Additional information

Voltage

Kpk400-Sw3B25-12V, Kpk400-Sv3B40-24V, Kpk400-Sw3B40-12V, Kpk400-Sv3B25-24V
