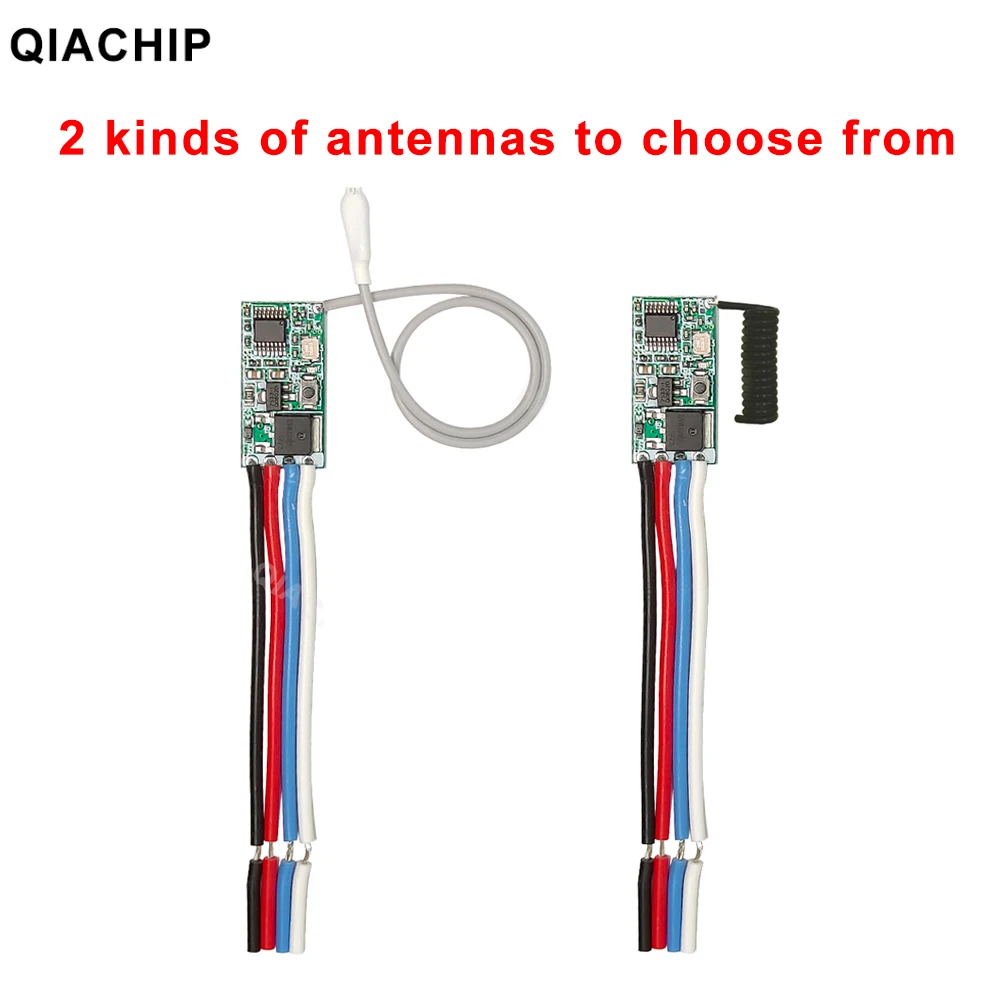

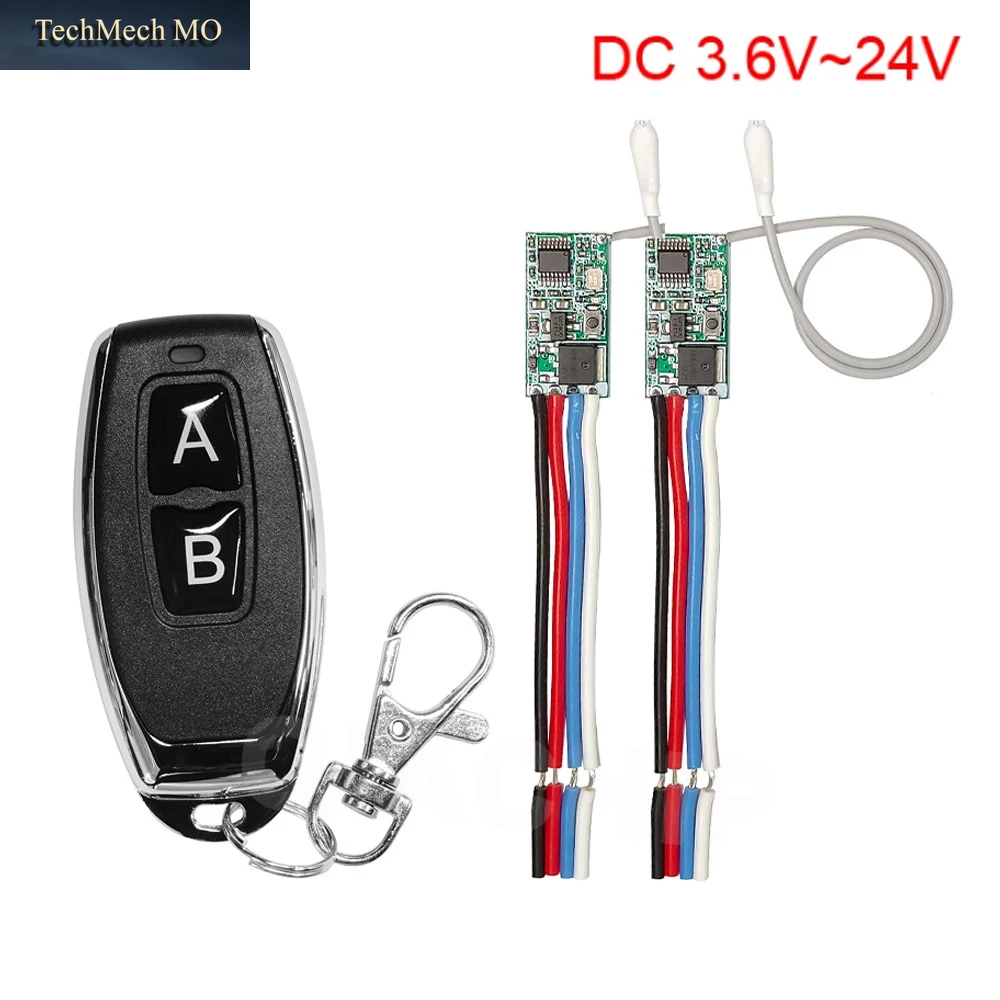

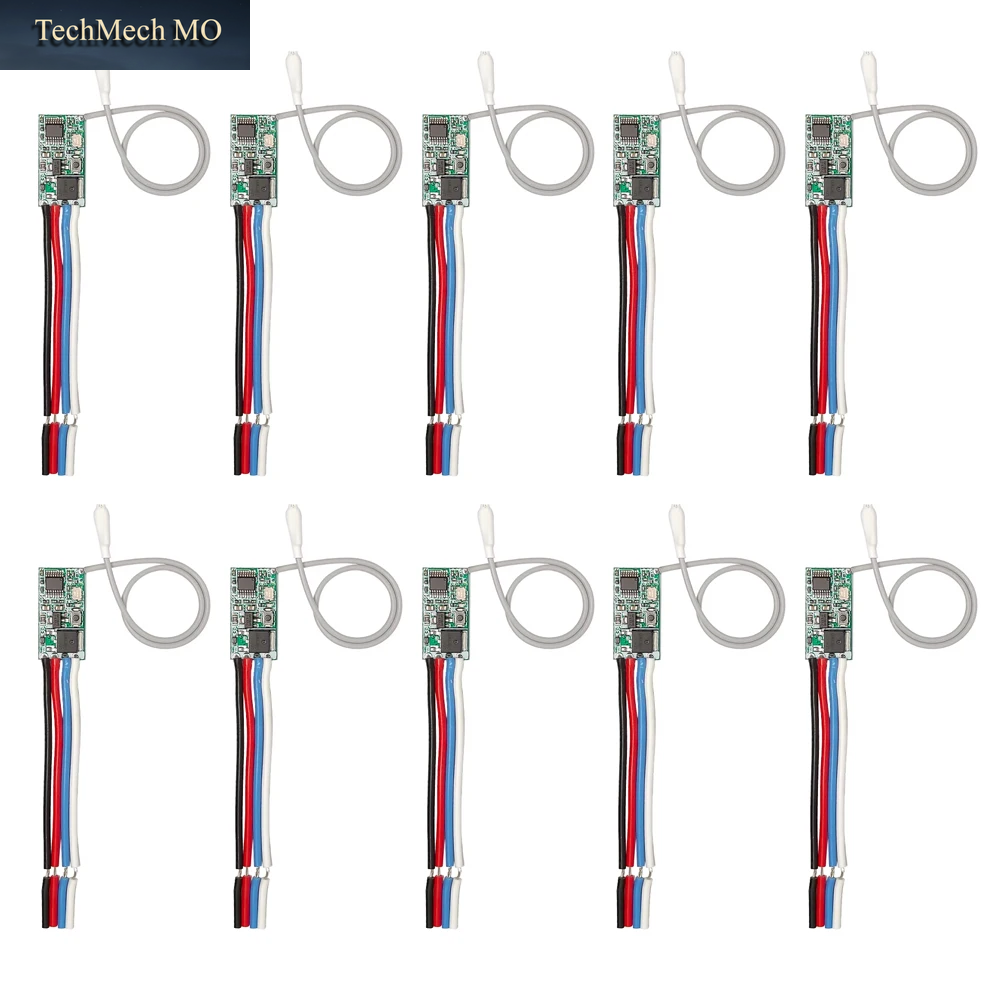

433Mhz Wireless Remote Control Switch Long Range Mini Receiver 3.6V 12V 24V and 433 Mhz Transmitter LED Remote Control

Specification:

Working voltage: DC 3.6V~24V

Maximum load:2A

Static current: 3.6 mA ~ 5.5mA

Working frequency: 433MHz

Reception sensitivity: ≥ -107dBm

Output DC3.6V~DC24V

Size: 26 mm x 13mm x 4mm (length × width × high)

Mini size support coding format 1527 learning code

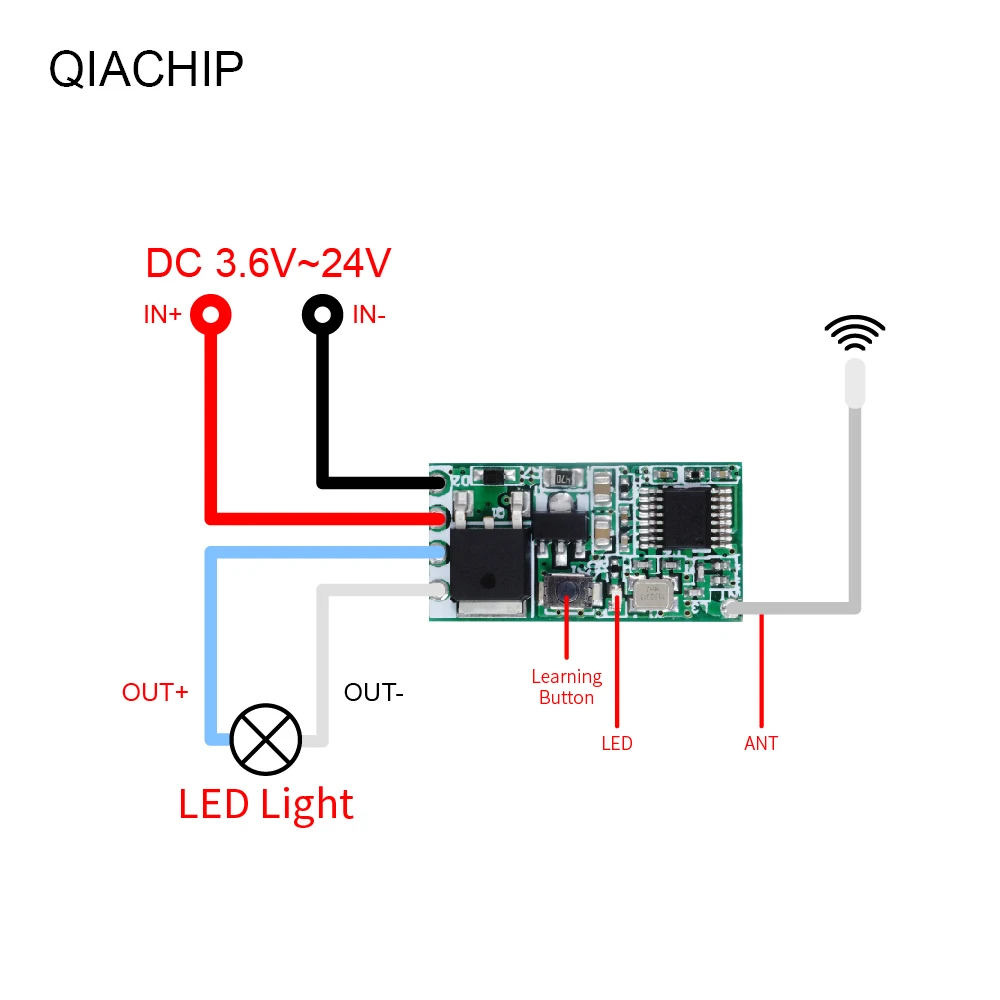

Input: DC3.6V~DC24V

Output: DC3.6V~DC24V

Modulation mode:ASK (superheterodyne)

Appearance size: 22.5mmx 11mm x 8mm (length × width × high)

Number of stored remote controls: ≤ 10

Working mode: Momentary, Toggle, Latching Mode

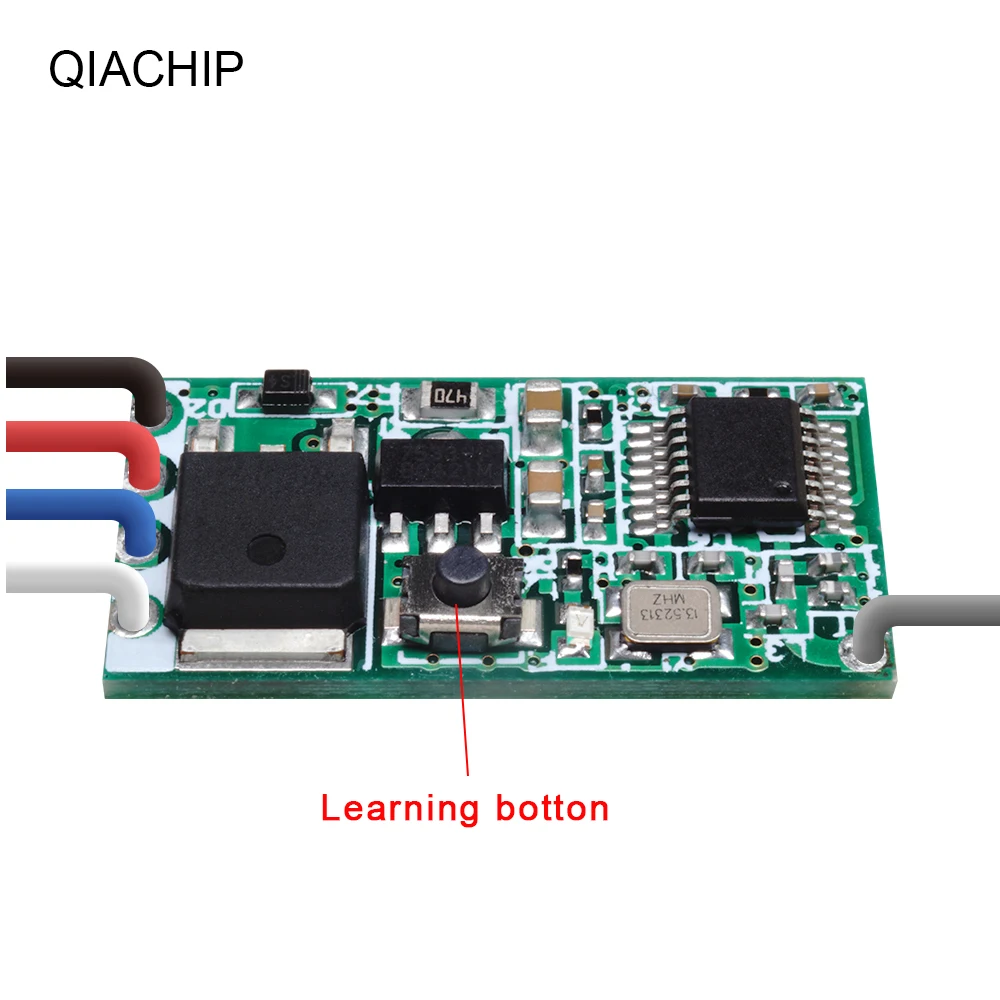

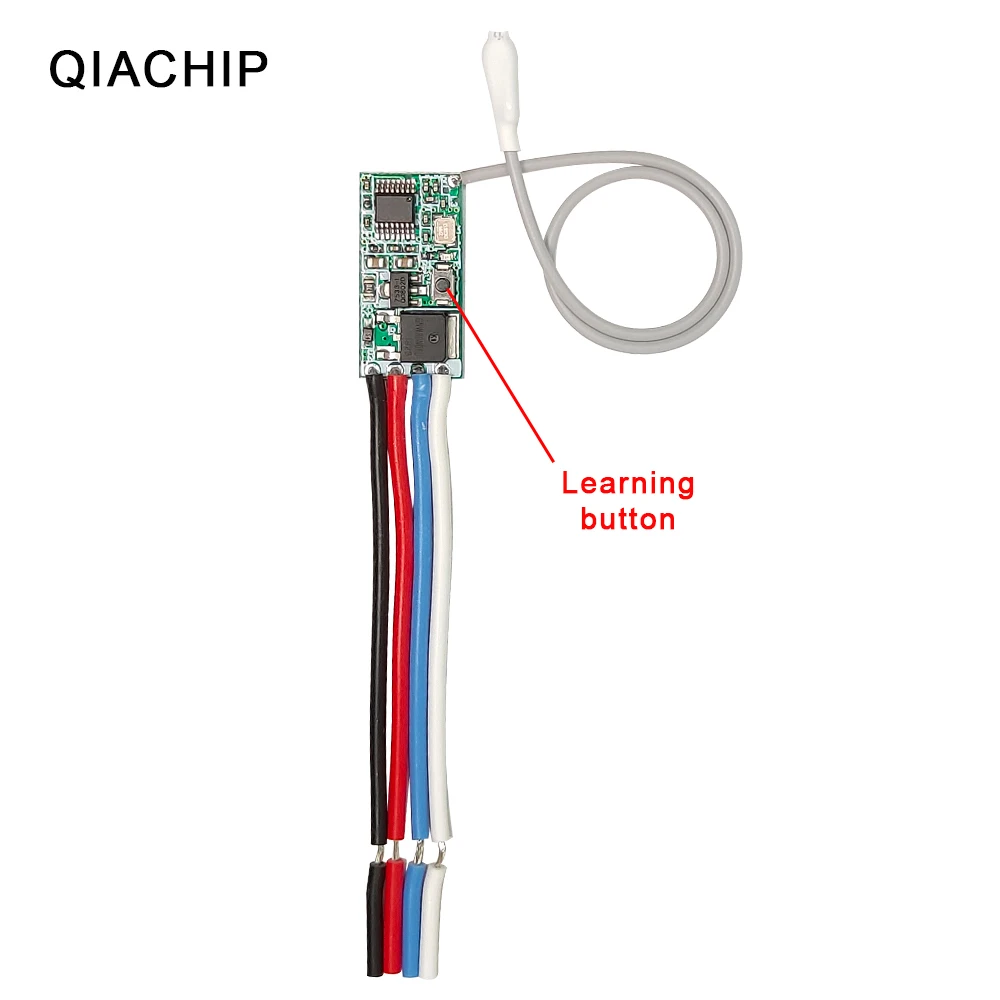

Learning style: Learning Button

Working temperature: -20 degrees 80 degrees

Instruction

About Working mode:

Momentary: Push the remote button , the relay connects, release the remote button , the relay dis-connects.

Toggle: Push once the remote button, the relay connects , push twice the remote button , the relay dis-connects .

Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

1,Clear Code: Press the learning button on the module 8 times continuously, and the light flashes seven times and then goes out.

2,Momentary Mode:Press Module learning button 1 time, the indicator light is always on, then press the remote control button, the indicator light flashes 3 times and then turns off , then the learning is successful; If the code is not successful , the indicator lights out of the learning state after 15 seconds .

3,Toggle Mode:Press the Module Learning button 2 times, the indicator light always turns on; then press the remote control button, the indicator lights flicker three times and then off, then the learning is successful; if the code has not been successful, the indicator lamp goes out of the study state after 15 seconds.

4,Latching Mode:Press the Module Learning button 3 times, the indicator light always turns on; and then press the buttons on the remote control , the indicator lights flicker three times and then off,then the learning is successful; if the code has not been successful, the indicator lamp goes out of the study state after 15 seconds.

Description

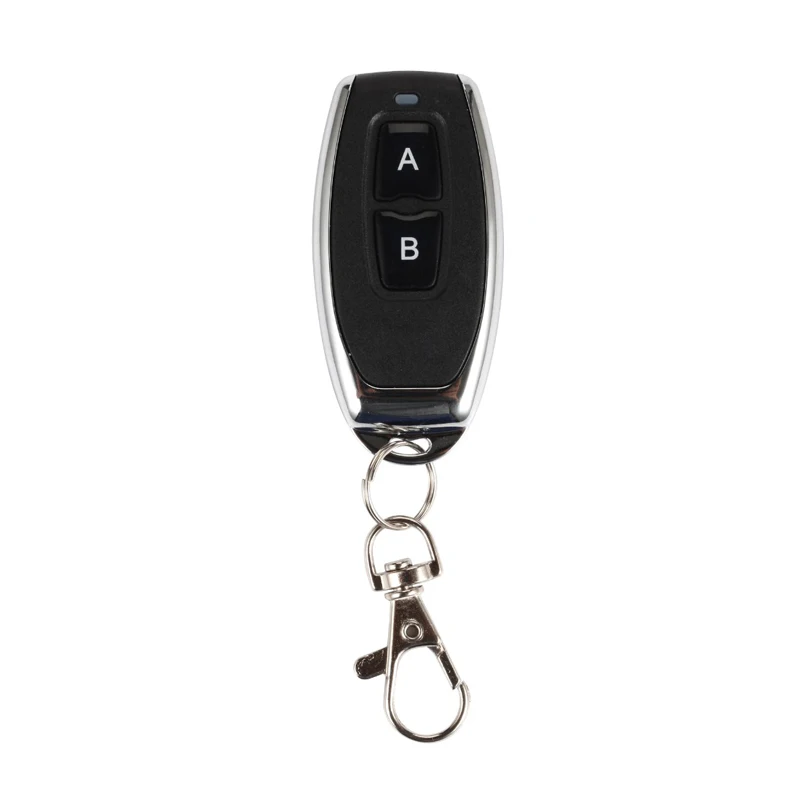

Description for Remote Control
