4P 125A AC 400V ATS PC Class Electrical Dual Power Automatic Transfer Switch Manual Selector Uninterrupted Power 2 in 1 Out

Product Overview

Dual power automatic transfer switch (A.T.S), is a set of switching and logic control in one, without the need for additional controllers, the real realization of mechanical and electrical integration of automatic transfer switch, with voltage detection, frequency detection, electrical, mechanical interlocking and other functions, can be realized automatically, electric remote, emergency manual control.

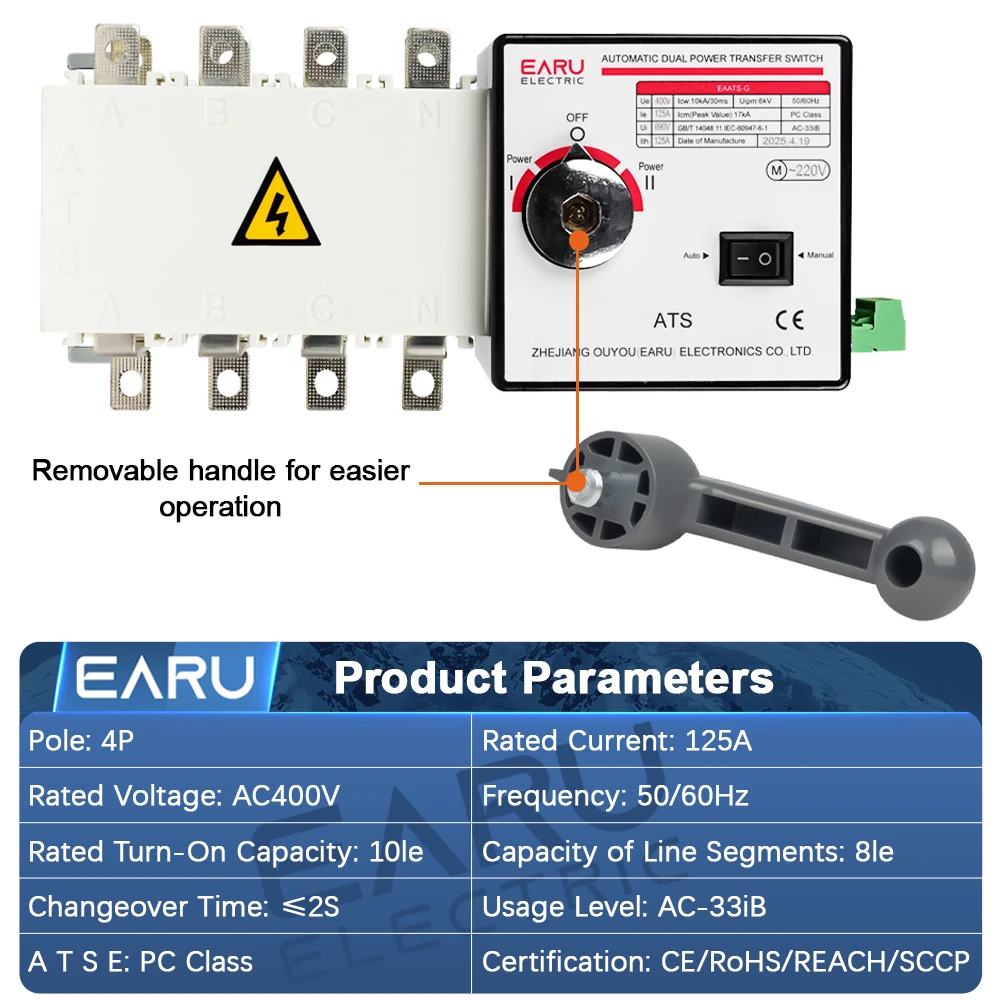

Product Parameters

Rated Voltage: AC400V 50/60Hz

Rated Current: 125A

Noted: power will be interrupted when Switching.

1. Dual power Automatic transfer switch can switch to Normal power or reserve power automatically. Please noted that the switch can’t turn on or turn off the generator. This switch Normal power first. If normal power on, the switch will switch to Normal power. If normal power off, and reserve power on, the switch will switch to reserve power.

2.Switching Mode

Turn key to Auto mode, the switch will switch to Normal power or reserve power automatically.

Turn key to manual mode, then you have to switch the Direction manually.
