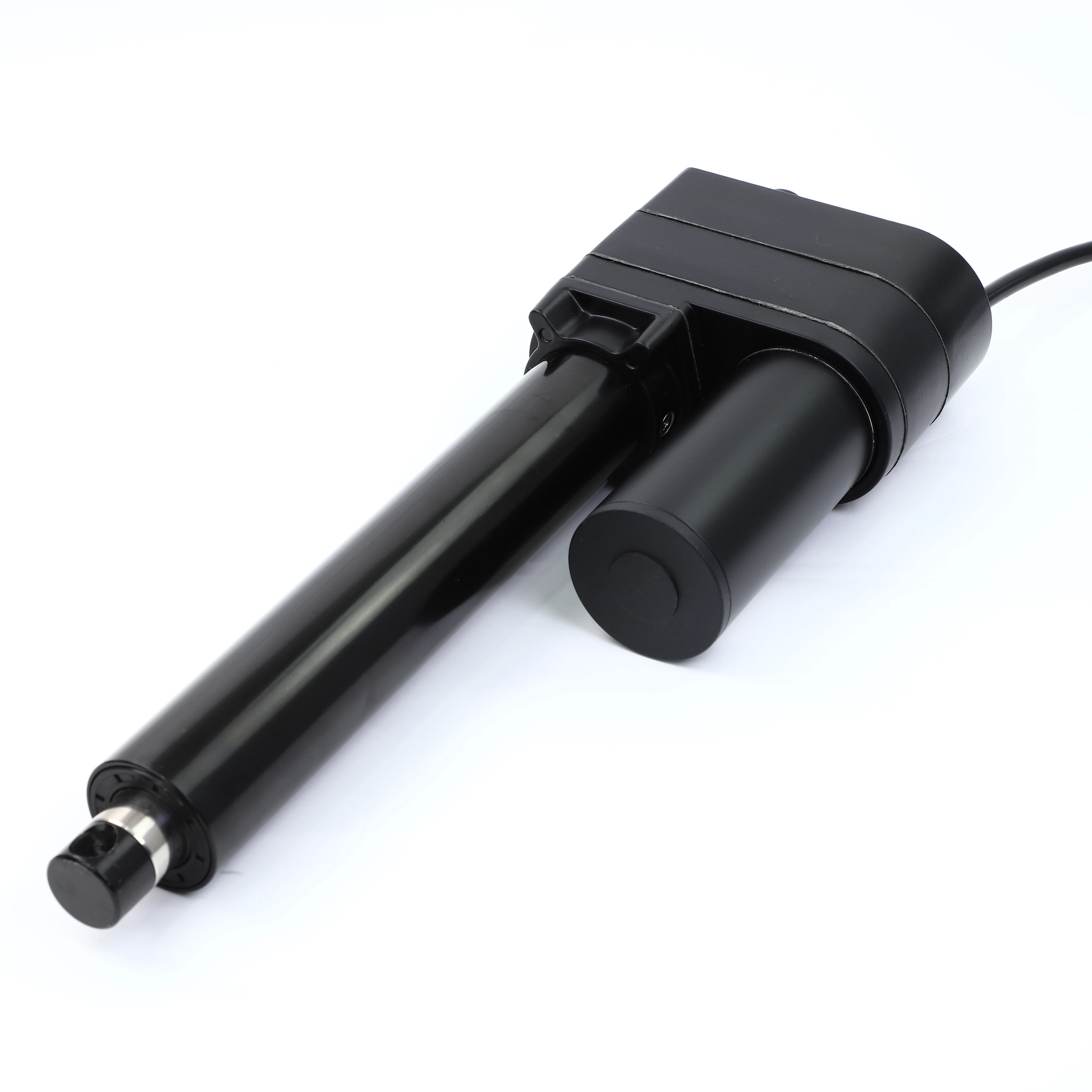

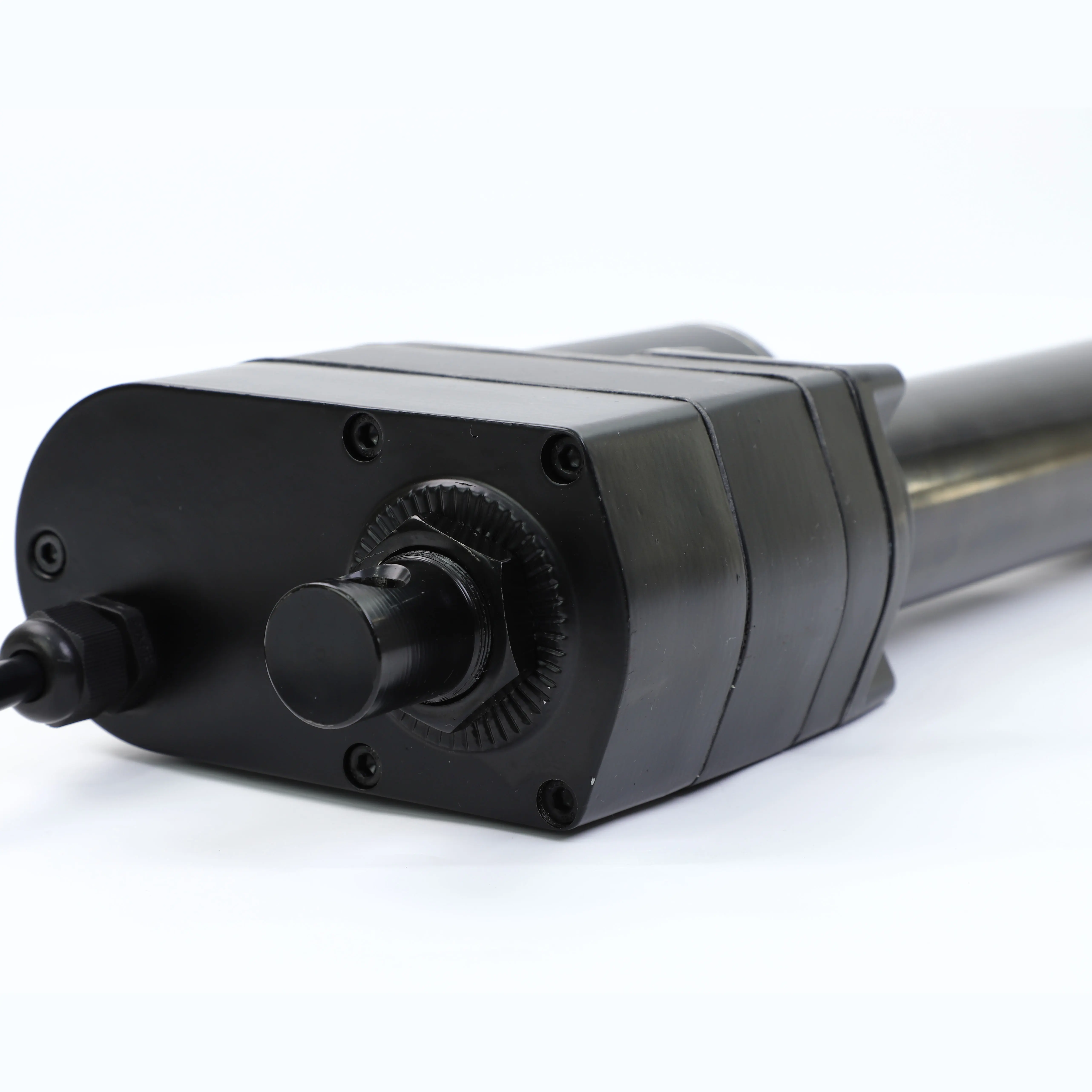

8000N Linear Actuator 12V 24V IP65 50Mm 100Mm 200Mm 300Mm 400Mm 500Mm Stroke Solar Tracker Motorisation Motor 67Mm/S

Technical Parameters:

Material: Aluminum alloy
Load capacity: 1500-8000N (can lift /push up to 600kg)
Input Voltage: 12/24V DC
Standard protection grade: IP65

Stroke Length:50mm/100mm/150mm/200mm/250mm/300mm/350mm/400mm/450mm/500mm
Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity.
The motor will not idle. Cut off the power, it can be stop at any position,with self-locking function.
The push rod is driven by a DC motor with a screw drive.

The telescopic rod can only be retracted without rotation.
The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
Ambient temperature -20°C to +75°C.
Low noise design, noise level less than 42dB.

High force:Electric actuator offers power and durability for applications that require dynamic linear motion and versatility the stainless-steel shaft accompanied by metal gears allows it to push up to 800kg

Features:Able to withstand dust, water, and harsh environments，With IP65 protection level

Industries:Can be used in a variety of different applications, from lifting a sofa, to marine hatch on a boat to being utilized in industrial machinery equipment found in the construction industry

Testing:All our products are undergo thorough testing before they are released for sale they are designed to work in even very harsh conditions and to tolerate washing, without damaging the finer electronics inside

Superb quality guaranteed or your money back HAKIWO actuators are quiet, clean, non-toxic and energy efficient. 18 months of warranty
