800W/1000W/1200W Schaltnetzteil DC 12V 24V 36V 48V 60V 72V Einstellbare Spannung Für LED Stirp Motor Industrielle SMPS CNC
Roll over image to zoom in
Lincoiah 1200W/1000W/800W Switching Power Supply DC 12V 24V 36V 48V 60V 72V AC 100-240V SMPS CNC Adjustable Voltage For LED Stirp Motor
To ensure the lifetime of the power supply, pls don’t use full load when you use it. We recommend the use power should be 80% of the rated power.For example: the label of the power supply is 1200W, use power should be : 1200W*80%=960W
Input voltage: AC 110V/220V±15% Input frequency: 50/60HZ
Output:
12V 24V 36V 48V 60V 72V
1200W：
12V-100A
24V-50A
36V-33.3A
48V-25A
60V-20A
72V-16.7A
1000W：
12V-83.3A
24V-41.7A
36V-27.8A
48V-20.8A
60V-16.7A
72V-13.9A
800W：
12V-66.7A
24V-33.3A
36V-22.2A
48V-16.7A
60V-13.3A
72V-11.1A
Feature:Built-in cooling DC fan
Size:238X124X65 mm
Model:No.S-1200-XX / No.S-1000-XX / No.S-800-XX

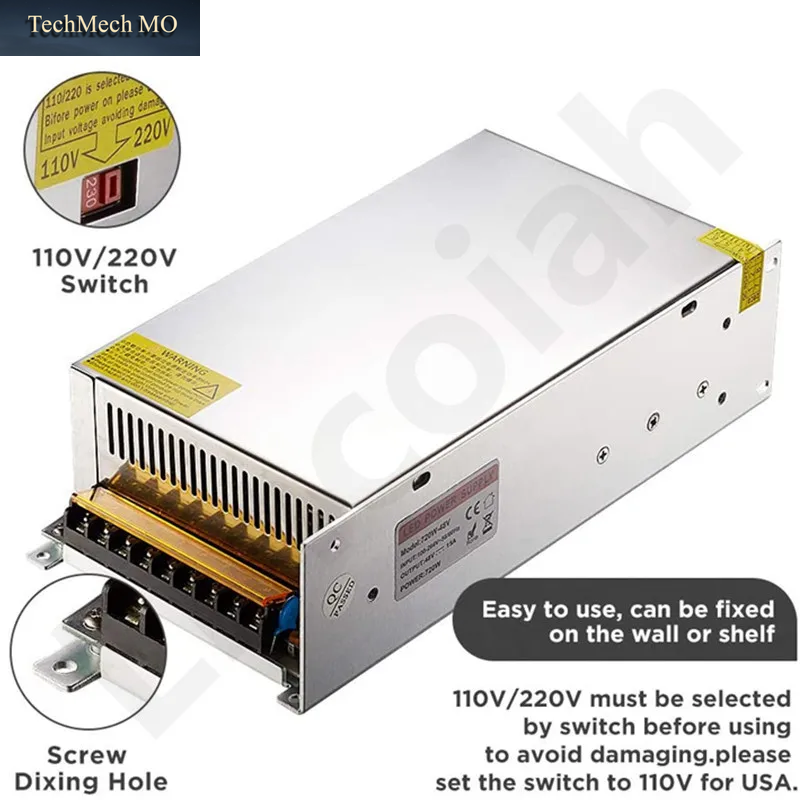

110V±15%/220V ±15% AC input range selectable by switch.
Protections: Short circuit /Overload / Over voltage.
High efficiency and low operation temperature.
Soft-start current can reduce the AC inpur impact effecticly.
PWM control and regulated.
100% full-load burn-in test.
Installed with EMI filter, minimum wave
Low price and high reliability.
High efficiency and low operation temperature.
Soft-start current can reduce the AC inpur impact effecticly.
PWM control and regulated.
100% full-load burn-in test.
Installed with EMI filter, minimum wave
Low price and high reliability.
Professional Advice
We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply’s spanlife will be shortened.
Additional information
| Ausgangsspannung | 60V, 72V, 48V, 24V, 12V, 36V |
|---|---|
| Leistung (W) | 1200 W, 1000 W, 800 W |
