80Mm Hub Mikro 15Mm Linear-Schrittmotor DC 5V 6V 2-Phasen 4-Draht Schrittmotor Mit Langer Schraubstange Für Laser XYZ 3D-Drucker

  • SKU: 61e58d83-f598-4168-ba3d-c8bb6f6d32a1
80Mm Hub Mikro 15Mm Linear-Schrittmotor DC 5V 6V 2-Phasen 4-Draht Schrittmotor Mit Langer Schraubstange Für Laser XYZ 3D-Drucker
Roll over image to zoom in
Click to open expanded view

43,99 €

Sold By: TechMech MO

20 in stock

SKU: 61e58d83-f598-4168-ba3d-c8bb6f6d32a1 Categories: , , , ,

Specification:

Tips:

This mini stepper motor needs the driver to driver,we also have the suitable stepper motor driver board in our store,buyer friends can buy the driver together if you need.Thank you.

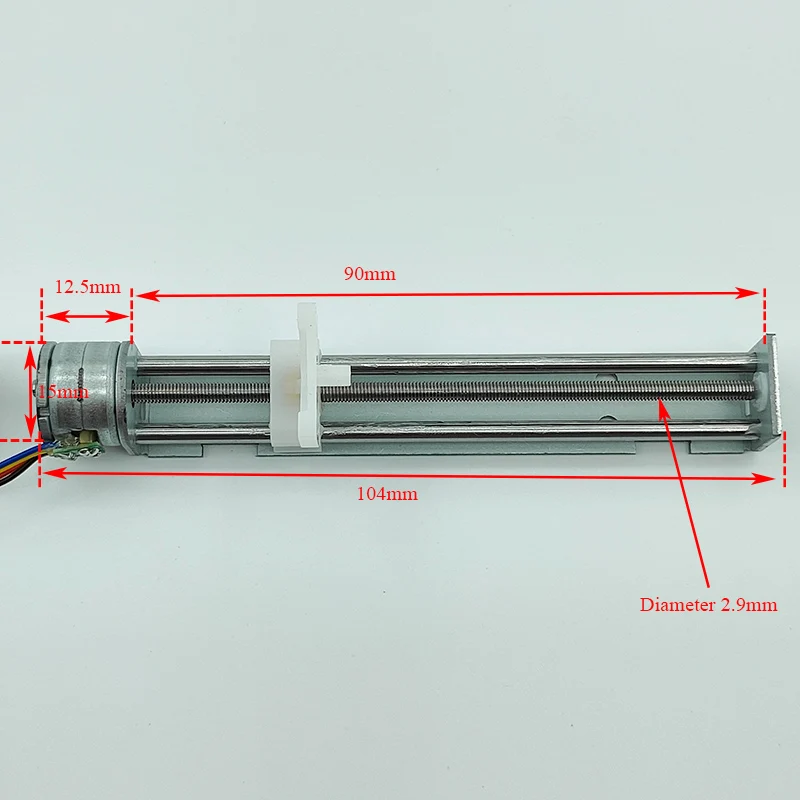

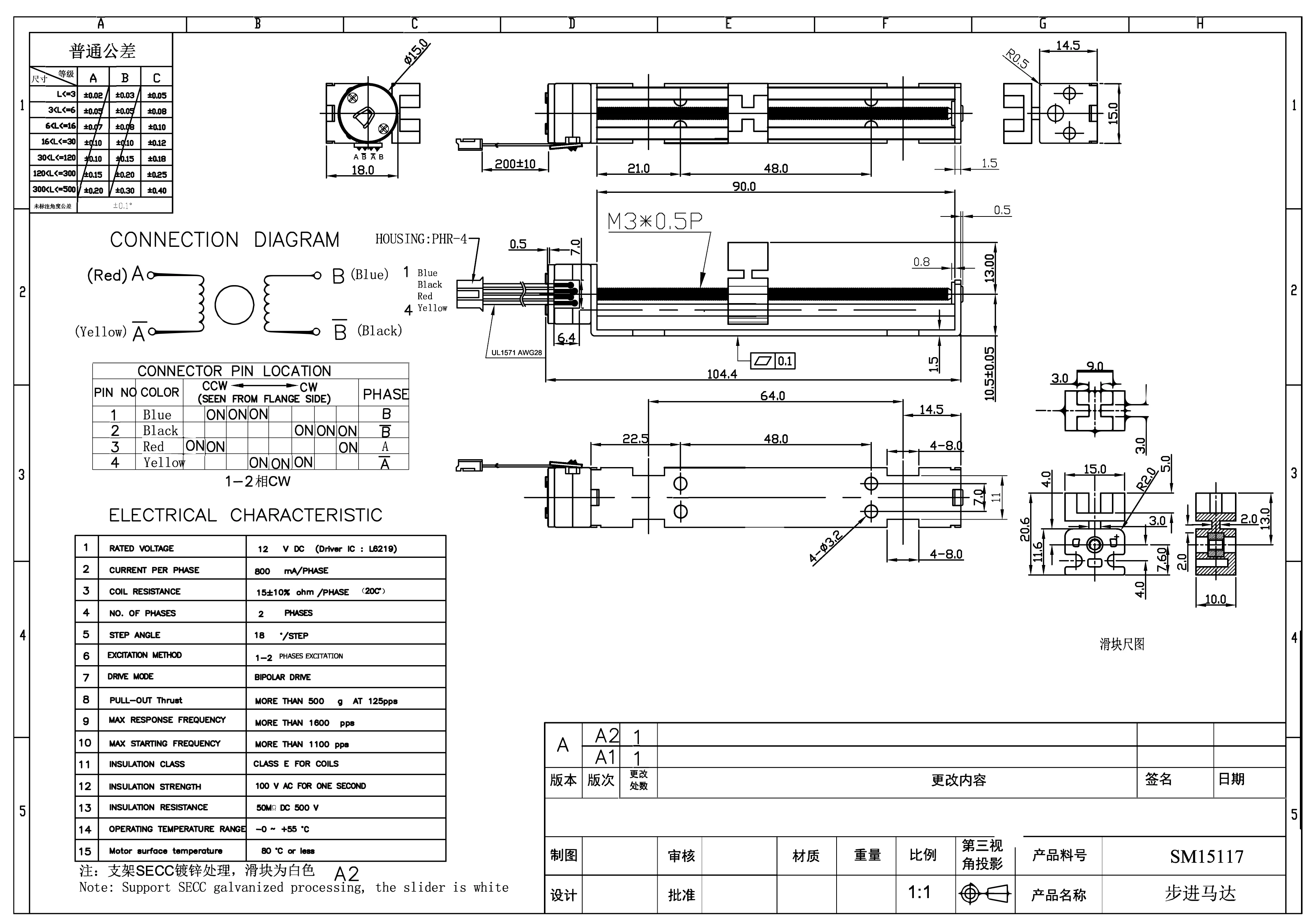

1. Driving voltage: DC 4V-9V/100-500mA 2-phase 4-wire

2. Motor diameter: 15mm

3. Length of screw rod: 90mm

4. Slider stroke: 80m

5. Screw thread pitch: 0.5mm

6. Screw diameter: 3mm

7. Motor diameter:15mm

8. Phase Resistance:15.5 Ohms

9. Wiring: Blue A; Black A-; Red B+; Yellow B-

Package List:

Stepper Motor x 1pcs
