86Ml/Min M1-STP Adjustable Peristaltic Pump 24V High Precision Stepper Dosing Pump with LCD Screen RS485 for Lab Aquarium

  • SKU: N/A
86Ml/Min M1-STP Adjustable Peristaltic Pump 24V High Precision Stepper Dosing Pump with LCD Screen RS485 for Lab Aquarium
Roll over image to zoom in
Click to open expanded view

459,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

Please confirm your plug standard before placing an order:

European Standard(EU)is suitable for most European countries;

US Standardis (US)suitable for the United States, Canada, etc.;

British Standard (UK)is suitable for the United Kingdom, Singapore, etc.;

Australian Standard(AU) is suitable for Australia, New Zealand, etc.

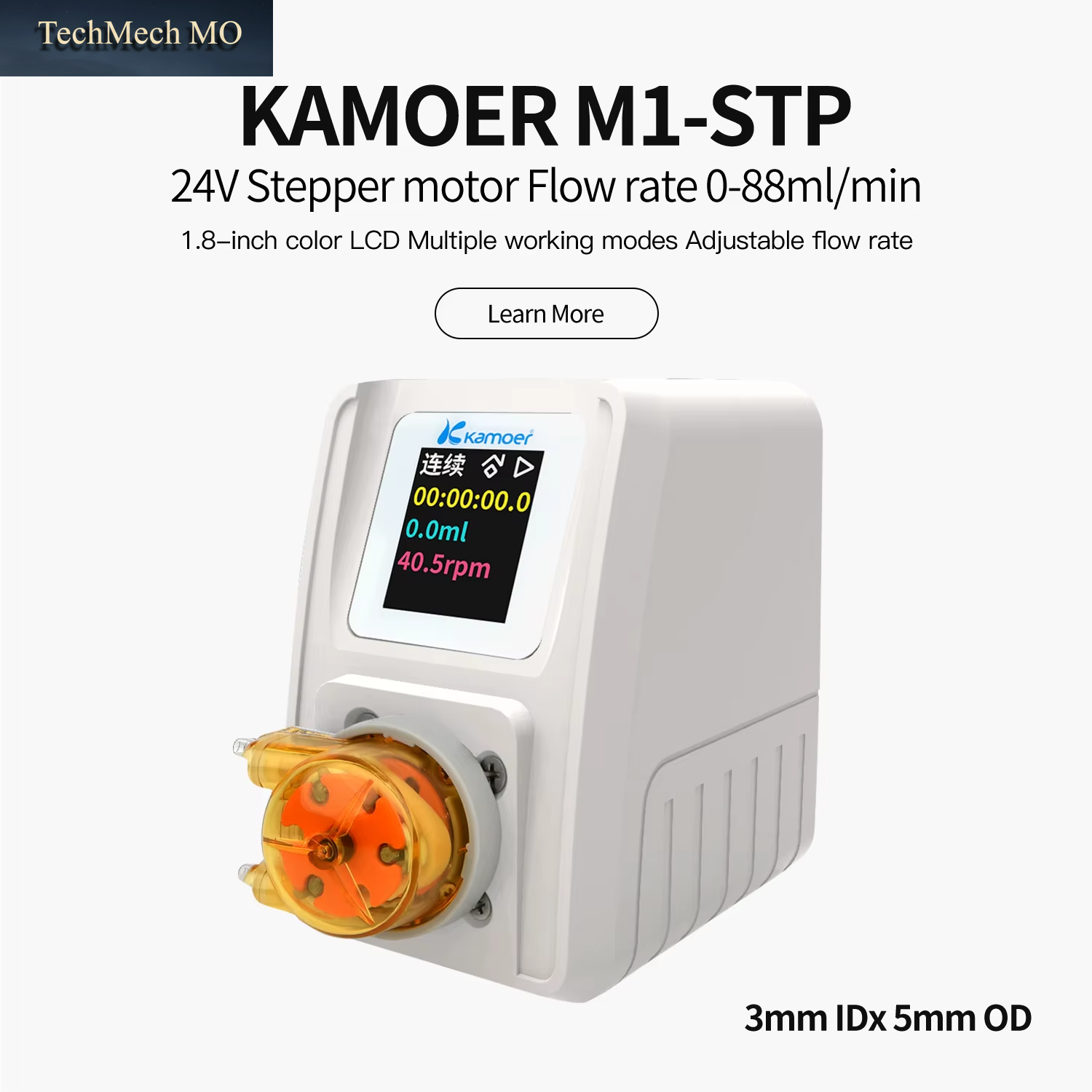

M1-STP Adjustable Peristaltic Pump 24V High Precision Stepper Dosing Pump


with LCD Screen and RS485 for Lab or Aquarium

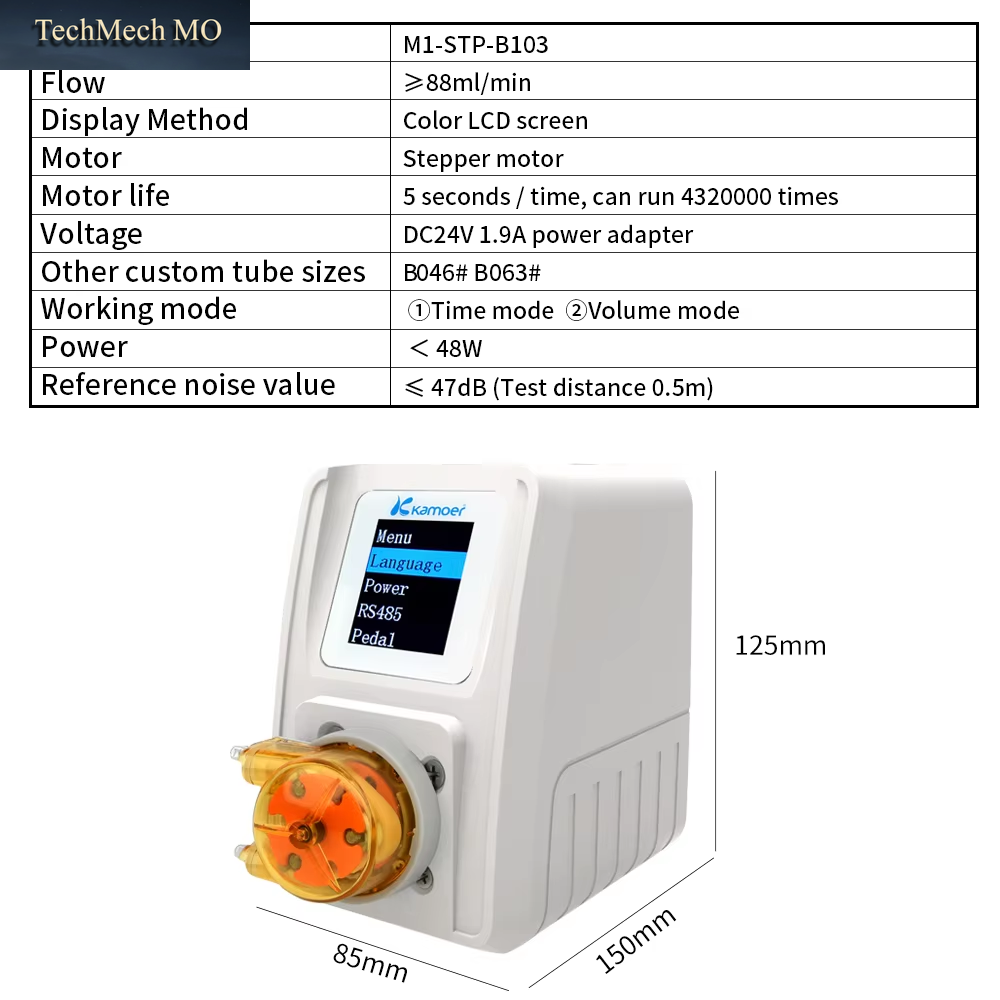

Basic Parameters

M1-STP with Stepper motor

Power supply

DC24V 1.9A

Motor life

5 seconds/time can run 4320000 times

Power(Max)

＜48W

Weight

510g (without power adapter)

Noise

≤47dB (the horizontal distance between the test product and the noise meter is 0.5 meters)

Speed range

350 rpm

Pump head

KAS

Dosing accuracy

<±2%

Display method

Color LCD screen

Control method

Membrane buttons, speed control knob

Operating mode

Time mode, volume mode

Way of working

Continuous addition, cyclic addition

Support function

Start and stop, speed regulation, calibration

Pump tube code

B04

B06

B10

Pump tube material

Pharmed BPT

Rotate speed

350RPM

ID x OD (mm)

1.0×3.0

2.0×4.0

3.0×5.0

Number of rotors

3

3

3

Max flow

≥15ml/min

≥42ml/min

≥90ml/min

Remark

Note: The above maximum flow rate is obtained at room temperature (about

25°C), using a new pump tube that has been aged for 30 minutes to test water, and is for reference only. Ambient temperature, the material and elasticity of

the pump tube, the viscosity of the test liquid and other factors will affect the

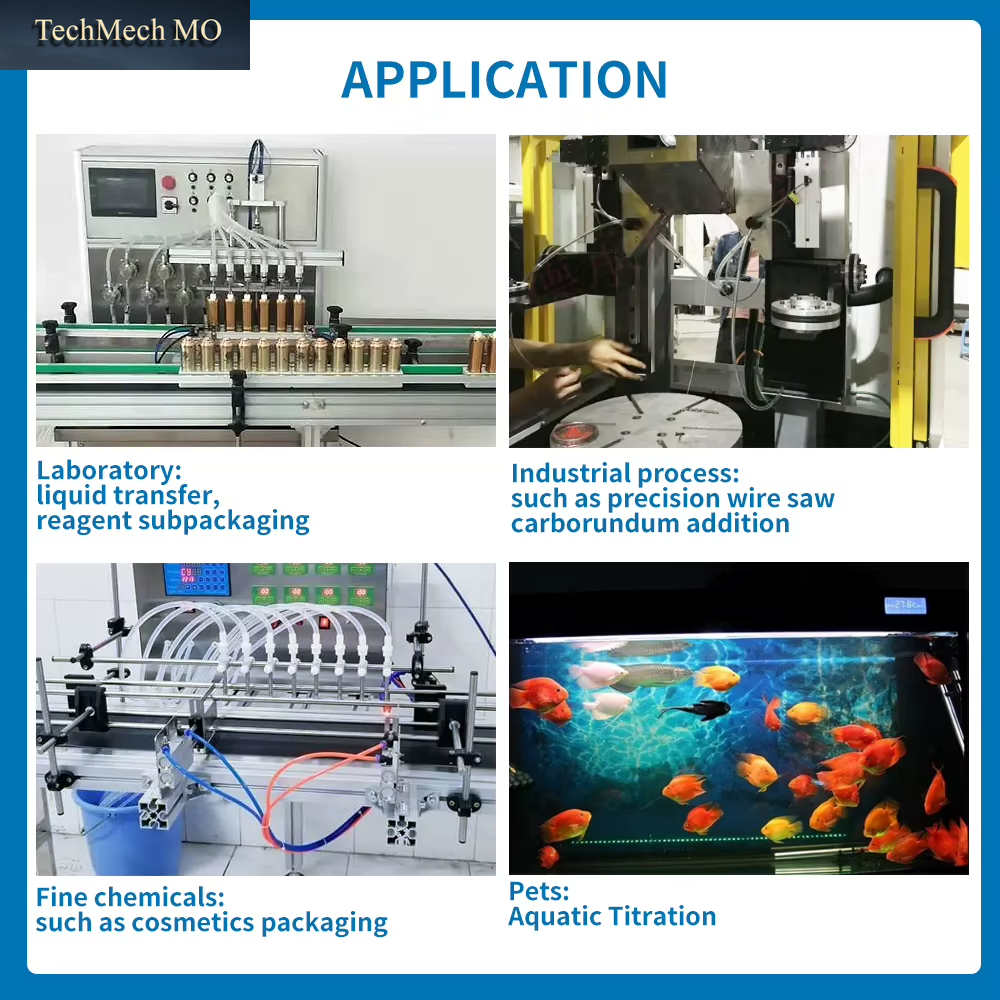

Application
Laboratory: liquid transfer, reagent packing
Industrial process: such as precision wire saw emery added
Pets: Aquarium Titration

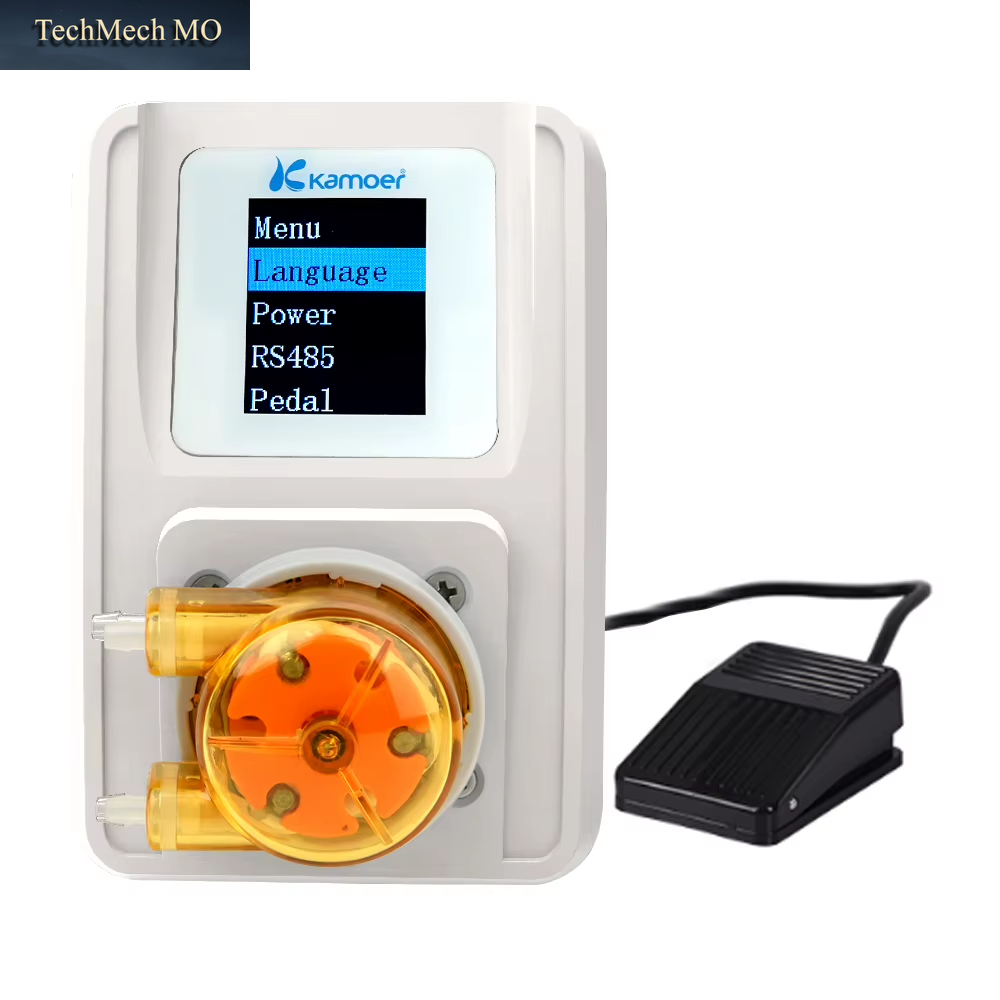

What’s included?
1 Host
1 Foot Switch
1 Plastic measuring cylinder for calibration-10ml
1 Power adapter
1 Power extension cable
1.8 inch LCD screen
Menu including: C Mode/R Mode/Calibrate/Current/Language/Power/RS485/Pedal/Unit/Info/485 mode/Reset

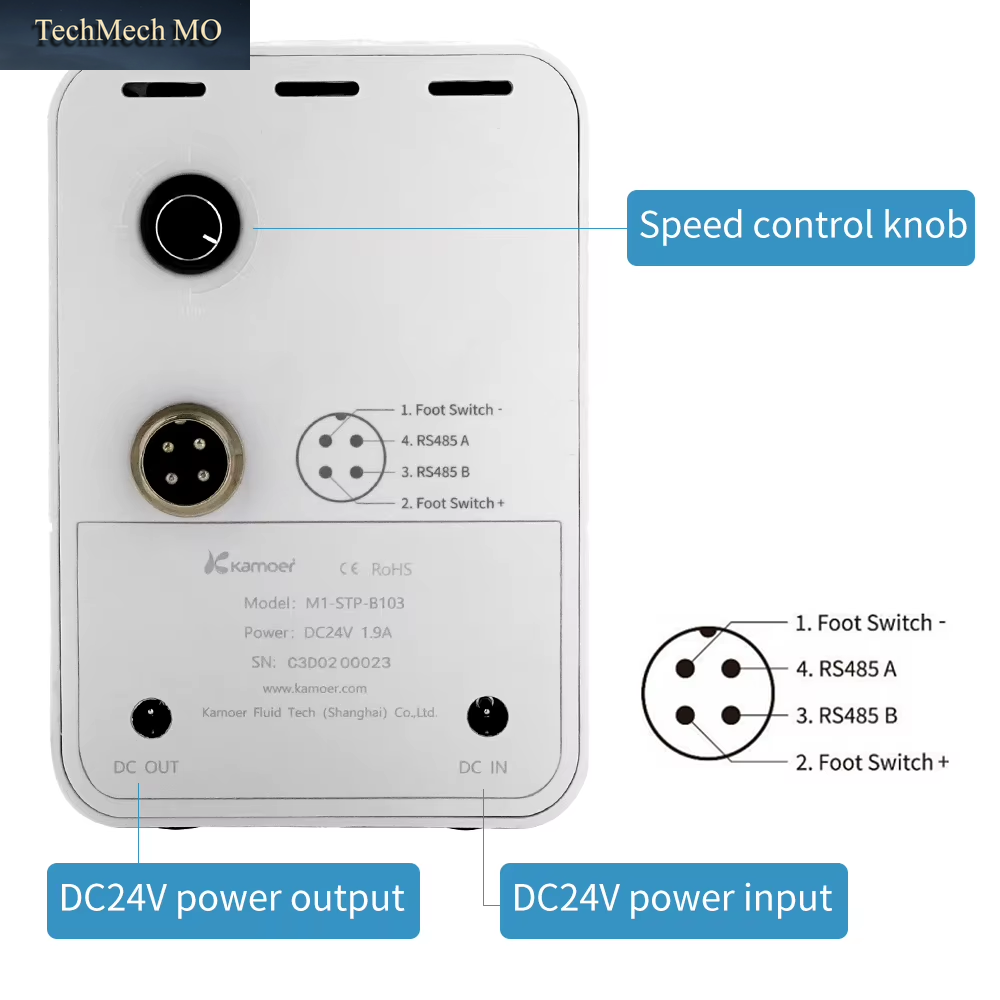

Back Discription
Speed control knob for adjustable the flow when it’s at manual mode
Foot Switch including RS485

Additional information

Voltage

B103 Id3Mmxod5Mm
Plug Type

Uk, Eu, Au, Us
