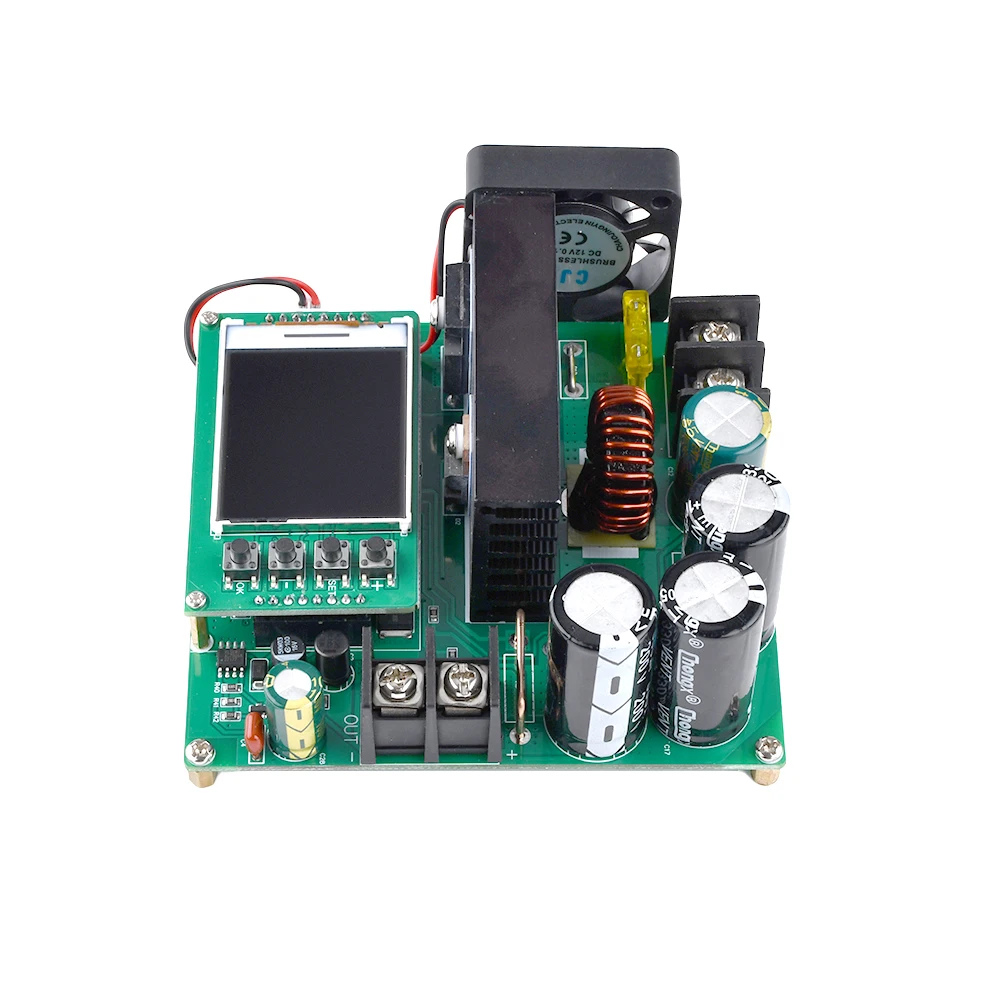

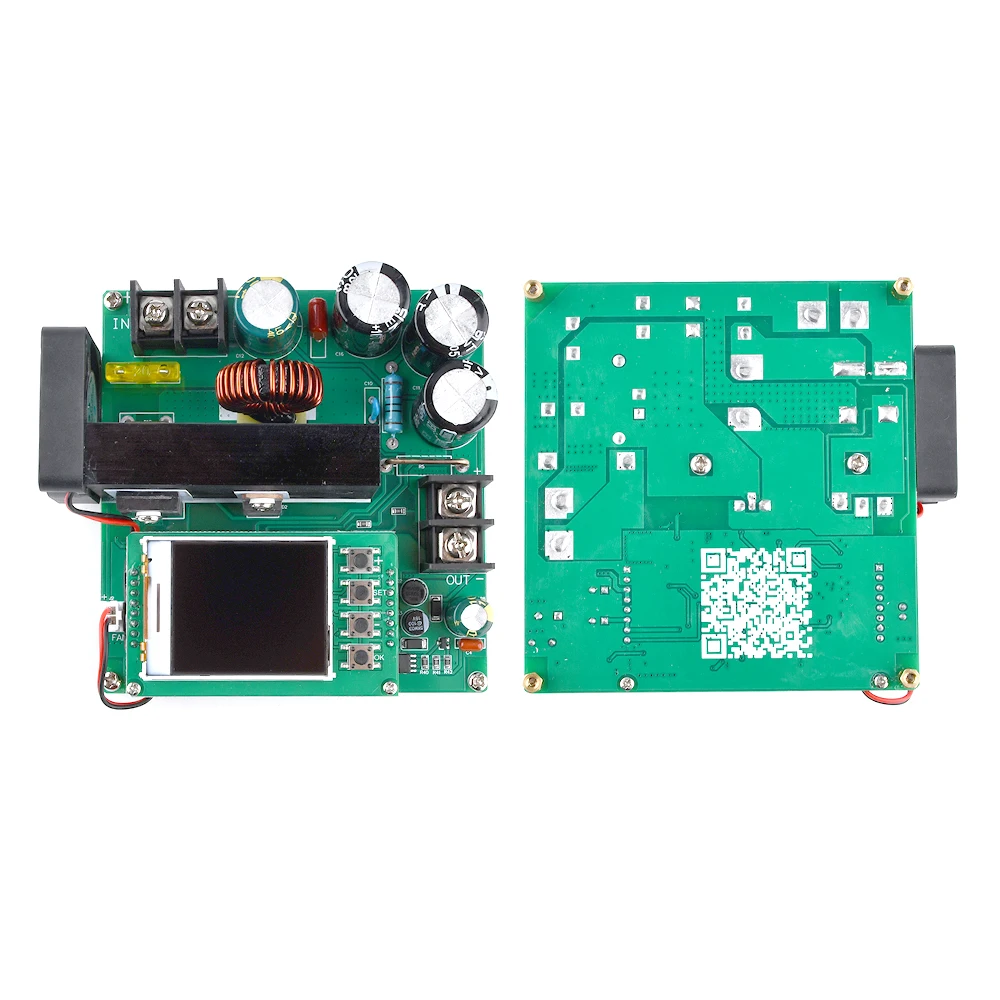

900W 15A Boost Converter DC-DC 9V-60V to 10V-120V LCD Display Control Step up Module High Precise Voltage Transformer Regulator
Roll over image to zoom in
Features:
1.Adjustable step up converter, Input Voltage: DC9V~60V, Output Voltage: 10V~120V, Can be used for common boost module with over current protection, adjustable battery charger, LED driver, etc
2.Voltage and current regulation function.
3.Conversion efficiency: 85%
4.Safety Protection: active heat sink input fan runs continuously, short-circuit protection, low-voltage protection.
5.CNC+color screen display Technical parameters:
Output current: 0~15A
Stored array: 10 groups
Input voltage (U-IN): DC9V~60V
Input current: 0~15A
Output voltage (U-OUT): 10V~120V
Output current: 0~15A
Conversion efficiency: 85%
Operating frequency: 150KHZ
Short circuit protection: 20A fuse (non self recovery)
Operating temperature: – 40 ℃~85 ℃
Heat dissipation mode: active heat sink input fan runs continuously

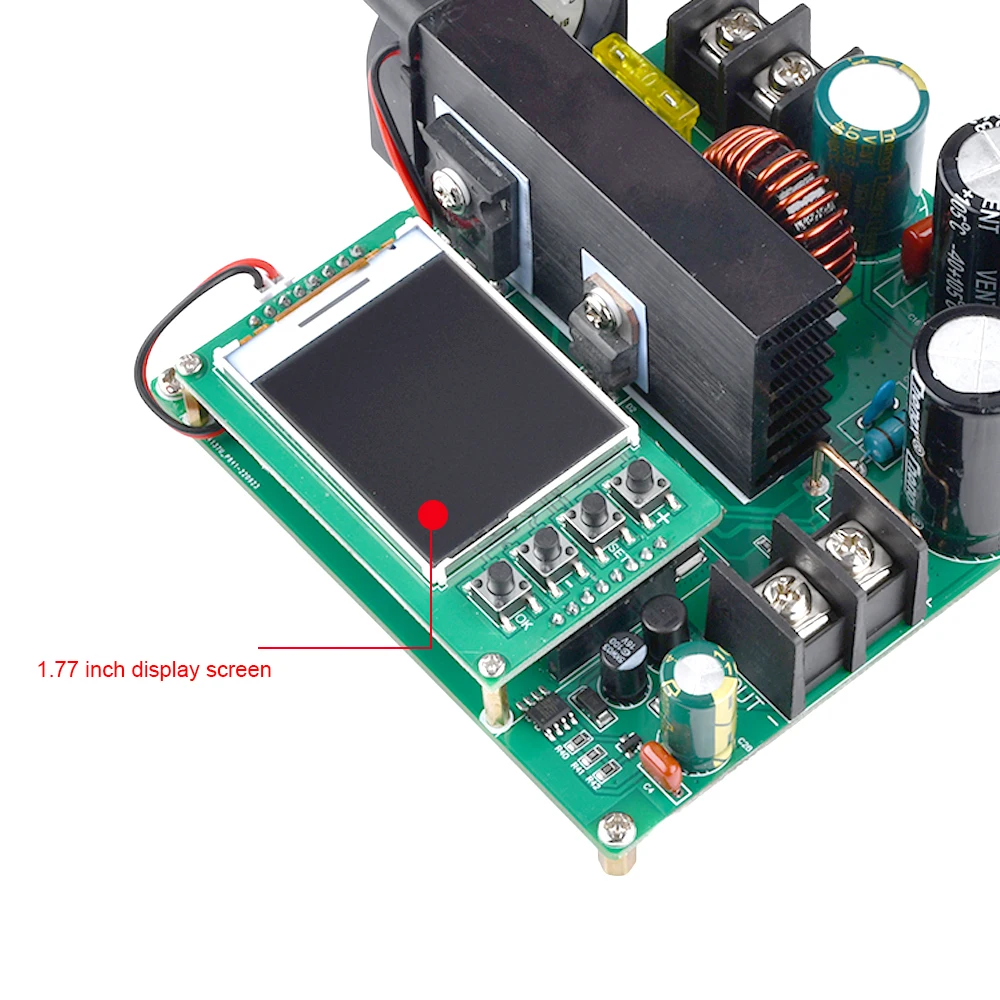

Control mode: numerical control+color display
Voltage regulation display: 009.0V~120.0V
Current regulation display: 00.01A~15.00A
Output ripple: ≤ 50mV
Stored array: 10 groups
Standby power consumption: less than 150mA (measured when input 12V)
Weight: 235g (net weight) 280g (including package)
Size: 110mm × 105mm × 48mm (product)
Package size: 90mm × 110mm × 120mm (electrostatic bag+carton packaging) Be careful:

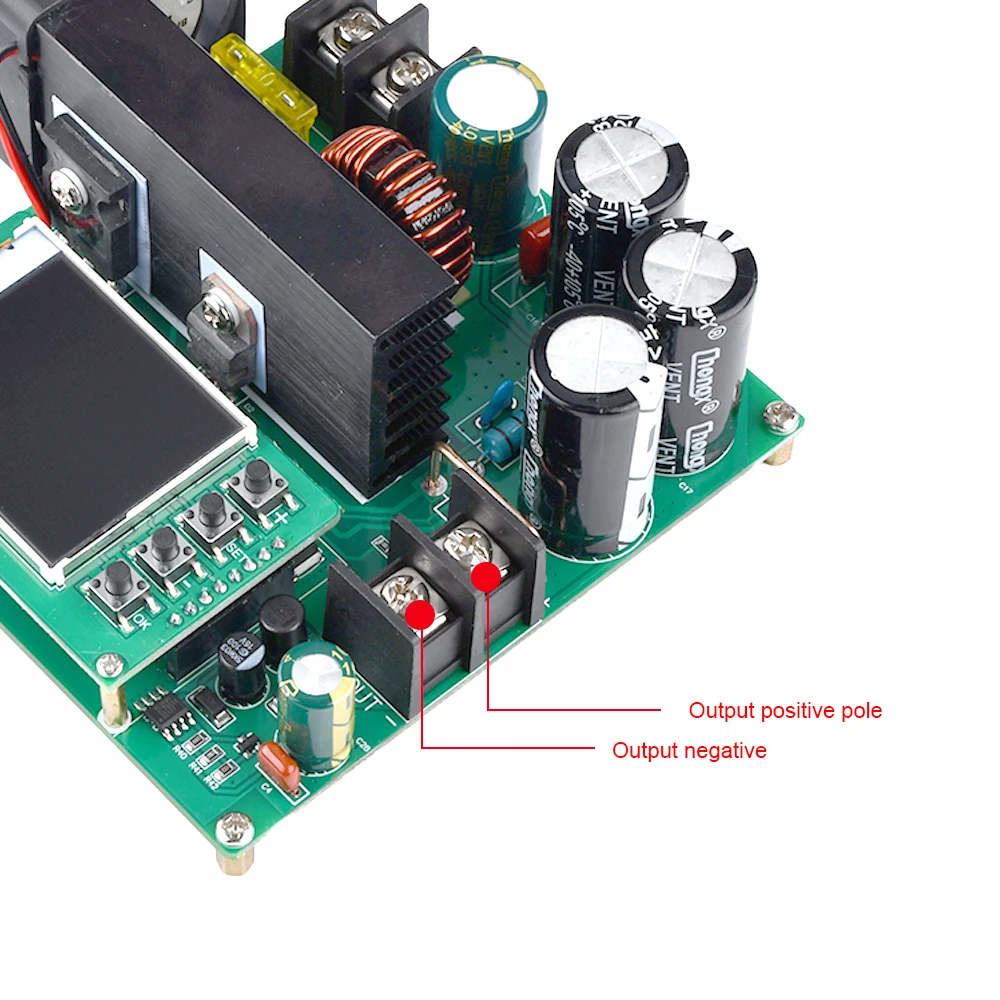

After the input is switched on, the output terminal is always electrically output, and the voltage is equal to the real-time output voltage displayed on the interface Package include:
DC boost module X1
