AC Zu DC Smart-Ladegerät 48V 10A Lithium-Batterieladegerät Für GEL Blei-Säure AGM LFP4 Li-Ion Ac-Batterieladegerät

If you want the corresponding Monitor display, please click onto this link to purchase the MT-2 Monitor display, the Monitor display and Bluetooth can be used at same time

MT-2
https://www.aliexpress.com/item/1005002814511701.html

BT10
https://www.aliexpress.com/item/1005002814195409.html

Temperature

https://www.aliexpress.com/item/1005002702603642.html

product presentation

4-stage charging mode pre charging, constant current charging(Bulk), constant voltage charging(ABS) and floating charging
Temperature compensation
Temperature compensation charging voltage, automatic compensation according to ambient temperature; This ensures that the battery is charged at the optimum charging voltage,Regardless of the climate, there is no need to manually adjust the settings.

Protection function

Overheating protection: the internal temperature> 85 ℃ ,charger stop working
Current reduction protection: the internal temperature > 70 ℃, the current is reduced by 50% for charging
Short circuit protection: battery is short circuited and the charger stops working
Reverse connection protection: the battery is reversely connected and the charger does not work
Low current mode（50% current）
The charger is charged with 50% current of

Standard specification

Night mode
Night mode charging, Keep 10% fan speed allowed during charging process, and Keep silent , the charging current will reduce to 10A
DC Power supply mode
Charger outputs constant voltage，It can be used as a DC power supply，
Reference parameter table of output voltage and current
Note: DC power supply mode, disable battery selection function and temperature
compensation
Fan control
Detect charging current and charger temperature to change fan speed
Lithium battery 0V automatic activation charging
When the lithium battery is low voltage protection (UVP) state, the charger can
automatically activate the lithium battery charging
lithium battery 0℃ charging function
The 0 ℃ charging function of lithium battery can be selected through the DIP switch

Note:

1. Charging the lithium battery without temperature compensation

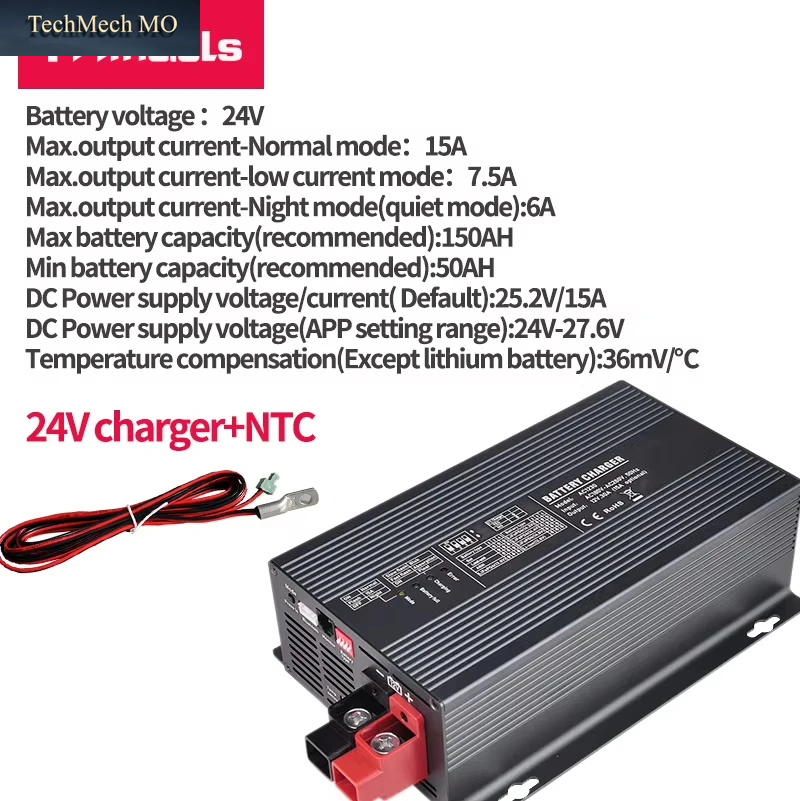

2. The temperature sensor (RTs) is an optional part and needs to be purchased separately If not connected, no temperature compensation
