Adjustable Front Tie Rod Ends for BMW E9X E8X F2X F3X F8X – Bump Steer Correction Kit with FK Rod Ends & Titanium Hardware 6061

Description

Eliminate Bump Steer. Maximize Grip.

Specifically engineered for the serious driver, this Adjustable Front Tie Rod End Kit is the definitive solution for BMWs running aggressive suspension geometry. When lowering your chassis or altering caster, the factory steering arc is compromised—leading to unpredictable “bump steer” and binding. This kit relocates the pivot point to restore precise steering control and protect your inner tie rods from failure.

Vehicle Fitment

E-Series (2006-2013): E81, E82, E82M, E87, E88, E90, E91, E92, E93 (Incl. M3)

F-Series (2010-2021): F20, F21, F22, F23, F30, F31, F32, F33, F34, F36

F8X M-Series (2014-2021): F80 M3, F82 M4, F83 M4, F87 M2

Key Features & Race-Bred Engineering

Geometry Correction: Includes precision stainless steel bump steer spacers (1/4″ and 1/8″) to fine-tune pivot height and eliminate bump steer on lowered vehicles.

Binding Prevention: Curved 6061-T6 Billet Aluminum turnbuckle design allows full suspension droop travel without restriction, preventing the binding that bends inner tie rods.

Low-Friction Performance: Equipped with Teflon-lined FK Heim Joints/Rod Ends for zero slop and ultra-smooth, precise steering input.

Premium Hardware: Kit includes Blue Anodized Titanium socket head cap screws for lightweight clamping force paired with ASTM A574 Grade Alloy Steel Bolts (170,000 PSI tensile strength) for maximum reliability.

Complete Kit: Sold as a pair (Left and Right) with all hardware required for installation.

Why You Need This Kit

Eliminates Bump Steer: Uses stainless spacers to adjust the roll center and align steering arc with suspension travel.

Prevents Component Failure: On significantly lowered cars, the curved billet turnbuckle relieves binding stress on the inner tie rod, preventing costly on-track breakage.

Unmatched Hardware: Features low-friction FK spherical bearings and Blue Anodized Titanium pinch bolts for weight savings and superior clamping.

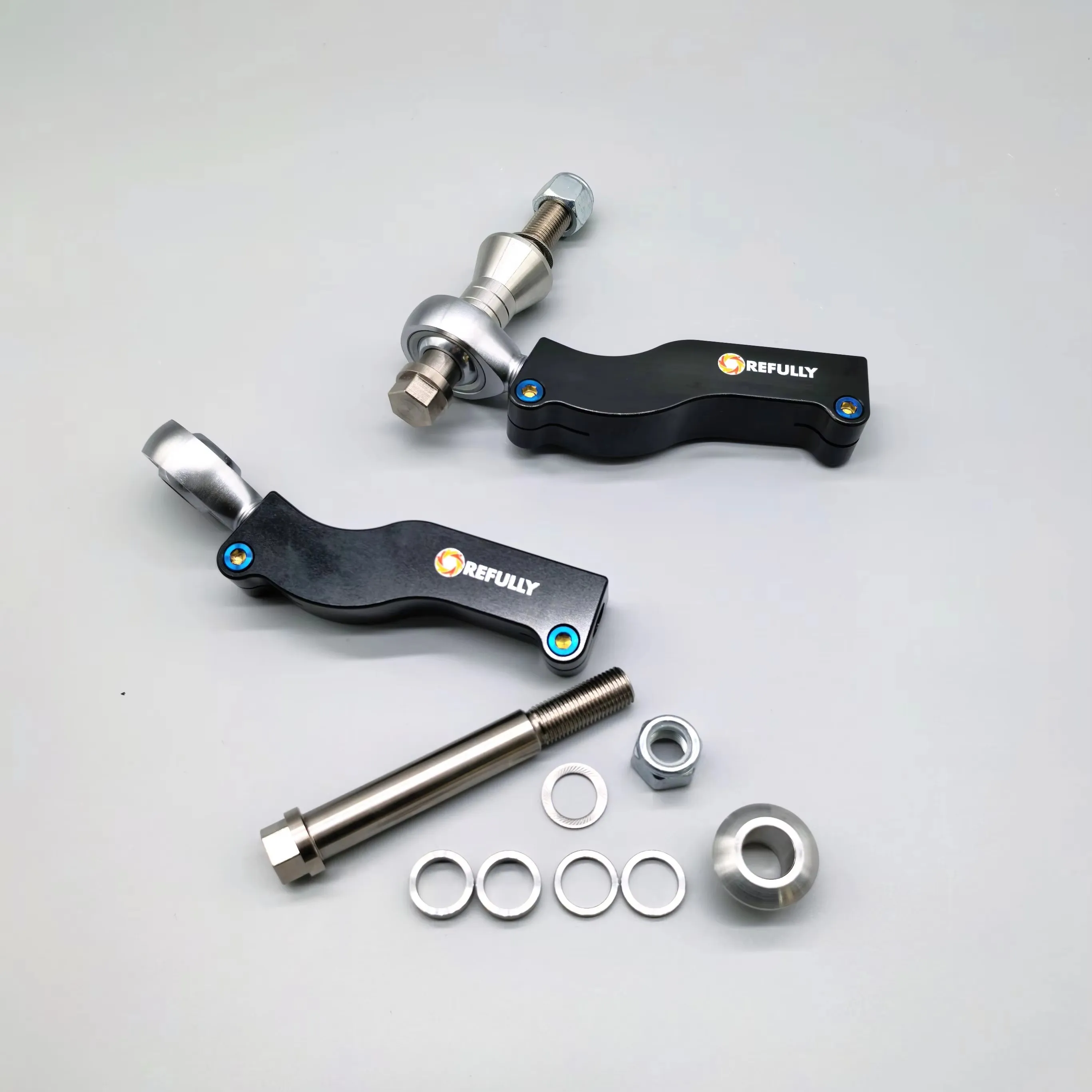

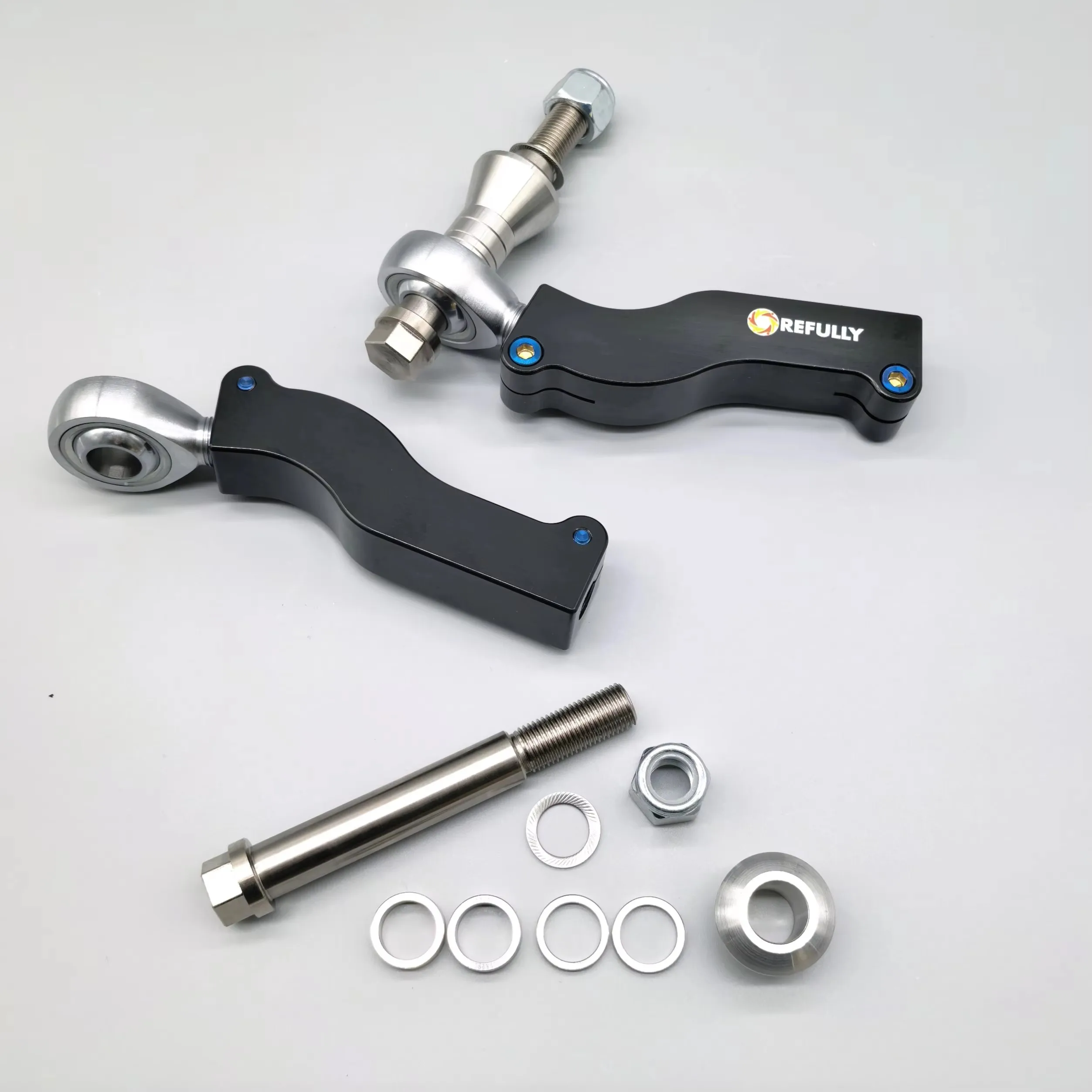

Kit Contents

(1) 6061-T6 Billet Aluminum Curved Turnbuckles

(2) FK Teflon-Lined Rod Ends

Titanium Socket Head Cap Screws & Grade A574 Hardware

Stainless Steel Bump Steer Spacers (1/4″ & 1/8″)
