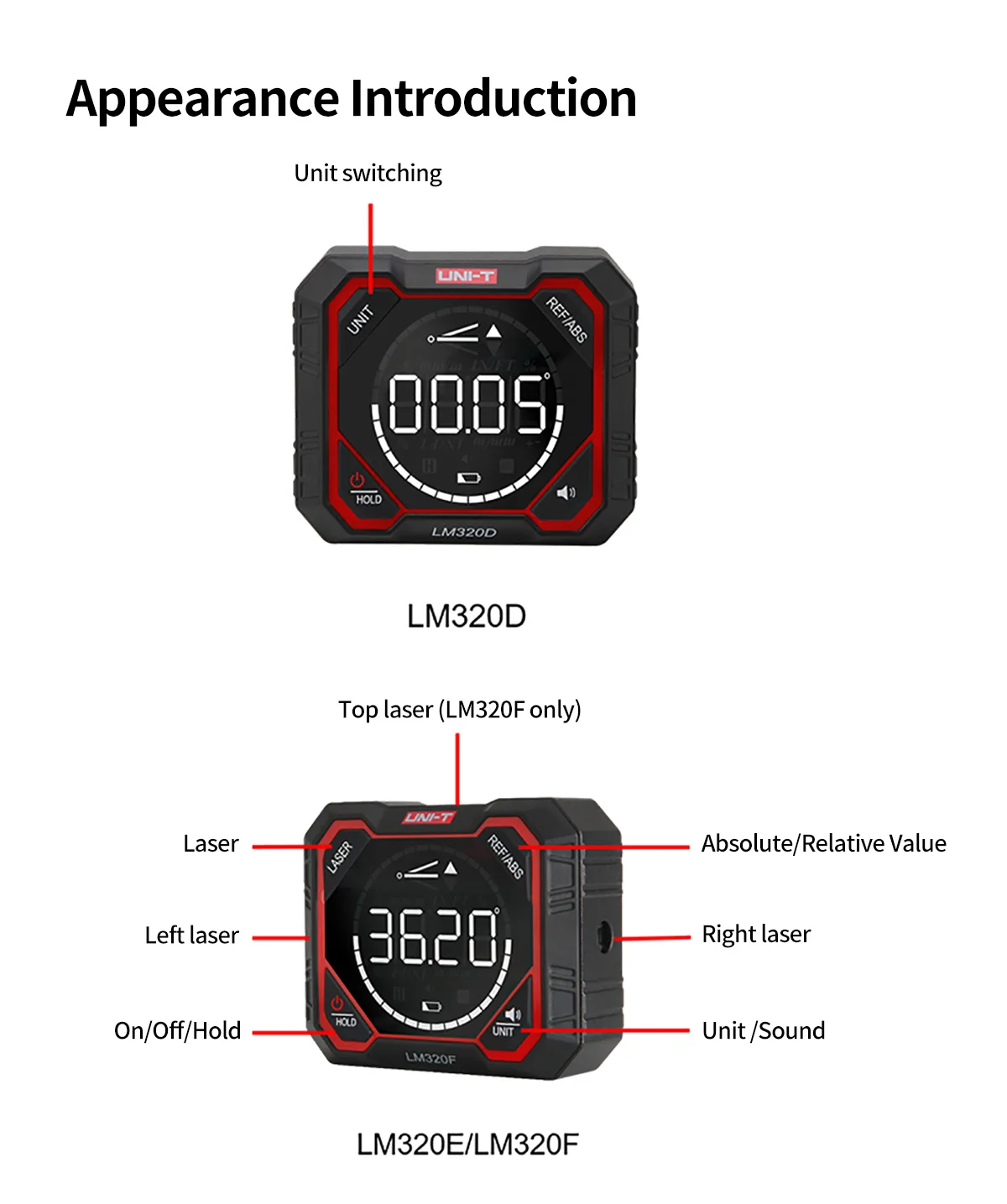

LM320D/LM320E/LM320F Angle Meter
The new LM320 series is a lightweight and portable angle meter with a durable aluminum alloy frame. It features a high-definition color display with automatic screen rotation, supporting a full 4×90° measurement range. The device provides real-time tilt angle data and is equipped with a magnetic base for easy and stable positioning. It is widely used in engineering, construction, and mechanical installation fields.
|
Specifications |
|||
|
Models |
LM320D |
LM320E |
LM320F |
|
Measurement Range |
4*90° |
4*90° |
4*90° |
|
Resolution |
±0.05° |
±0.05° |
±0.05° |
|
Angle Accuracy |
±0.2° |
±0.2° |
±0.2° |
|
Repeatability |
±0.2° |
±0.2° |
±0.2° |
|
Unit |
°; %;mm/m; in/ft. |
||
|
Laser Lines |
2 lines |
3 lines |
|
|
Laser Accuracy |
±3mm/5m |
||
|
Magnetic Base |
Two-sided magnetic (Bottom and rear) |
Two-sided magnetic (Bottom and rear) |
Four-sided magnetic (Bottom, rear,left and right) |
|
Relative/Absolute Angle Measurement |
√ |
||
|
Angle Hold |
√ |
||
|
Screen Rotation |
√ |
||
|
Auto Power Off |
√ |
||
|
Materials |
Al-alloy frame +ABS |
||
|
Power Supply |

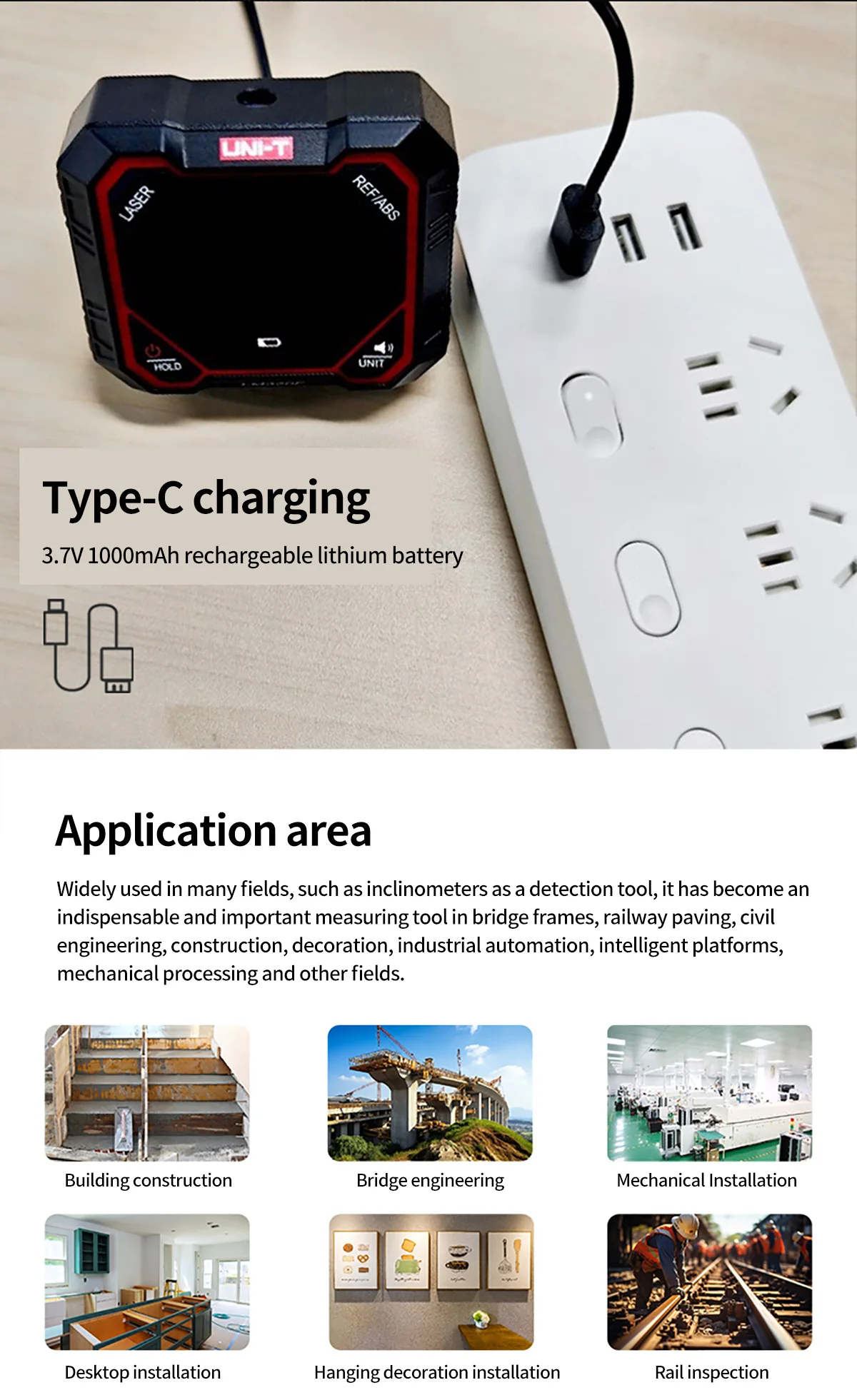

1000mAh lithium battery |
||
|
Working Temperature |
0℃~ +50℃ |
||
|
Laser Class |
Class 2 |
||
|
Laser Type |
630-670nm,<1mW |
||
|
Battery Life |
14h |
8h |
6h |
|
Characteristics |
|||
|
Power Supply |
1000mAh lithium battery |
||
|
Product Size |
83.5*70*35.5mm |
||
|
Product Net Weight |
About 180g |
||
|
Standrad Accessories |
Angle Meter*1, Type-C Cable*1, Gift Box*1, User Manual*1 |

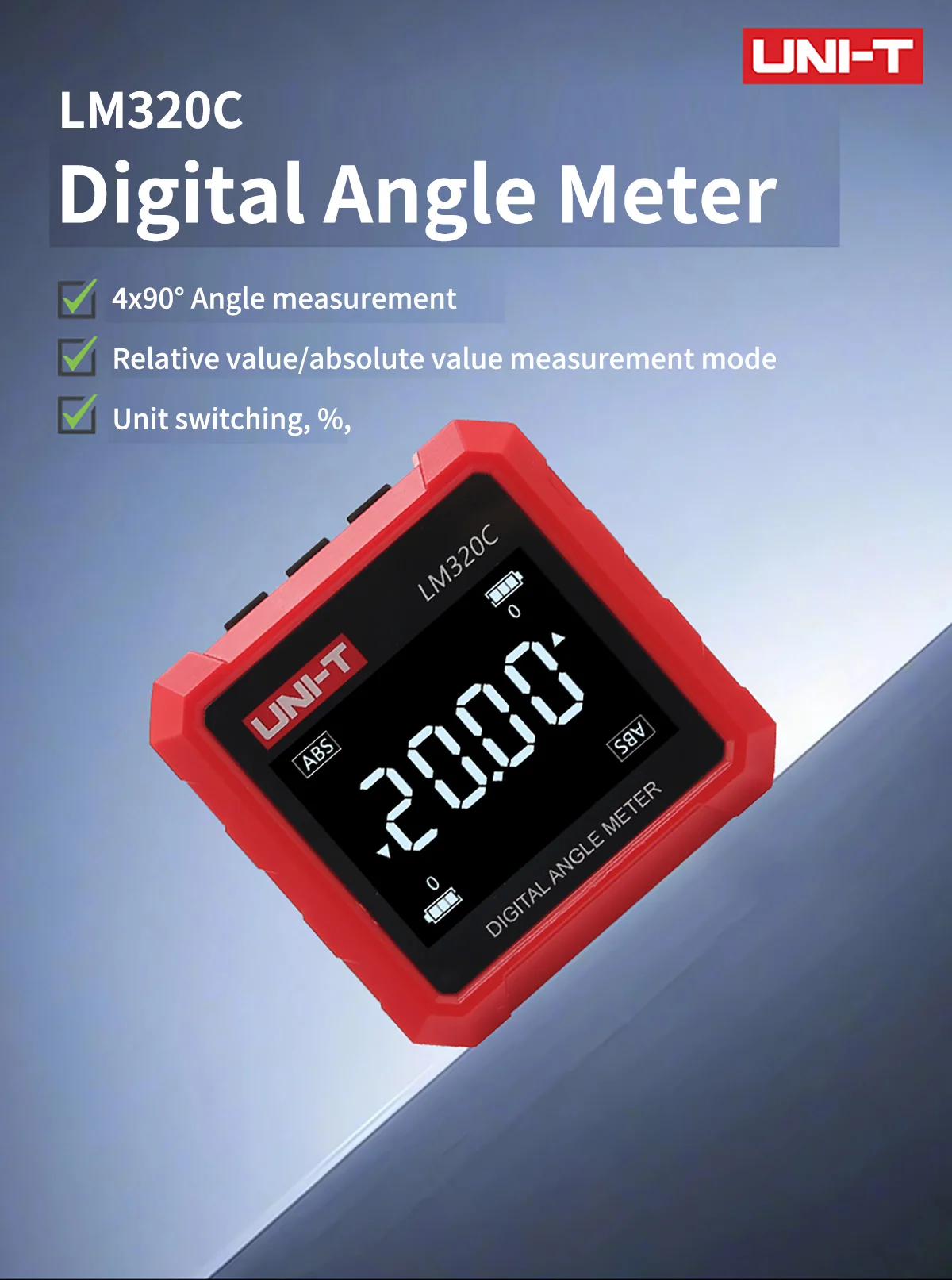

LM320C Digital Inclinometer

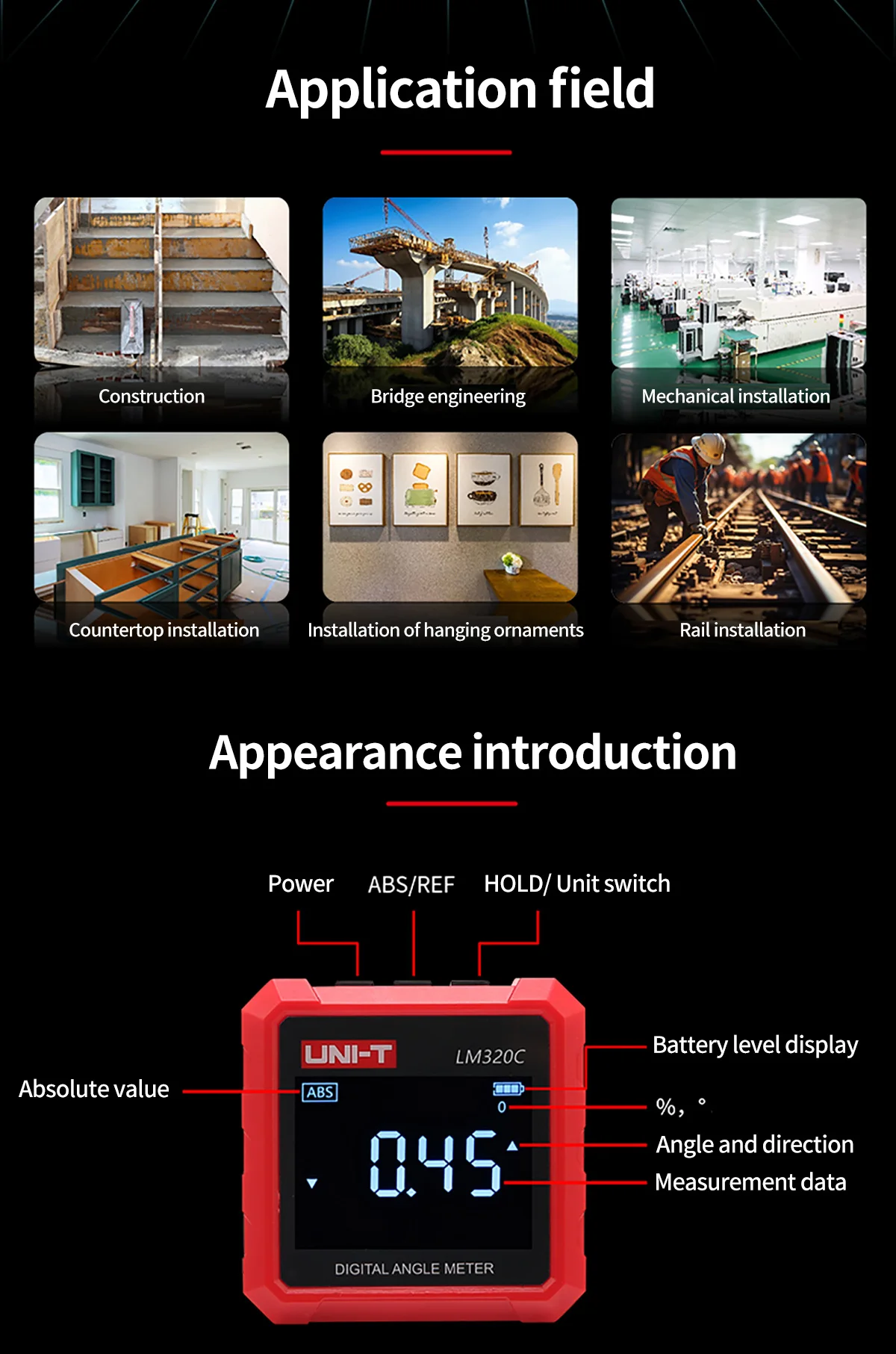

The LM320C is a lightweight, portable angle measurement instrument with clear readouts, suitable for various decoration and installation scenarios. It features automatic screen rotation for viewing from either side, a 4×90° measurement range, and a convenient magnetic base for easy positioning and secure measurements.
|

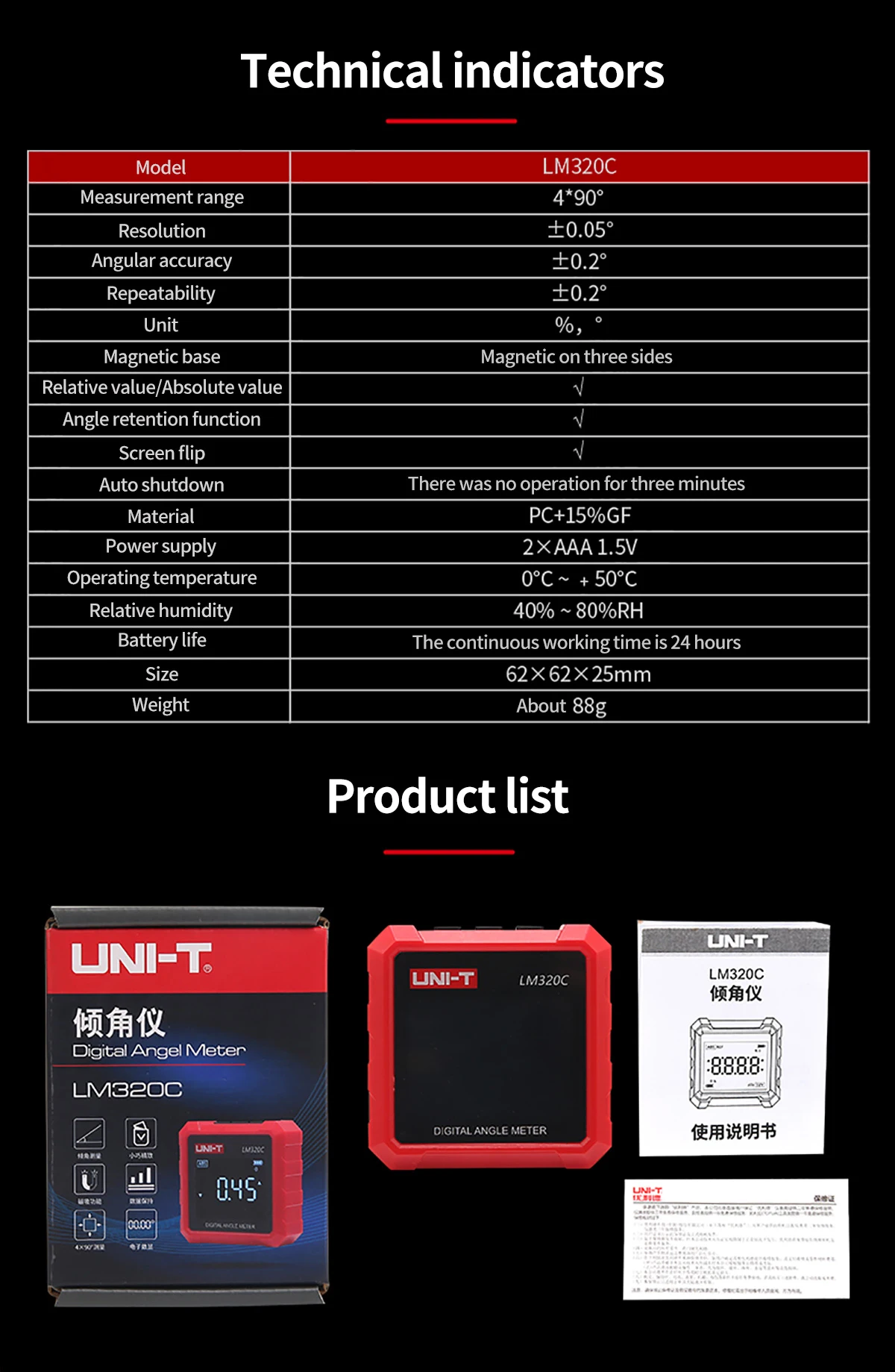

Specifications |
|
|
Models |
LM320C |
|
Measurement Range |
4*90° |
|
Resolution |
±0.05° |
|
Angle Accuracy |
±0.2° |
|
Repeatability |
±0.2° |
|
Unit |
%、° |
|
Magnetic Base |
Three-sided magnetic |
|
Relative/Absolute Angle Measurement |
√ |
|
Angle Hold |
√ |
|
Screen Rotation |
√ |
|
Auto Power Off |
3 minutes No operation |
|
Characteristics |
|
|
Power Supply |
2 x AAA 1.5V batteries(No include） |
|
Materials |
PC+15%GF |
|
Product Size |
62*62*25mm |
|
Product Net Weight |
About 88g |
|
Working Temperature |
0℃~ +40℃ |
|
Standrad Accessories |
Angle Meter*1, Gift Box*1, User Manual*1 |
Features

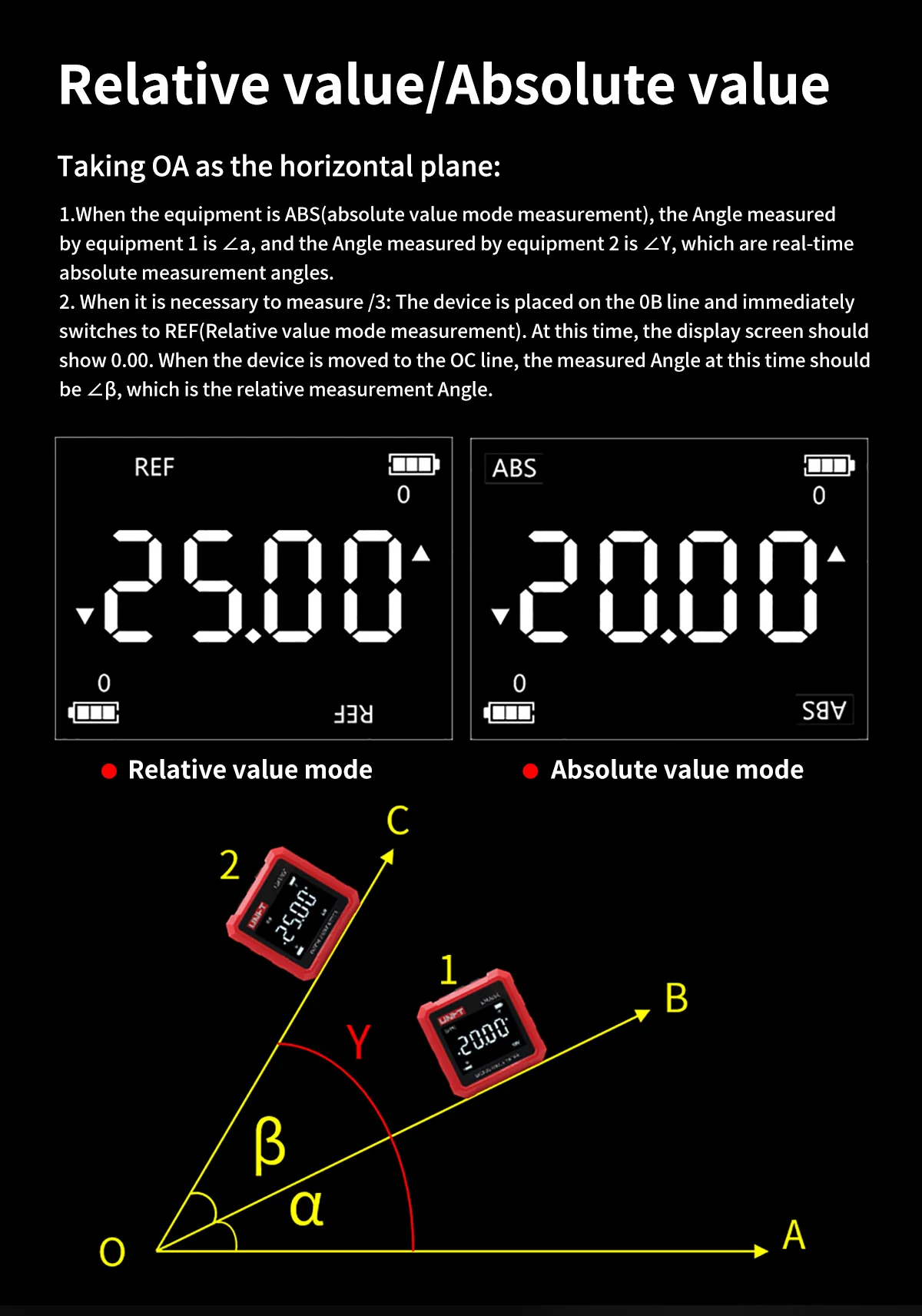

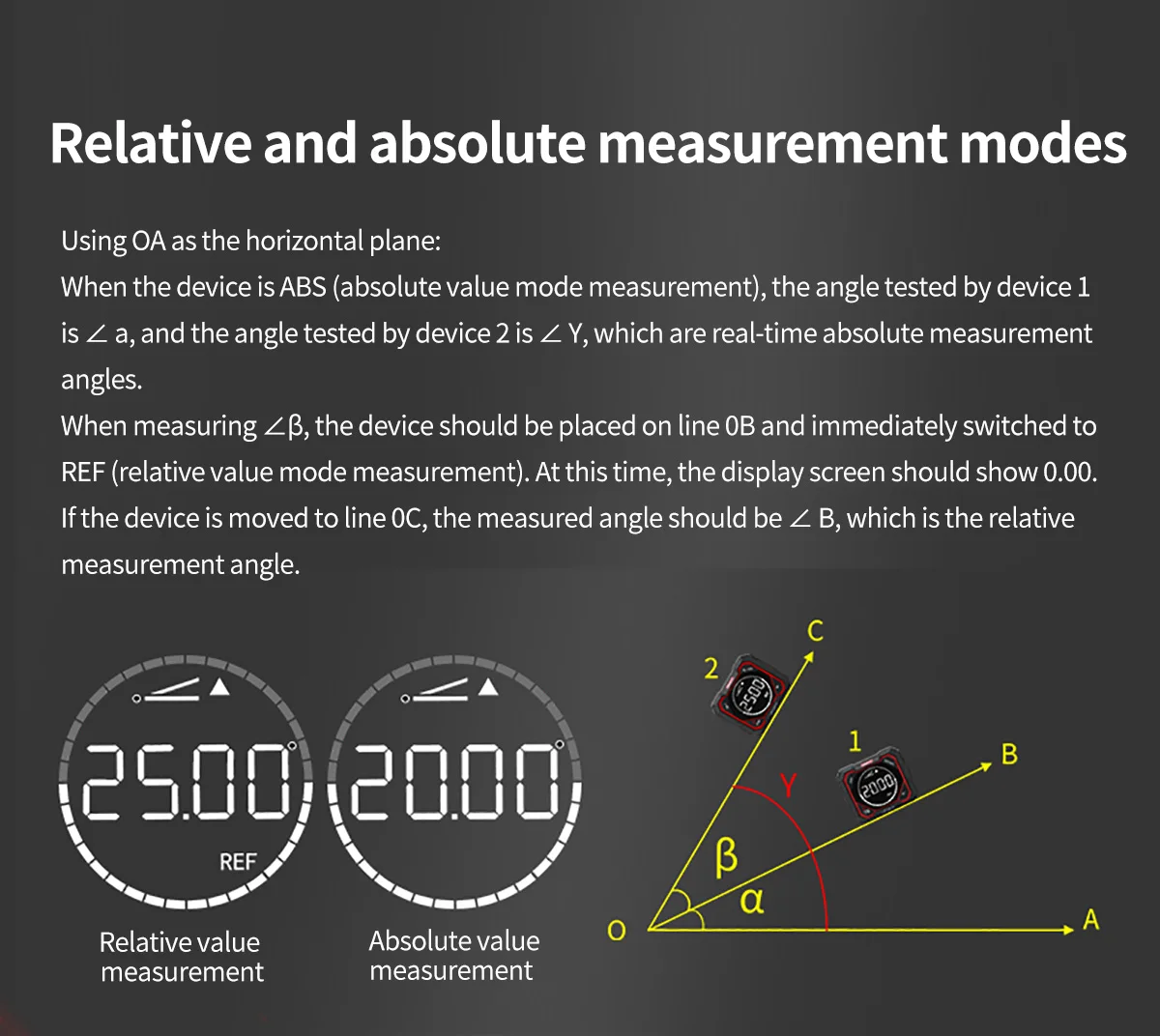

1. Relative / absolute measurement

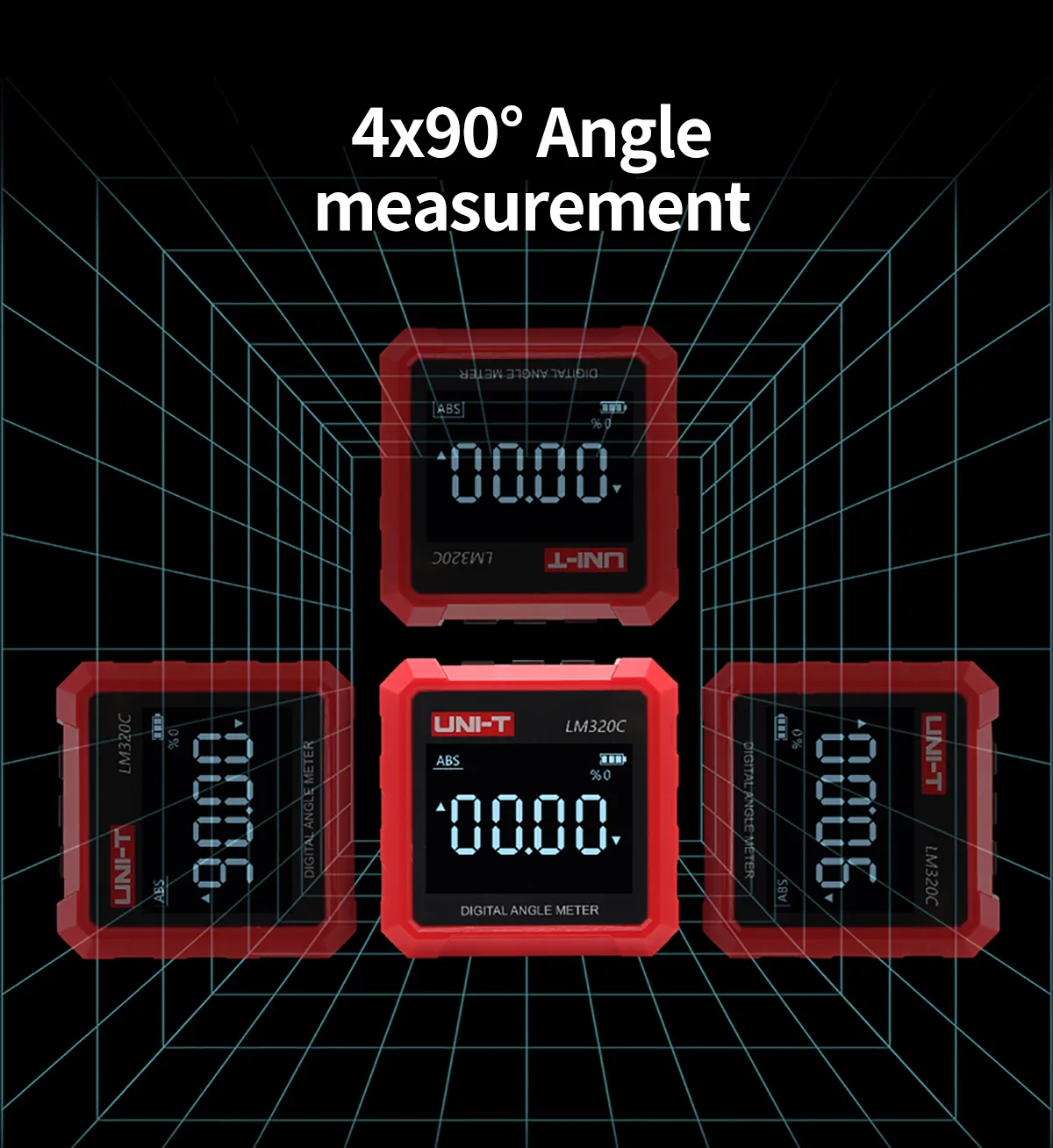

2. 360°comprehensive measurement
3. Data hold
4. Portable and lightweight

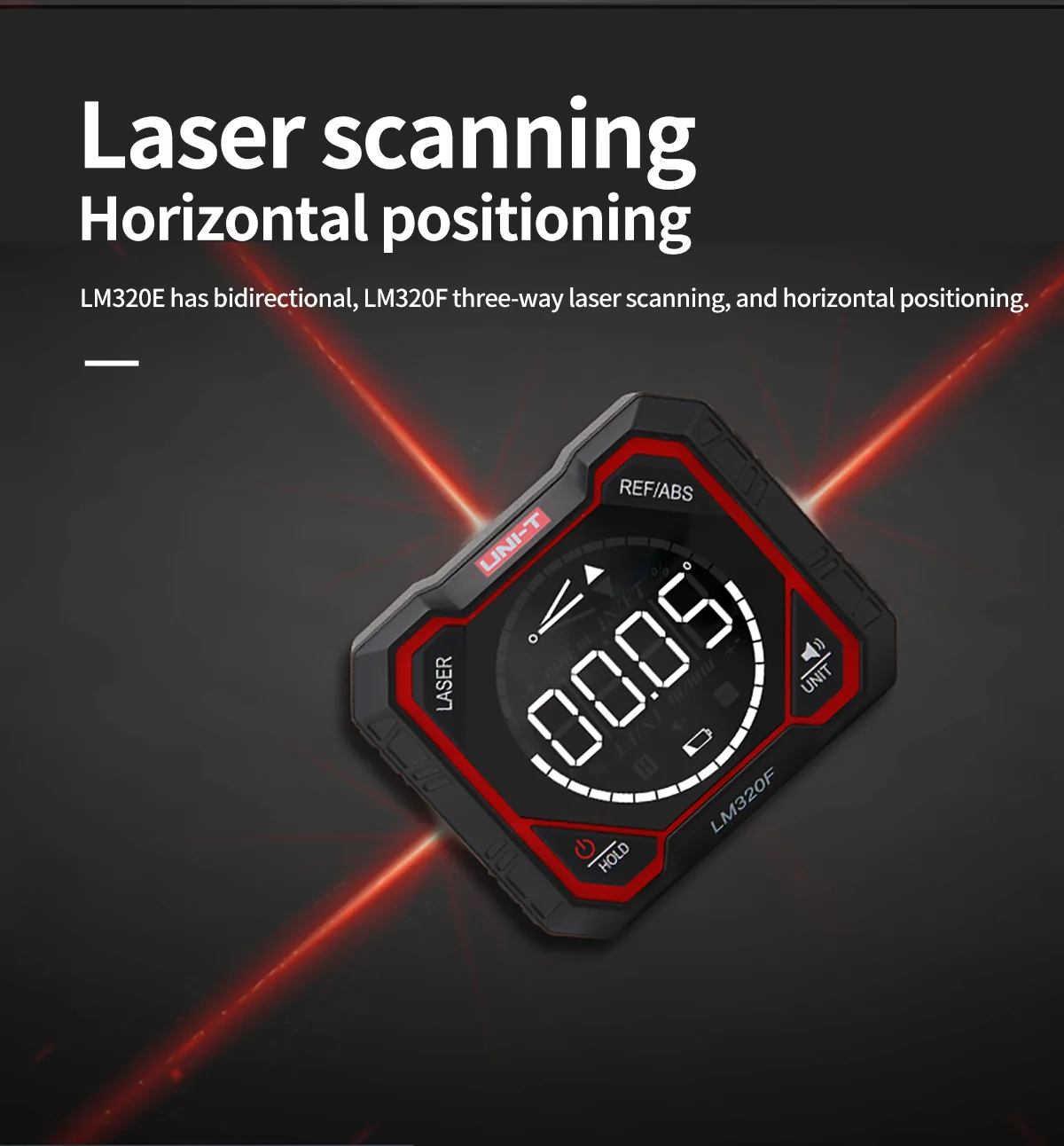

5. Unique laser design

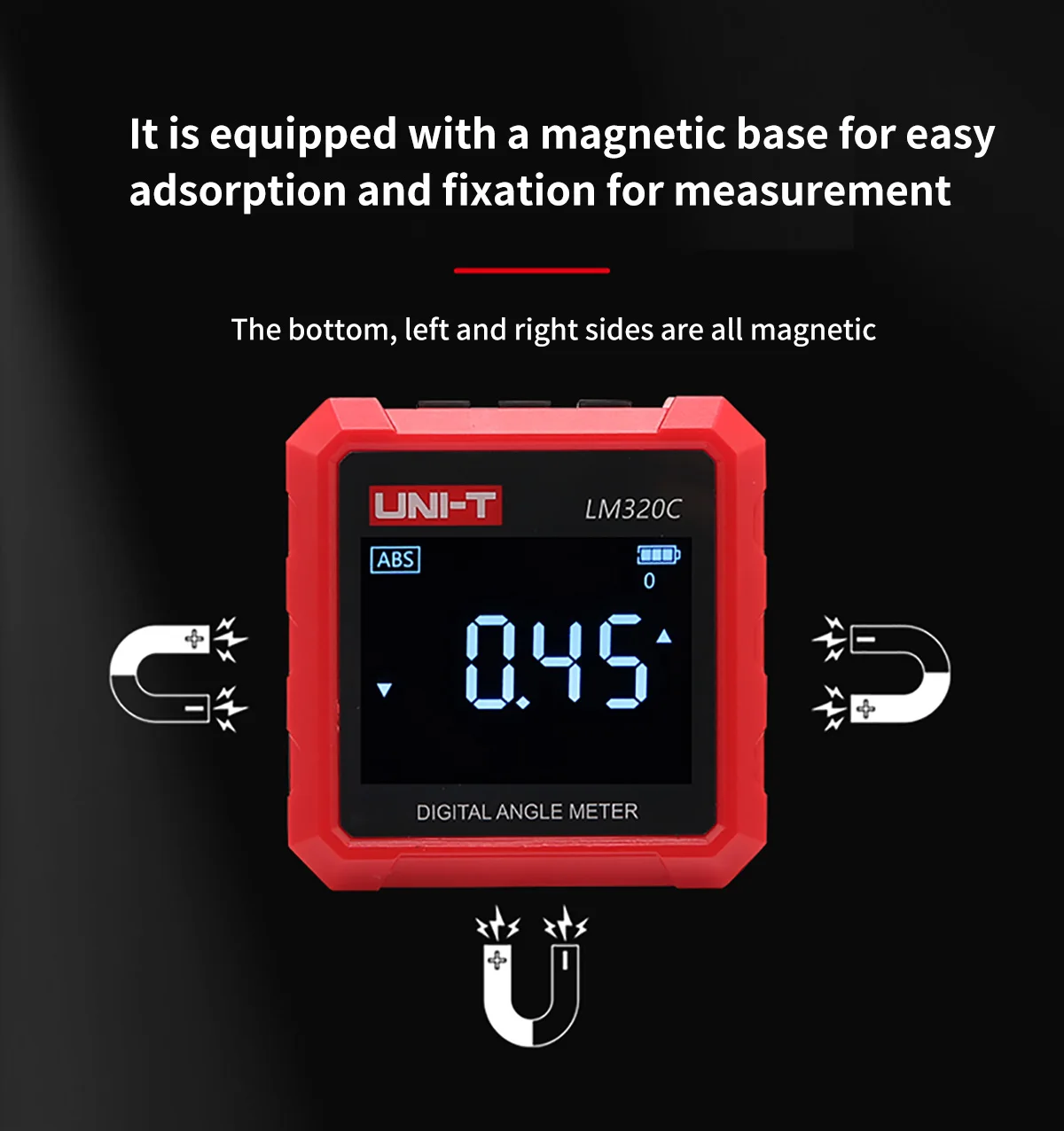

6. With magnetic base at the bottom
7.Equipped with magnetic bases(LM320D,LM320E and LM320F only)
8. Reverse display screen with backlight
9.Laser indication (LM320B,LM320E and LM320F only)

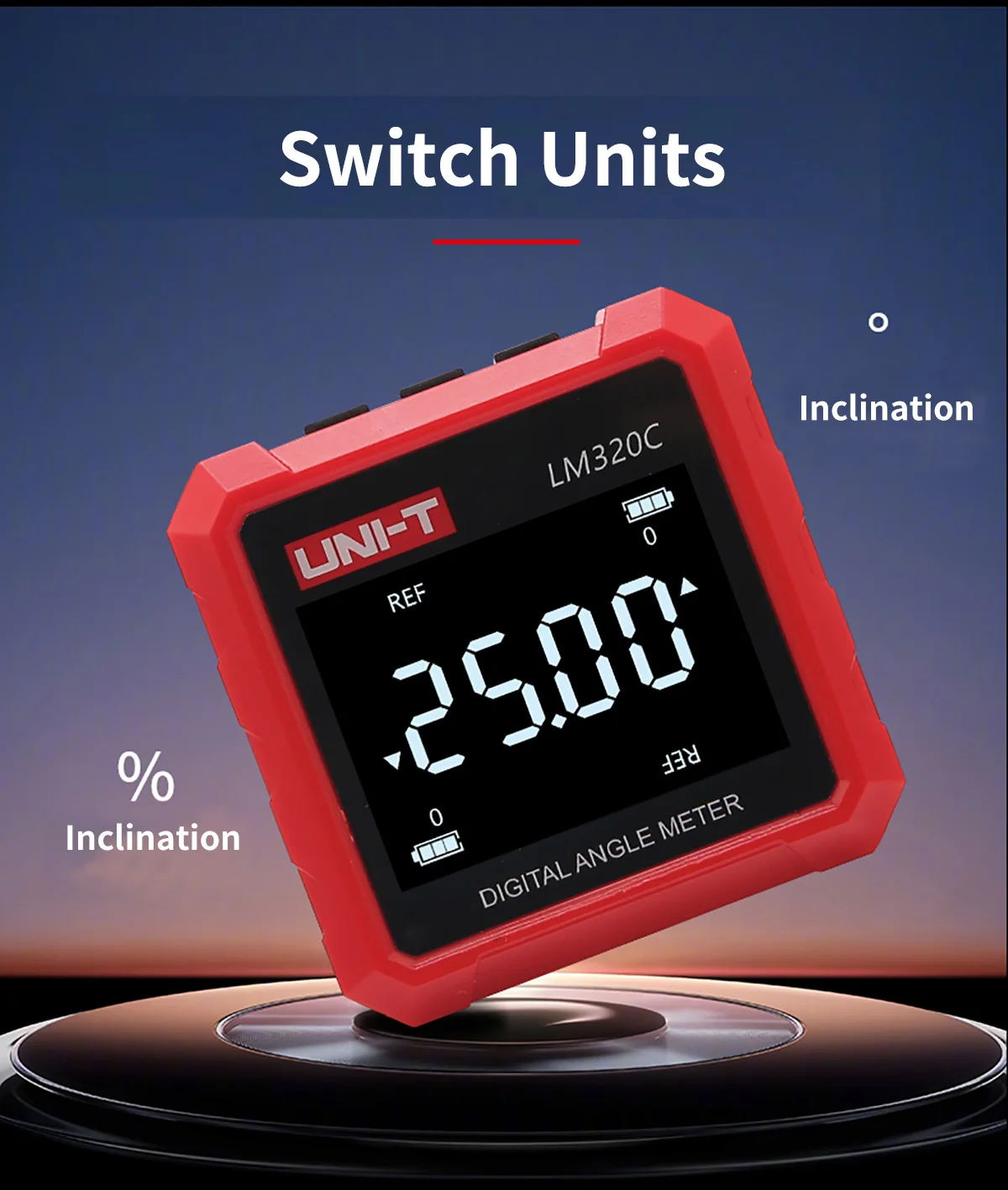

10.Multiple unit options: mm/m, in/ft, %, ° (LM320D,LM320E and LM320F only)
Applications:
LM320 series can be used in manufacturing, home decoration/DIY, and other fields requiring accurate angle measurements.
