B13 100W Motorcycle Bidirectional Charger USB-C & USB-A Fast Charging Dual Ports Socket with LED Voltmeter Display Charger

Kewig B13 100W Motorcycle Bidirectional Charger USB-C & USB-A Fast Charging Dual Ports Socket with LED Voltmeter Display Charger

Introduction

1. This product is a “motorcycle two-way 100W fast charger” with USB-A andUSB-C dual ports.

2. This product is suitable for 12V lead-acid batteries (includingmaintenance-free batteries, AGM batteries) and 12V lithium iron phosphateBatteries, please do not use them for other purposes.

3. The voltage connected to the battery terminal of this product is 12-14.8V.If it exceeds 16.8V, the device will not work. If it exceeds 25V, it will Burn thisproduct.

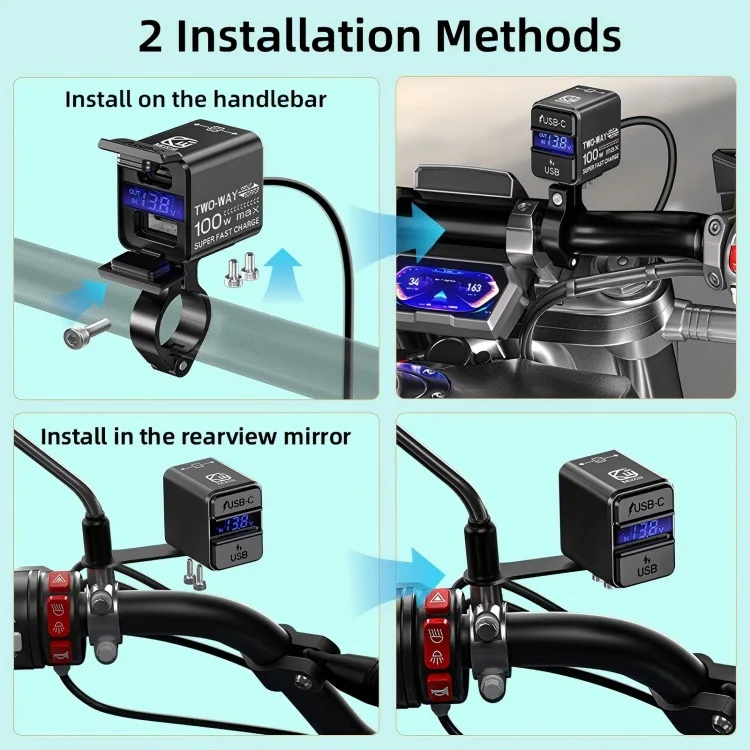

4. When installing this product on a motorcycle for the first time, connect thered wire to the positive terminal of the battery, the black wire to the negativeterminal of the battery, and the yellow wire to the battery positive terminal.The line must be connected to the ACC (the location where the motorcycle’skey can cut off power to the entire vehicle). Do not connect the positive andnegative poles reversely, otherwise It will burn out the fuse on the cable. Ifthe fuse is burned out, please connect the cable to the fuse in the fuse box.Pull out the wire and replace it with a spare fuse.

5. When installing the power module of this product, please keep it away fromheat sources such as engines.

6. When installing this product, please connect and tighten all waterproofconnectors on the cables before The battery terminal is connected to thebattery to prevent the product from being accidentally burned by unpluggingand plugging the connector while the power is on.

7. It is prohibited to unplug and plug in cable connectors when the product isinputting or outputting, as this may burn the product.

8. The motorcycle battery capacity is small. If you need to charge high-powerand large-capacity equipment (such as: high-power mobile power supply,outdoor power supply, etc.), please turn on the car key to start the engine toavoid draining the motorcycle battery. As a result, the power is low and theignition cannot be started.

9. This product is dustproof and waterproof grade IP66, please do not use itbeyond the limit. When washing the car, cover the waterproof cover toprevent entry Water affects product life.

10. Please do not disassemble, modify or repair the equipment withoutpermission.

Note:

Battery input: DC 12~14.8V (12V Pb-A lead-acid battery /12V LFP lithium iron phosphate battery)

USB-C input :9V-3A; 12V-3A; 15V-3A; 20V-5A (100W Max)

USB-C output: 5V-3A; 9V-3A; 12V-3A; 15V-3A; 20V-5A (100W Max)

USB-A output: 5V-3A; 9V-2.5A; 12V-1.8A (22.5W Max)

USB-C+USB-A simultaneous output: 5V-3A (15W Max)
