Batterie BMS Board Modul Li-Ion Akku Für Schutzplatine BMS 13S 48V 60A Elektroauto Batterieschutzplatine

Battery BMS Board Module Li-Ion Battery Pack for Protection Board BMS 13S 48V 60A Electric Car Battery Protection Board

Features.

Overload protection, over-discharge protection

Over-current protection, short-circuit protection

With temperature control protection function, safe and reliable

Wide range of application, suitable for electric cars, electric power-assisted vehicles, skateboards, inverters, etc.

Applicable to 13 series lithium-ion batteries, can be used for 3.7V ternary batteries, manganese acid batteries and cobalt acid batteries.

Product parameters.

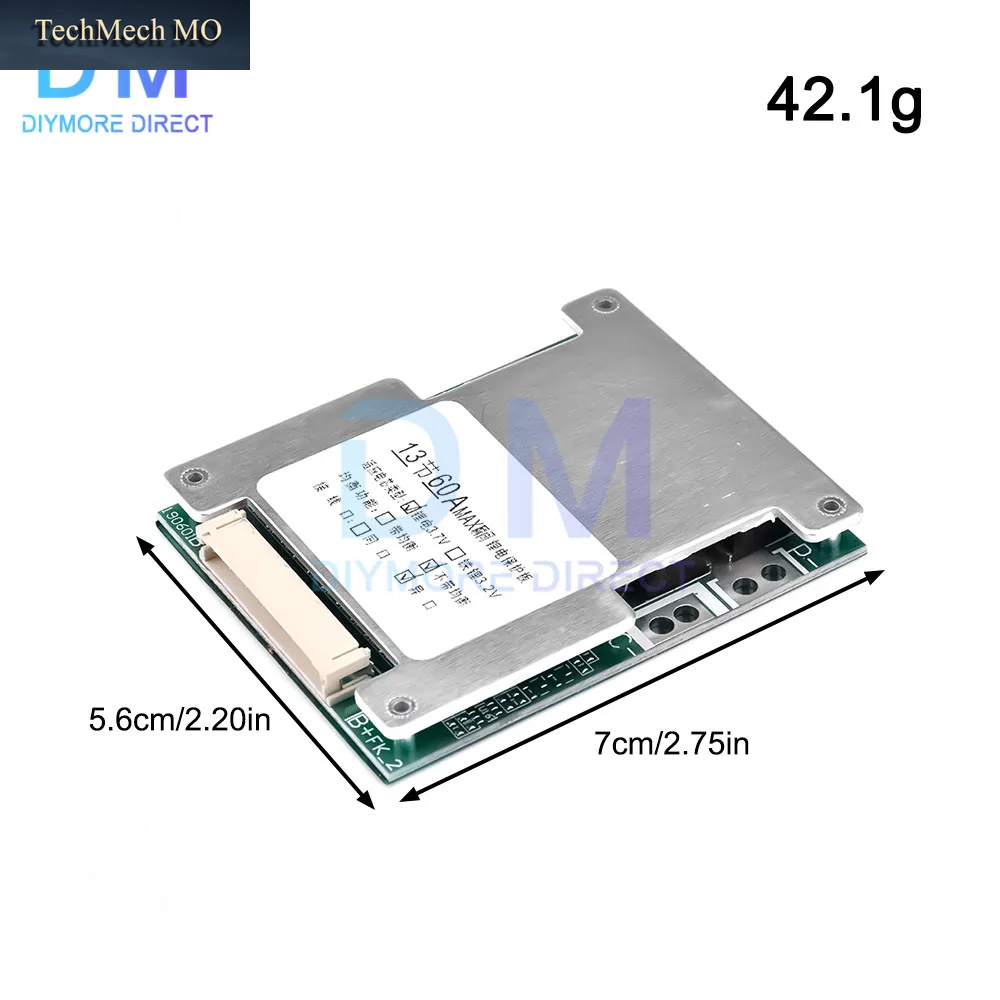

Style: 13S 48V/60A split-port

Wiring method: sub-port

Applicable battery type: 3.7V ternary batteries, lithium cobalt-acid, lithium manganese-acid batteries

Equalization charging function: without equalization

Applicable voltage: 48V

Applicable power: <2500W

Max. working current: 60A

Max. DC current: 40A

Over-discharge protection voltage: 2.6 V

Overcharge protection voltage: 4.25V

Charging current: 10A MAX

Temperature protection: with this function

Discharge high temperature: 75℃

Low temperature load: -7℃

Application areas: electric car, twister, electric power-assisted vehicle, scooter, inverter, etc.

Function description: Lithium battery overcharge protection; over discharge protection; over current protection; output short circuit protection.

Assembly instructions.

1, the first battery for voltage pairing, the difference <0.1V;

2, the battery’s internal resistance pairing, the difference between the internal resistance “5mΩ;

3, the battery spot welding, test the voltage is normal;

4, the board is soldered nickel sheet;

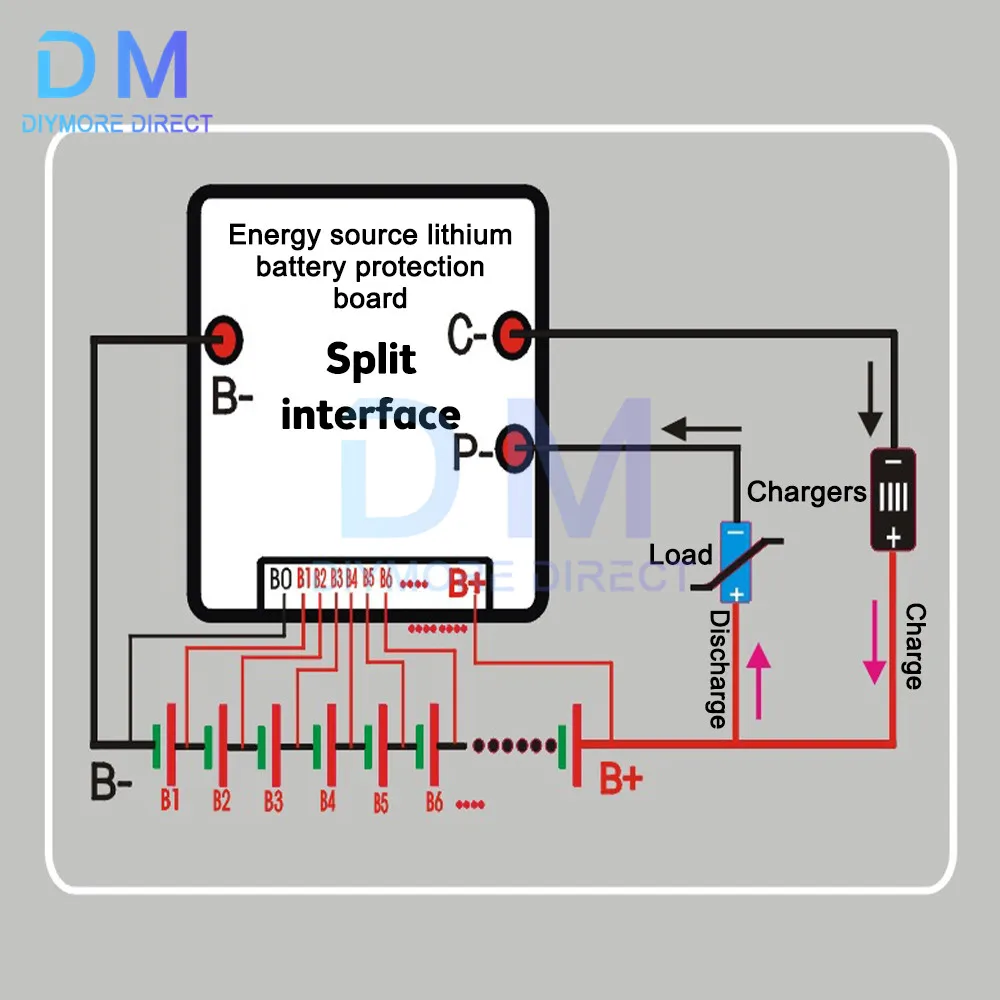

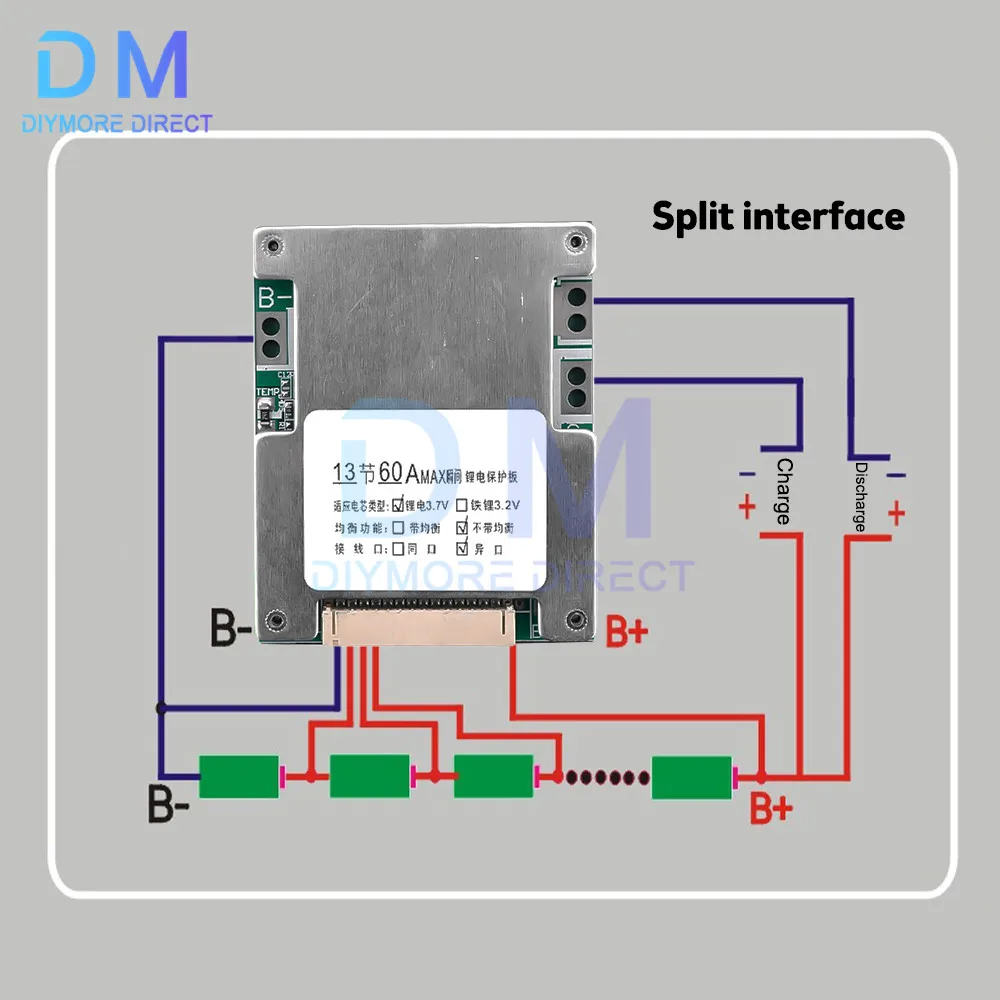

5, according to BO, B1, B2, B + order to connect the board to the lithium battery.

6, please pay attention to the output power to configure the size of the nickel sheet;

7, pay attention not to short circuit P+ P- repeatedly, there will be circuit voltage spikes, easy to cause MOS tube damage;

8, pay attention, do not let the protection board touch the water, easy to damage!

9, welding the board, please pay attention to anti-static operation!

Product list.

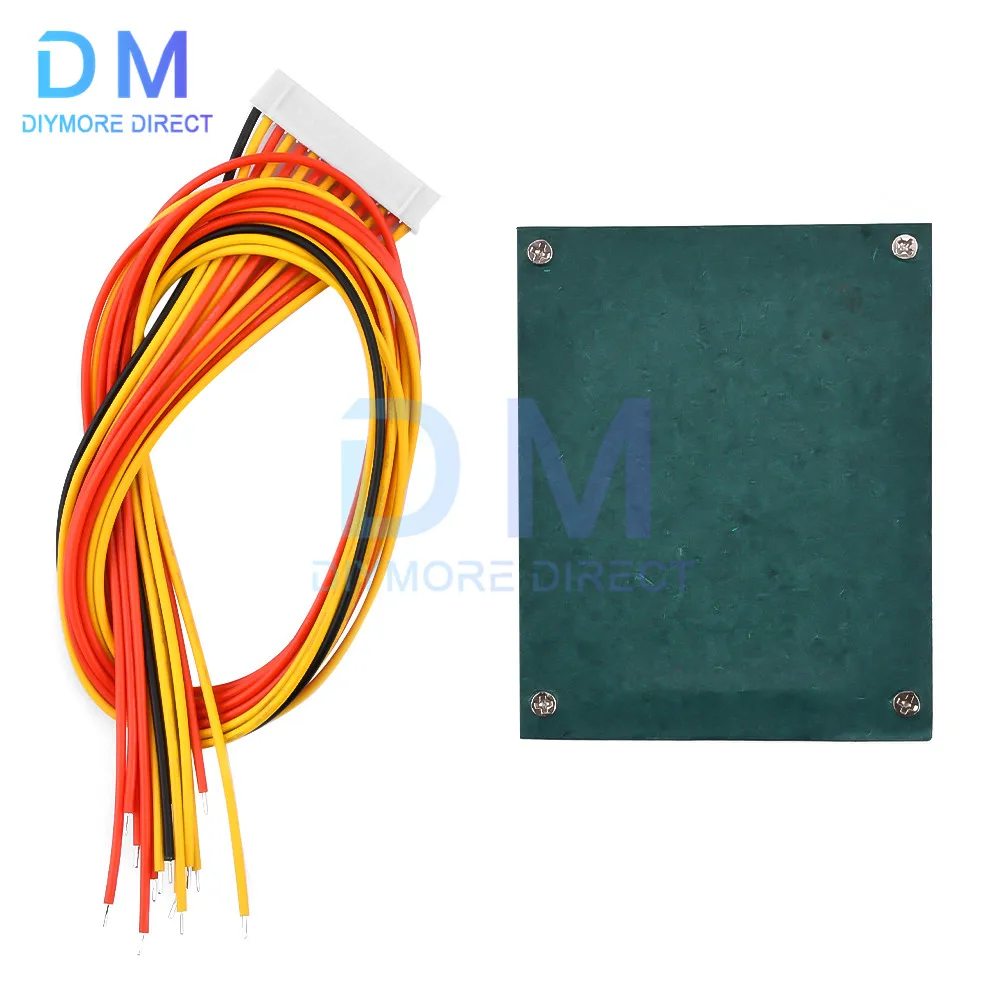

Protection board x 1

Lineup x 1
