BDM1 BDM2 BDM3 Spring Adapters for BDM Frame and Xprog Universial OBD Programmer Works Perfect Hight Quality

BDM1 BDM2 BDM3 Spring Adapters for BDM Frame and Xprog Universial OBD ECU Programmer Works Perfect Hight Quality

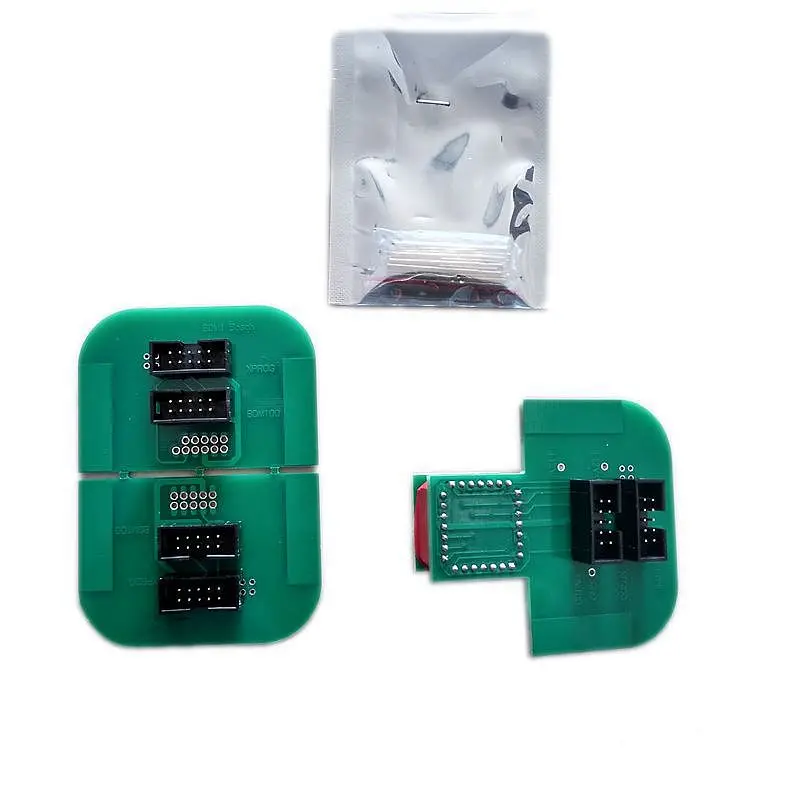

BDM1 BDM2 BDM3 Adapters for BDM and Xprog

Feature and Function:

1.BDM1 – Spring Adapter for BDM frame (B0-sc-h ECU MPC Reading by BDM) Most common used BDM spring adapter for EDC16, MED7 B0-sc-h ECU programming by BDM.

Use it for:EDC16 ( V-A-G, Merc-edes, Fo-rd, PSA, B-M-W and other cars)ME9 (V-A-G, B-M-W, Merced-es) All other cars with 2.54mm 14pin BDM pinouts

Using with BDM100 works without aditional power supply to ECU, with XPROG-M – need to add power supply to ECU or +12V to BDM100 connector pins

2.BDM2 Spring Adapter for BDM Frame (De-lphi,Moto-rola)
BDM adapter for ECUs with standard 2.54mm BDM MPCxxx pinout
for Delphi
for Motorola
for Mercury Marine
for Perkins

3.BDM3 is adapter with spring probes for ECUs with original BDM pinout pitch 1.27mm.
Suitable for:
for Siem-ens SID803
for Siem-ens SID201
for Siem-ens SID202
for Siem-ens SID203
for Siem-ens SID204
for Siem-ens SID206
for Siem-ens SIM226
for Siem-ens SIM90
for Siem-ens MS45, MSS65, MSV70, MSS70
for B0-sc-h MED9.7
Marelli MJDand all others with standart 1.27mm BDM pinout
BDM3 adapter small board with spring probes can be inserted in any positions. This depends how are rotated BDM pinouts in ECU. To find BDM pin1 check with tester BDM GND pin – ground (GND) is pin2 (in most cases also pin3)
