Berührungssensor-Schalter Handbewegungssensor 5A 12V-24V Ir-Bewegungssensor Handwellen-Sensor Smart LED Schrankbeleuchtung/Garderobenlampe

Removable Mini Cabinet Lighting Sensor Switch

Application:

Bedroom, kitchen, living room, bathroom cabinet, wardrobe, wine cabinet, shoe cabinet,

Features:

● Detachable sensing head, plug and play, without rewiring
● 3-Pin DuPont wire HY port centralized control, with Powers following the main driving power supply
● Surface mounted/or concealed mounting for multiple usage scenarios

Product specifications:

●. Voltage：DC12V/24V
●. Power：Dependent on LED driver power supply
●. Features：Surface mounted or concealed mounted/detachable sensors
●. Sensor size：L27 * D13.8mm

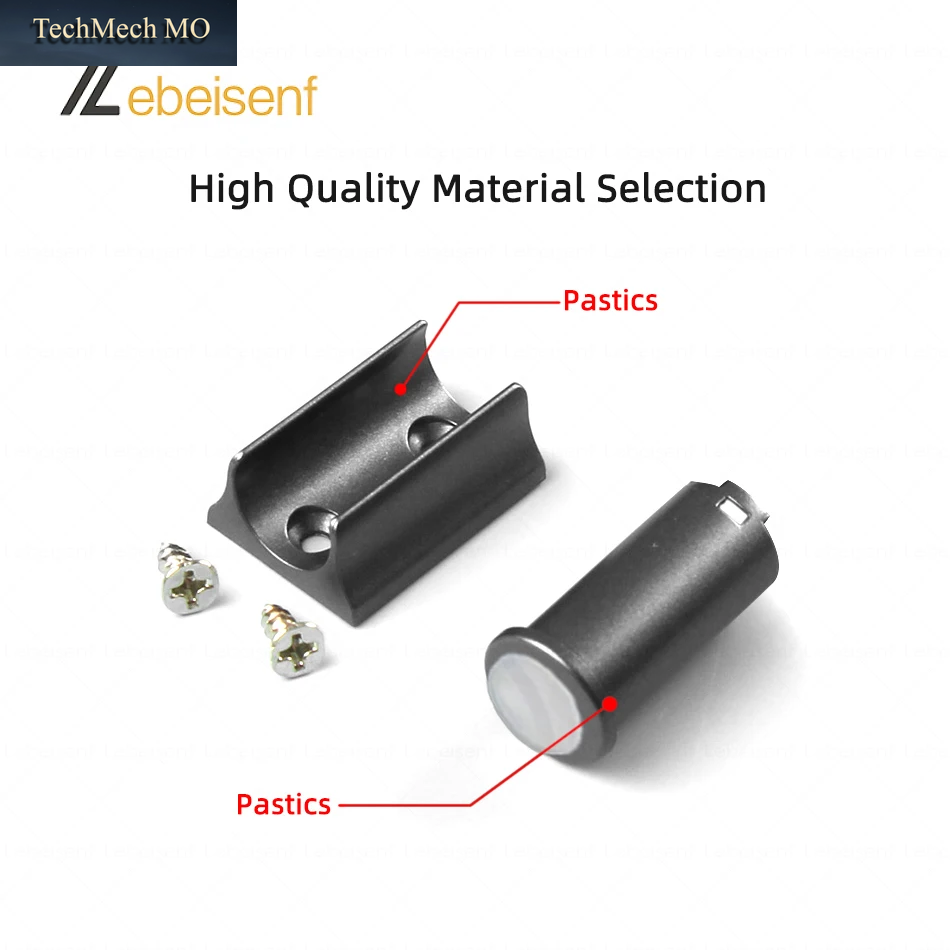

●. Product material：Plastic ABS

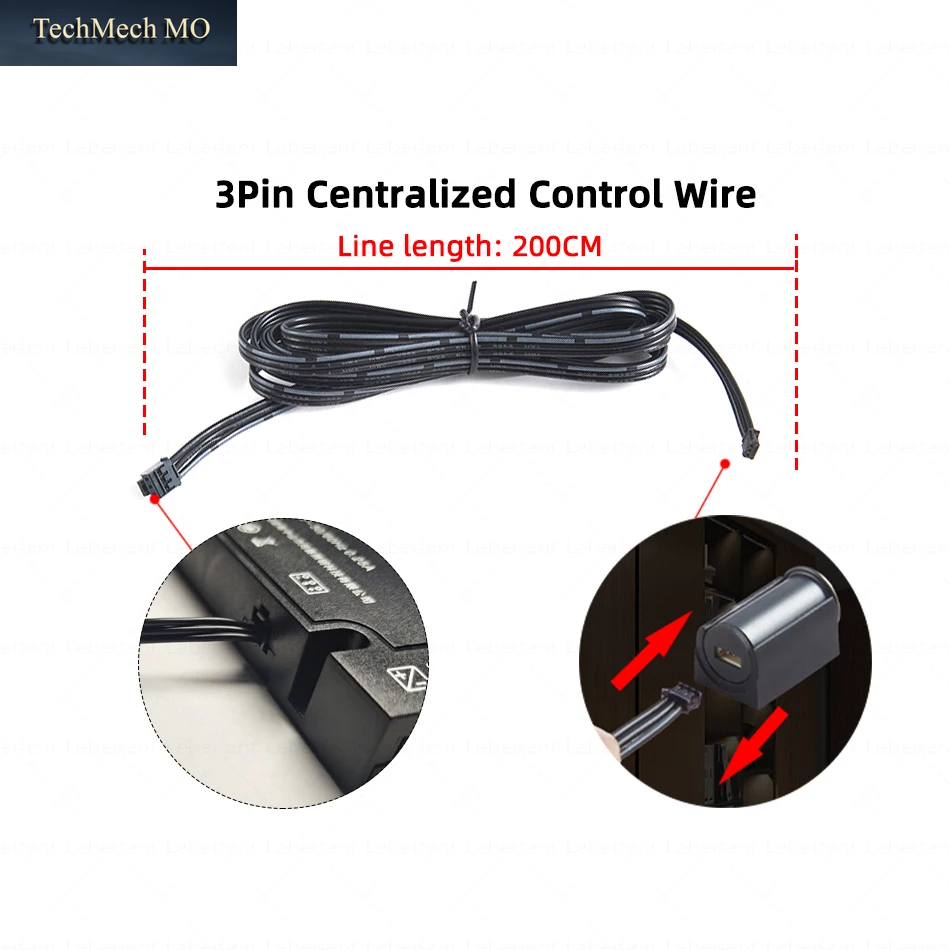

●. Wire type：3Pin DuPont Wire
●. Wire length：200cm
●. Joint type：3-Pin HY Port
●. Opening size：12mm diameter
●. Control method：door, wave, Touch; PIR (optional)

Touch switch

Function: Touch ON/Touch OFF/Long press dimmable

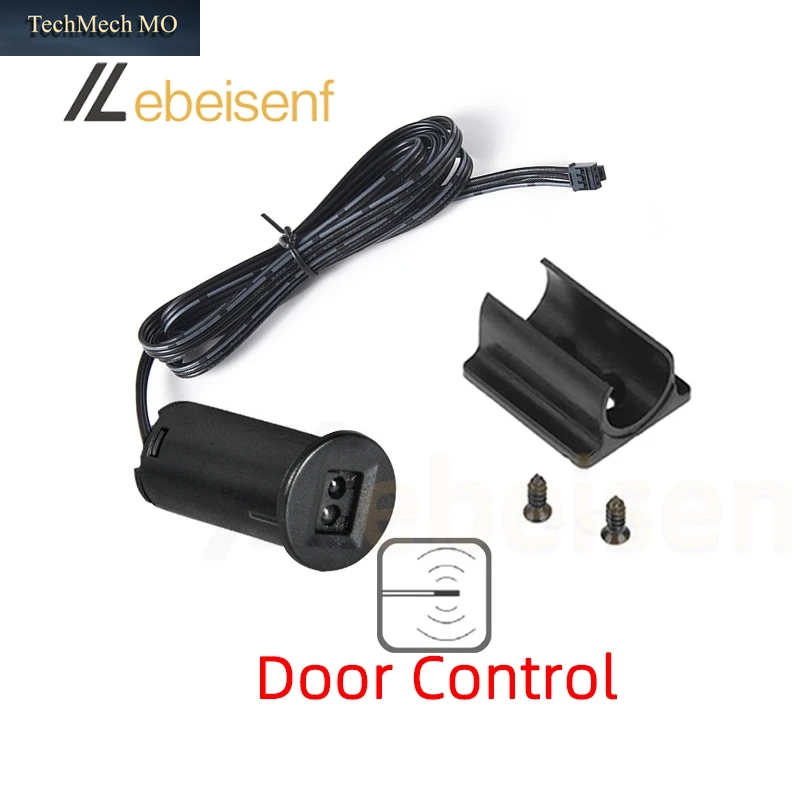

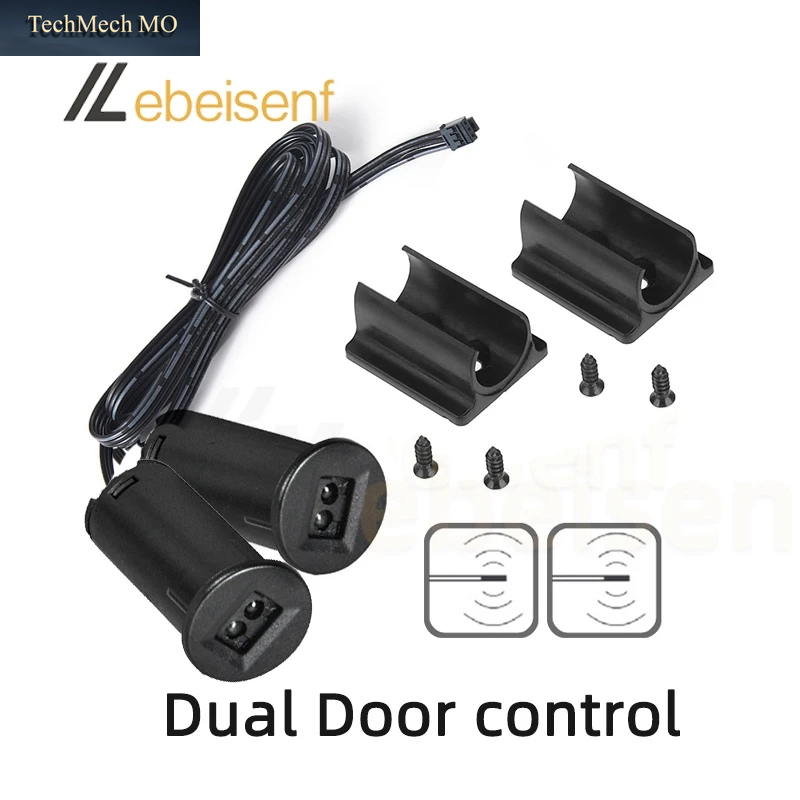

Door control sensor switch

Function: Door open-ON / Door close-OFF
Sensing distance: 1-3CM

Wave sensor switch

Function: Sweep Hand-ON / Sweep Hand-OFF
Sensing distance: 1-8CM

PIR motion sensor switch

Function: People come – ON / People have left – OFF (Delay)
Sensing distance: 1-3M
Sensing angle: 120 degrees

Package List:

2M DuPont wire 3-Pin port
1 x sensor switch
