Billet Aluminium 1.75 Inch Suspension Lift Kit for Tesla Model Y & 3

Product Description

1.75″ Suspension Lift Kit for Your Tesla:

The Tesla Model Y and Model 3 are the most popular EVs ever made. As a result, they have attracted a diverse group of owners, with needs many of us never considered. Consequently, we heard a number of reasons why some needed the car to be higher up from the ground. Anywhere from accessibility issues, to commuting on unpaved roads, to off-roading, to incredibly steep driveways (SF owners know), and even ex-Subaru owners asked for a raised-up Model Y or Model 3 because they enjoy that style! Accordingly, we introduced our 1.75″ Suspension Lift Kit for Tesla Model Y and Model 3 to address these concerns! If you want a lifted Tesla Model Y or 3 – look no further!
A Single Lift Kit Compatible With Both Model Y & Model 3:

Design & Testing of the Tesla Model Y & Model 3 Lift Kit:

In the process of designing this lift kit, we set out and tested different heights and determined the 1.75″ lift to be the maximum height without going too far and excessively impacting suspension and driveline angles. Since the center of gravity is so low due to the battery placement, handling and safety are still as you’d expect from a sporty sedan.

Do I Need Rear Camber Arms?

When lifting the car this much, it is recommended to add our rear camber arms to restore the negative camber to the suggested range. A minimum of -0.7 degrees is advisable for safety. Particularly, insufficient rear camber can result in oversteer during evasive or emergency steering inputs. Additionally, the range will be mildly reduced as more air can travel underneath the car and the front of the tires have more exposure.

Installation of the Lift Kit:

To begin with, no spring compressor is required during the install of the lift kit, and it is fairly straight forward. With that in mind, you will require an alignment after installing this lift kit. Check out our gallery below to see all sorts of awesome Tesla Model Y’s and Model 3’s with our 1.75″ Suspension Lift Kit installed! We love seeing lifted Tesla’s

Key Features Include:

-1.75″ increase in ground clearance to clear snow, speedbumps, rough terrain, steep driveways etc.

-Compatible with all models, including cars equipped with lowering springs or coilovers.

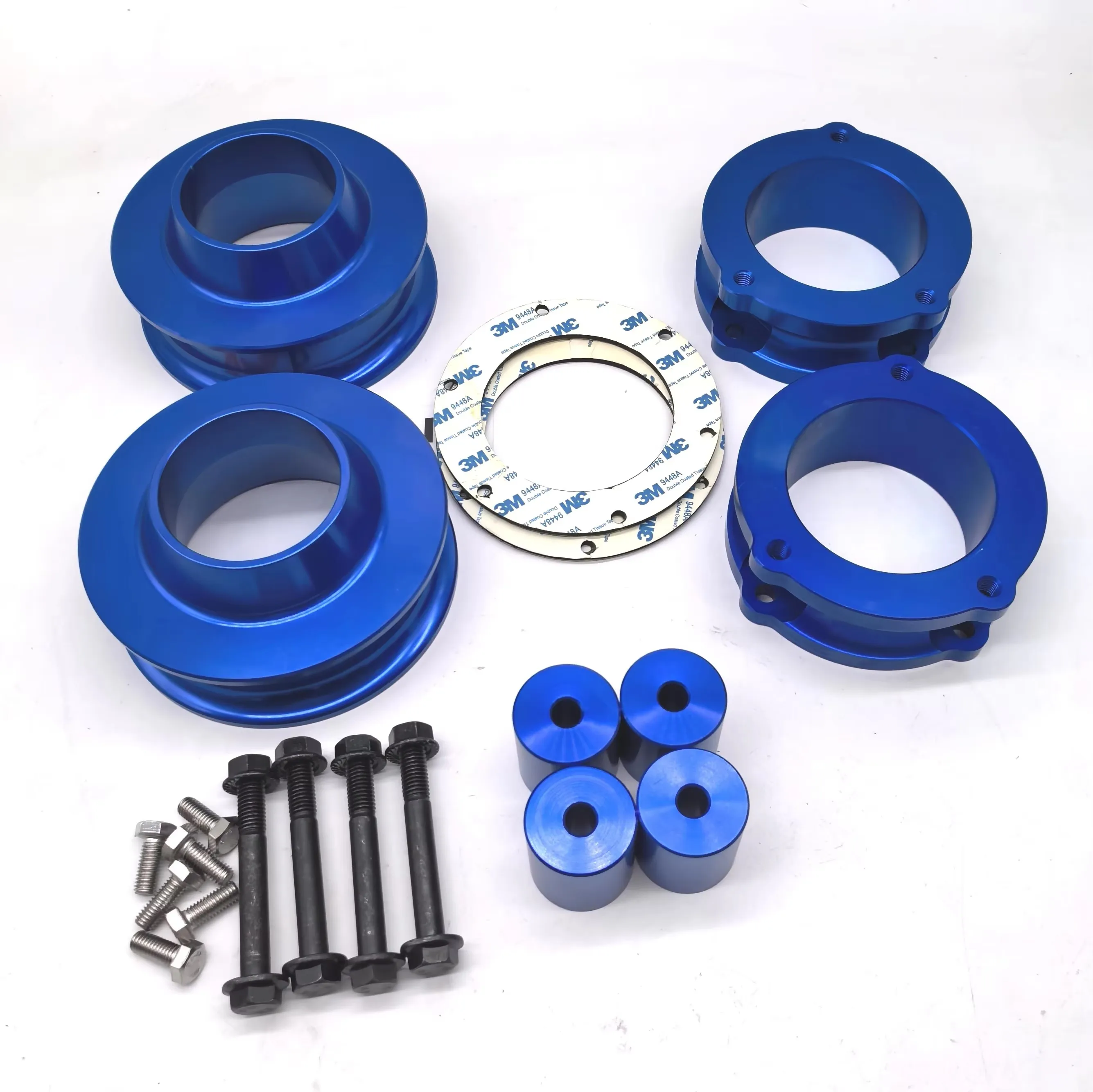

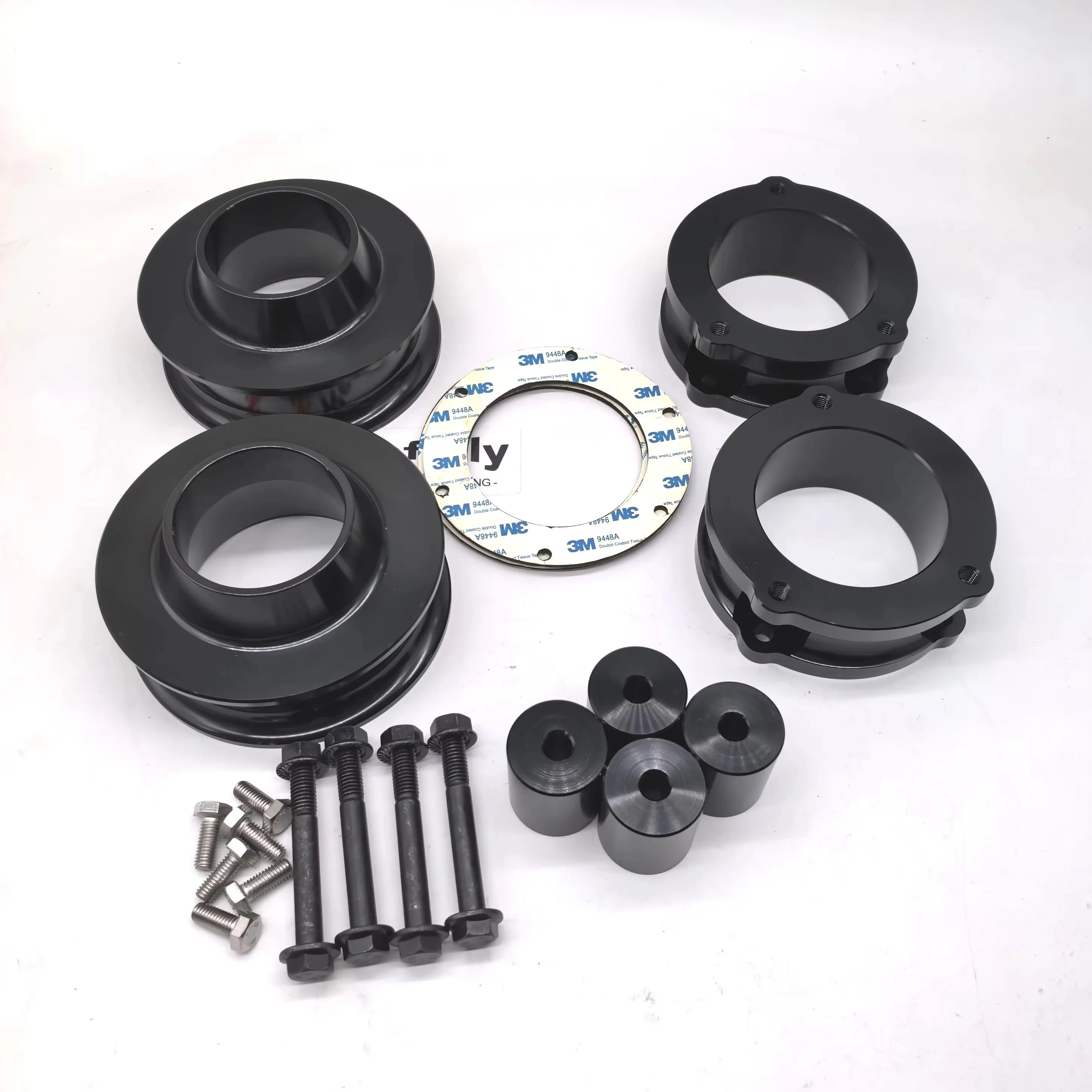

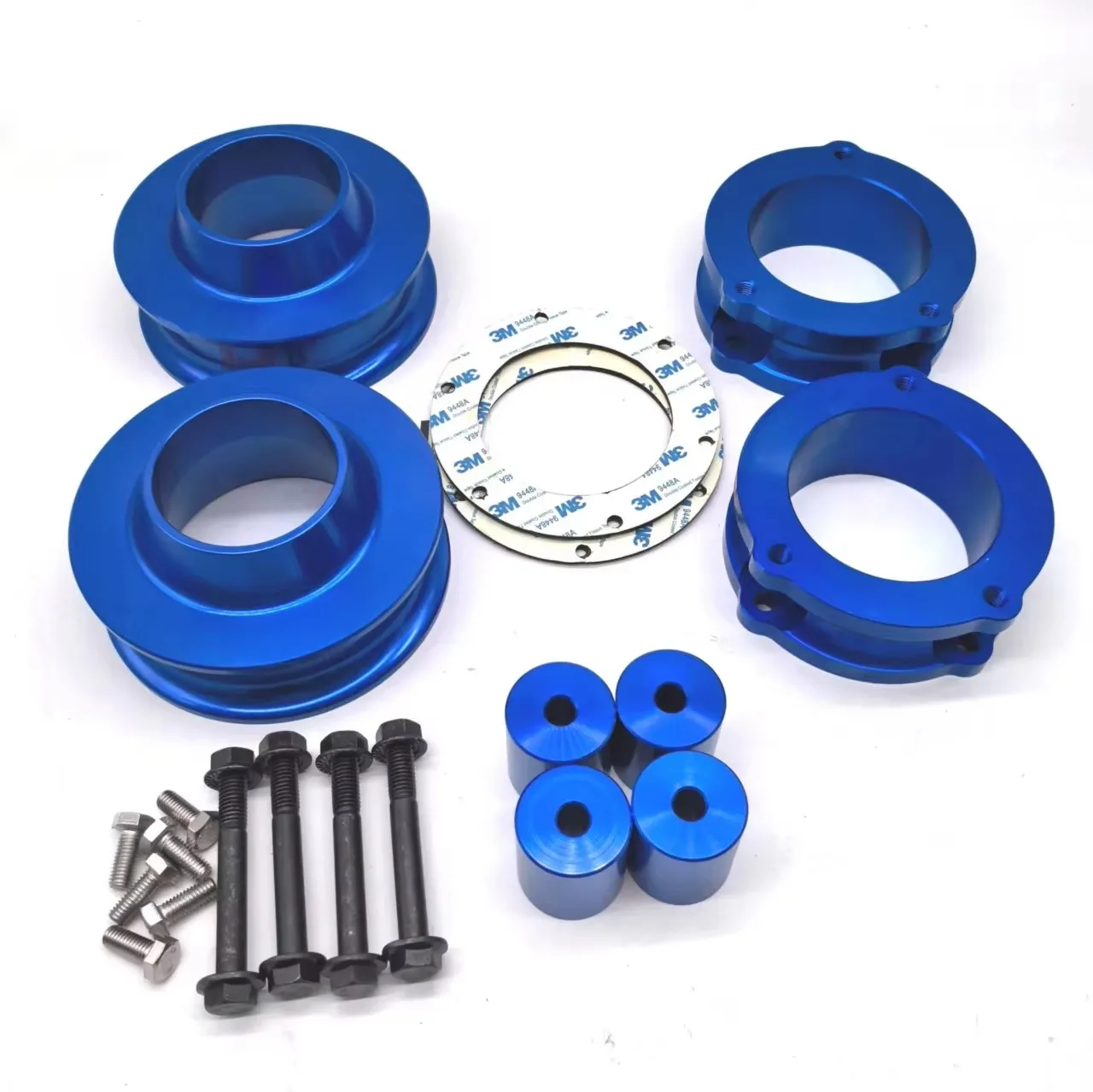

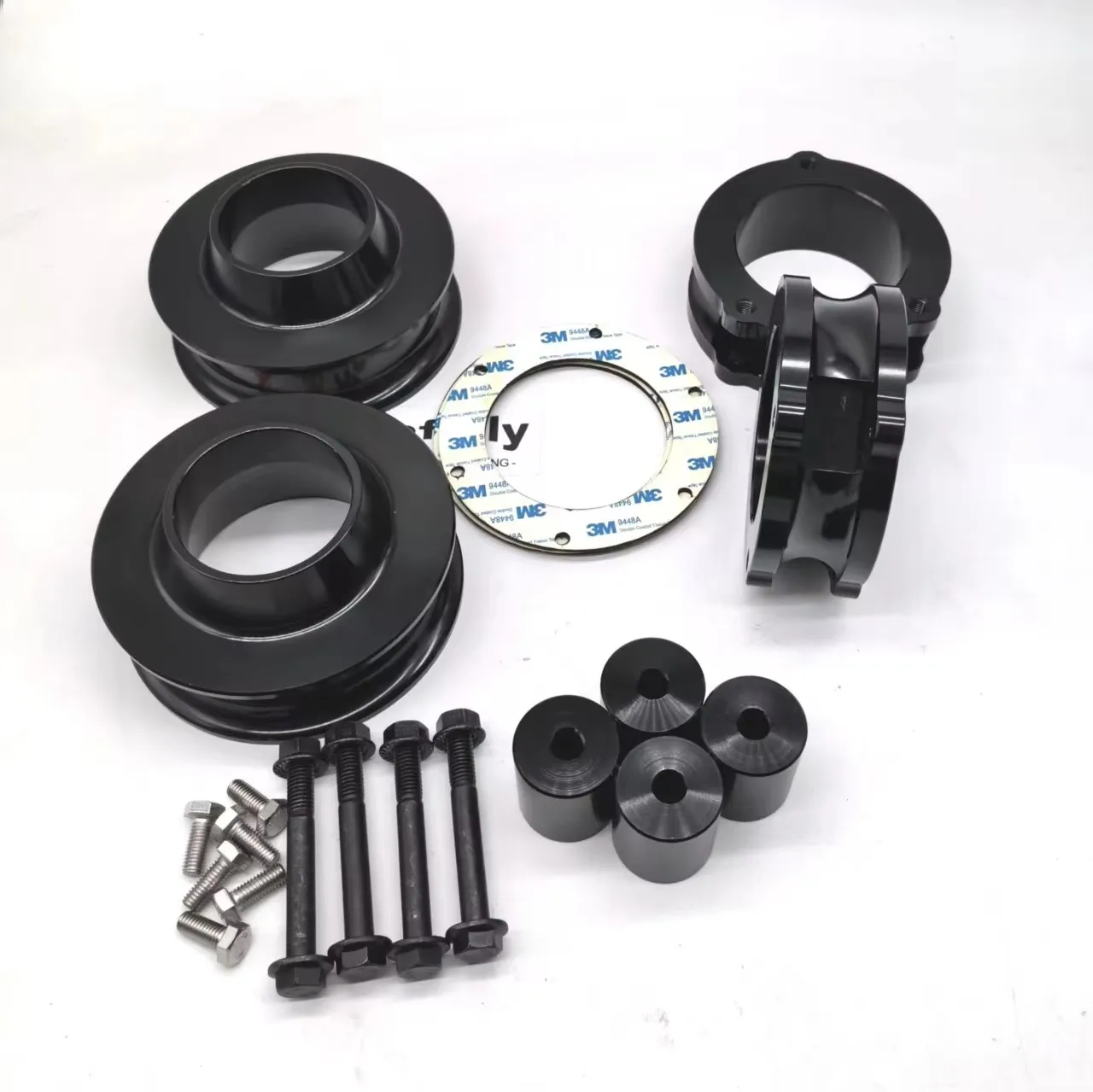

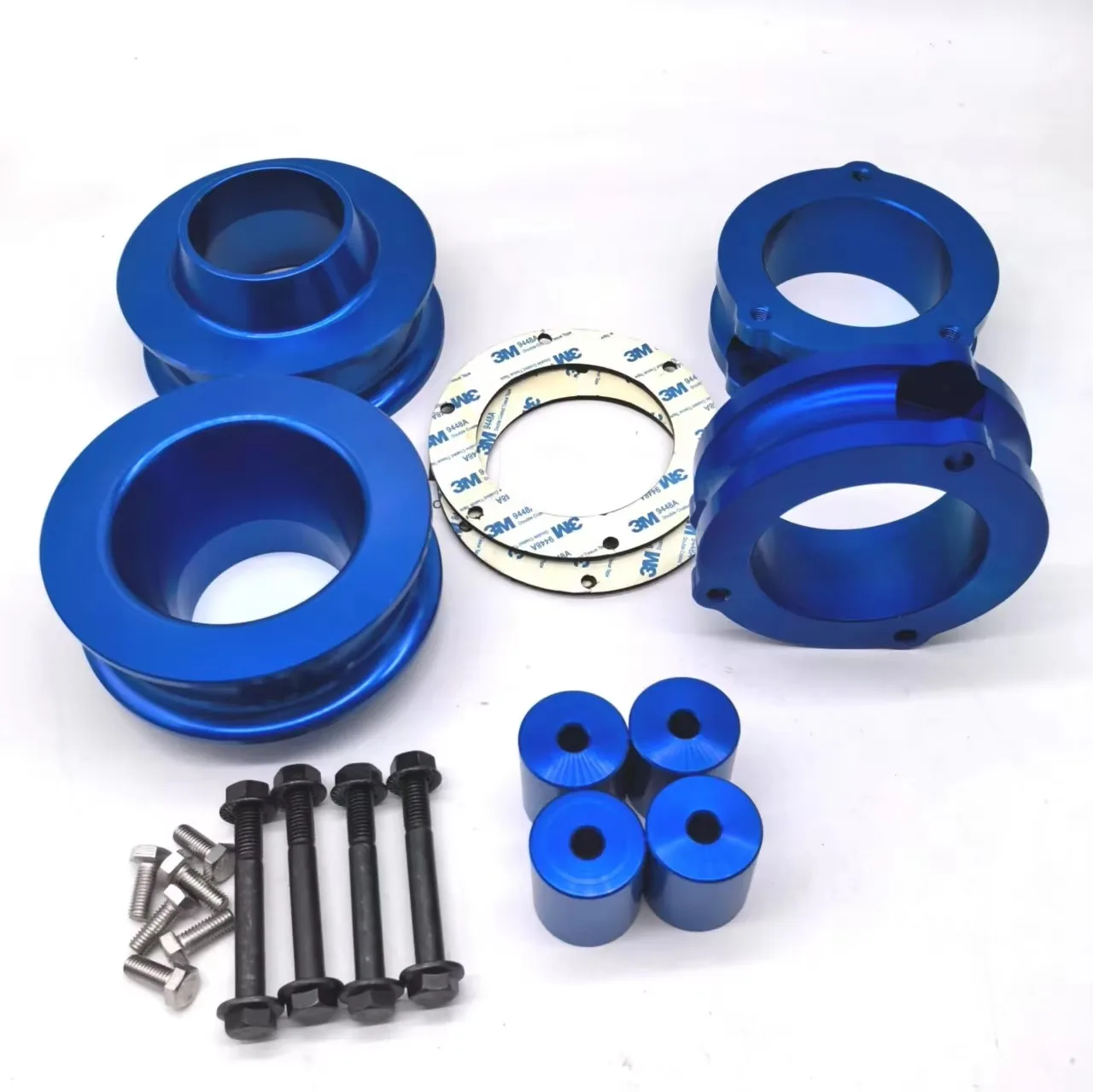

-CNC Aluminum Spacers anodized to resist the elements and look great.

-Improved entry and exit for those with accessibility requirements.

-Allows the fitment of up to 29.5″ overall diameter tires (Model Y) or 27″ overall diameter (Model 3)

Applications : Model 3 RWD, Dual Motor, Performance, Performance w/ PUP, Model Y AWD, Performance, Performance w/ PUP
