AFYEEV CCS1 to CCS2 Adapter Max DC 400A 1000V EV Fast Charging Adapter Max AC 32A EV Charger Connector Type 1 to Type 2 Adapter

【Power】

The AC can reach 32A and DC can go up to 400A. The maximum AC voltage is 250V and the maximum DC voltage is 1000V. The maximum AC Power is 7KW and DC MAX Power 400KW.

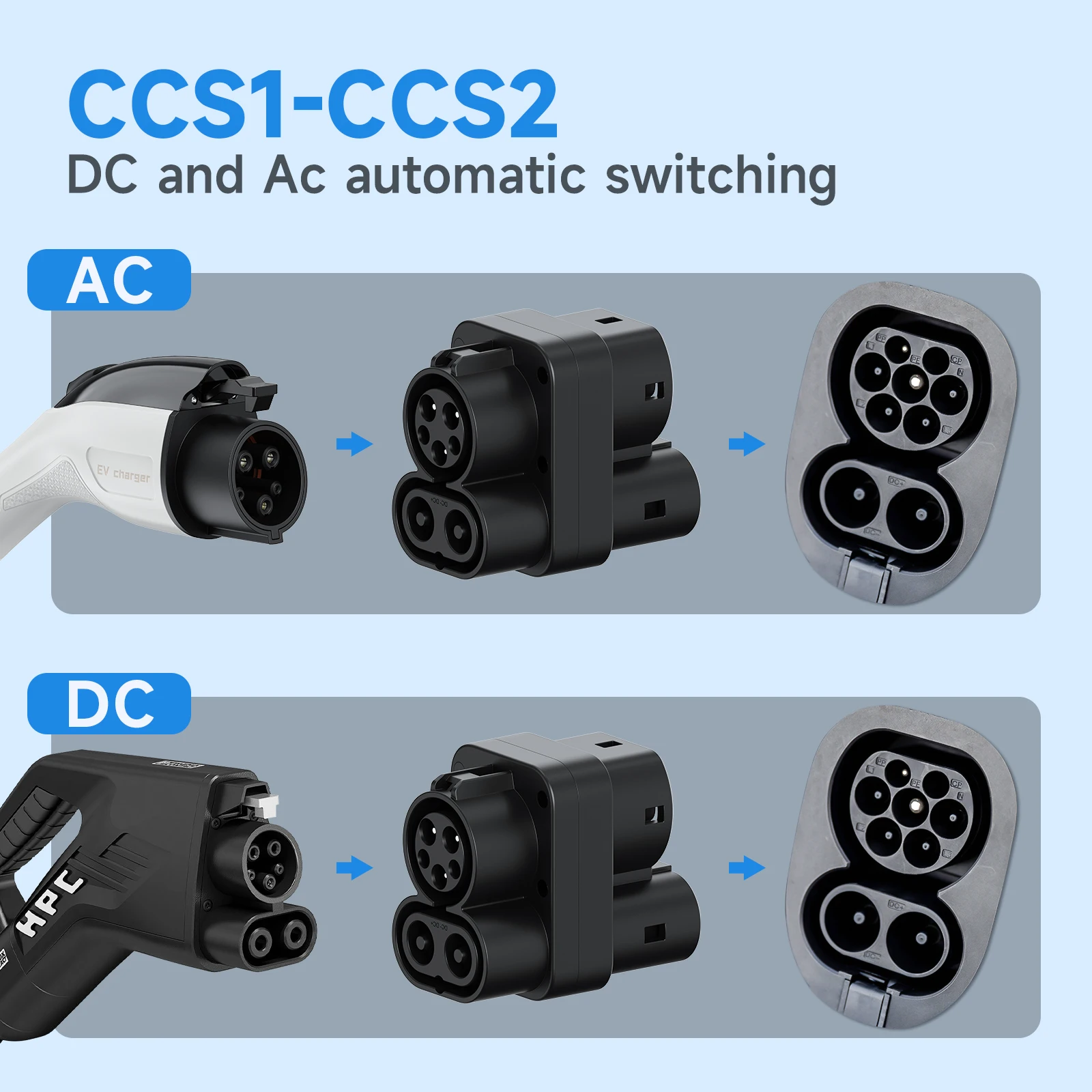

【Automatic Switching】

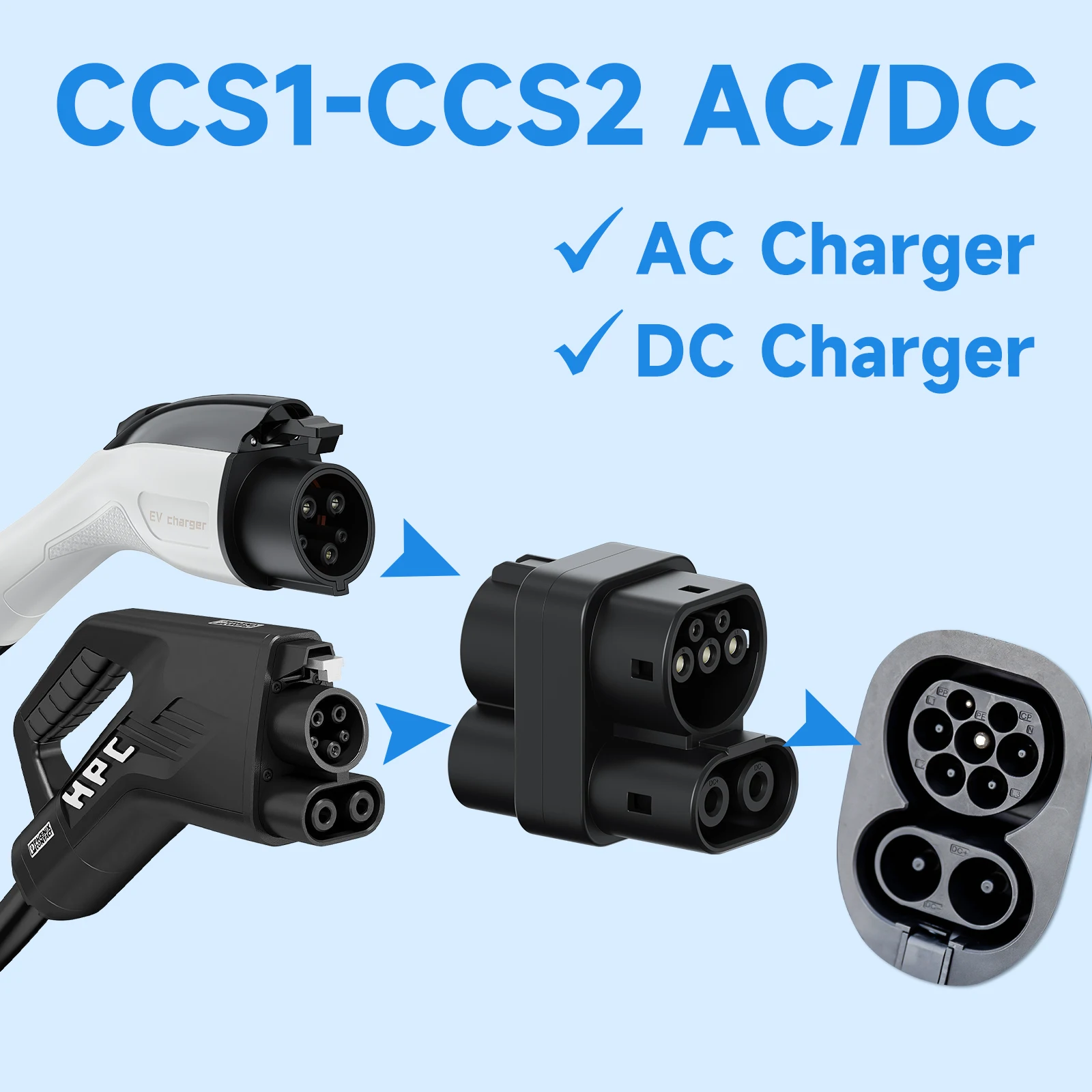

CCS1 to CCS2 Fast charging adapter Compatible with DC CCS1 and AC type1/j1772 charging guns，CCS1 to CCS2 Adapter can be compatible with DC and AC charging gun.

【Temperature Protection】

The operating temperature range is -40℃ to 80℃. Real-time detection of the temperature during charging, when the temperature exceeds 85℃ will stop charging until the temperature decreases below 65℃ to resume charging, to avoid some security risks during charging.

【Durable Material】

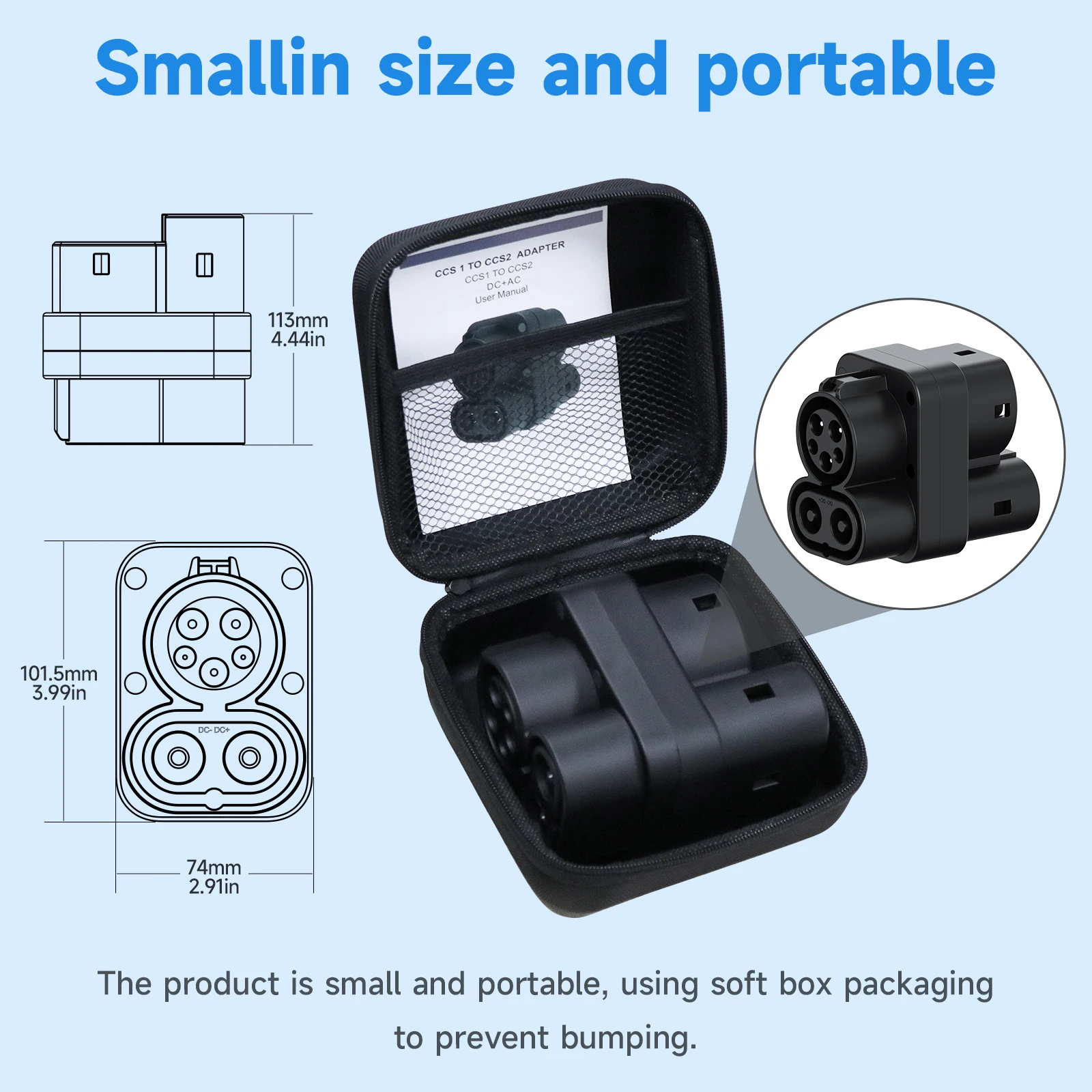

CCS1 to CCS2 adapter Build in Silver plated guide pin.Charging is not easy to heat up,More conductive,More durable,Long service life. The product includes a portable anti-impact box to protect the product more safely and not easily damaged.

【Note】

After the temperature protection, the car needs to accept the charging signal again before starting.Different charging protocols of different vehicles, when the temperature is lower than 65℃, some vehicles automatically restore charging, and some vehicles need to restore charging after reinserting. The charging device needs to be plugged to the end. Plug it in to the bottom, and then charge it properly.

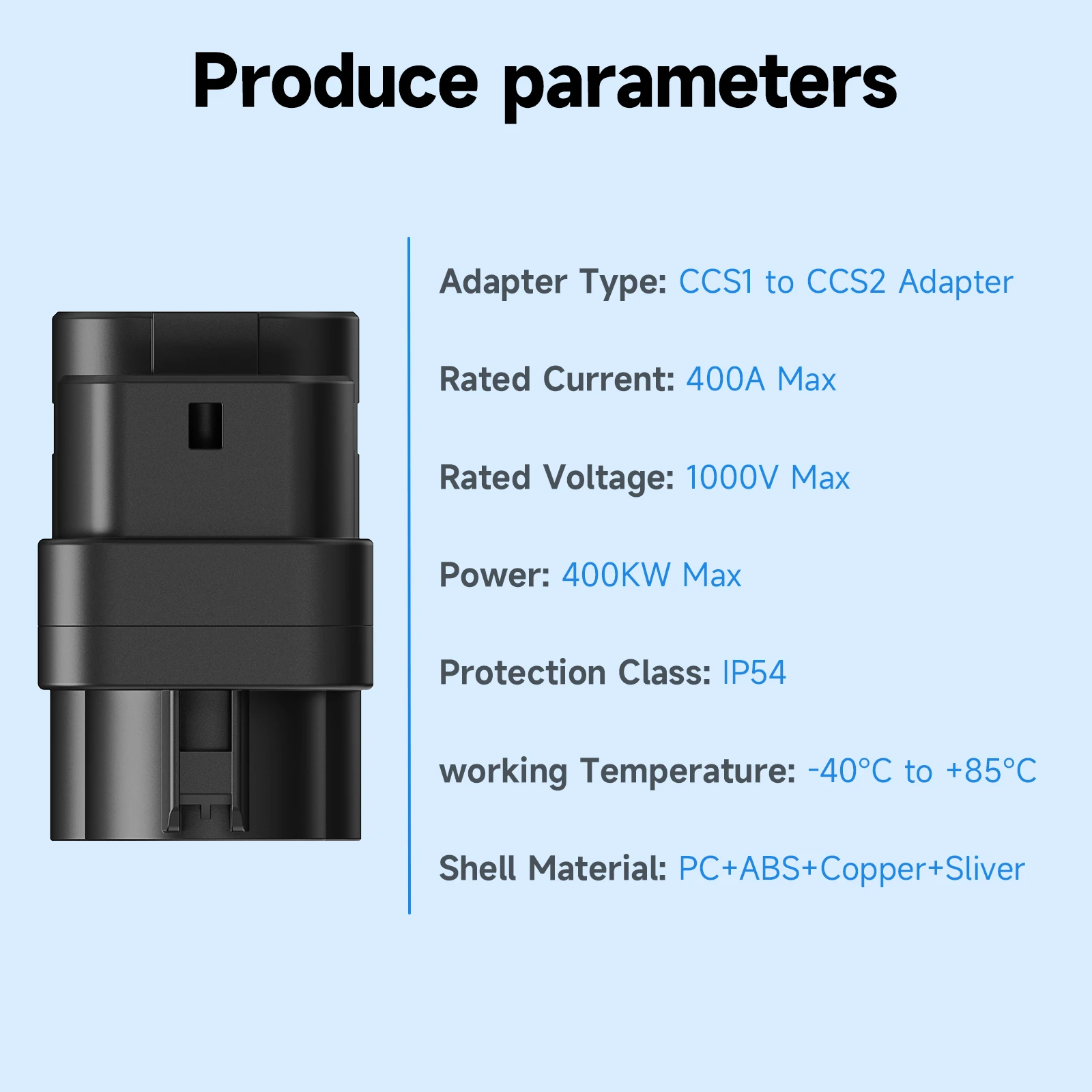

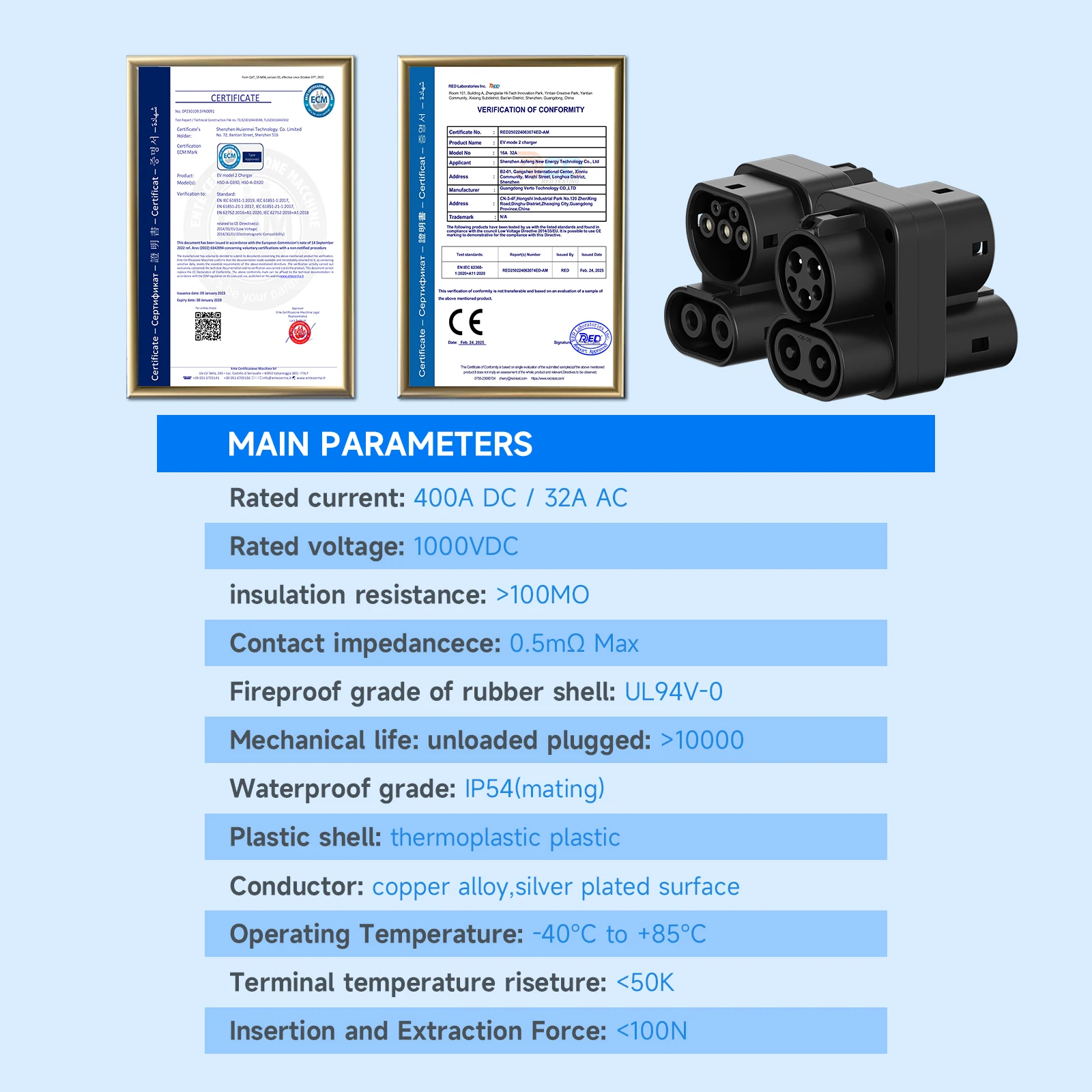

*Power : rated for up to 400kW.

*Rated Current : up to 400A

*Input Port: CCS Combo 1

*Output Port: CCS Combo 2

*Operating Temperature: -40℃ to +80℃

*Storage Temperature : -40℃ to +80℃

*Rated Voltage: 1000V/ DC.

*Security : Temp. kill switch. Charging stops when adapter reaches 85°C.

*Warranty: 12 Months

*Plug Lifespan: >10,000 times

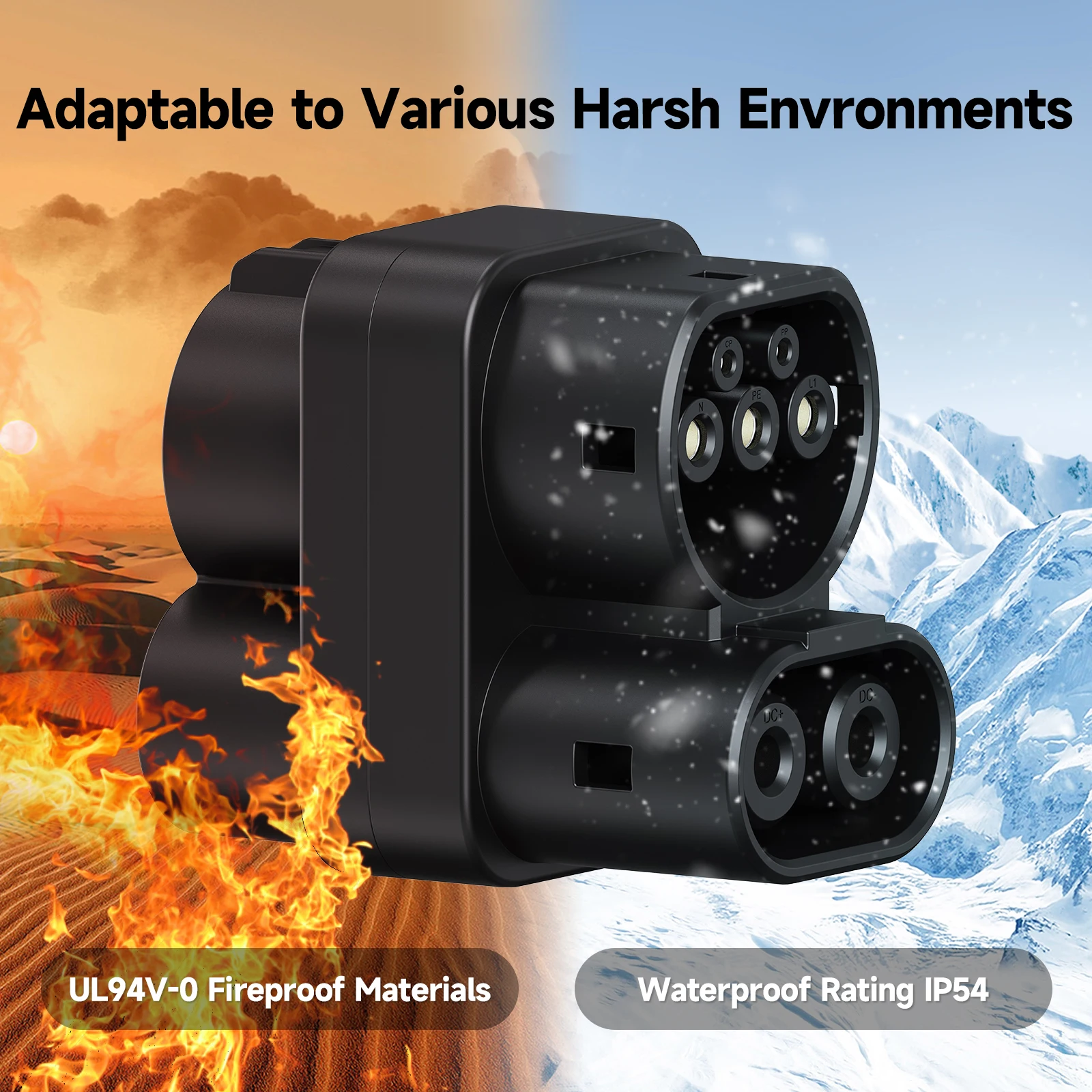

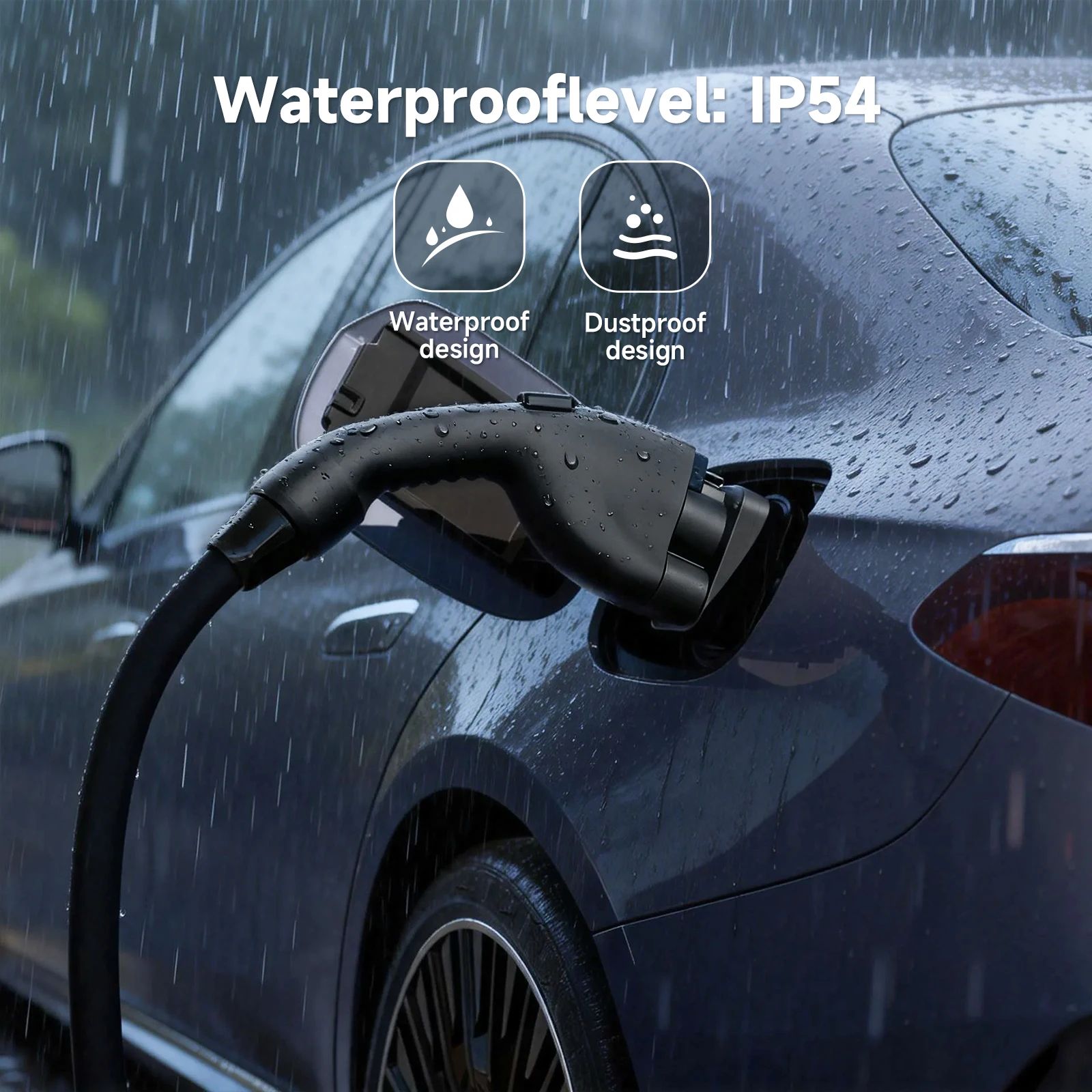

*Degree of protection: lP54

*(Protection from dirt, dust, oil, and other non-corrosive material. Complete protection from contact with enclosed equipment. Protection from water, up to water projected by a nozzle against enclosure from any direction.)
