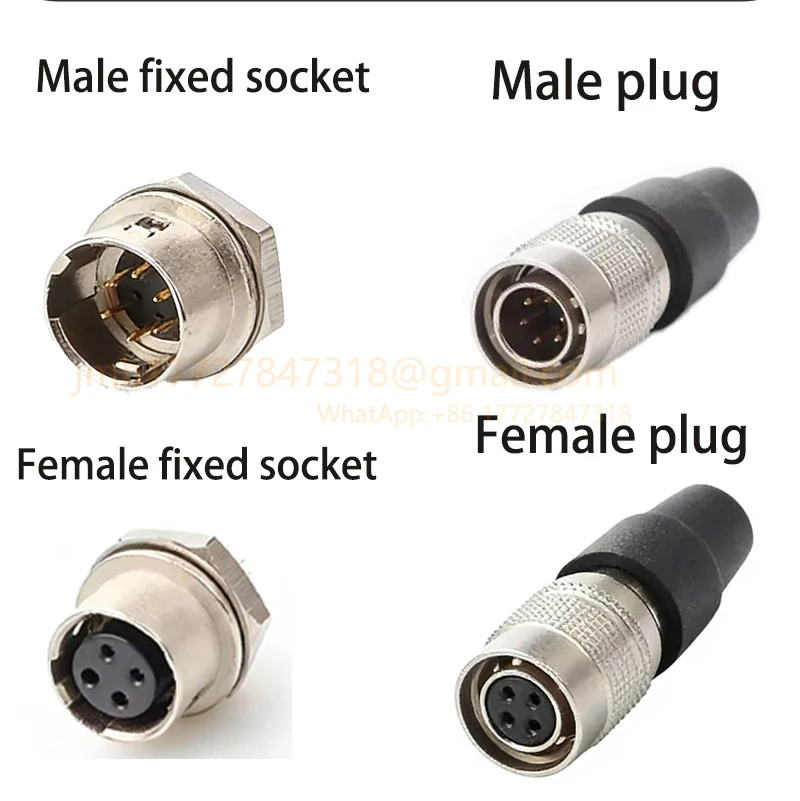

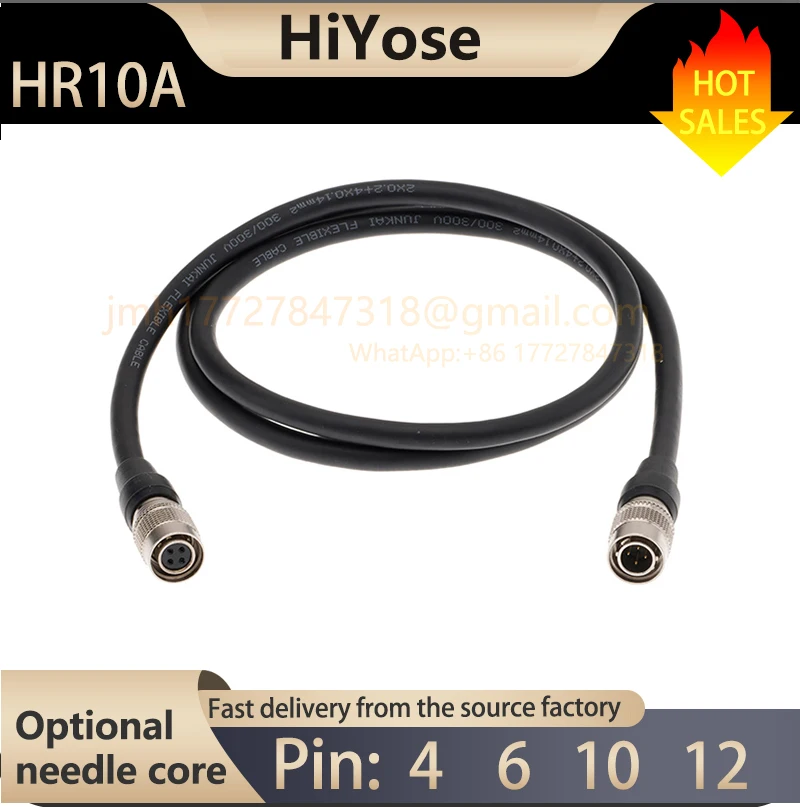

Connector HR10A 4 6 10 12 Pin Male Female Shielded Cable Basler GIGE AVT Industrial Sony CCD Camera Lens Trigger
Brand: HiYose
Model: HR10A with cable
Shell material: Nickel plated brass
Connection method: push-pull self-locking
Pin material: brass gold-plated
Core material: PA66
Impact: 100g, 6ms
Voltage resistance: 500v/AC, 60s
Insertion and
extraction times: ≥ 5000 times
Protection level: IP50

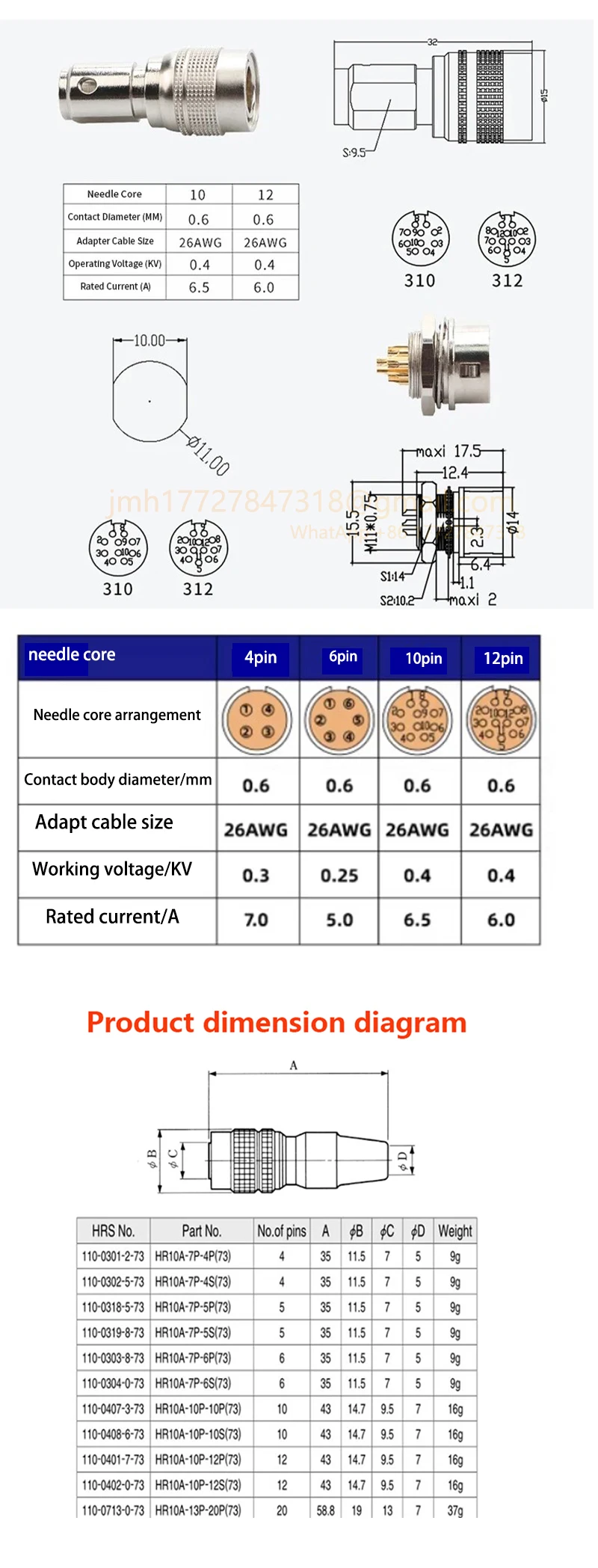

Number of cores: 4/6/10/12

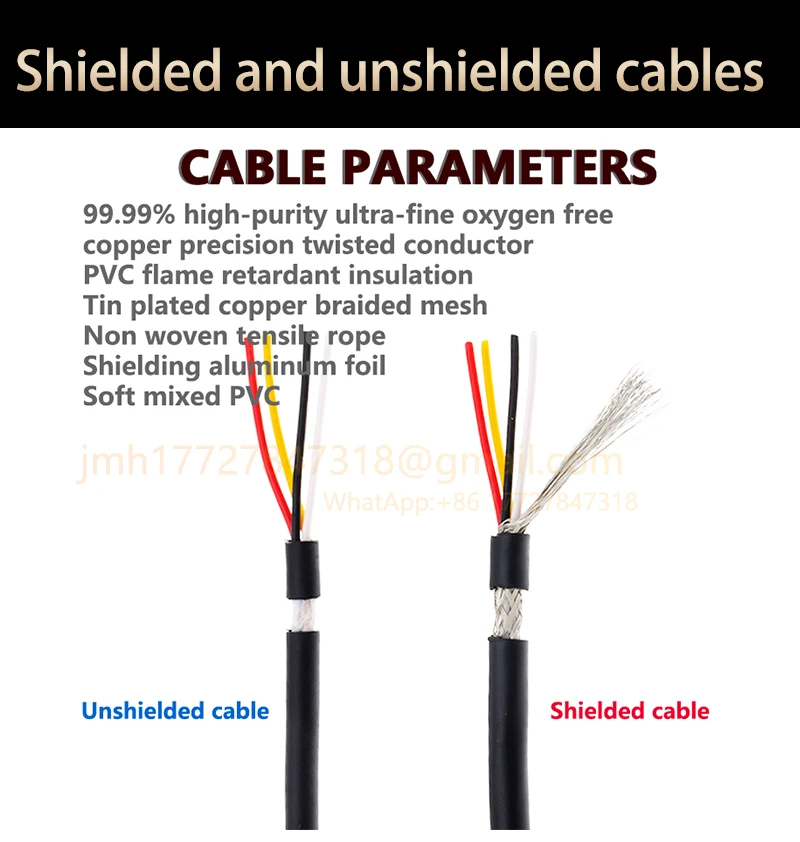

Shielding:>75dB at 10MHz
Vibration: 100-2000Hz, 15g
Salt spray: 144 hours
Applicable temperature: -25 ° C~+85 ° C
Installation method: welding type
Thank you for purchasing our：HR10A product
If satisfied, please give a 5-star rating
There are always some customers who touch our hearts. They immediately gave a positive and objective evaluation upon receiving the goods. These evaluations can serve as a reference for other clients and provide us with the motivation to continue moving forward!
If you are not satisfied, please contact us and we will continue to serve you until you are satisfied! If you are satisfied with our product, please remember to give us a five-star rating as a reward! ，
Thank you again for your purchase and review Thank you!
Finally, I wish you a happy life and smooth work
Additional information
| Color | 1Mfemaleplugwithwire, 3Mmale To Female (10_201526806), 1Mfemale To Male, 1Mmaletofemale Plug, 1Mmale To Female (200001438_201451267), 1Mmale To Male (202997806_201692807), 1Mmale To Male (1052_201526806), 3Mmale To Male (29_201526806), 1Mmale To Male (202997806_201451267), 1Mmale To Female (200001438_200025003), 3Mmale To Male (203008817_201692807), 3Mmale To Male (200003699_201451267), 3Mmale To Male (29_200025003), 1Mmale To Female (200002130_201692807), 3Mmale To Female (366_201451267), 1Mmale To Male (203008818_201451267), 3Mfemaleto Male, 3Mmale To Male (203008817_201451267), 3Mmalesocketwithwire, 1Mfemale To Female, 1Mmale To Female (200002130_200025003), 1Mmale To Male (1052_201692807), 3Mmale To Male (200003699_201526806), 1Mmale To Male (203008818_201526806), 3Mmale To Female (366_201526806), 3Mmale To Female (10_200025003), 1Mmale To Female (200002130_201451267), 3Mmale To Male (29_201451267), 1Mmale To Female (200002130_201526806), 3Mmale To Female (10_201451267), 3Mmale To Female (366_201692807), 3Mmale To Female (366_200025003), 3Mmale To Male (203008817_200025003), 1Mmaleplugwithcable, 1Mmale To Male (203008818_200025003), 3Mmale To Male (200003699_201692807), 1Mmale To Male (1052_200025003), 1Mmale To Female (200001438_201692807), 3Mmale To Male (203008817_201526806), 1Mfemalesocketwith, 3Mfemaleplugwithwire, 3Mfemale To Male, 1Mmalesocketwithwire, 3Mfemalesocketwith, 1Mmale To Male (202997806_201526806), 1Mmale To Female (200001438_201526806), 1Mmale To Male (202997806_200025003), 3Mmale To Male (200003699_200025003), 1Mmale To Male (1052_201451267), 1Mmale To Male (203008818_201692807), 3Mmale To Female (10_201692807), 3Mmaleplugwithcable, 3Mmale To Male (29_201692807), 3Mwomen To Women |
|---|---|
| Cable Length | 4Pin (29_200025003), 4Pin (202997806_200025003), 12Pin (29_201451267), 6Pin (200002130_201692807), 6Pin (1052_201692807), 6Pin (202997806_201692807), 12Pin (200002130_201451267), 12Pin, 10Pin (202997806_201526806), 6Pin (200001438_201692807), 4Pin (200002130_200025003), 4Pin (1052_200025003), 6Pin (203008817_201692807), 6Pin (203008818_201692807), 4Pin (203008817_200025003), 10Pin (29_201526806), 4Pin (203008818_200025003), 12Pin (202997806_201451267), 10Pin (200001438_201526806), 4Pin, 6Pin (200003699_201692807), 4Pin (10_200025003), 12Pin (203008817_201451267), 12Pin (200003699_201451267), 12Pin (203008818_201451267), 10Pin (366_201526806), 4Pin (366_200025003), 10Pin (1052_201526806), 10Pin (200002130_201526806), 10Pin (10_201526806), 10Pin (203008817_201526806), 4Pin (200001438_200025003), 12Pin (10_201451267), 4Pin (200003699_200025003), 10Pin (203008818_201526806), 10Pin, 6Pin (10_201692807), 6Pin (366_201692807), 12Pin (366_201451267), 12Pin (1052_201451267), 10Pin (200003699_201526806), 6Pin, 12Pin (200001438_201451267), 6Pin (29_201692807) |
