DC 10-100V Batteriekapazität Coulomb Meter Monitor Spannung Strom Leistungsanzeige Hall Sensor Coulomb Tester Voltmeter Amperemeter
Roll over image to zoom in

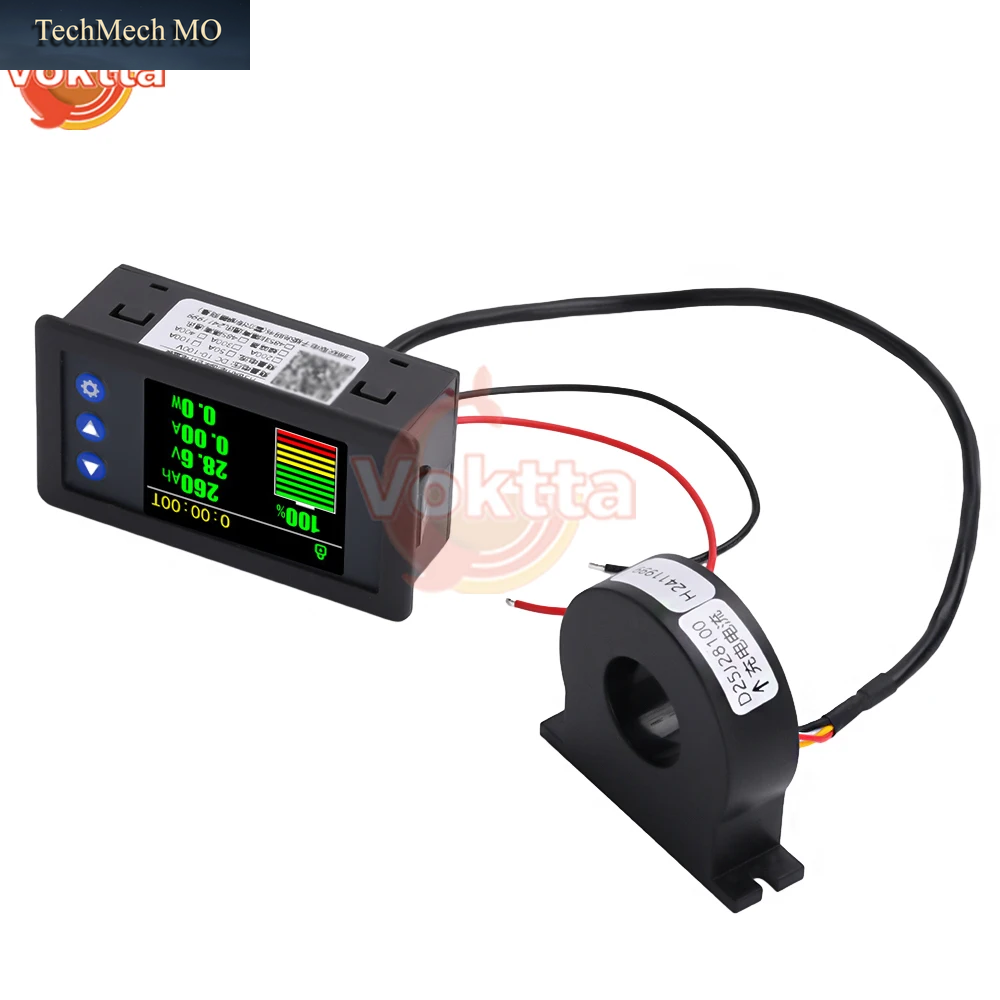

DC 10-100V Battery Capacity Coulomb Meter Monitor Voltage Current Power Display Hall Sensor Coulomb Tester Voltmeter Ammeter
Features:

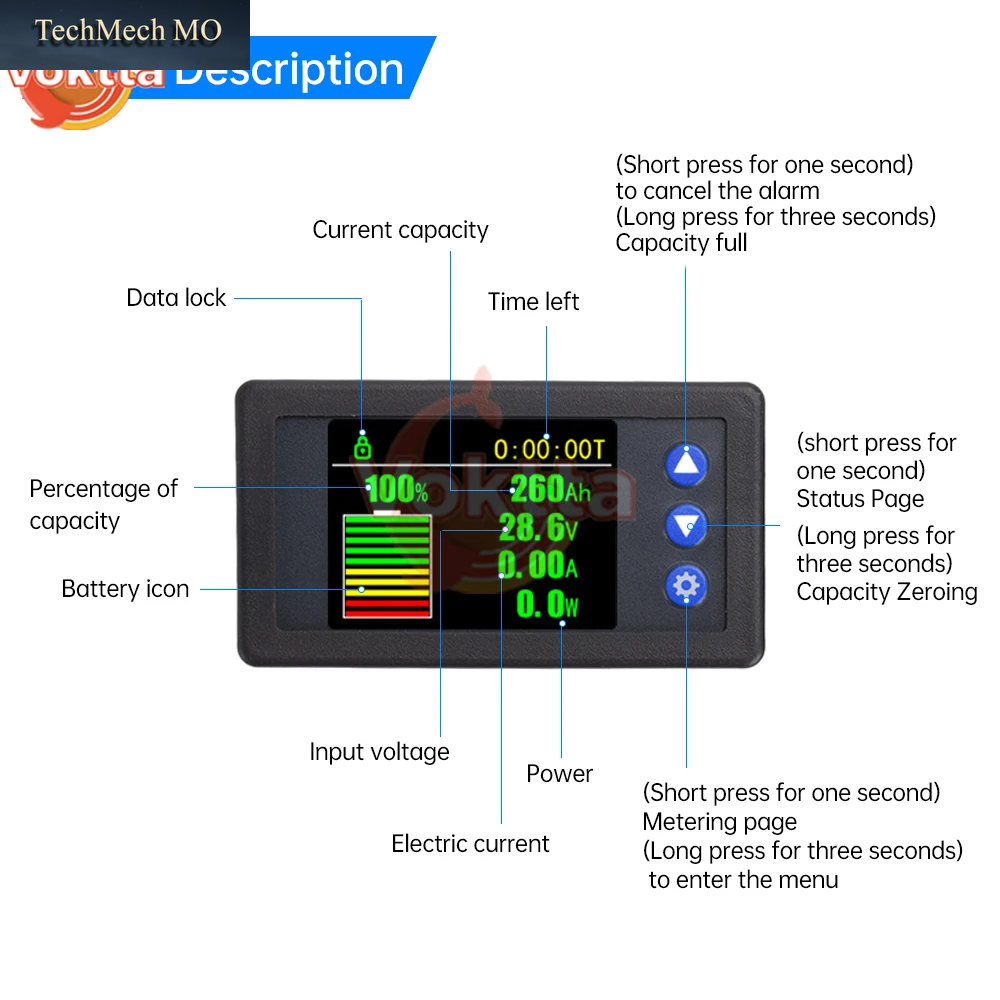

1. High-definition 2.0-inch color screen display: adopts 2.0-inch color LCD screen, provides clear and intuitive data reading experience, whether it’s day or night, you can easily view the voltage and current and other key information to ensure your driving safety.
2. Bidirectional Current Detection Technology: Supporting forward and reverse current monitoring function, it can accurately record the current value changes under vehicle charging and discharging status, helping you to fully grasp the health of the battery and prolonging its service life.

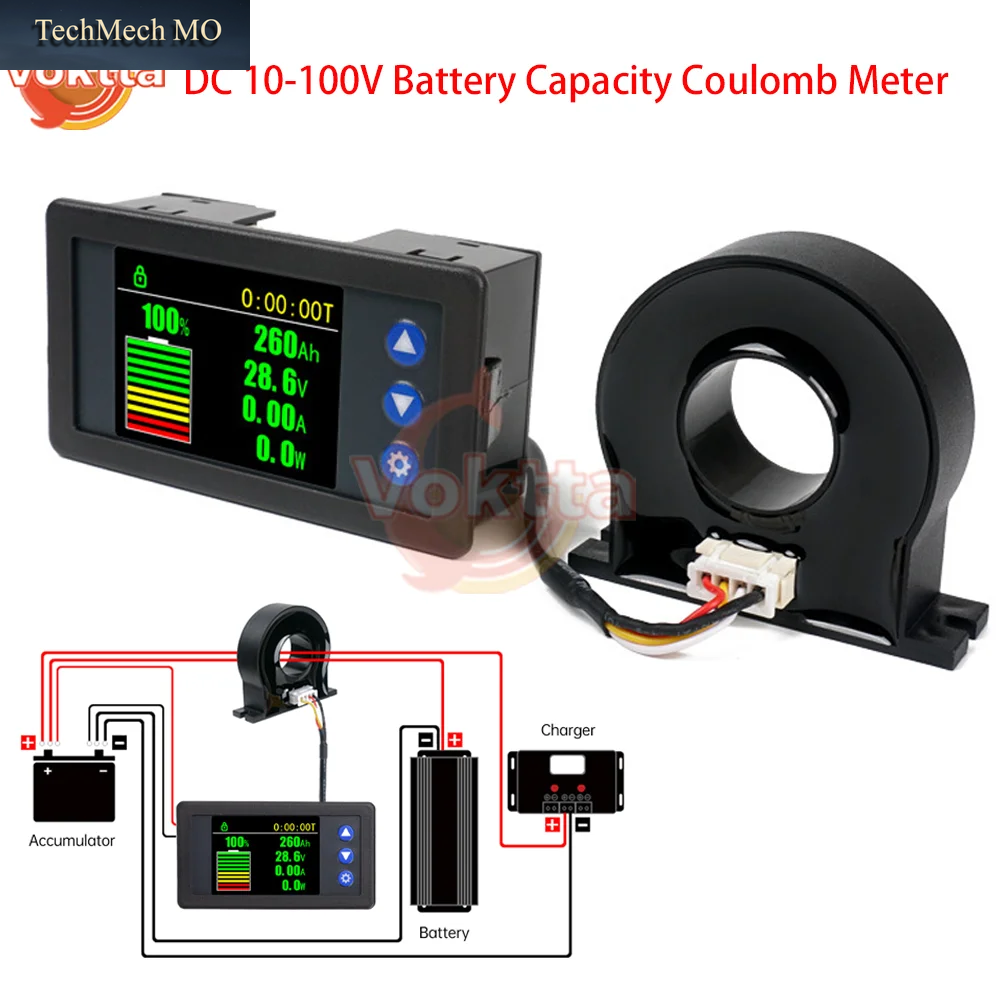

3. Wide compatibility: This battery indicator is designed to fully consider the needs of different users, with simple wiring and suitable for almost all battery types on the market, making the installation more convenient and hassle-free.
4. Isolated precision measurement: Adopting the advanced isolated measurement program, which ensures high precision and greatly improves the safety of use, effectively preventing the original line from being damaged, providing users with reliable protection.
5. Strong applicability in multiple scenarios: customized and developed specifically for many types of electric transportation, including but not limited to RVs, sightseeing cars and electric cars, etc., it is an indispensable and ideal companion for both daily commuting and long-distance travel. Parameter:
Operating voltage: DC 10~100V
Capacity detection range: 0.1~9999Ah
Current range: 50A, 100A, 200A, 300A, 400A
Backlight on power consumption: 3~15mA
Backlight off power consumption: 2.1~11mA
Sleep power consumption: 300uA
Acquisition Accuracy: ±1.0%
Ambient temperature range：-10~60℃
Product size: 79*43*27mm
Opening size: 71.5*39.5mm
Hall sensor size: 55*49*15mm
Features:
1. High-definition 2.0-inch color screen display: adopts 2.0-inch color LCD screen, provides clear and intuitive data reading experience, whether it’s day or night, you can easily view the voltage and current and other key information to ensure your driving safety.
2. Bidirectional Current Detection Technology: Supporting forward and reverse current monitoring function, it can accurately record the current value changes under vehicle charging and discharging status, helping you to fully grasp the health of the battery and prolonging its service life.
3. Wide compatibility: This battery indicator is designed to fully consider the needs of different users, with simple wiring and suitable for almost all battery types on the market, making the installation more convenient and hassle-free.
4. Isolated precision measurement: Adopting the advanced isolated measurement program, which ensures high precision and greatly improves the safety of use, effectively preventing the original line from being damaged, providing users with reliable protection.
5. Strong applicability in multiple scenarios: customized and developed specifically for many types of electric transportation, including but not limited to RVs, sightseeing cars and electric cars, etc., it is an indispensable and ideal companion for both daily commuting and long-distance travel. Parameter:
Operating voltage: DC 10~100V
Capacity detection range: 0.1~9999Ah
Current range: 50A, 100A, 200A, 300A, 400A
Backlight on power consumption: 3~15mA
Backlight off power consumption: 2.1~11mA
Sleep power consumption: 300uA
Acquisition Accuracy: ±1.0%
Ambient temperature range：-10~60℃
Product size: 79*43*27mm
Opening size: 71.5*39.5mm
Hall sensor size: 55*49*15mm

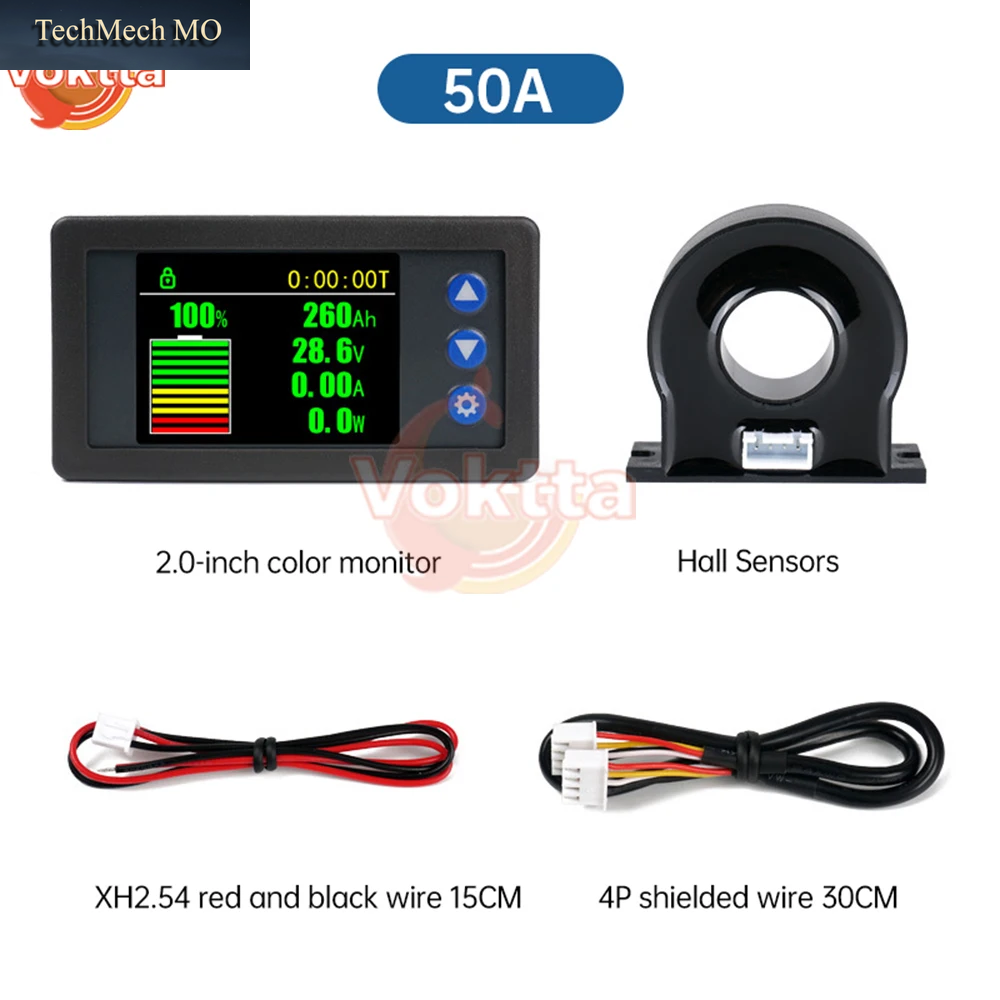

Package include:
Display *1
Hall sensor *1
XH2.54 red and black wire 15cm*1
4P shielded cable 30cm*1
DC 10-100V Battery Capacity Coulomb Meter Monitor Voltage Current Power Display Hall Sensor Coulomb Tester Voltmeter Ammeter
Features:
1. High-definition 2.0-inch color screen display: adopts 2.0-inch color LCD screen, provides clear and intuitive data reading experience, whether it’s day or night, you can easily view the voltage and current and other key information to ensure your driving safety.
2. Bidirectional Current Detection Technology: Supporting forward and reverse current monitoring function, it can accurately record the current value changes under vehicle charging and discharging status, helping you to fully grasp the health of the battery and prolonging its service life.
3. Wide compatibility: This battery indicator is designed to fully consider the needs of different users, with simple wiring and suitable for almost all battery types on the market, making the installation more convenient and hassle-free.
4. Isolated precision measurement: Adopting the advanced isolated measurement program, which ensures high precision and greatly improves the safety of use, effectively preventing the original line from being damaged, providing users with reliable protection.
5. Strong applicability in multiple scenarios: customized and developed specifically for many types of electric transportation, including but not limited to RVs, sightseeing cars and electric cars, etc., it is an indispensable and ideal companion for both daily commuting and long-distance travel. Parameter:
Operating voltage: DC 10~100V
Capacity detection range: 0.1~9999Ah
Current range: 50A, 100A, 200A, 300A, 400A
Backlight on power consumption: 3~15mA
Backlight off power consumption: 2.1~11mA
Sleep power consumption: 300uA
Acquisition Accuracy: ±1.0%
Ambient temperature range：-10~60℃
Product size: 79*43*27mm
Opening size: 71.5*39.5mm
Hall sensor size: 55*49*15mm
Features:
1. High-definition 2.0-inch color screen display: adopts 2.0-inch color LCD screen, provides clear and intuitive data reading experience, whether it’s day or night, you can easily view the voltage and current and other key information to ensure your driving safety.
2. Bidirectional Current Detection Technology: Supporting forward and reverse current monitoring function, it can accurately record the current value changes under vehicle charging and discharging status, helping you to fully grasp the health of the battery and prolonging its service life.
3. Wide compatibility: This battery indicator is designed to fully consider the needs of different users, with simple wiring and suitable for almost all battery types on the market, making the installation more convenient and hassle-free.
4. Isolated precision measurement: Adopting the advanced isolated measurement program, which ensures high precision and greatly improves the safety of use, effectively preventing the original line from being damaged, providing users with reliable protection.
5. Strong applicability in multiple scenarios: customized and developed specifically for many types of electric transportation, including but not limited to RVs, sightseeing cars and electric cars, etc., it is an indispensable and ideal companion for both daily commuting and long-distance travel. Parameter:
Operating voltage: DC 10~100V
Capacity detection range: 0.1~9999Ah
Current range: 50A, 100A, 200A, 300A, 400A
Backlight on power consumption: 3~15mA
Backlight off power consumption: 2.1~11mA
Sleep power consumption: 300uA
Acquisition Accuracy: ±1.0%
Ambient temperature range：-10~60℃
Product size: 79*43*27mm
Opening size: 71.5*39.5mm
Hall sensor size: 55*49*15mm
Package include:
Display *1
Hall sensor *1
XH2.54 red and black wire 15cm*1
4P shielded cable 30cm*1
Additional information
| Farbe | 100A, 300A, 400A, 50A, 200A |
|---|
