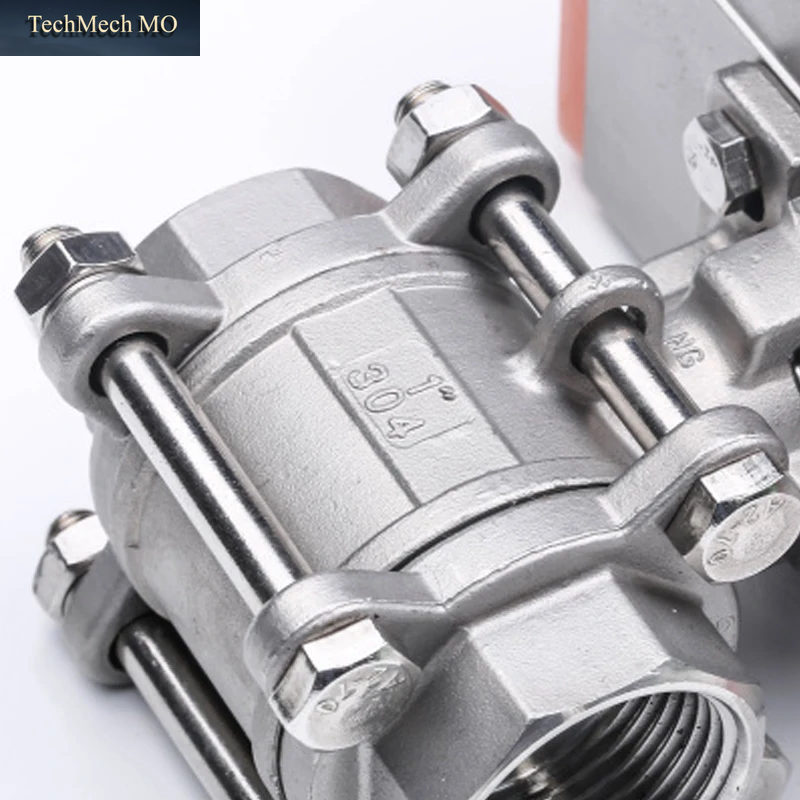

DN8 DN10 DN15 DN20 DN25 DN32 DN40 DN50 Three Piece Pneumatic Ball Valve with High Platform 304 Double Acting Cylinder
Roll over image to zoom in
Port size 1/4” 3/8“ 1/2” 3/4“ 1”, also have BSPT thread.
Ball valve material: SS304 ball valve with pneumatic actuator
Ball valve type: 3 pieces type valve body. 2/2 way full bore.
Ball valve connection: female thread
Valve seat: PTFE
Fluid: water, hot water, air, hot air
Pressure class: 1000 WOG
Function: water treatment
Top connection standard: Namur
Double acting pneumatic actuator
Actuator pressure: 0.15~0.8MPa
Quantity: 1 set ( 1 actuator + 1 ball valve )
Additional information
| Specification | Dn8, Dn20, Dn80, Dn15, Dn10, Dn40, Dn50, Dn32, Dn25, Dn65 |
|---|
