DPS-150P Portable DC Power Supply 30V 5A 150W with Μa Current Readback and Low Ripple for Circuit Debugging

  • SKU: N/A
DPS-150P Portable DC Power Supply 30V 5A 150W with Μa Current Readback and Low Ripple for Circuit Debugging
Roll over image to zoom in
Click to open expanded view

Price range: 274,99 € through 362,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

Product Introduction

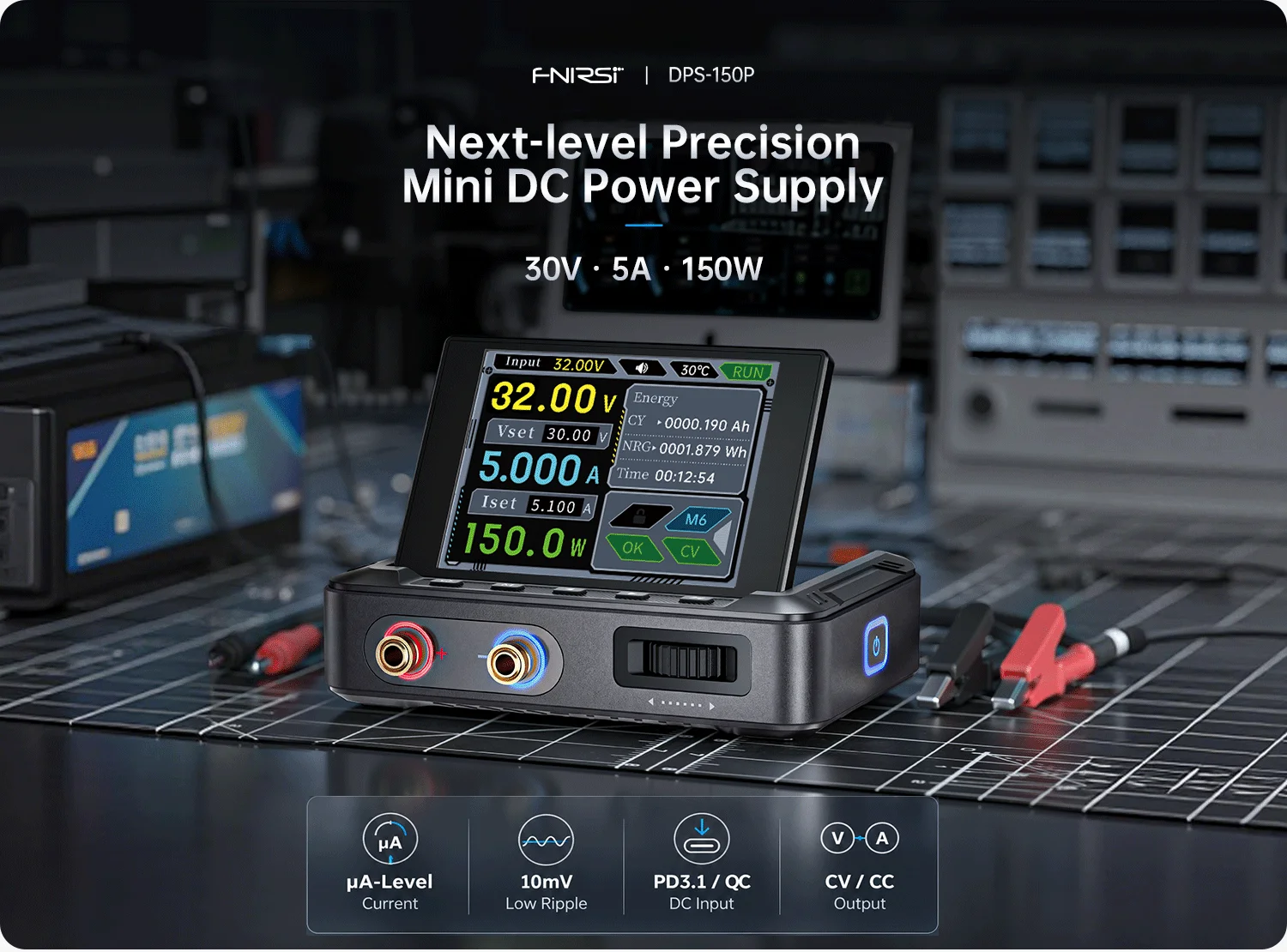

TheFNIRSI DPS-150P combines150W programmable DC power output, μA-level low-current readback, low-ripple output, multiple input options and programmable testing in one portable power supply.
Designed forelectronics development, circuit debugging, repair and field testing, it provides adjustable power from0–30V / 0–5A, while allowing users to monitor both high-current loads and small current changes in low-power devices.
WithPD3.1 / QC / DC input options, a compact portable design and a professional measurement interface, the DPS-150P brings the capabilities of a bench power supply into a more mobile form factor.

Key Features

●150W Portable Power: Adjustable 0–30V / 0–5A / up to 150W output with CV/CC modes, covering a wide range of voltage and current requirements in one compact device.
●μA-Level Current Readback: Provides high-resolution current readback for observingstandby current, low-power modules, sensors and ·IoT devices, helping identify abnormal power consumption and small changes in device current.
●≤10mVpp Low-Ripple Output: Provides stable DC power forMCUs, sensors, communication modules, analog circuits and other sensitive electronics, helping reduce the impact of power fluctuations during testing and debugging.

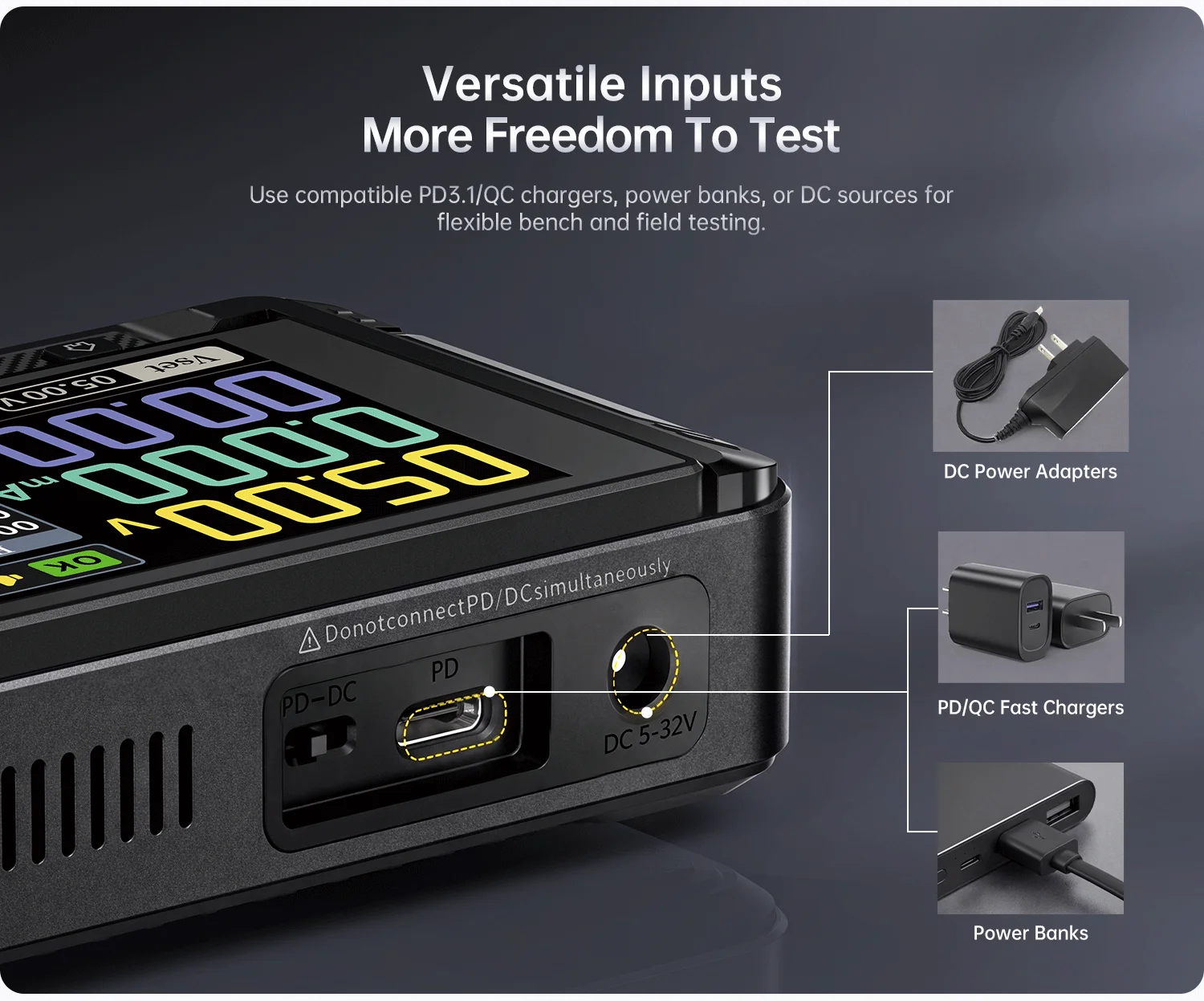

●PD3.1 / QC / DC Multiple Input Options: WithPD3.1 / QC / DC input options, a compact portable design and a professional measurement interface, the DPS-150P brings the capabilities of a bench power supply into a more mobile form factor.

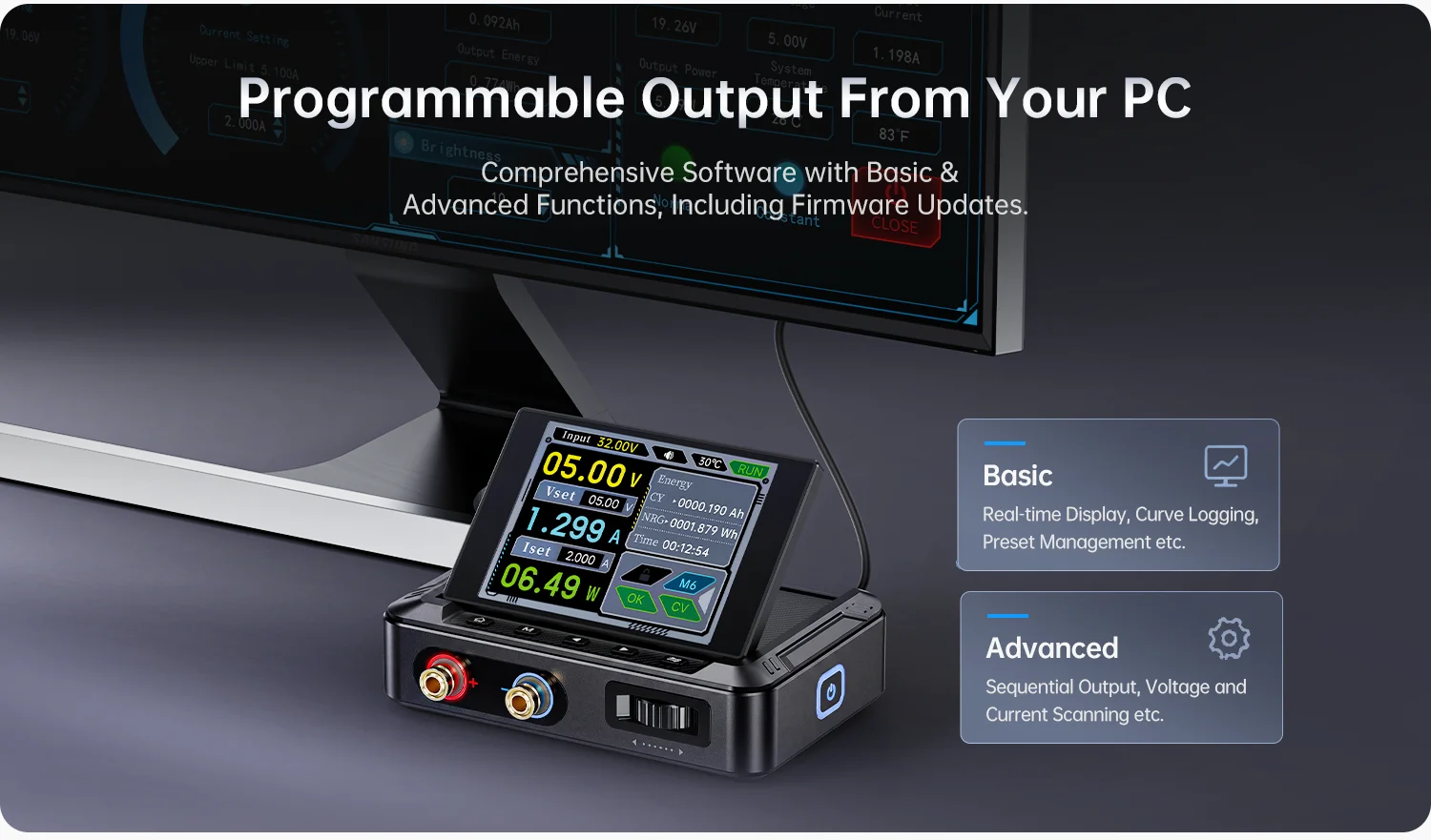

●Programmable Testing: Supportspreset parameter recall, waveform display, sequence output, voltage/current sweeping, PC control and data logging for repeatable power delivery and basic test procedures.
●Portable Professional Design: Combines the functionality of a programmable bench power supply with a compactportable form factor, making it easier to use when a fixed laboratory power supply is not available.

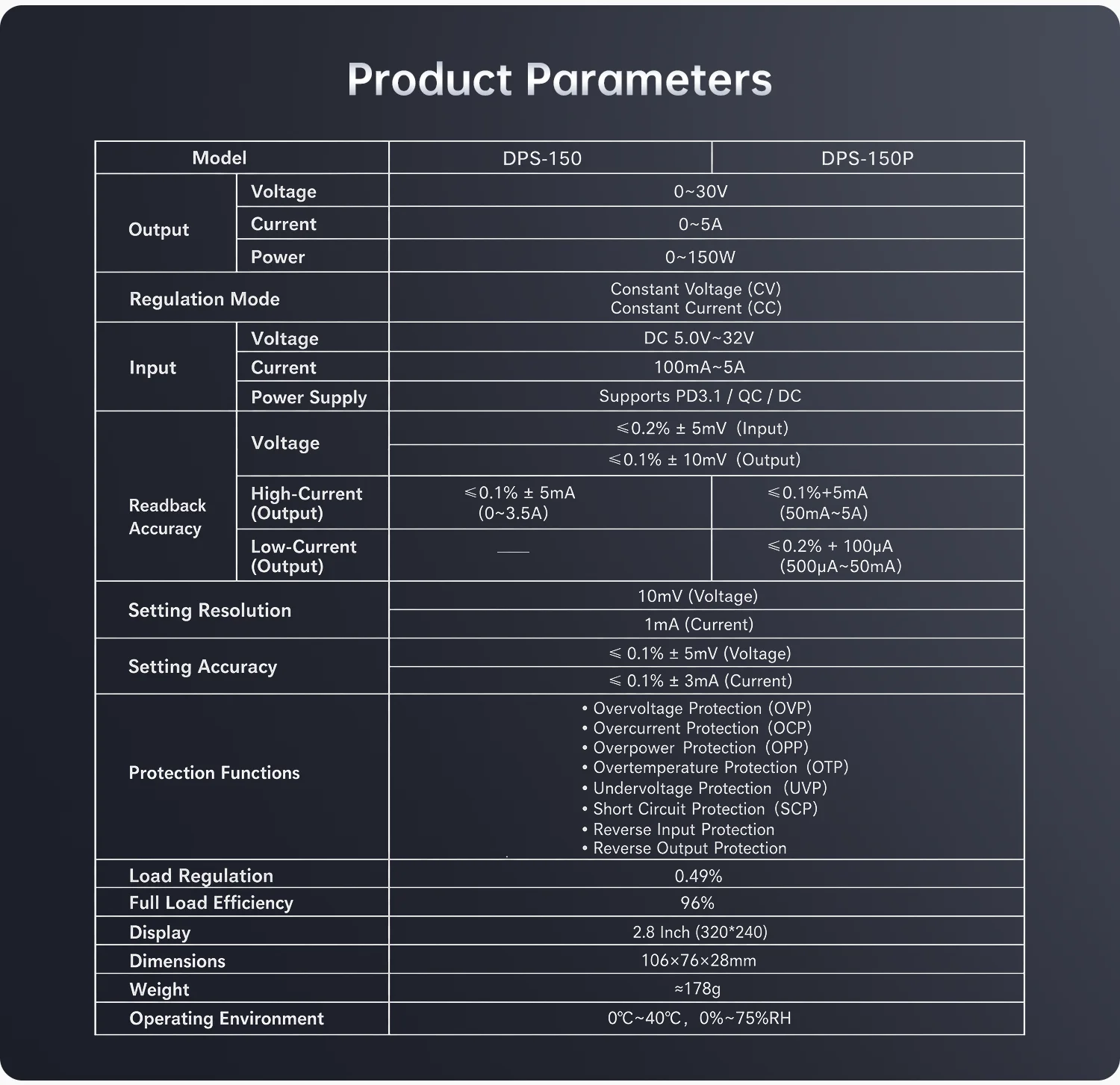

  1. Product Model: DPS-150P
  2. DC Output: 0–30V / 0–5A / 150W
  3. Operating Mode: CV / CC

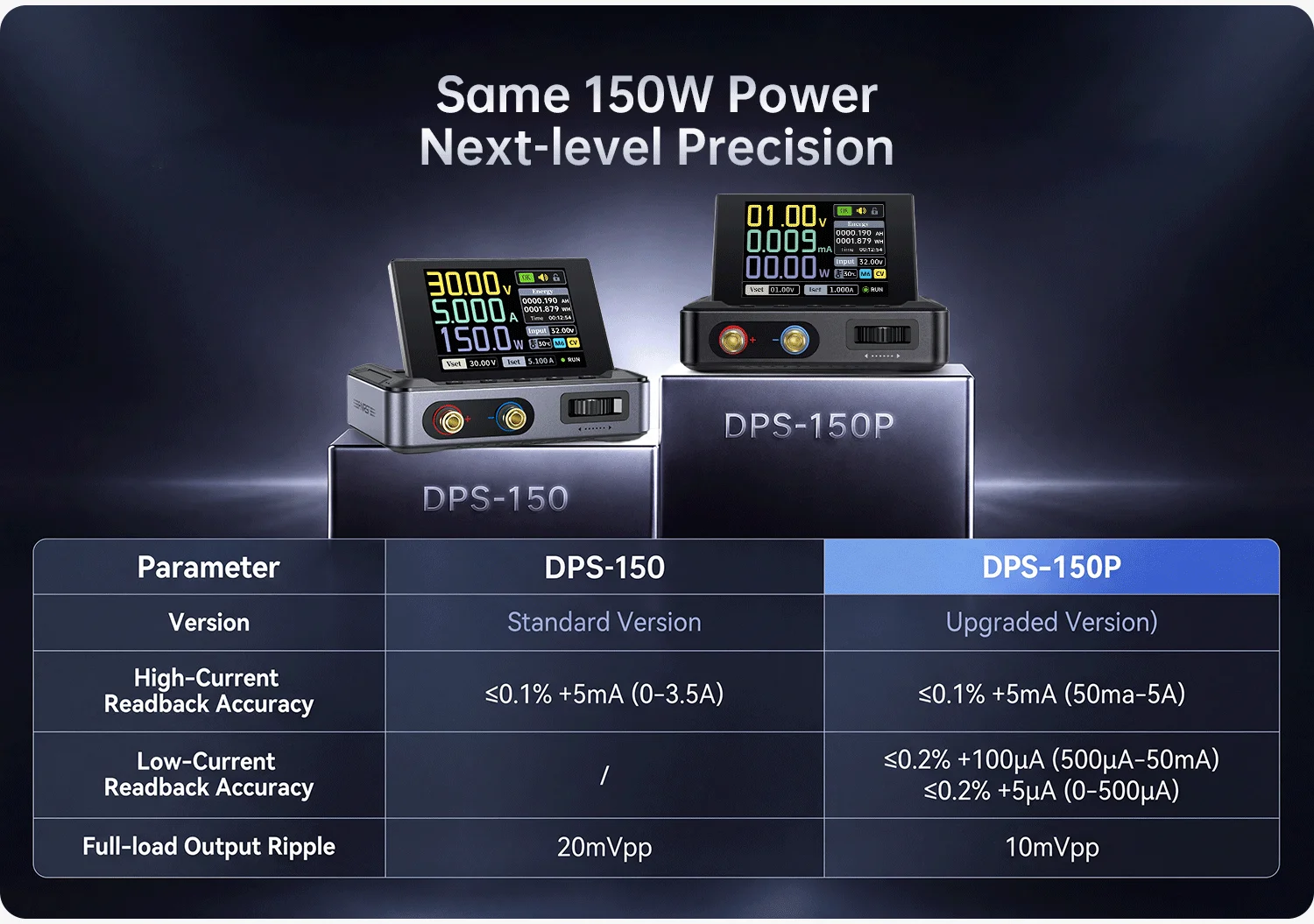

  4. Low-Current Readback Accuracy: 500µA: ≤0.2% + 5µA; 500µA–50mA: ≤0.2% + 100µA; > 50mA: ≤0.1% + 5mA
  5. Output Ripple: ≤10mVpp
  6. Power Input: PD 3.1 / QC / DC
  7. DC Input Range: 5–32V
  8. USB-C Input: Supported
  9. Automated Test Functions: Sequence Output / Voltage Sweep / Current Sweep / Pause / Resume / Single-Step Operation
  10. Voltage Resolution: 10mV
  11. Current Resolution: 1mA
  12. PC Software Control: Real-Time Monitoring / Output Control / Voltage & Current Setting / Preset Management

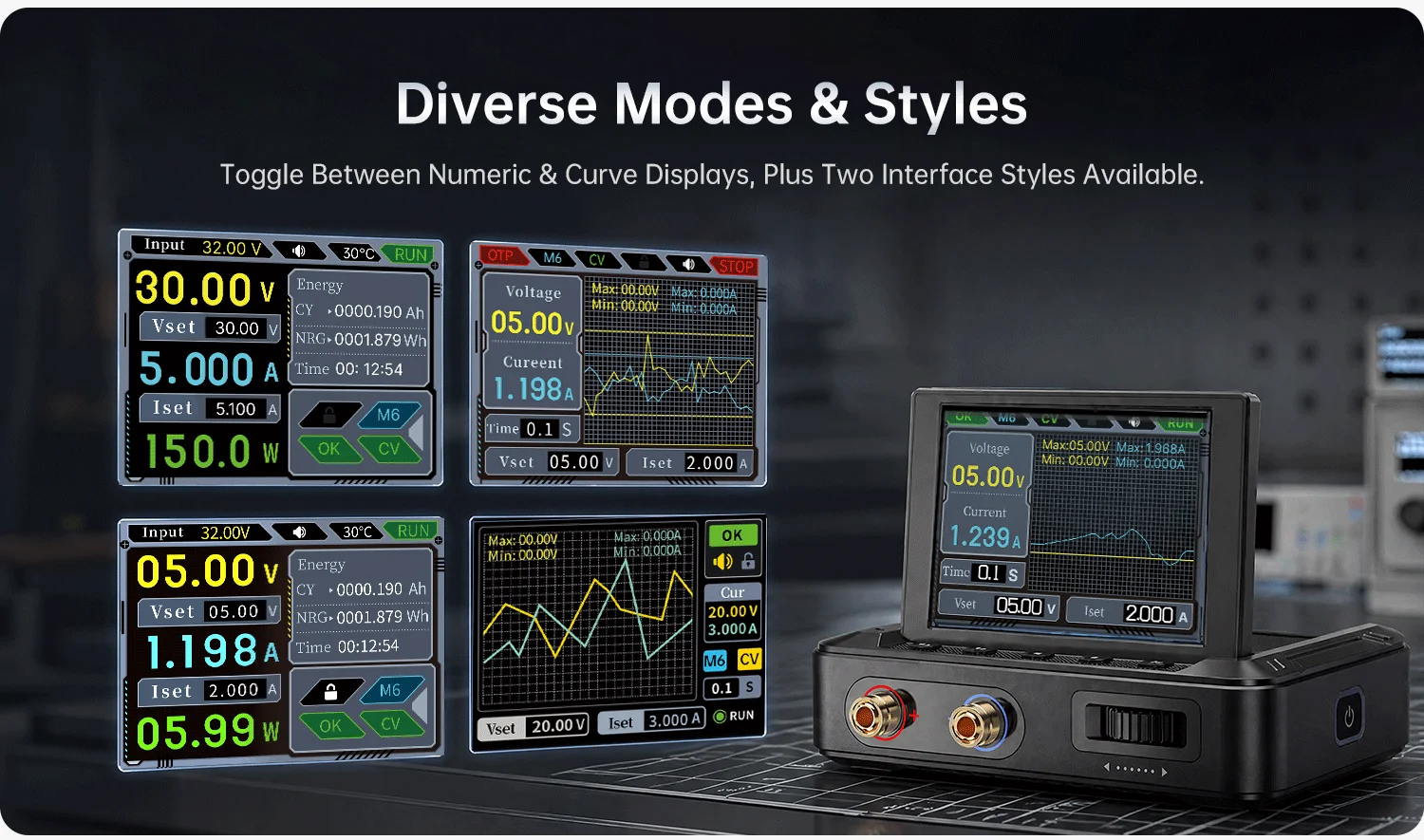

  13. Waveform & Data Logging: Voltage/Current Waveform Display / Data Logging / Saving / Zooming
  14. Display: 2.8-inch IPS, 320 × 240
  15. Screen Rotation: 90°
  16. Real-Time Monitoring: Input/Output Voltage / Current / Power / Temperature / Operating Status
  17. Energy Measurement: Ah / Wh / Output Runtime
  18. Preset Memory: 6 Groups (M1–M6)

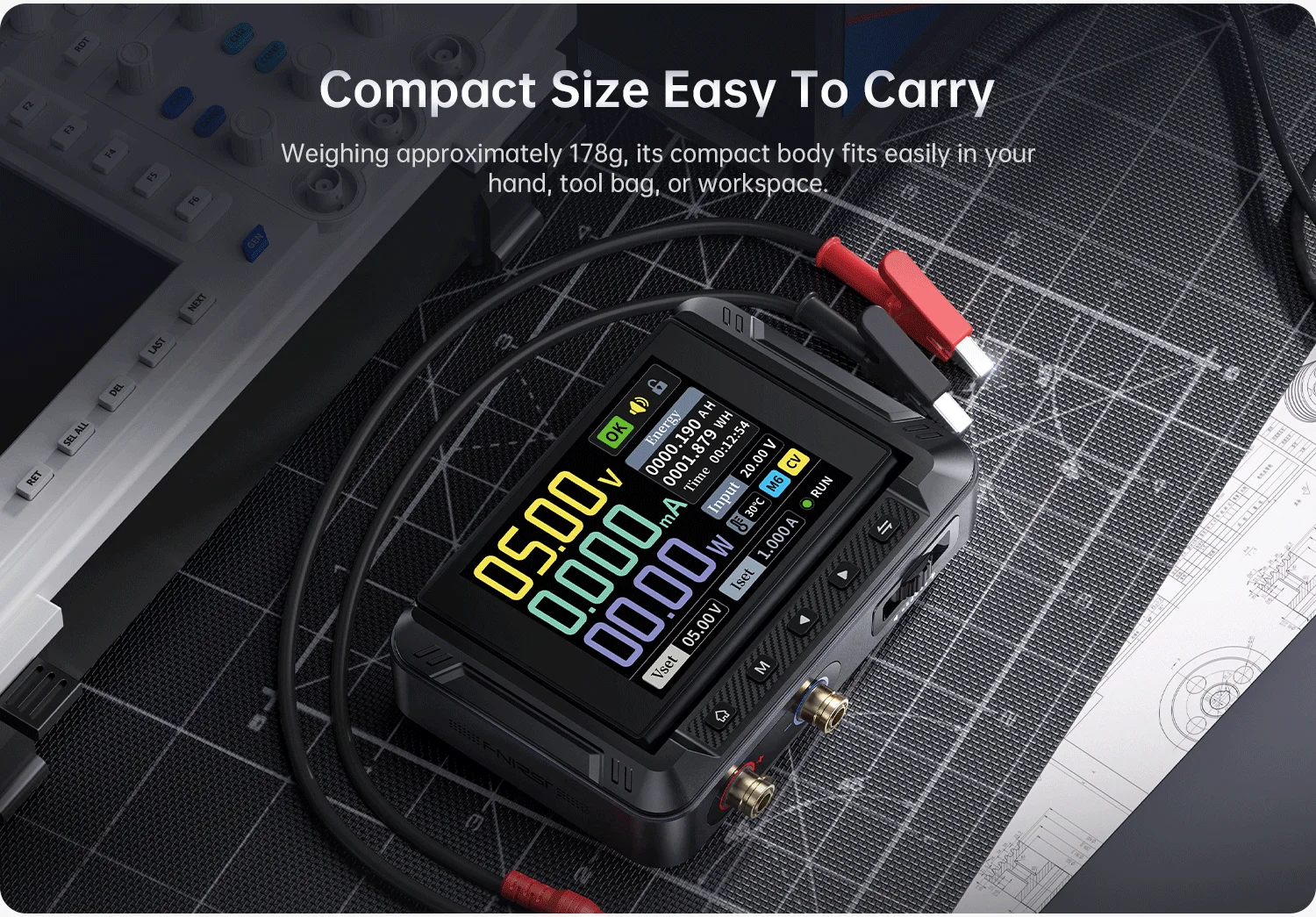

  19. Dimensions: 106 × 76 × 28mm
  20. Weight: Approx. 178g

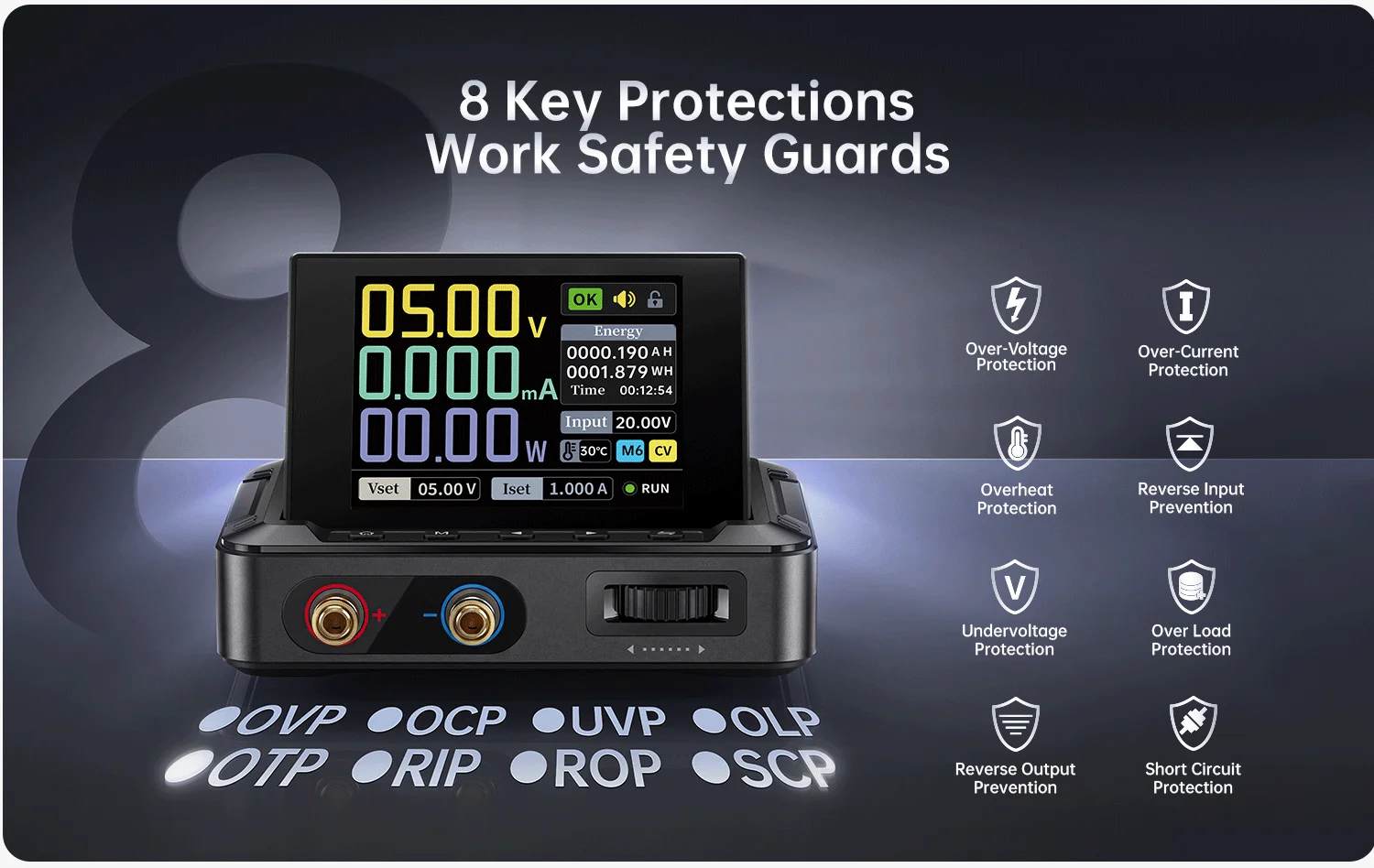

  21. Protection Functions: OVP / OCP / OPP / OTP / LVP / REP / Reverse-Polarity Protection / Reverse-Current Protection

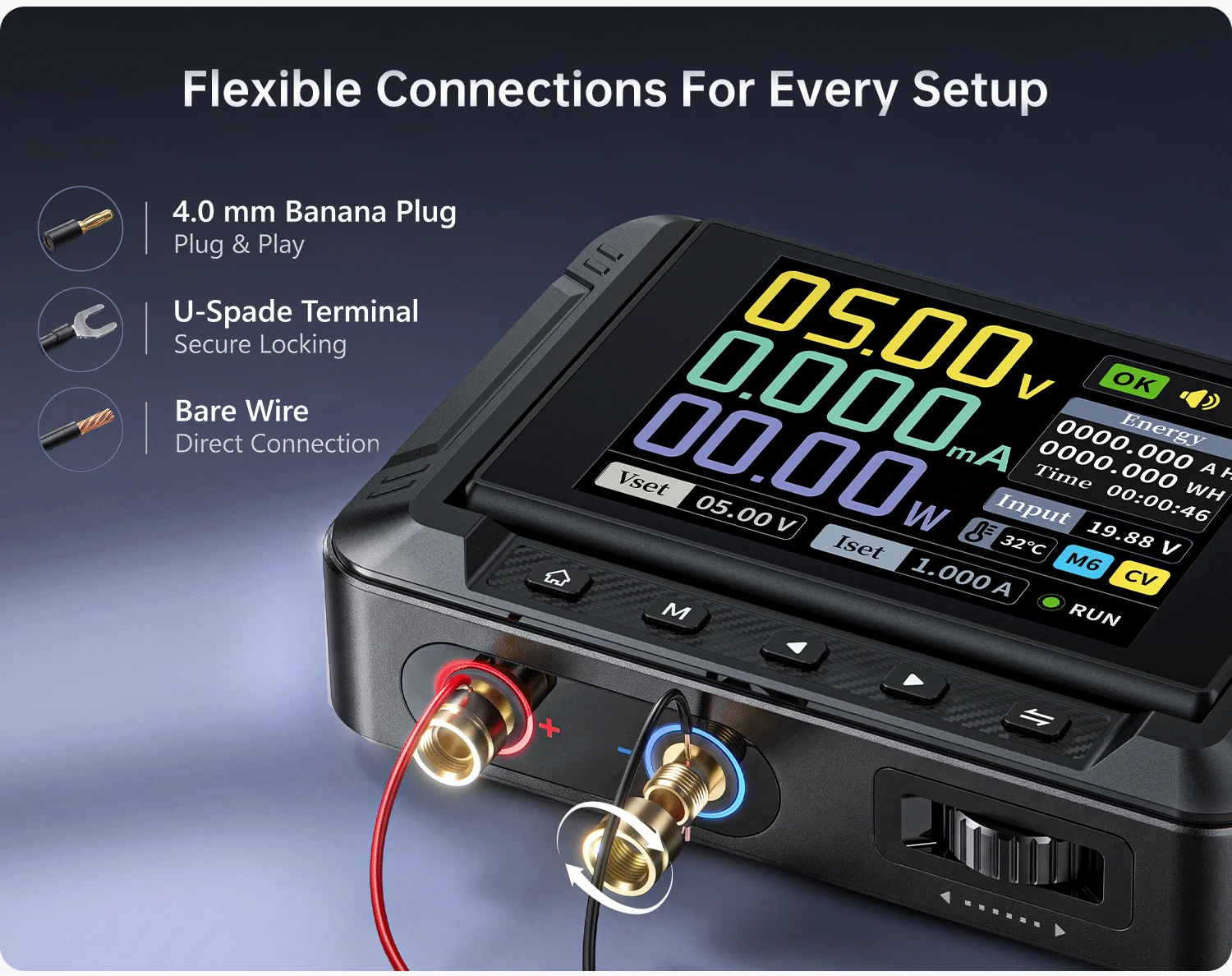

  22. Output Terminals: 4mm Banana Jacks

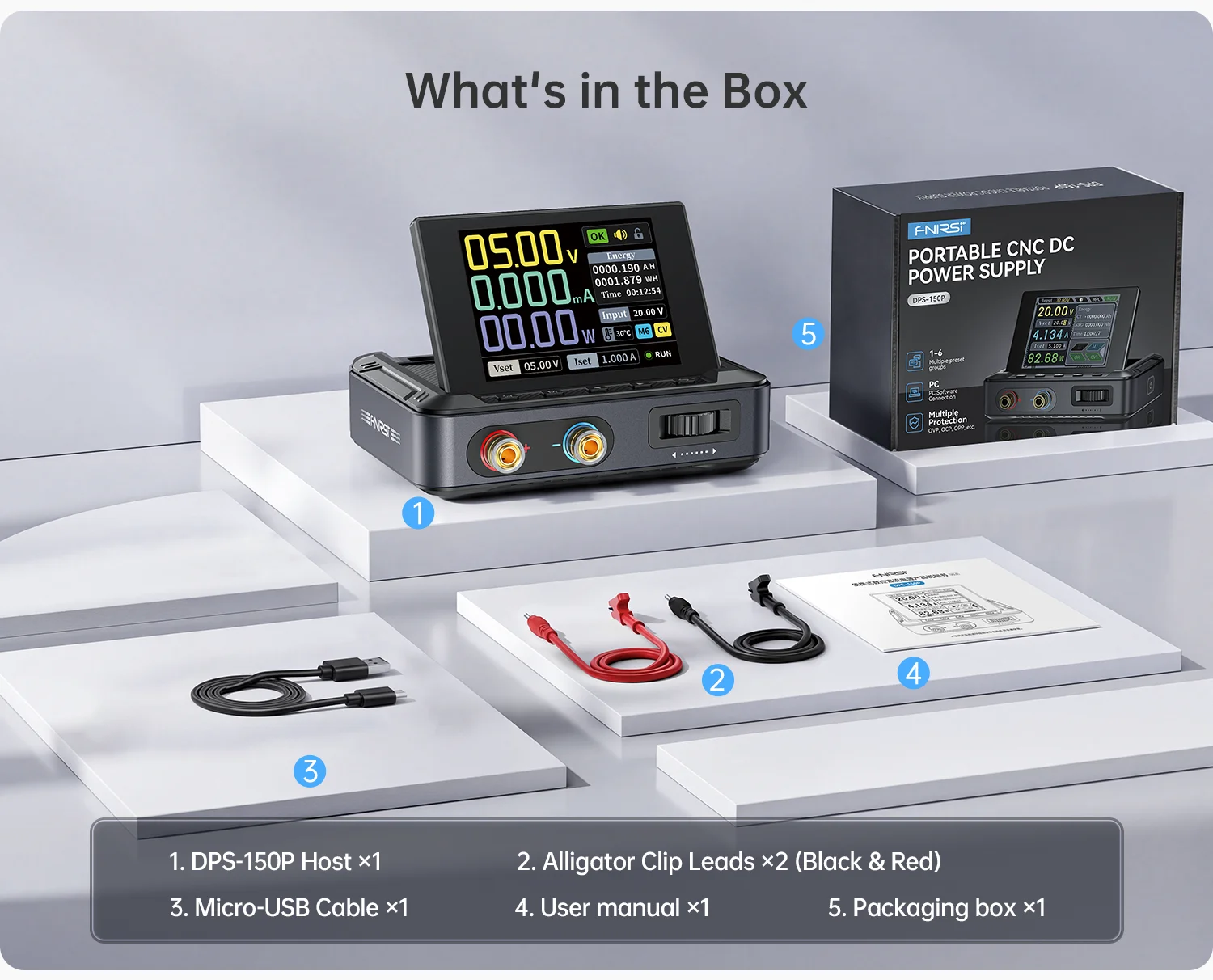

DPS-150P Standard
  1. DPS-150P Host *1
  2. Alligator Clip Leads (Black & Red)*2
  3. Micro-USB Cable *1
  4. User manual *1
  5. Packaging box *1
DPS-150P Optional
  1. DPS-150P Host *1
  2. Alligator Clip Leads (Black & Red)*2
  3. Micro-USB Cable *1
  4. User manual *1
  5. Packaging box *1
  6. 100W PD GaN Fast Charger *1
  7. C2C PD charging cable (1.2m) *1

Additional information

Color

Dps-150P Optional-Eu, Dps-150P Optional-Us, Dps-150P Standard
