Dreanique 2-Schneid-Holzhobelbit 38,1 Mm 45 Mm Schnittdurchmesser 8-12 Mm Schaft Spoilboard-Oberflächenfräser Hartmetalleinsatzplatte
Price range: 114,99 € through 225,99 €
Dreanique 2-Flutes Wood Planer Bit 75mm 45mm 38.1mm Cutting Diameter, 12mm 8mm Shank, Spoilboard Surfacing Router Bit, Insert Carbide Slab CNC Wood Cutters
This professional bottom cleaning router bit is not only perfect for wood slab flattening, resurface or plane the top surface of the spoilboard, but also for trimming and slotting/grooving. Great replacement bit tool for woodworking.
2 wings wood cnc router:

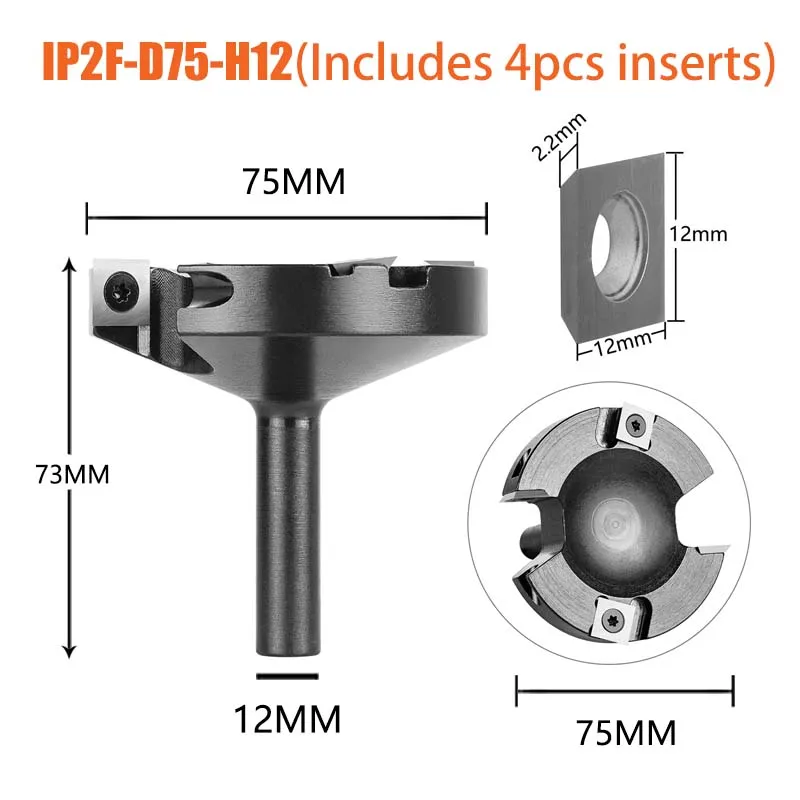

Shank diameter : 8mm 12mm;
Cutting diameter : 38.1mm, 45mm, 75mm;
Carbide inserts : 12*12*2.2mm.
Grade of carbide inserts ：YG6X.
Countersunk screw : M4*7
Advantages:
1、The entire miling cutter body is machined in one step from a steel rod in machining center, offering higher precision and better strength compared to welded knife bodies

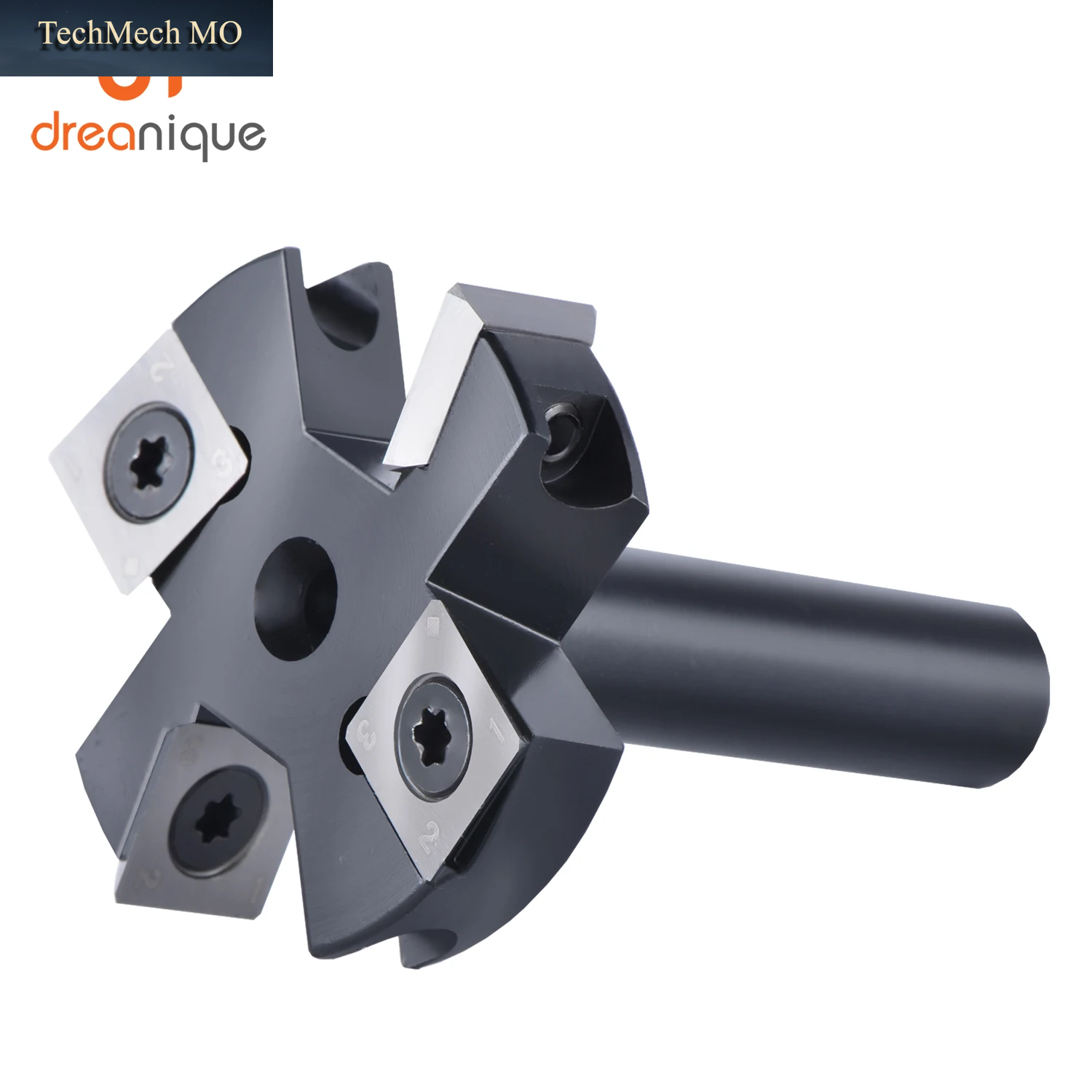

2、The surfacing router bit utilizes 4-sid solid carbide inserts, all 4 edges can be used. Can replace the carbide inserts when needed, instead of replacing the whole bit, is a more cost effective solution.
3、thicker inserts than other sellers: Our inserts are 2.2mm thick, which offers a longer tool life compared to inserts that are only 1.5mm thick used by other sellers.

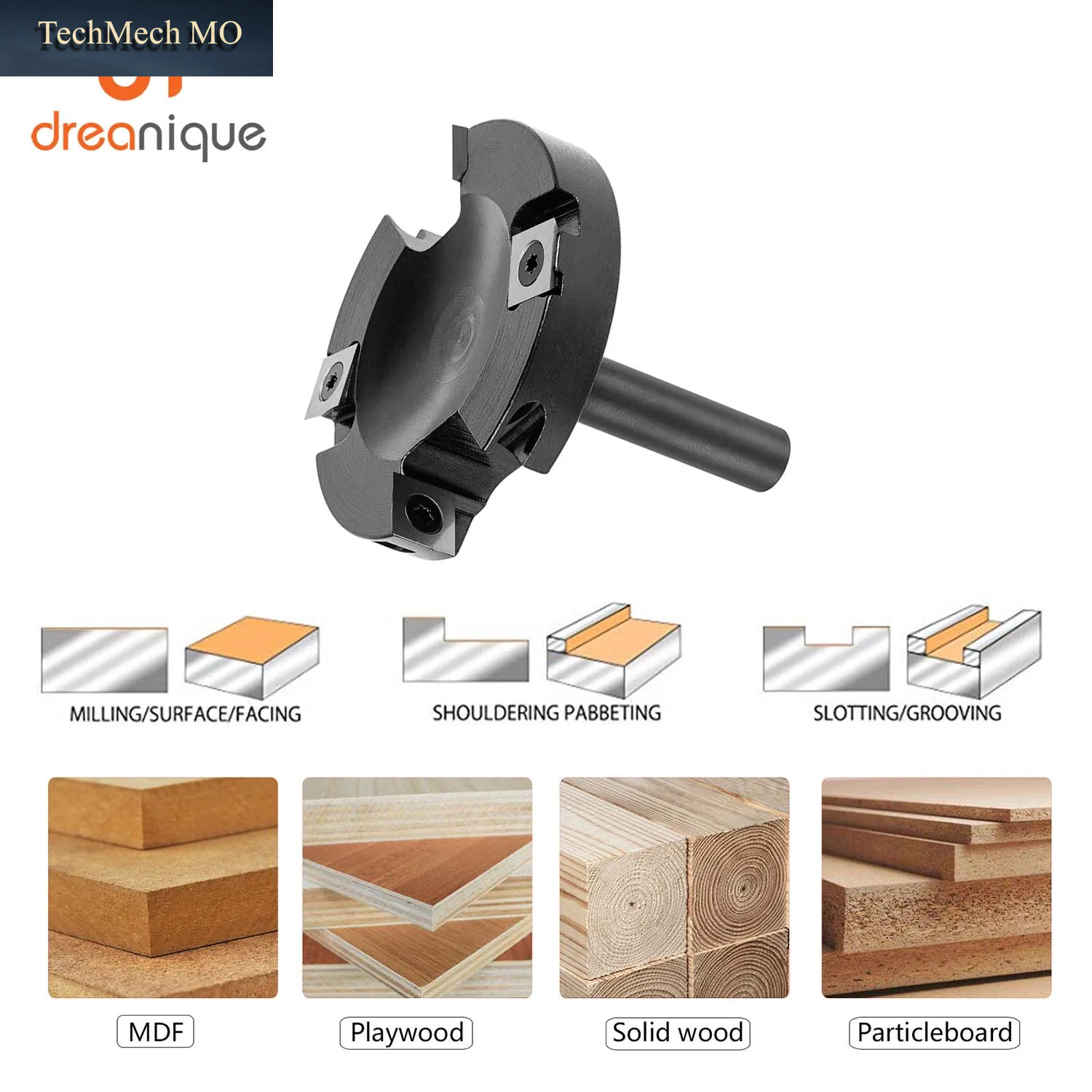

Applied to:
Suitable for soft and hard woods, MDF, laminate, particle board, plywood compact panel, acrylic and etc.
Avoid cutting metal and non-wood materials;
Use on CNC and other automatic routers as well as hand-held and table-mounted portable routers. Such as woodworking engraving machine, trimming machine, etc.
Cutting parameter:
D38.1: Feed 5000mm/min, RPM: 12000-16000, Cutting Depth(mm per path): 2mm-3mm.
D45: Feed 3500mm/min, RPM: 11000-15000, Cutting Depth(mm per path): 2mm-4mm.
D75: Feed 3200mm/min, RPM: 6000-10000, Cutting Depth(mm per path): 2mm-4mm.
Packing:
A planer bit includs: planer bit x 1, carbide inserts x 4, wrench x 1
Additional information
| Schneidkantenlänge | Ip2F-D75-H12, Ip2F-D45-H12-In, Ip2F-D38.1-H8, Ip2F-D45-H12, Ip2F-D38.1-H8-In, Ip2F-D75-H12-In |
|---|
