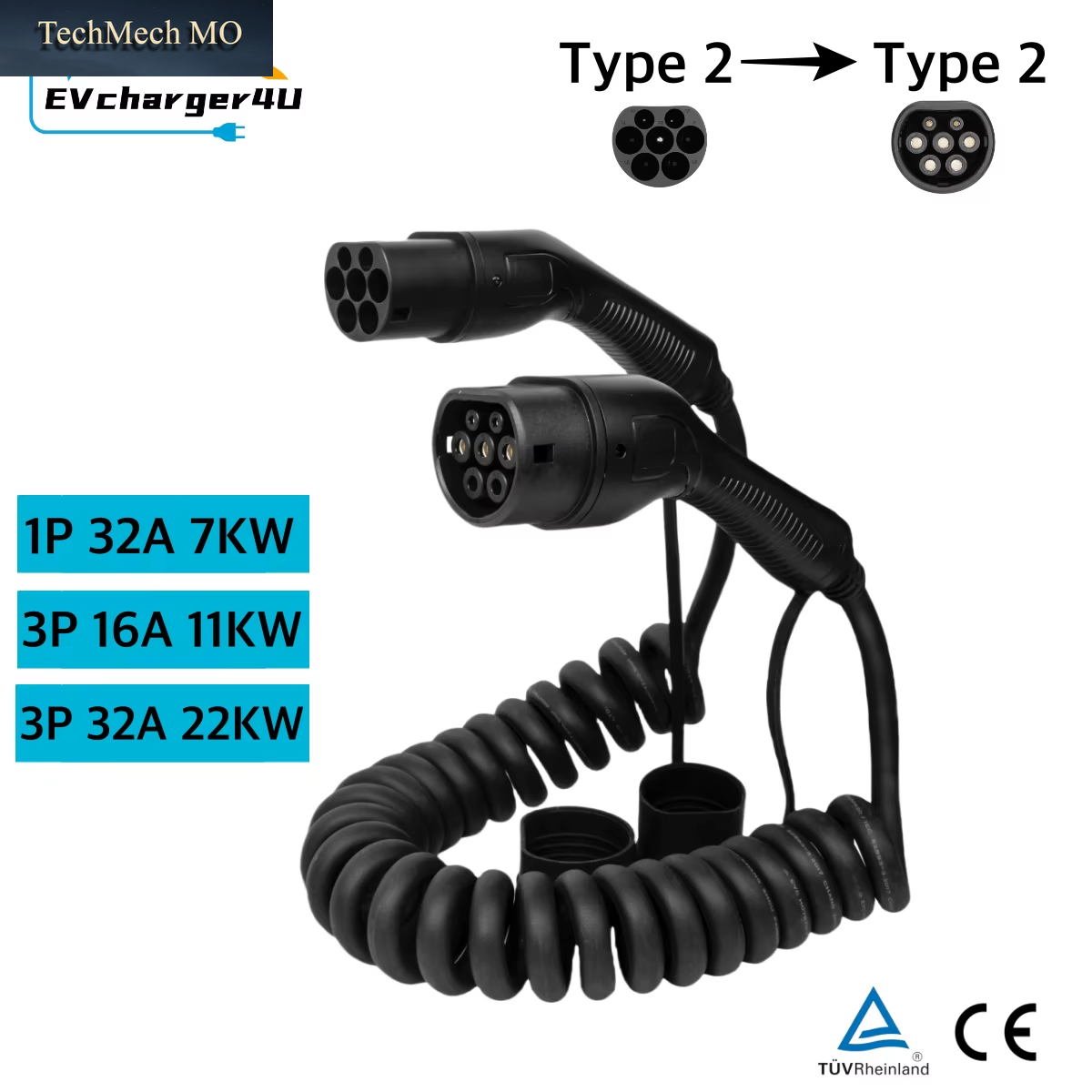

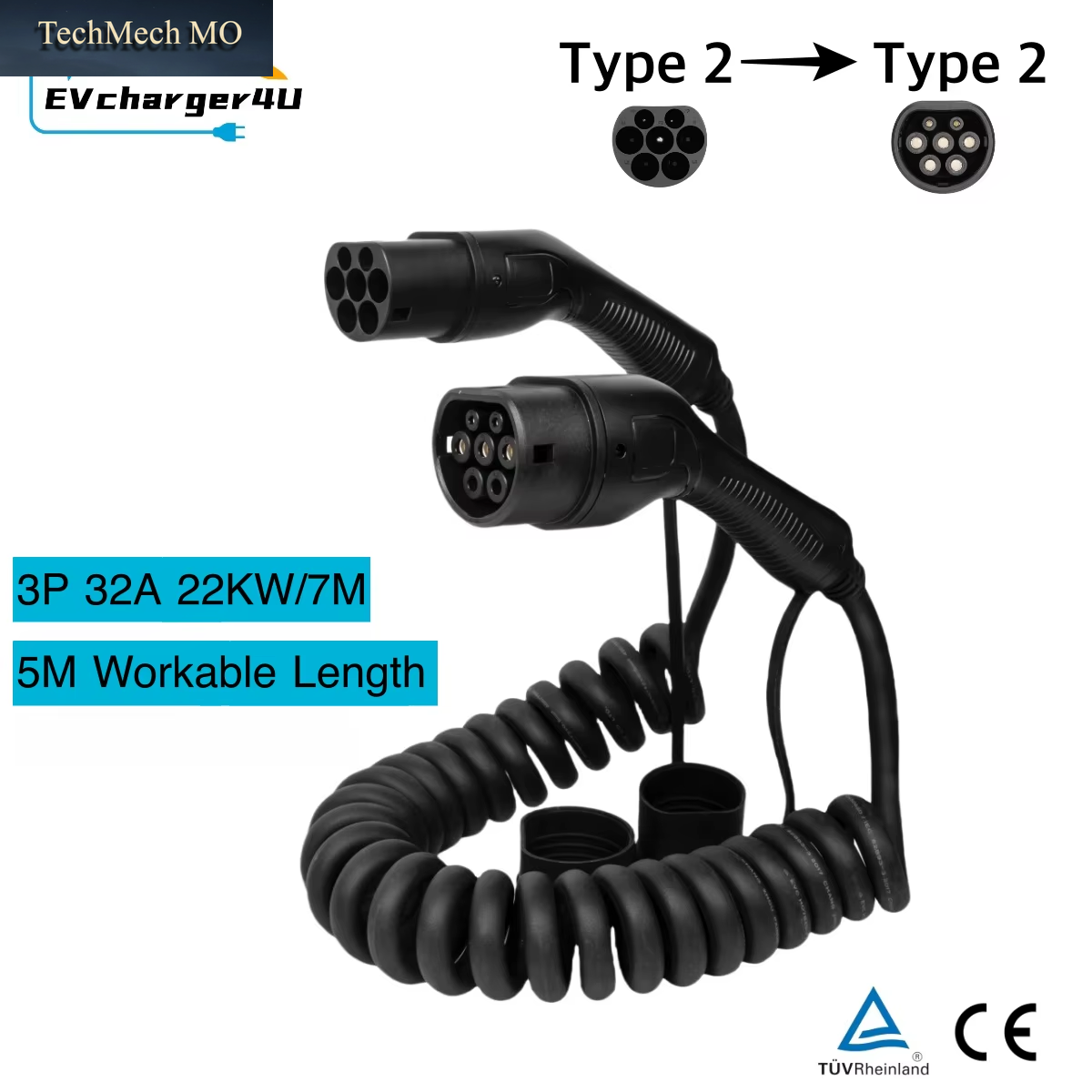

Evcharger4U Type 2 EV Charging Spiral Cable 1Phase 32A 7KW 7M, 3Phase 22KW 5M Mode 3 Coiled Charger Cord for Electric Car CE TUV

  • SKU: N/A
Evcharger4U Type 2 EV Charging Spiral Cable 1Phase 32A 7KW 7M, 3Phase 22KW 5M Mode 3 Coiled Charger Cord for Electric Car CE TUV
Roll over image to zoom in
Click to open expanded view

Price range: 451,99 € through 651,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

EVcharger4U Type 2 EV Charging Spiral Cable 1Phase 32A 7KW 7M, 3Phase 22KW 5M Mode 3 Coiled Charger Cord for Electric Car CE TUV

Protection rank: IP55

Fire retardant level: 94 V-0

Rated Current: 16A / 32A

Rated voltage: 250V / 480V

Insulation resistance: > 1000M ohm (DC 500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact resistance: 0.5m ohm Max

Coupled insertion force: >45N <80N

Operating temperature: -30C to 50C

Mechanical Testing

Mechanical life: no load plug in / pull out > 10000 times

Impact of external force: qualify 1m drop or 2 Ton vehicle run over

Materials Applied

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating

Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

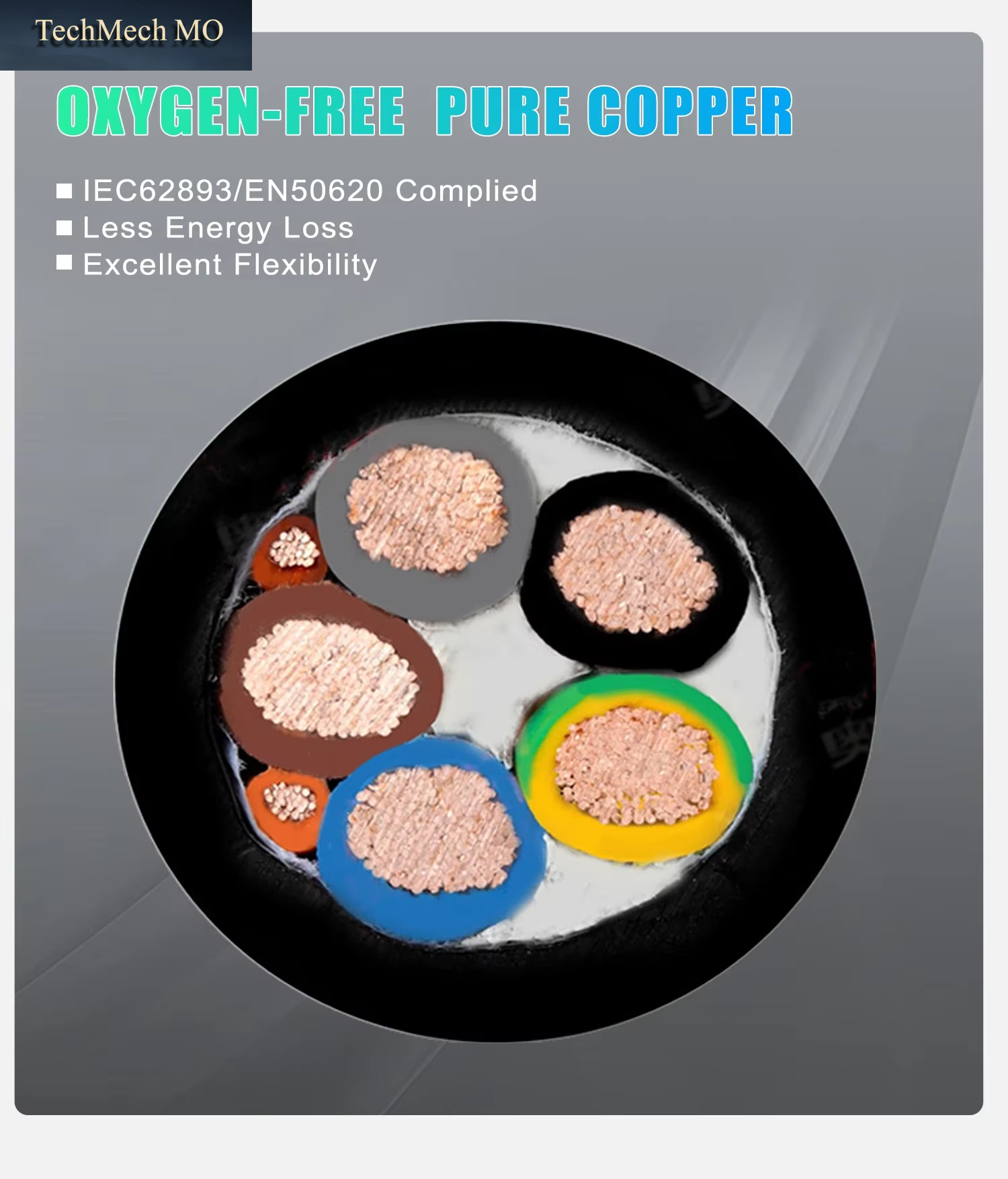

Cable: black with TPU jacket. Other color optional by customizing

Features

Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014

IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance

Additional information

Color

3P 32A 22Kw 7M, 3P 32A 22Kw 5M, 3P 16A 11Kw 7M, 1P 32A 7Kw 7M, 3P 16A 11Kw 5M, 1P 32A 7Kw 5M
