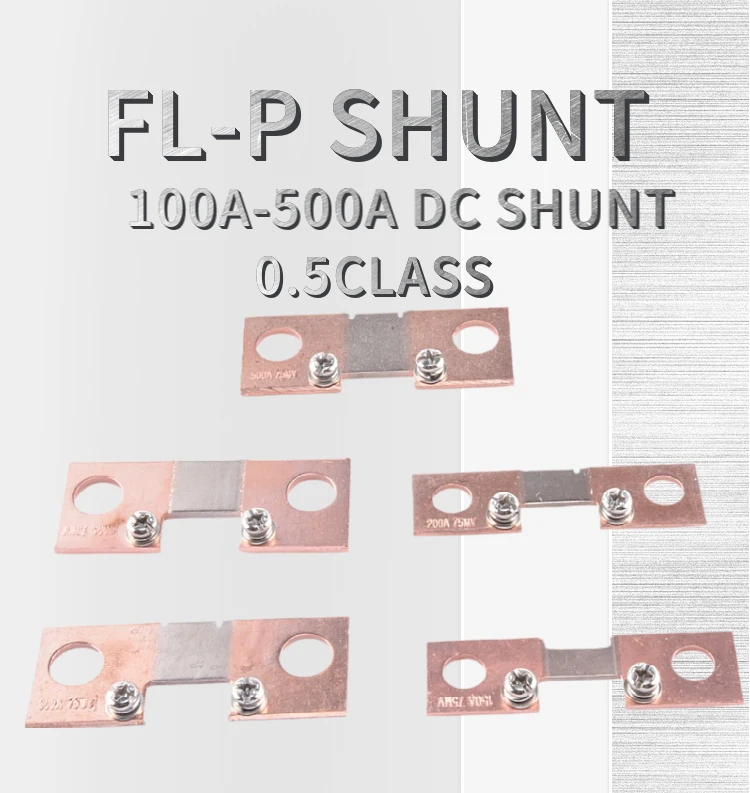

FL-P Chip Shunt 100A 75Mv Integrated on PCB 150A 200A 300A 400A 500A Tied to the Batter Copper Sampling Resistor DC Shunt

  • SKU: N/A
FL-P Chip Shunt 100A 75Mv Integrated on PCB 150A 200A 300A 400A 500A Tied to the Batter Copper Sampling Resistor DC Shunt
Roll over image to zoom in
Click to open expanded view

Price range: 50,99 € through 57,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

Product parameter：

Accuracy Class: 0.5%-1%

Use environment: -40~60℃, relative humidity ≤95% (35℃)

Overload performance: 120% of rated current, 2 hours

Voltage drop: 75mv (When ordering more than 10 pieces, other voltage drop can be customized, pls contact seller to know more)

Heating under load: temperature rise tends to be stable, current below 50A ≤ 80 ℃, rated current above 50 A ≤ 120 ℃

Application：

It can be used in DC circuits with a 75mv magnetoelectric millivoltmeter to expand the current measurement range of the meter

Package Include：1pcs* FL-PShunt

Additional information

Color

300A(90Mm), 300A, 200A, 400A, 150A, 100A, 500A
Voltage

75Mv
