Flexible Double Diaphragm Coupling D39L49 1PC 8/9/10/11-18Mm Flexible Plum Shaft Coupling CNC Stepper Motor Coupler
1.We are devoted to selling different kinds of components. Such as linear guide, ball screw, bearing, motor, driver, coupling, spindle, inverter, drag chain, power supply gears and racks and other machine parts.
2.If you need more components, please contact us,we will offer more discount.
3.If you want some components customized, please contact us too.
4.If there are some problems (including: quantity, quality, missing and so on) for our trading, please contact us as soon as possible, we will offer you a good way to solve our problems.
5.If you haven’t found the products you want in our store, please feel free to contact us.
6.All the products we are selling can accept bulk orders with better prices and lower shipping cost. Please contact us if you have any requirement, we are sincerely want to establish long business relations with you.
Package include:
1pc D39L49 double diaphragm coupling
Note:It will be shipped without a keyway by default. If you require a keyway, please contact us to pay the price difference.

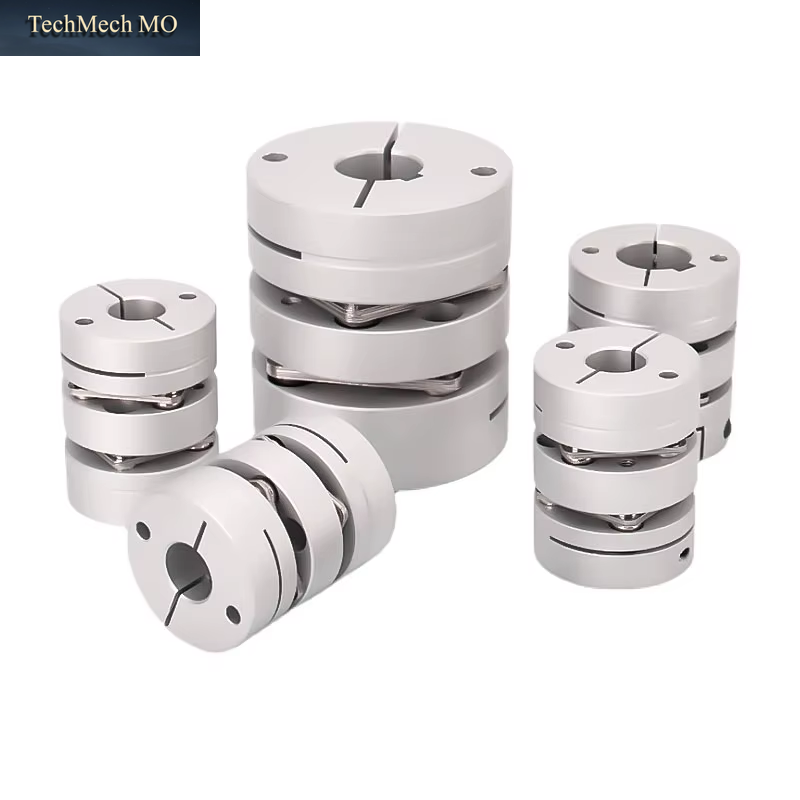

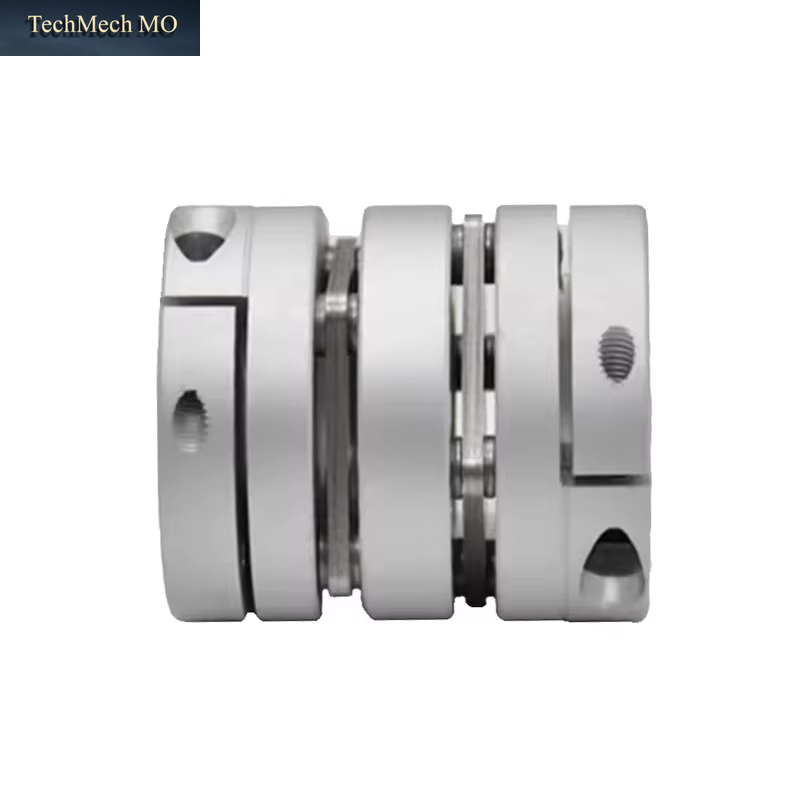

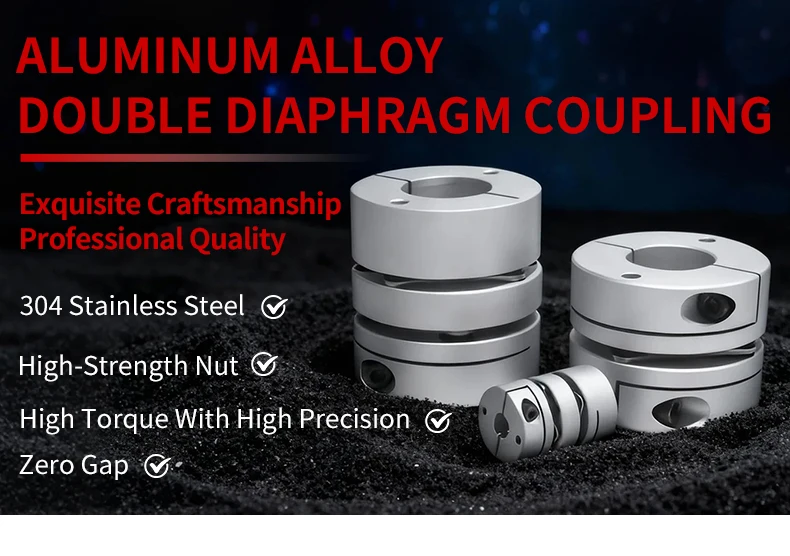

ALUMINUM ALLOY DOUBLE DIAPHRAGM COUPLING
Exquisite Craftsmanship Professional Quality
304 Stainless Steel
High Torque With High Precision
High-Strength Nut
Zero Gap
PRODUCT ADVANTAGES
High-Quality Material Selection
Excellent Performance
Sturdy And Durable
Quality Assurance
High-Quality After-Sales Service
Advanced Process Technology
PRODUCT PARAMETERS
304 Stainless Steel Diaphragm
High-Strength Screw Fixation
Inner Hole H7 Precision
High-Strength Aluminum Alloy
Product Name: Aluminum Alloy Double Diaphragm Coupling
Product Material: Aviation Utetheisa Kong Aluminum Alloy
Operating Temperature: -40℃ to 100℃
Diaphragm Material: 304 Stainless Steel Diaphragm
Applicable Fields: Industrial Robots, Homo Sapiens, CNC Equipment, Automated Equipment, Electronic Semiconductor Industry, 3D Equipment

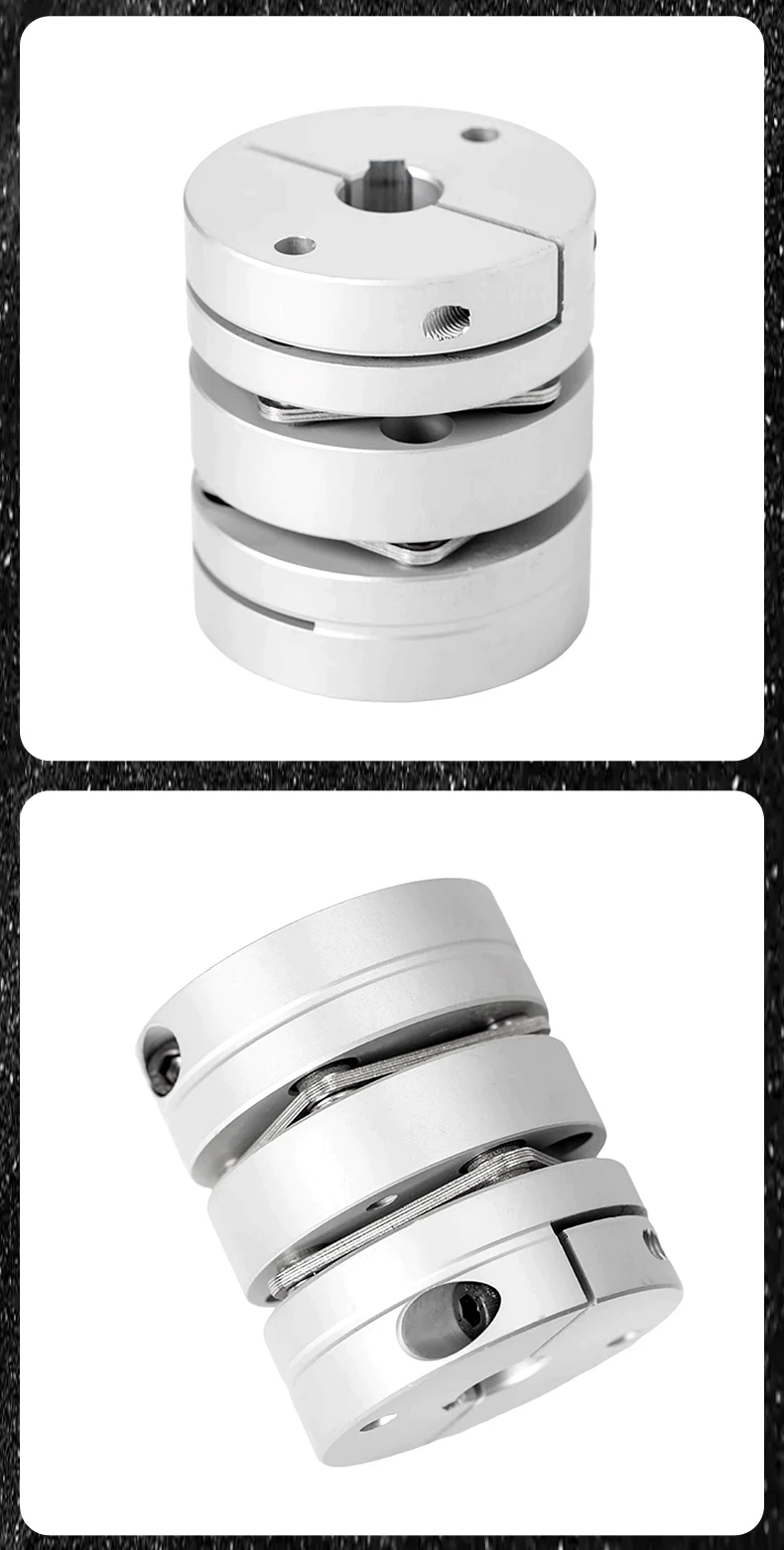

PRODUCT DETAILS
STANDARD H7 TOLERANCE
The Inner Hole Tolerance Should be Controlled Within H7 Accuracy.
High Concentricity, Powerful Locking.
ARC CHAMFER OF SCREW HOLE
The Screw Hole Positions are Processed with Arc Chamfers.
Prevent Finger Cuts During Installation.
TANGENT R FILLET
R-type Rounding Treatment at the Cutting Seam to Avoid Concentrated Pressure at the Cutting Seam.

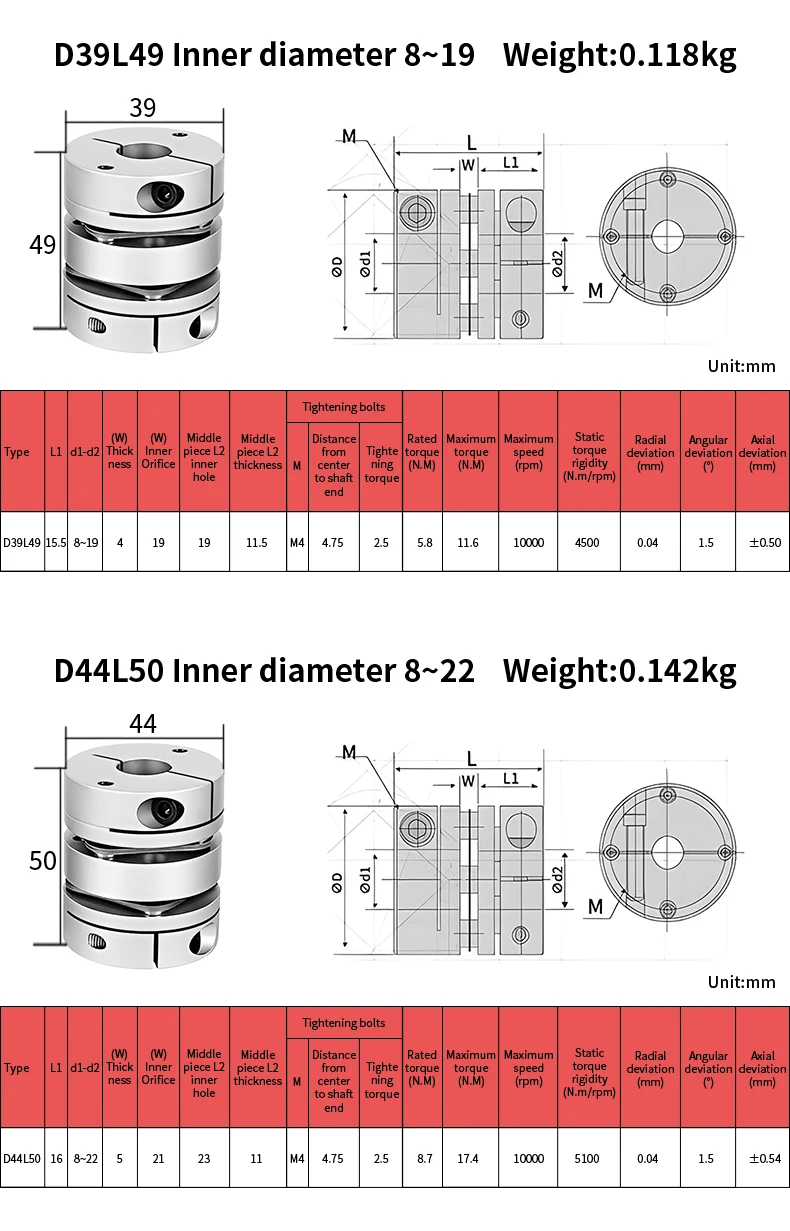

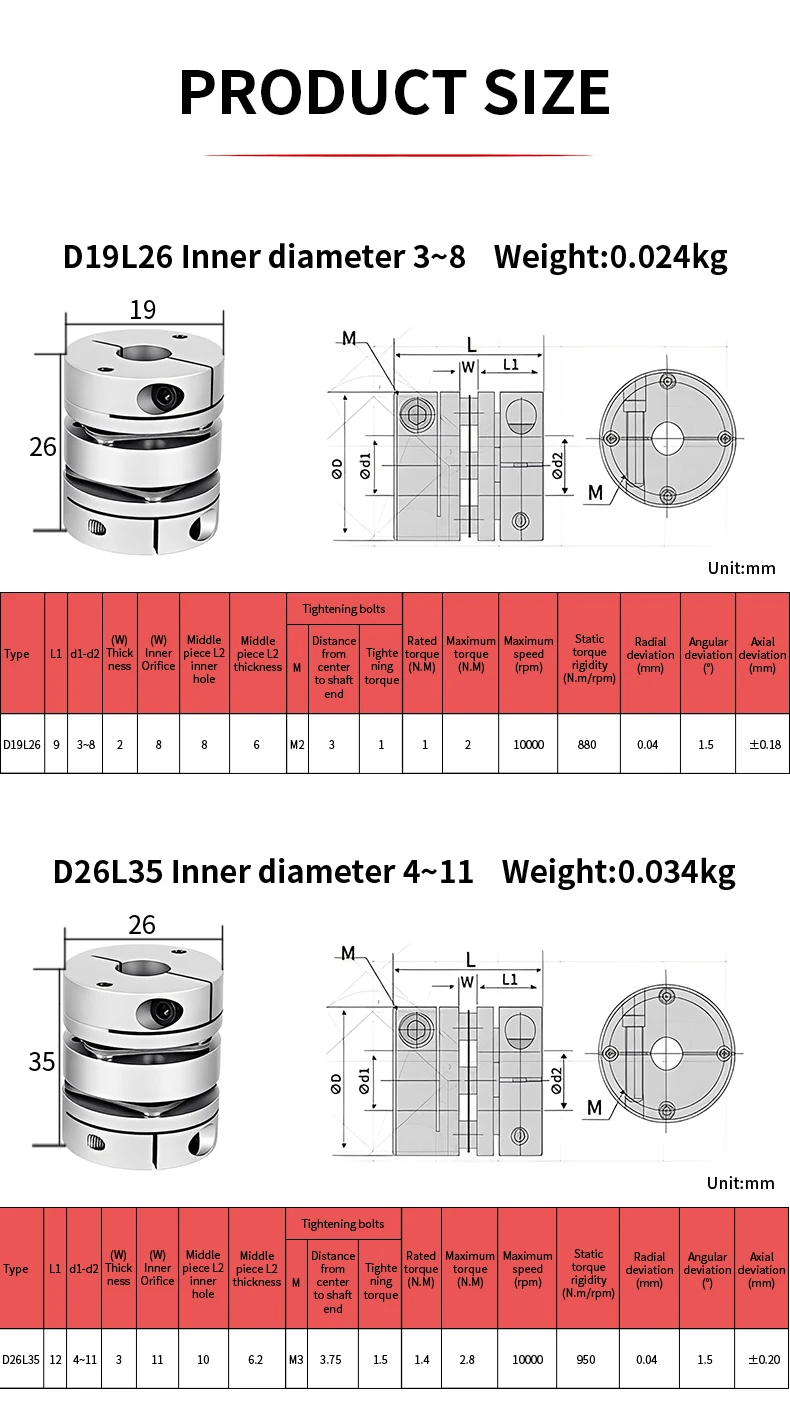

PRODUCT SIZE
Unit:mm
Additional information
| Inner Diameter | 10-16, 10-15, 8-10, 11-15, 10-12, 8-12.7, 11-14, 11-16, 8-16, 8-15, 11-17, 9-14, 8-8, 8-9, 11-12, 10-12.7, 9-9, 10-18, 10-14, 9-12.7, 11-11, 8-17, 11-12.7, 9-12, 10-10, 8-18, 8-11, 9-11, 9-15, 9-10, 10-11, 8-14, 9-18, 9-16, 8-12, 9-17, 10-17 |
|---|
