Lexia 3 PP2000 Diagbox V9.85 Full Chip Car Diagnostic Tool

Notes:

1Can not work with diesel vehicles!

2The version supplied with the CD is V7.83. Please contact us if you require V9.85.

Diagbox V9.85

Diagbox V9.85 is the latest version of the original installation. It is directly installed on the C disk of the computer and runs quickly. No need to use any virtual machine, so it is favored by everyone!

Name of software:Diagbox V9.85

Supported language: Multi-language

Top reasons to get DIAGBOX V9.85:

1.V9.85 does not need to be activated, install directly, no need VM. Fast running, save time and money .( Installation is easy and fast.We provide installation video! )

2.V9.85 work For Citr**en/DS Auto**biles/Pe**eot/Op*l/Fe*gShen.

3.V9.85 function : Diagnose, Resets, Adaptations,Telecoding of Modules….

4.V9.85 can be used on as many machines as you like so its not limited to one PC.

5.V9.85 can work with any version of lexia3 / lexia XS.

Full Chip 921815C: 12pcs JAPAN NEC Relays+ 7pcs OPTOCOUPLERS

Lexia 3 Full Chip Descriptions

1. Lexia3 full chip interface latest version works For Cit**en For Pe**eot Diagnostic.

2. Update: By Link.

3. Support Multi-Language: English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech

4. It works for Coi**en/for Pe**eot.

5. Versions: Lexia 3 V48, PP2000 V25, Diagbox V9.85, Firmware 921815C

6. Diagbox Software Update Password:

Diagbox V7.XX to V7.76: Scary01

Diagbox V7.76 to V7.82: Maitresox01

Diagbox V7.82 to V7.83: Very Simple!

please note: it only can work with Win 7/XP system!

Lexia 3 Full Chip Features

1. It is fit for most Pe**ot cars from 1995.

2. Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

3. Supports Multi Languages:

PP2000 Software supported language: English, Chinese, German, French, Japanese, Russian, Arabia, Spanish, Turkish, Danish, Iranian, Greek, Israel, Hungary, Indonesian, Italian, Dutch, Norwegian, Polish, Portuguese, Finnish, Slovenian, Swedish, Czech, Croatia, Thai.

Lexia3 Software supported language: English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech.

4. Lexia3 diagnostic scanner is a comprehensive cars diagnostic tool. You can do all as a authorized dealer does PP2000, lexia 3 diagnostic software allows you perform complete diagnostics of all from 1995 untill present models via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001)

5. Unlike other universal car scanner tools which only read fault codes, this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface containsK-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

Lexia 3 Full Chip Functions

This software performs nearly ALL the functions like the original dealer diagnostic tool, Unlike other universal car scanner tools which only read fault codes, Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1. Read identification

Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc…

2. Read fault codes

Displays all stored and pending fault codes with complete description (e.g. “Rail pressure – too low pressure”).Program supports report printing or copy to clipboard.

3. Clear fault codes

This function clears all stored fault codes and other diagnostic information.

4. Auto-scan (complete car scan/test)

Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values

Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supporte

6. Actuator test

Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

7. Programming functions/Adaptation

This feature is of great importance in all vehicles because systems like Engine control units, Immobilizers, Airbags, Alarms, Body Control Units, and some others, require you to perform reset or programming procedures after car repair is done, or even configuration after replacing broken Control Unit.

Car coverage:

1.P2000,Lexia 3 is compatible with most for Peugeot cars from 1995.but it can not work good with for Peugeot 307 after 2004 year.

2.PP2000,Lexia-3 is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

For Citr*en

C-Zero/ C1/ C2/ C3/ C3 PICASSO/ DS3/ C-ELYSEE/ C4/ C4 CACTUS/ C4 PICASSO/ DS4/ DS 5LS/C5/ DS5 /C6 / C8/ C-CROSSER/ C4 AIRCROSS/ NEMO/ BERLINGO/ JUMPY/ JUMPER/ AX/ SAXO/BX/ ZX/ XSARA/ XANTIA/ XM/ EVASION/ C15/ FUKANGFUKANG 988/ ELYSEE/ C-ELYSEE(R3)/ C-TRIOMPHE/ C-QUATRE

For P*ug**t

iON/ 107/ 108 /206 207/ 207+/ 280/ 301/ HOGGAR/ 307/ 308/ RCZ/ 407/ 408/ 508/ 607/ 807/1007/ 2008/ 3008/ 4007/ 4008/ 5008/ BIPPER/ PARTNER/ EXPERT/ 106/ 205/ 306/ 309/ 405/406/ 605/ 806

Software supports year：

(With red clip cable, supports more old car models.)

PP2000: 1998-2006
Diagbox: 2006-2016

Hardware and Software Requirements

1. Software requires at least Intel Celeron/Pentium III 400 MHz, 128 MB RAM, 50MB free HDD space and USB 1.1 port (USB 2.0 recommended) and Windows XP OR Windows 7 32Bits ONLY with the latest service pack installed. If customer requires, we can prepare ready to work PC.

2. PP2000 and lexia software only be installed inXP system 32 bit.Diagbox software only be installed in win7 system 32 bit.

3. Pls don’t install lexia and pp2000 software together with Diagbox software in one pc.Diagbox software has included pp2000 and lexia software, Diagbox need be installed in one laptop individually.

4. Better to close the Anti-virus software and firewall on your computer . Because the Antivirus may recognize it as a type of virus,the software willbe damaged.

5. The CD contains a upgrade pack which is latest version V7.76, so please DO NOT upgrade it online by yourself.

Top 5 raisons d’acheter Lexia3 Full chip version:
1. Nouvelle version du logiciel Diagbox V9.91
Version Diagbox
Veuillez PRENDRE AVIS, colis Lexia CD Diagbox VERSION par défaut est V7.83 , C’est la fonction la plus stable et facile à travailler.
Notre mise à jour de Diagbox Suppoting vers la dernière version V9.91, si vous souhaitez mettre à jour vers la plus récente diagbox, n’hésitez pas à nous contacter et nous vous enverrons un lien pour télécharger la dernière version de diagbox.
(Veuillez déconnecter Internet lors de l’installation du logiciel, sinon l’appareil est endommagé et cassé)

2. Avec 4 câbles, prend en charge plus de modèles de voitures anciennes

3.LEXIA3 Version complète des puces avec fonction d’alimentation:
Pour la programmation, diagbox prend en charge la programmation de base, mais certaines programmations comme le système d’alarme de voiture ont besoin de compte nom d’utilisateur et mot de passe, nous ne fournissons pas et n’avons pas de nom d’utilisateur et mot de passe, uniquement pour citroën et pour l’atelier de réparation Peugeot centre a un nom d’utilisateur et un mot de passe, veuillez le noter.

4. Support multilingue:
Lexia 3 PP2000 Logiciel langue prise en charge:
Anglais, chinois, allemand, français, japonais, russe, arabie, espagnol, turc, danois, iranien, grec, israël, hongrie, indonésien, italien, néerlandais, norvégien, polonais, portugais, finnois, slovène, suédois, tchèque, croate, thaïlandais.
Langue prise en charge par le logiciel Lexia3 Diagbox:
Anglais, allemand, français, japonais, russe, espagnol, portugais, suédois, turc, néerlandais, polonais, italien, hongrois, grec, tchèque.

5. Excellente carte PCB à puce complète avec bord doré, 12 nouveaux relais NEC Japon, 7 optocoupleurs

Veuillez noter:

Puces complètes Lexia3NE prend PAS en charge le module de suspensionPour citroen c5 ModelSim.

Notre matériel a une 13e communication et certaines vieilles voitures européennes prennent en charge, mais pour certaines voitures actuelles, il ne prend pas en charge.

Pour les commentaires des acheteurs:

Il ne se connecte pas avec le module de suspension dans deux citroen c5, un de 2002 un autre de 2005.

Firmware V921815C Version V4.3.2

Veuillez noter. Ceci est la version par défaut de la fabrication. Si l’acheteur clignote par votre propre fichier flash et cause l’appareil ne fonctionne pas, il n’a pas responsable de cela.

Certains acheteurs ont flashé sur la V4.4.0 et ont causé que l’appareil ne fonctionne pas, il comporte donc des risques, soyez prudent pour cela. Ne pas clignoter, seulement utiliser la version par défaut est stable et meilleur.

Parce que notre technicien flashé V4.4.0 et il n’a jamais réussi encore. Donc, le matériel ne fonctionne pas.NOUS NE LE RECOMMANDONS PAS!!!

LEXIA3 PP2000 Professional For Citroen/For Peugeot Diagnostic Scanner Newest Firmware 921815C Full Chips

Compare OURS BEST QUALITY with OTHERS:

About Installation Tips:

Please make sure to install software on Native Real Computer System Win XP or Win 7 32bits . It does not supports virtual machine virtual box,it can’t detect usb connection.

Please disconnect internet and WIFI on your real cmputer system.

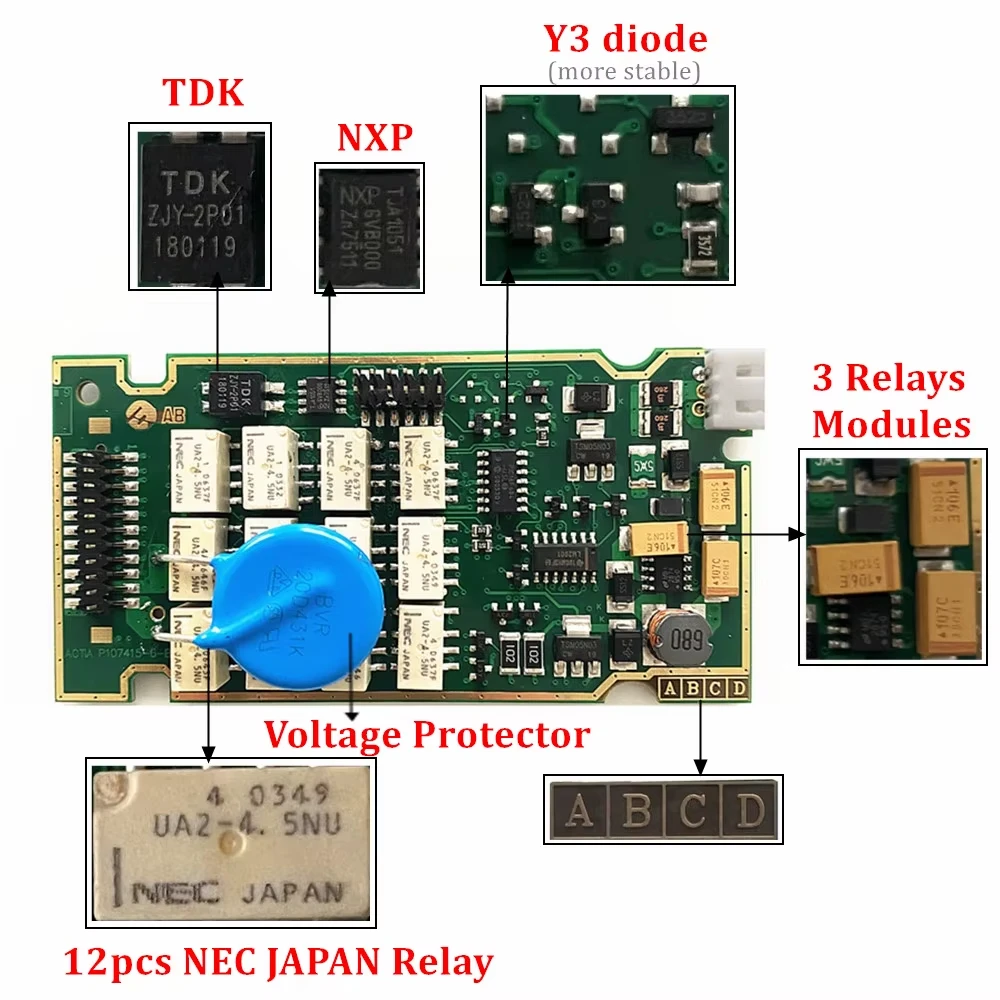

Full Chip PCB Display:

Optocouplers color will be white or black by random,Function will be the same.it does not affect function and usage，please note to this,thank you.

• PCB Golden Edge,Full Chip

• 7pcs Optocouplers and Japan Chip

• 12pcs NEC Japan Relay

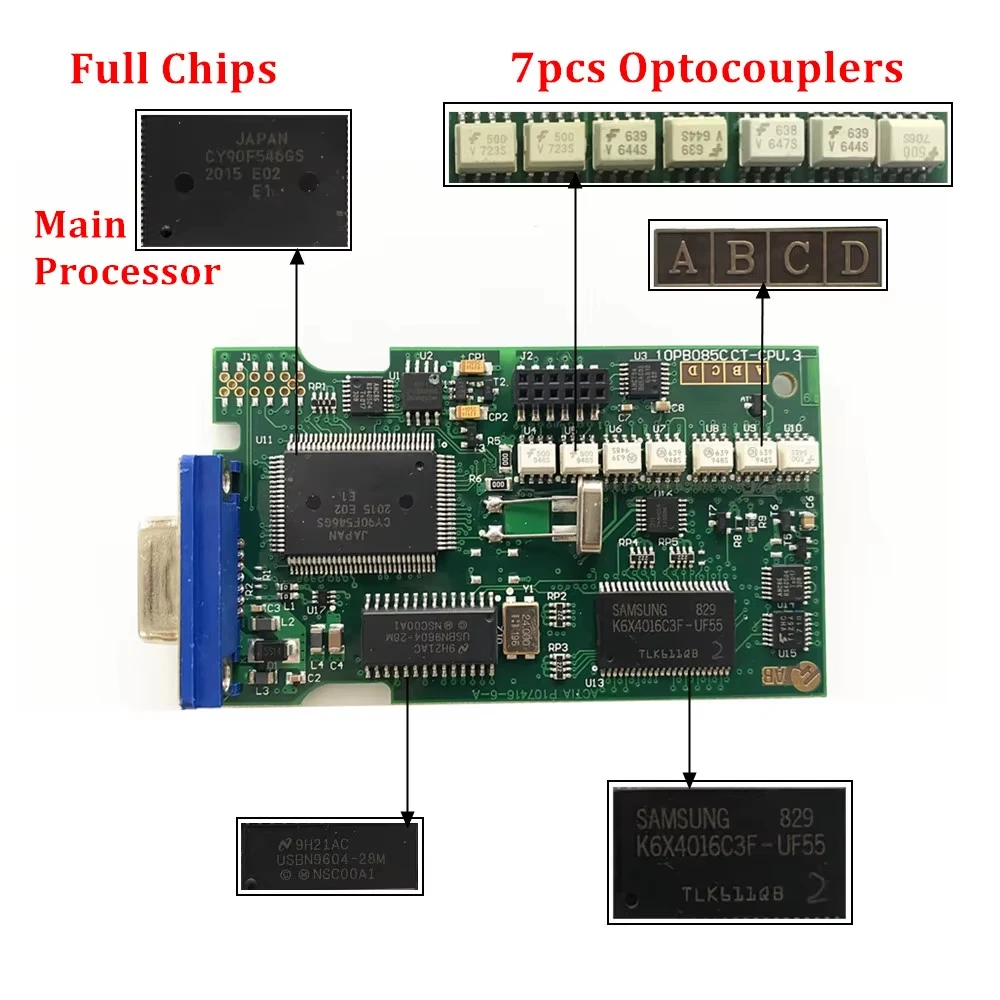

Firmware 921815C Reference C Full Chips

Golden Edge,12pcs NEC Japan Relay,and PCB board has 7pcs optocouplers

Newest Diagbox V7.83 upgrade in CD,please cehck below picture:

1.Open CD ,it will shows Newest V7.83 English Version update patch.

Please Note,V7.82 and V7.83 only have English Language. When you install this version ,please set up English.

(Diagbox V7.83 Upgrade Patch only have English Language version,if install this latest version only English language available. But now we have solution can change to another language now . If buyer need this video ,please feel free to contact us .Thank you )

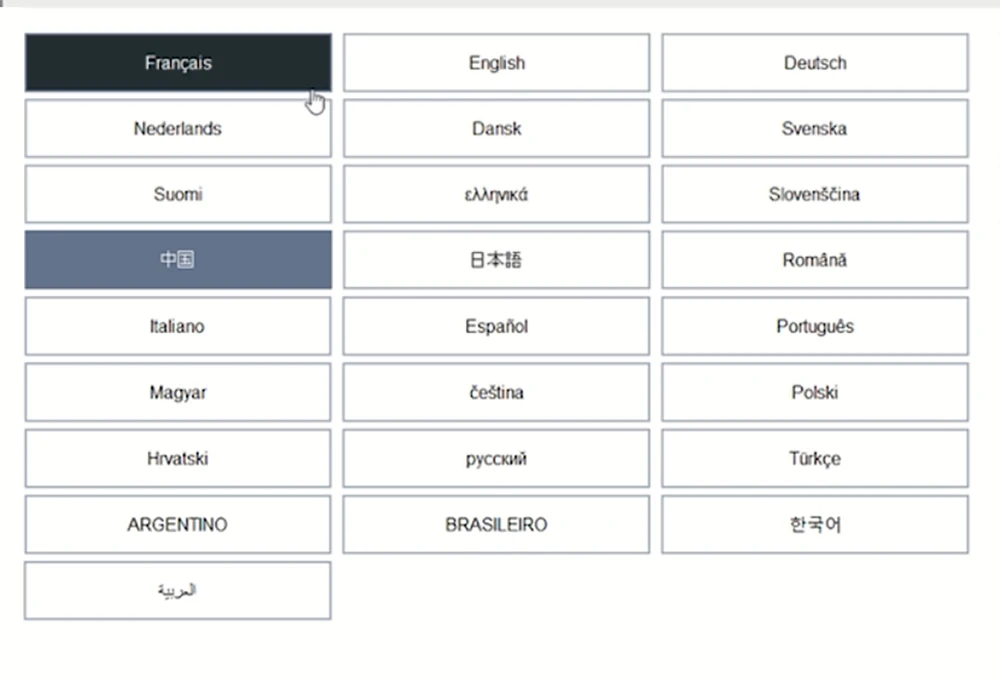

2.Run Diagbox ,Diagbox with Multi-Language,you can choose the Language you need when install software

3.Installing DiagBox

4.Diagnox Upgrade Patchs password below：

V7.01~V7.76，Password:Scary01

V7.82 Password Require:Maitresox01

Then update to V7.83 password:Very Simple!

5.Newest Diagbox V7.83 For Citroen/For Peugeot
