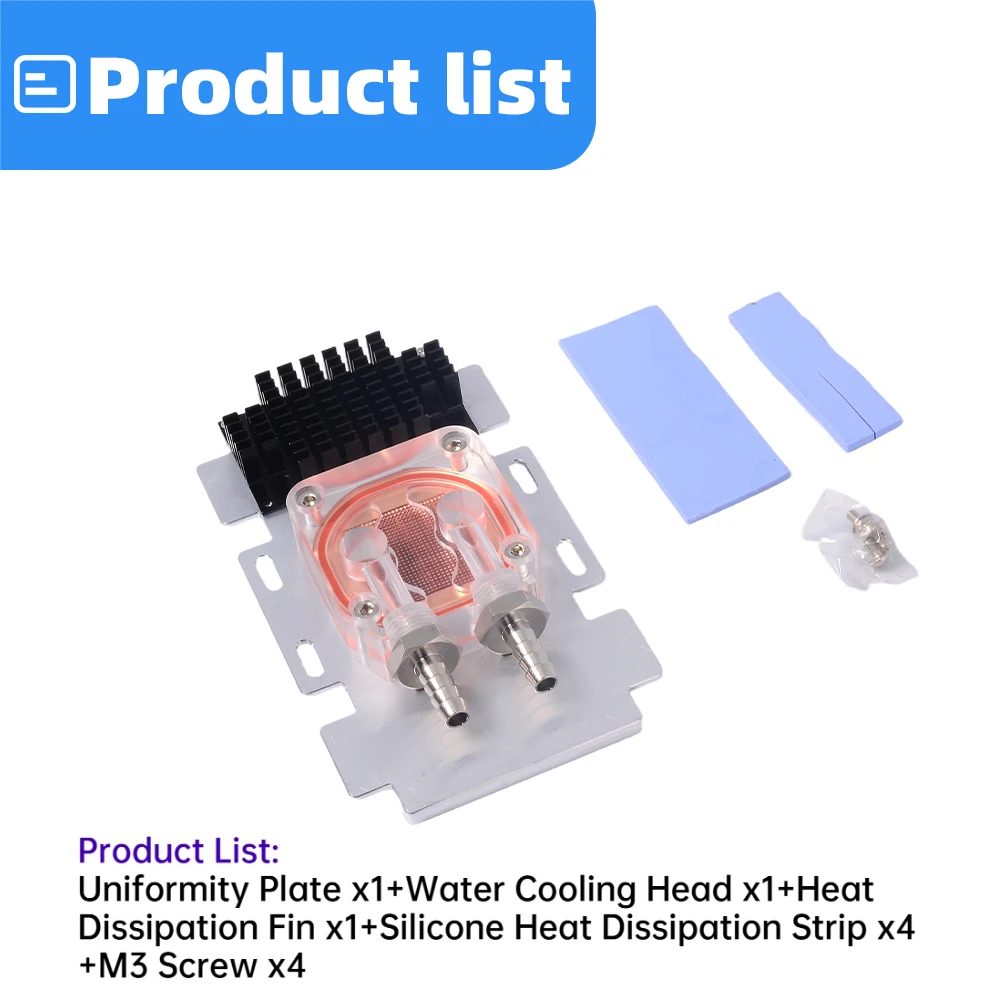

Product List:
Uniformity Plate x1+Water Cooling Head x1+Heat Dissipation Fin x1+Silicone Heat Dissipation Strip x4+M3 Screw x4

Product Introduction：

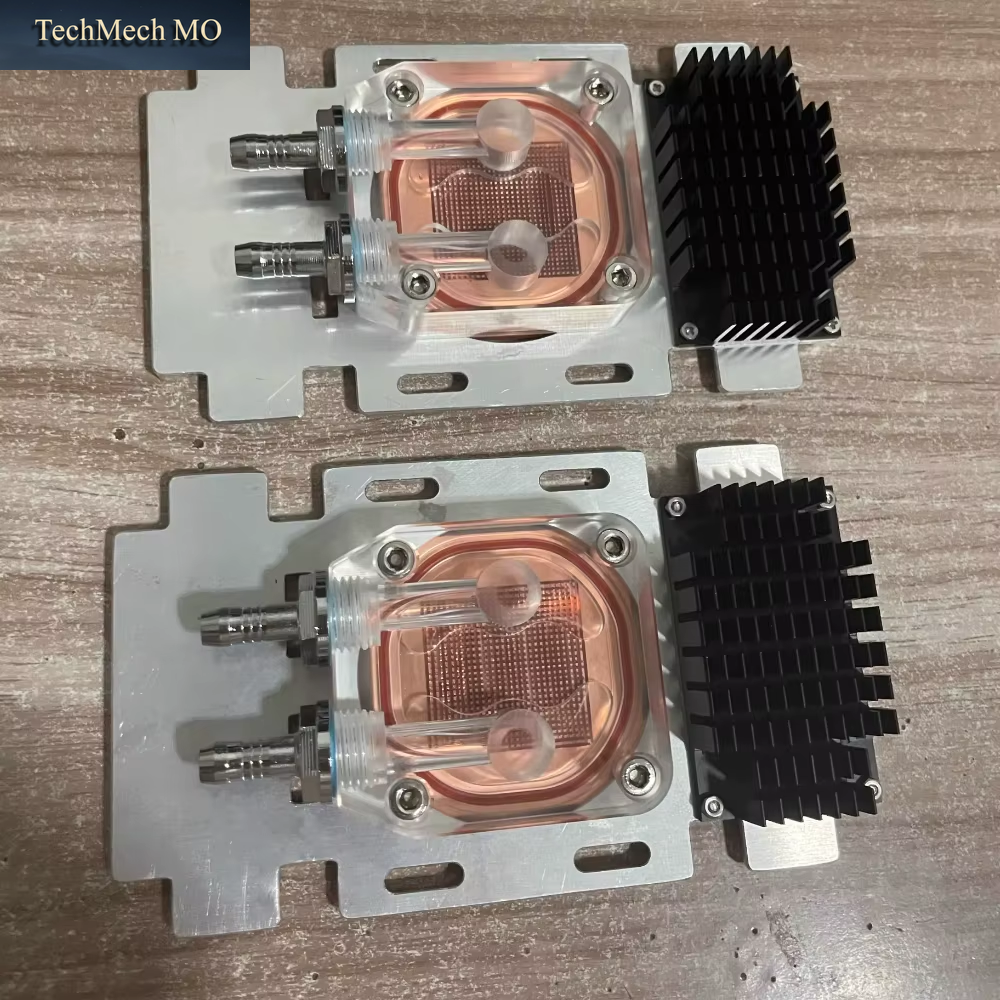

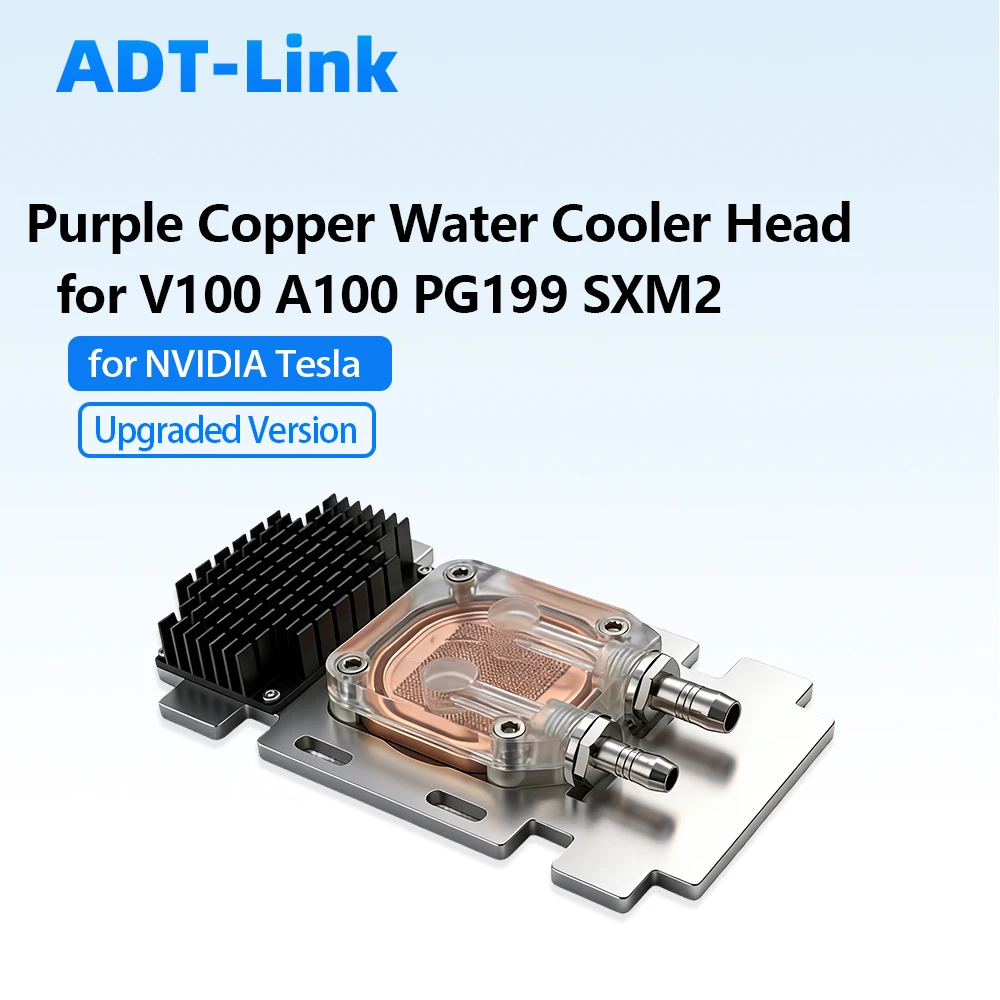

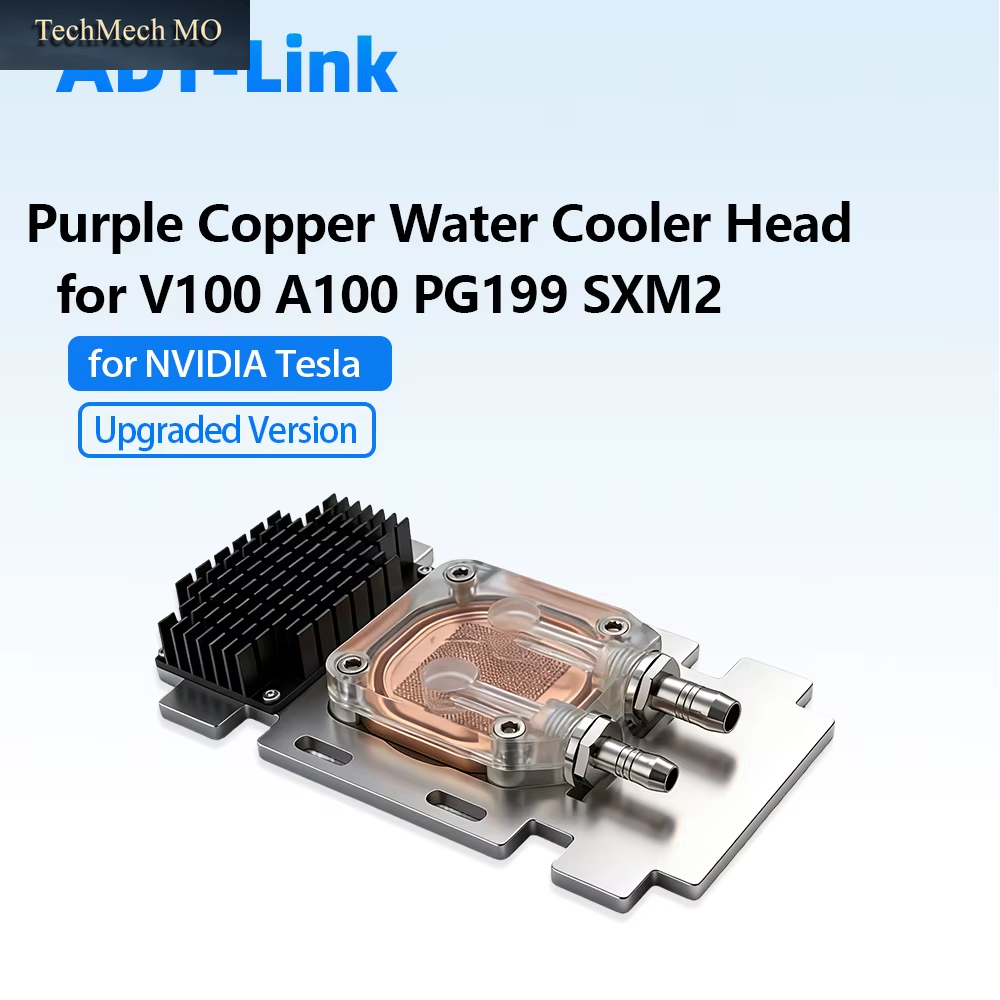

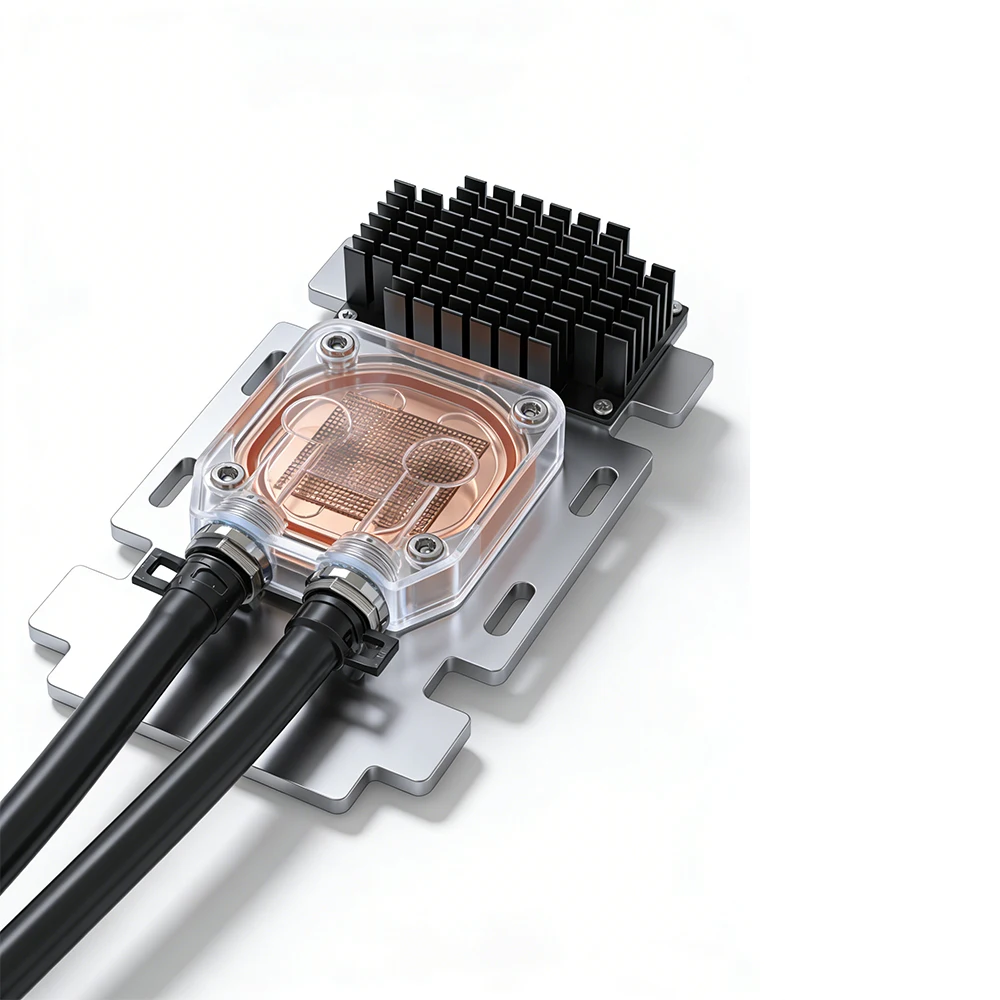

This water cooling head is suitable for NVIDIA Tesla V100-SXM2, A100-SXM2, and PG199-SXM2 interface computing cards, and is suitable for computing environments with high heat dissipation requirements and limited space.

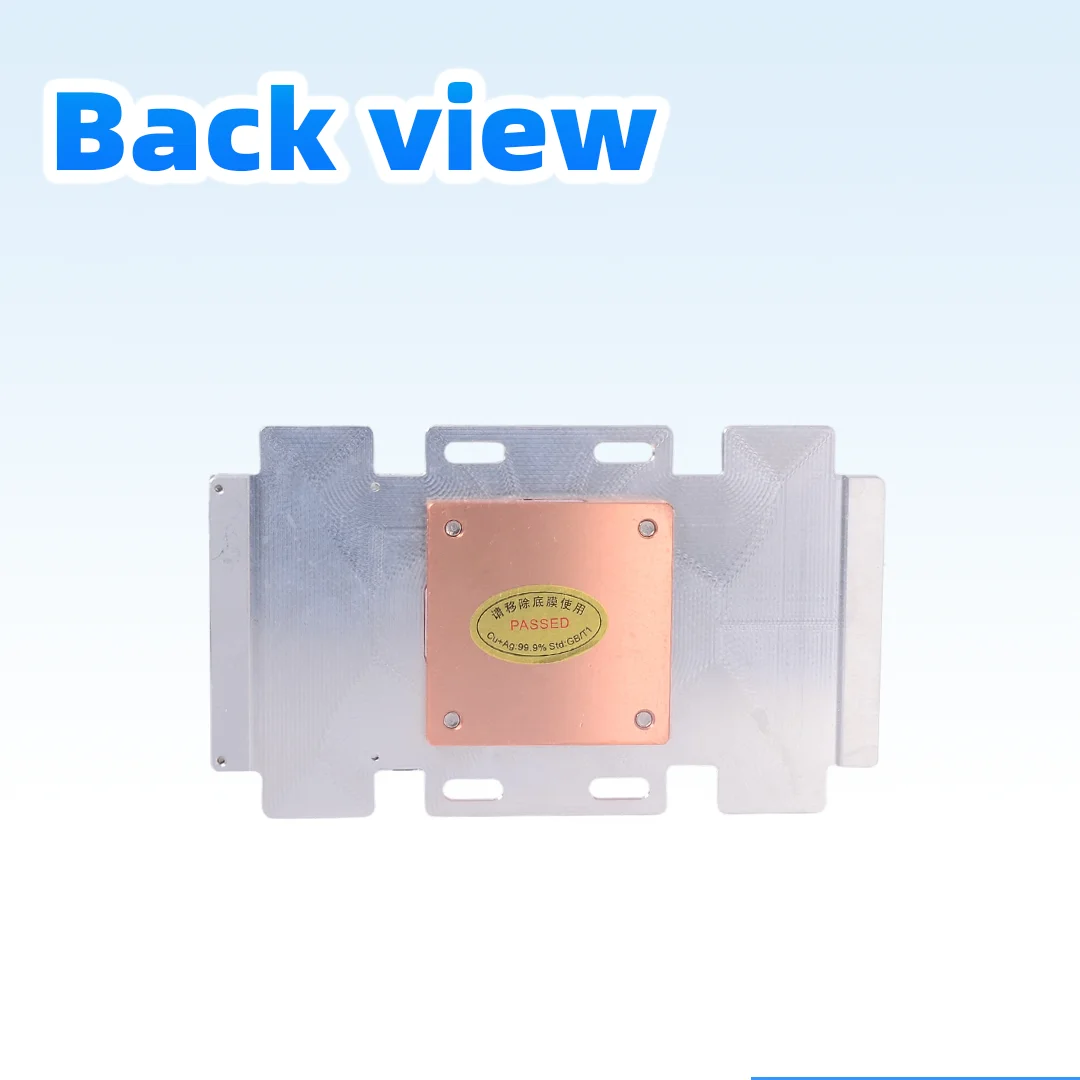

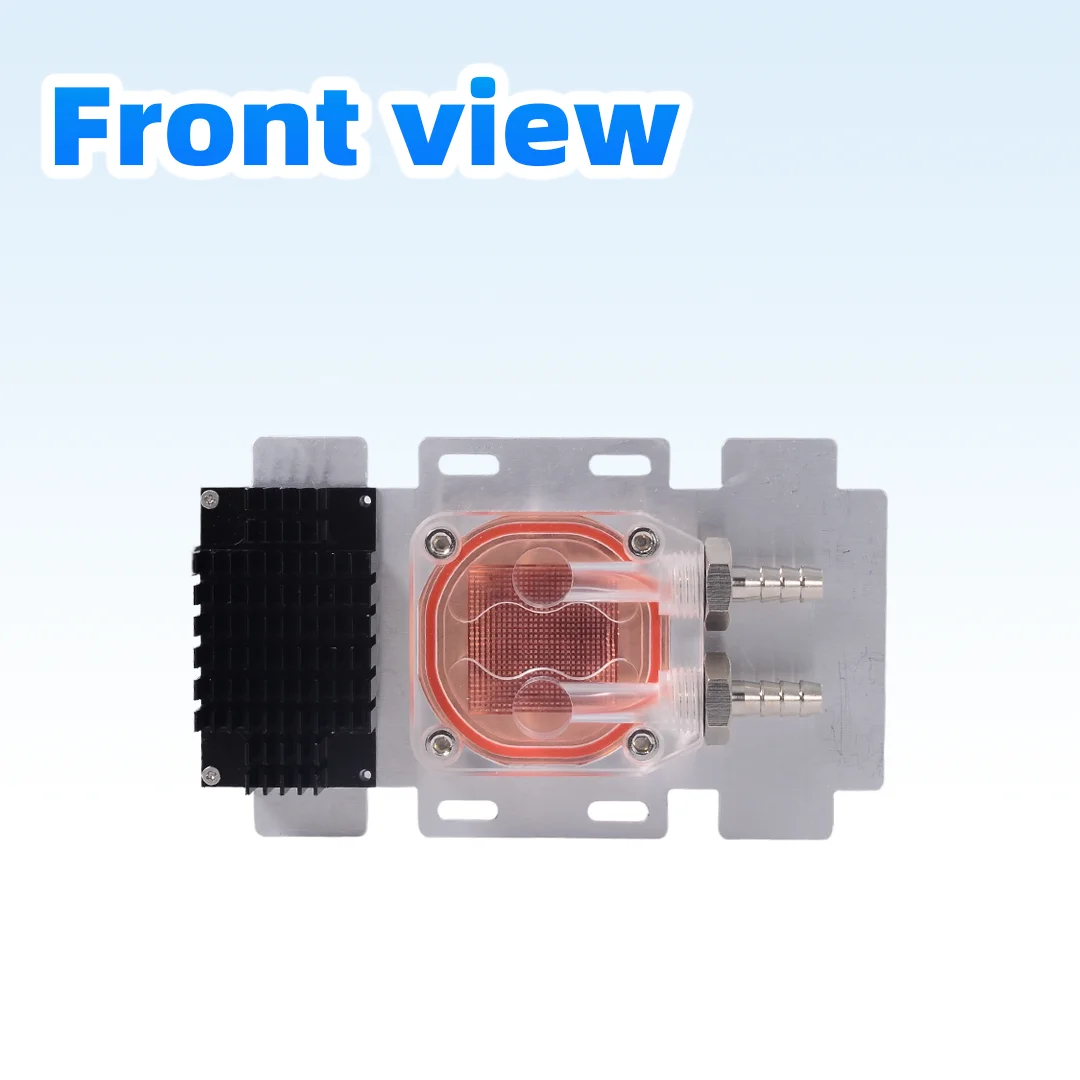

Aluminum alloy heat plate processed by CNC, and covered with copper material with a size of 50x50mm in the GPU core area. The dual slot thickness design supports the heat dissipation requirements of cards with a maximum power consumption of 300W, making it suitable for computing tasks that run under high loads for long periods of time.

Product advantages:
1. Good compatibility: Compatible with NVIDIA Tesla V100-SXM2, A100-SXM2, PG199-SXM2 and other interface computing cards.
2. Space saving: The dual slot structure (with a single card thickness less than two slots) facilitates installation and use in densely arranged multi card clusters.
3. Stable heat dissipation: Under high load operation (300W), the core temperature can be maintained within the range of 50-60 ℃.
4. The main body of the water cooling head is made of CNC machined aluminum alloy, and the contact area of the iron core is 50X50mm copper plate, which improves the thermal conductivity efficiency.
5. Increase heat dissipation fins and strengthen electrically controlled heat dissipation

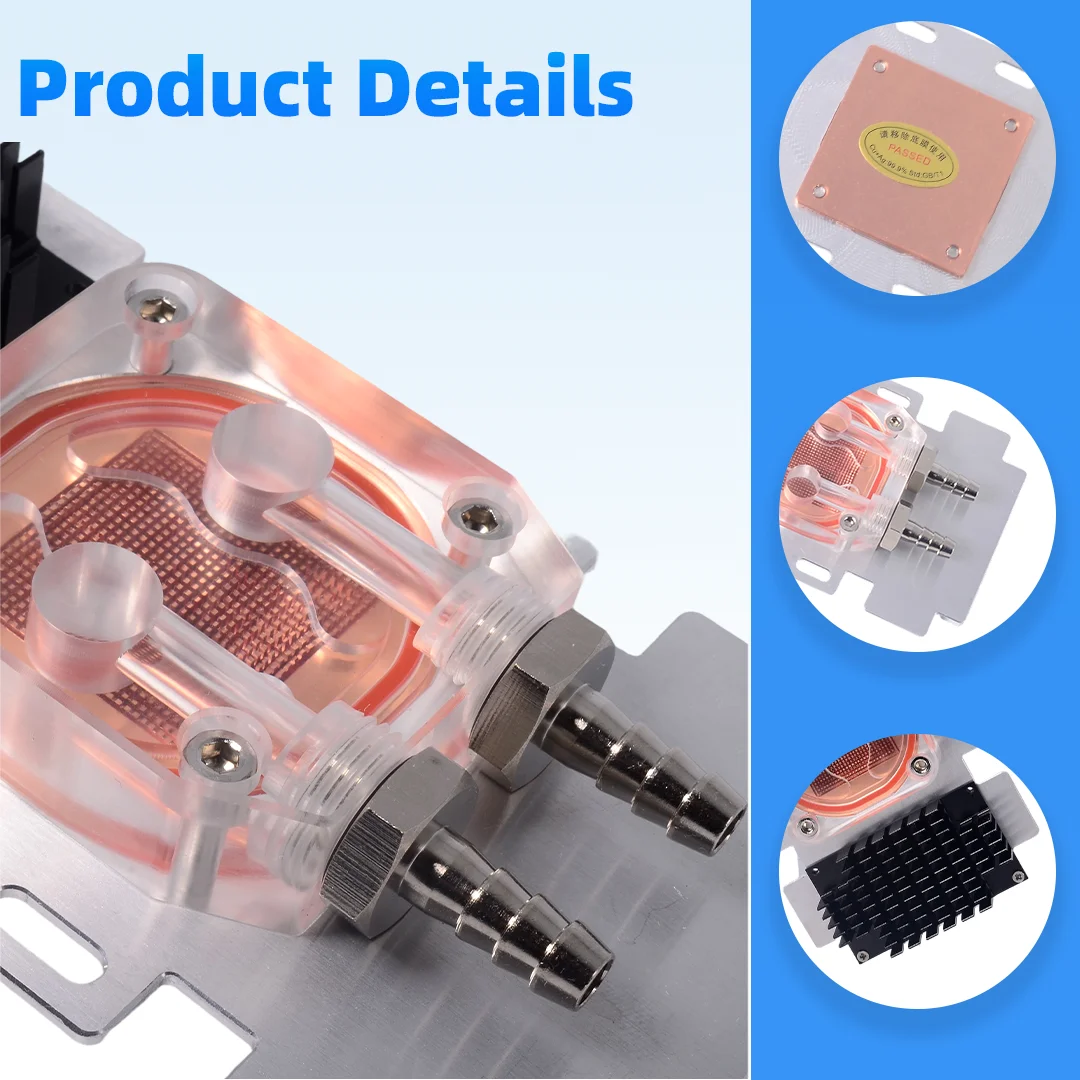

6. The contact core adopts a columnar honeycomb structure to increase the heat exchange area.

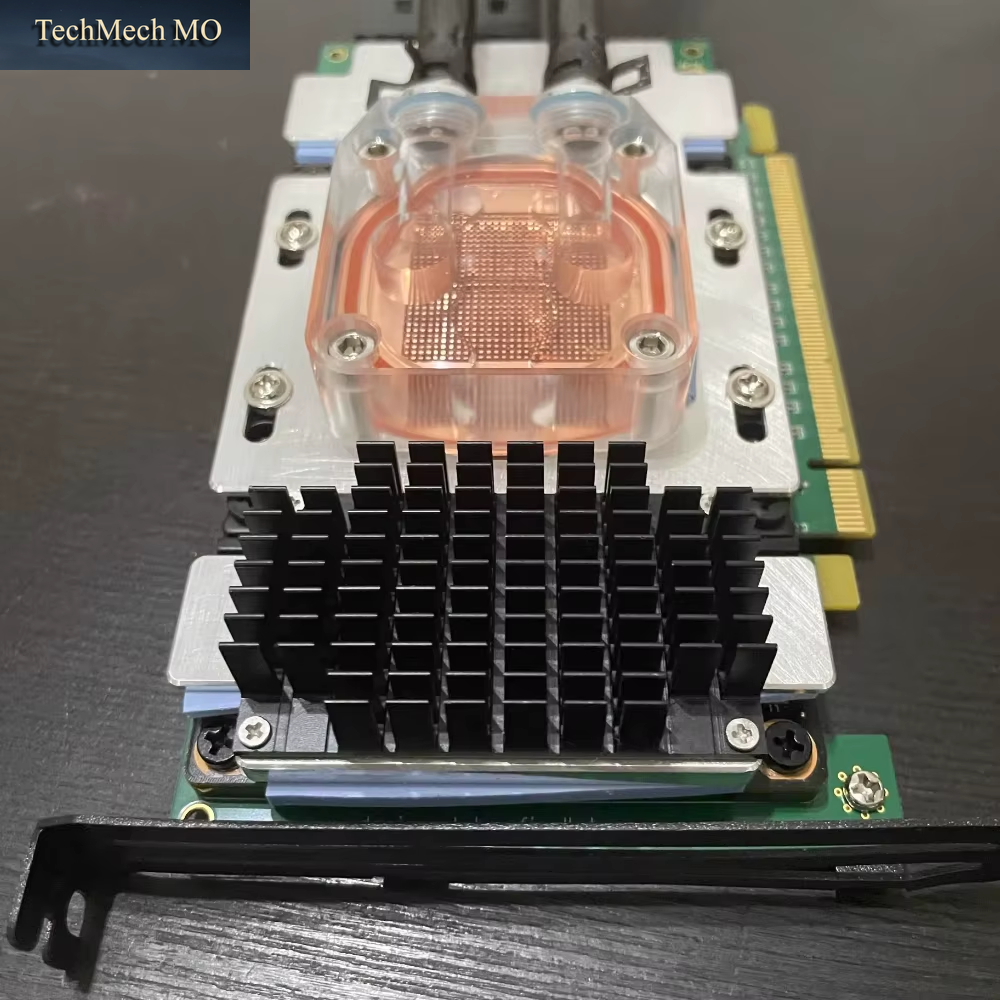

7. The heat dissipation range covers the GPU core and power supply module, improving the working temperature of the power supply system.

Standard interface:
Adopting G1/4 threaded interface, supporting most 240mm or 360mm cold exhaust systems. It is recommended to use hose fittings with an inner diameter of 7.5-8mm to achieve better water flow effects.

Installation instructions:
High power card forced water cooling: For models such as PG199 (430W) and V100 (300W), it is recommended to use water cooling. Air cooling or passive heat dissipation may pose a risk of overheating.
Suggestion for chassis space: Due to the need for cold row and water pump, it is recommended to use a medium tower or larger size chassis to ensure sufficient space for installation and piping.

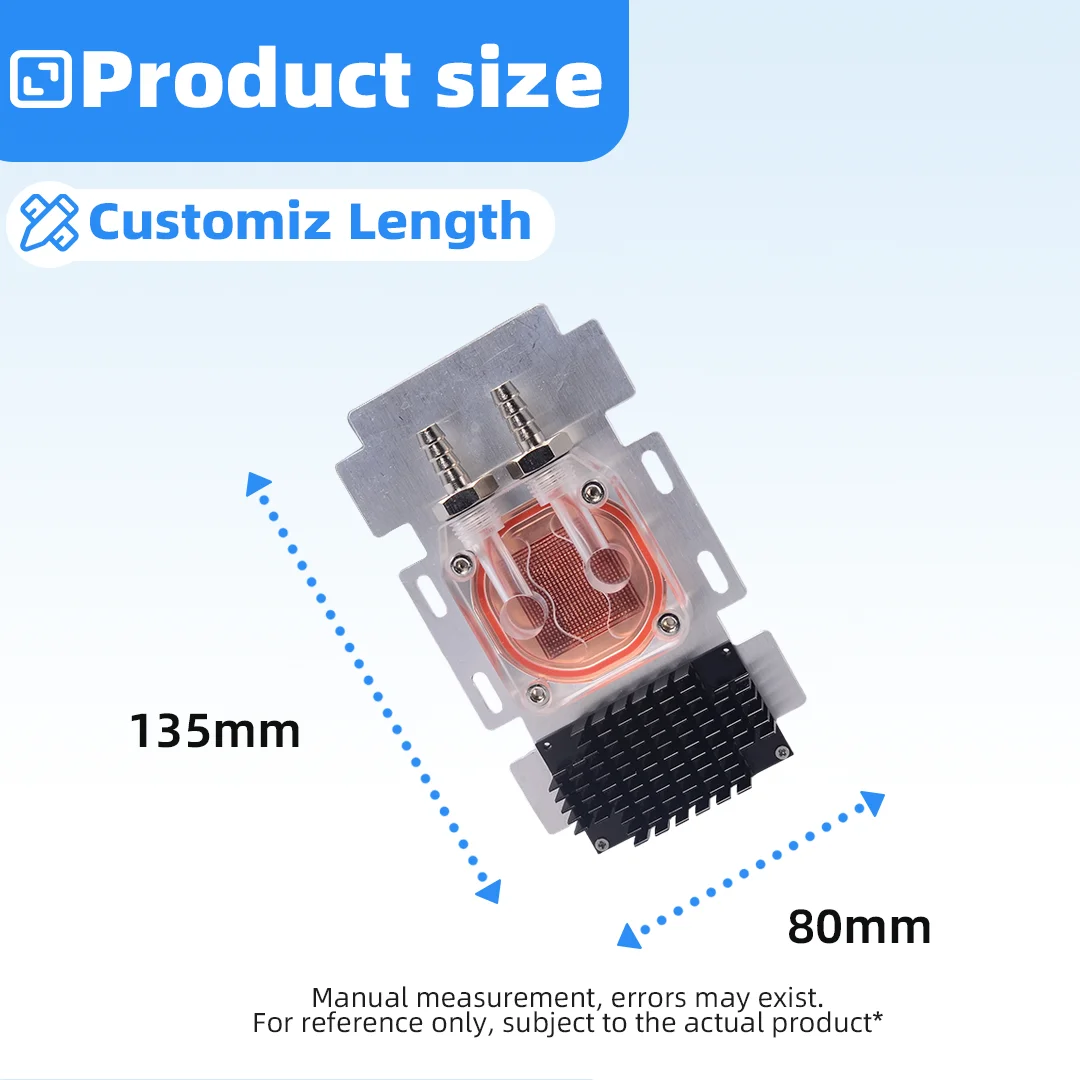

Product size: 140 x 80 mm

Note: The water block is made of purple copper and can only be used with purple copper or brass radiators.
