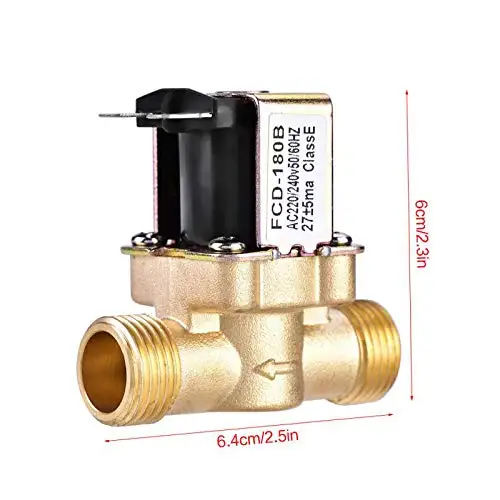

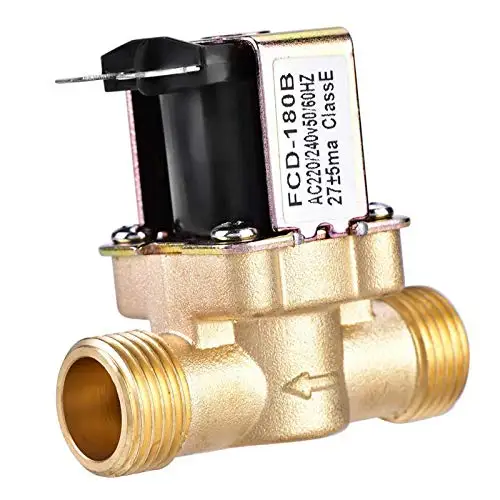

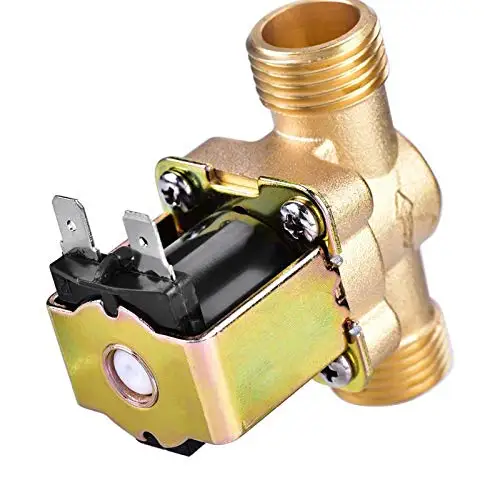

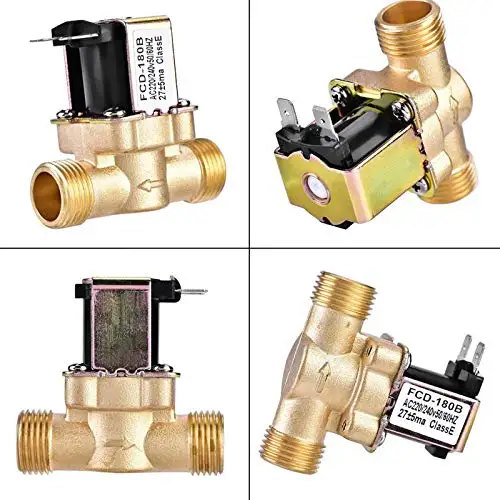

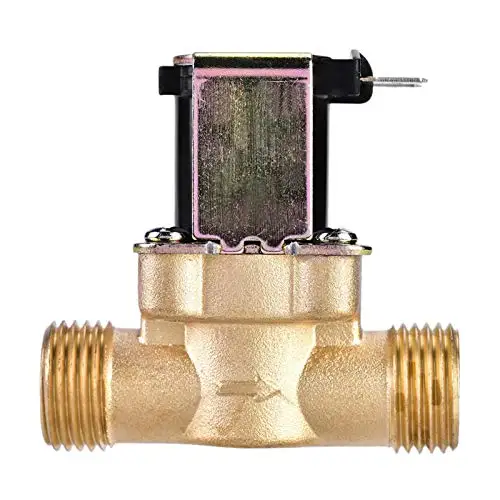

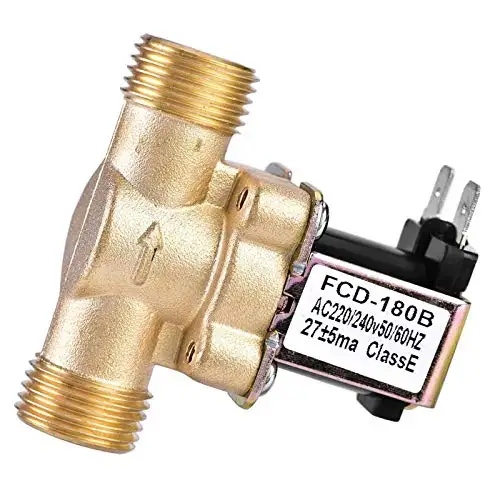

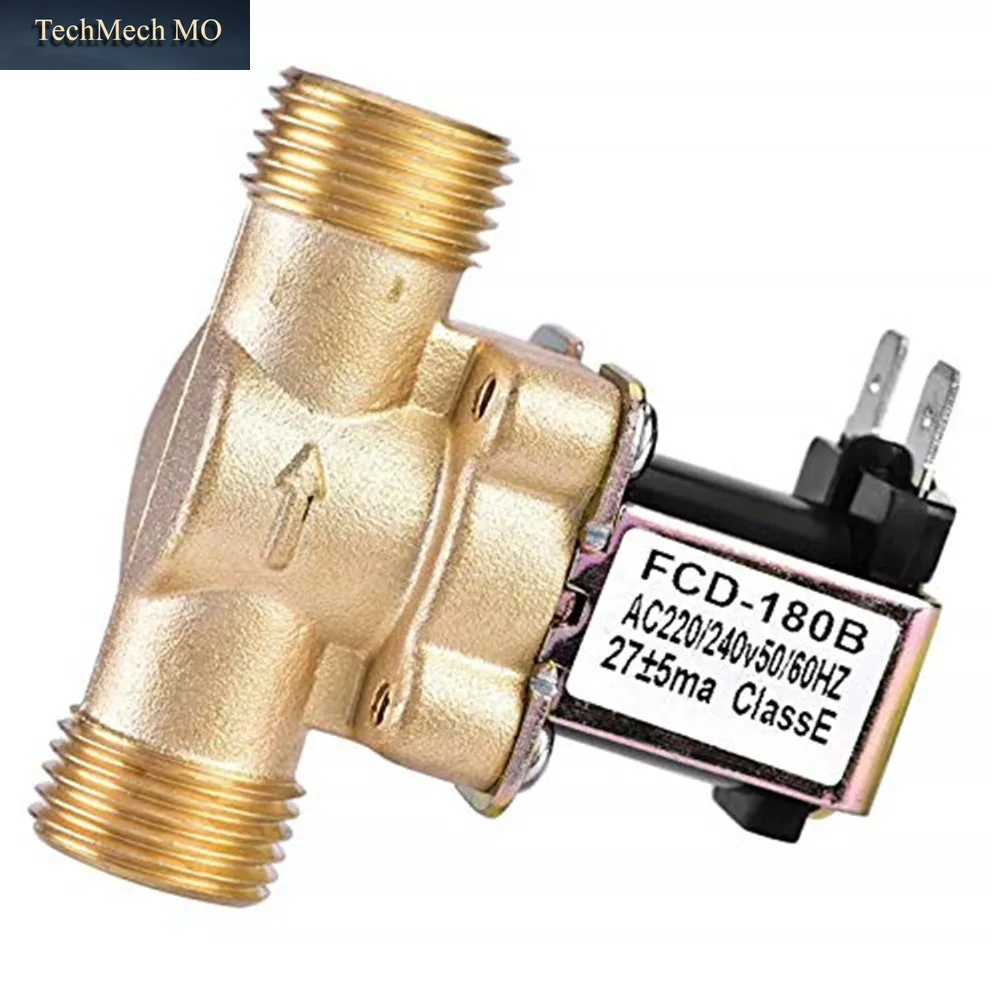

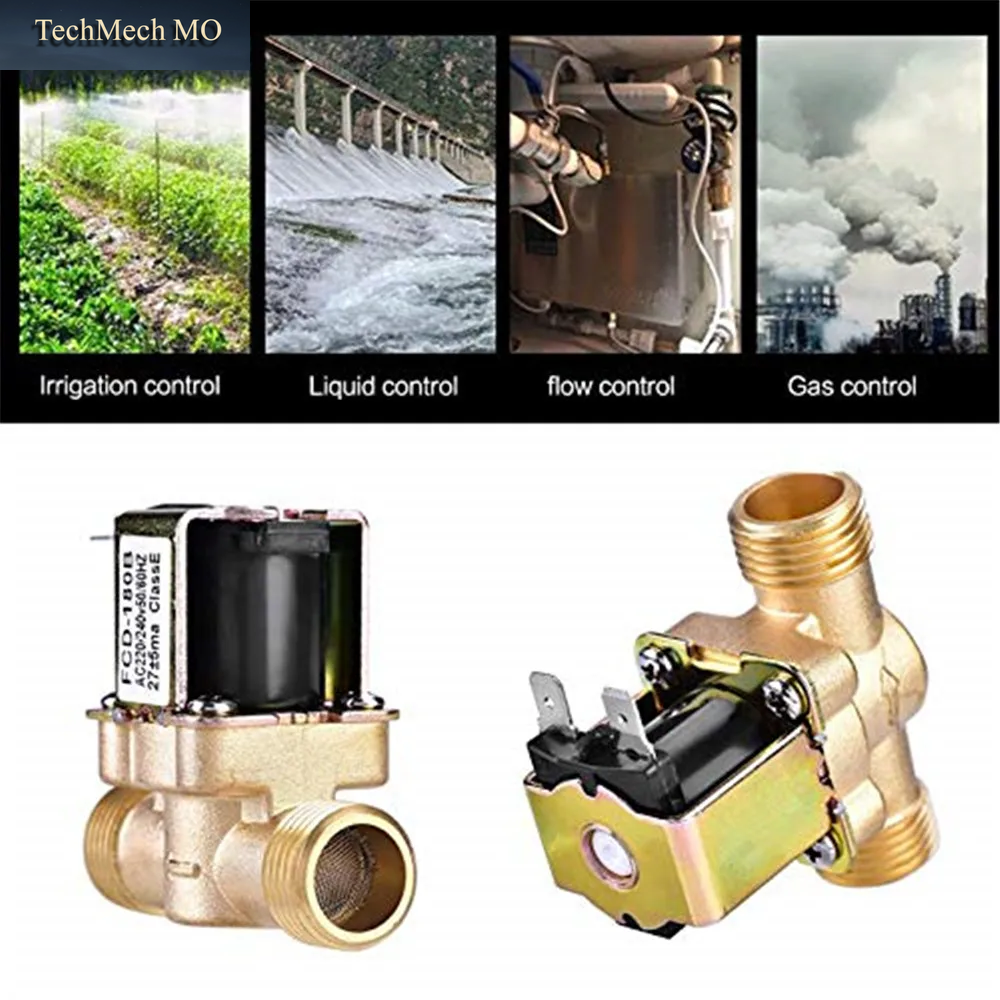

G1/2” Messing-Elektromagnetventil N/C 12V 24V 220V G3/4” Wasser-Luft-Einlass-Flussregler Für Solarwarmwasserbereiter-Ventil

Description

Features:
This electric solenoid valve is all brass casting structure, precise and reliable, has the characteristic of wear-resistant, anti-corrosion and high temperature resistance.
Pressure regulating valve (steady flow valve) function similar to water flow switch.
This solenoid valve not only can keep the constant current steady flow, but also prevent the dry burning and monitoring the flow.
Mechanical no power consumption, steady flow adjustable.
This electric solenoid valve has the characteristic of wear-resistant, anti-corrosion and high temperature resistance.

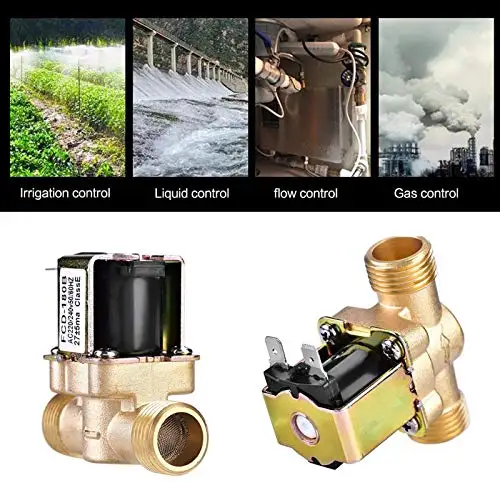

Suitable for water, high-end water heaters, intelligent drinking fountains, water heaters, straight drinking machines, water purification machines, steam machines, energy-saving air-conditioning, water treatment, cooling equipment and water industry and other fields.

Specifications:
Material: Brass
Voltage: 12V DC / 24V DC / 220V AC
Nominal diameter: G1/2″ / G3/4”
Water pressure: 0.02-0.8Mpa

1. Environmental conditions for inlet valve of low pressure solenoid valve
Altitude:< 2,500 meters
Ambient temperature: 0 to 40 ° C
Air relative humidity: <95% (25 ° C temperature)

2. Type and rated technical parameters
Type: guide (one-way) solenoid valve
Rated voltage: 12V
Working mode: short-time quota system (intermittent duty cycle)
Insulation grade: E
Use of fluid: (0-55 ° C) water
Use water pressure: 0.02-0.8Mpa

3.Water flow characteristics
Water pressure (Mpa): 0.02, 0.1, 0.3, 0.8
Flow (L/min): > 5 >11 >18 >32
Nominal diameter: 4 points double thread, outlet diameter 13 (mm)
Life: > 100,000 times

Package Included:
1 x Electric Solenoid Valve
