GDM7 Kick Drum Microphone 7-Piece Drums Kit for Bass Snare Drums, Toms & Cymbals Studio Recording and Live Performance

THE BEST LIVE MICROPHONE SERIES WE’VE EVER BUILT.

G-MARK DGM7 – a series of live microphones that are set to excite performers in studios and on stages all over the world. Rugged in design with phenomenal audio quality, they are the perfect complement to G-MARK’s legendary Drum series models.

The drum microphone G-MARK DGM7 has what it takes to achieve global success for years and years to come: sharp design and clear, natural sound. The minute microphone with the flexible gooseneck (20 mm) can be precisely aimed at sound sources like snare drums or rack toms. With the help of these features, everyone can find the perfect positioning for the ideal sound – on stage, in the rehearsal room or in a home studio.

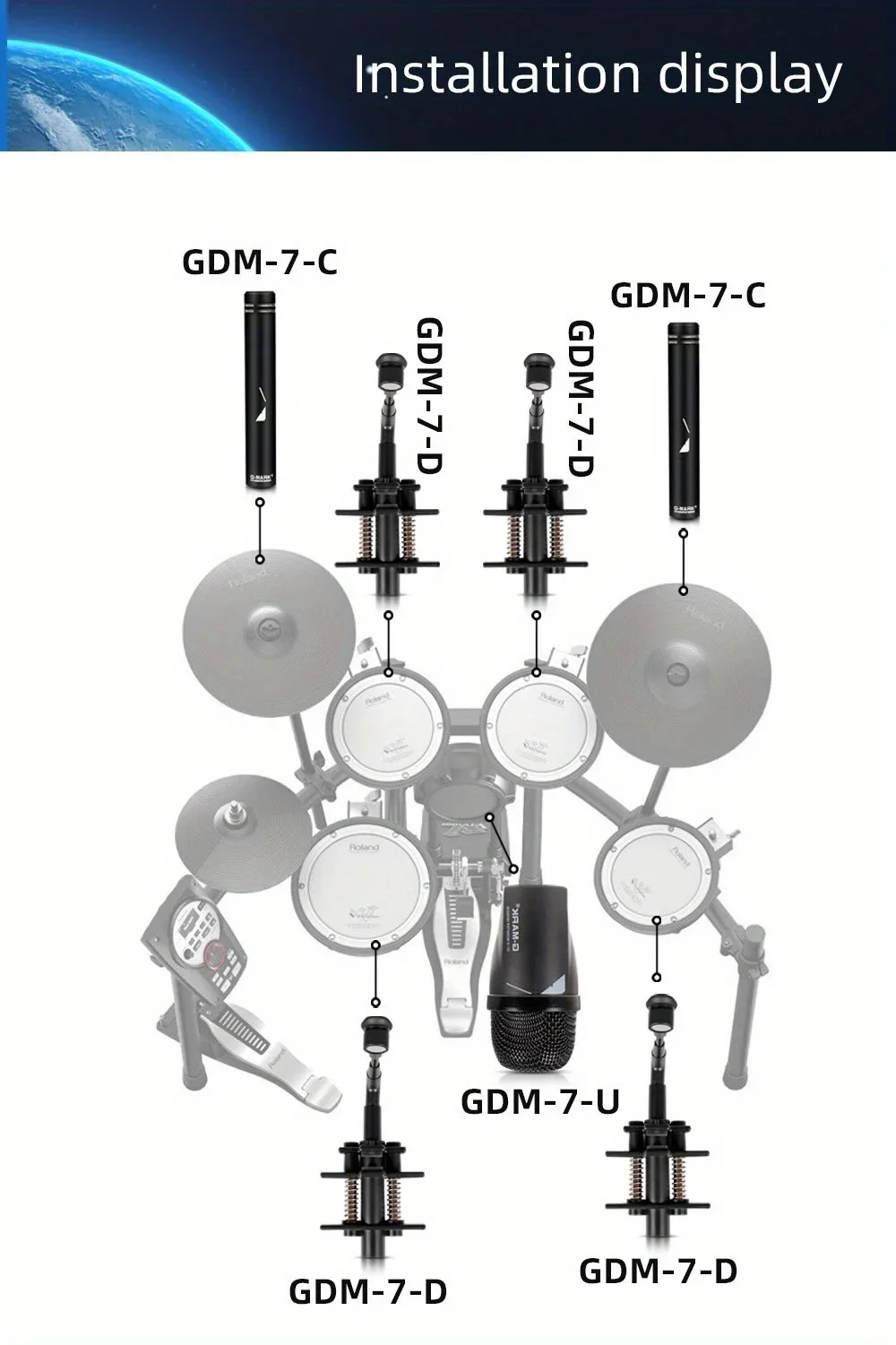

G-MARK GDM7 drum microphone set is a complete set of professional instrument microphones. It is designed for full drum instrument performance and recording applications, providing excellent sound quality. The G-MARK GDM7 includes 1 kick drum microphone, 4 clip on drum microphones, 2 condenser eraser microphones, and 1 portable suitcase.

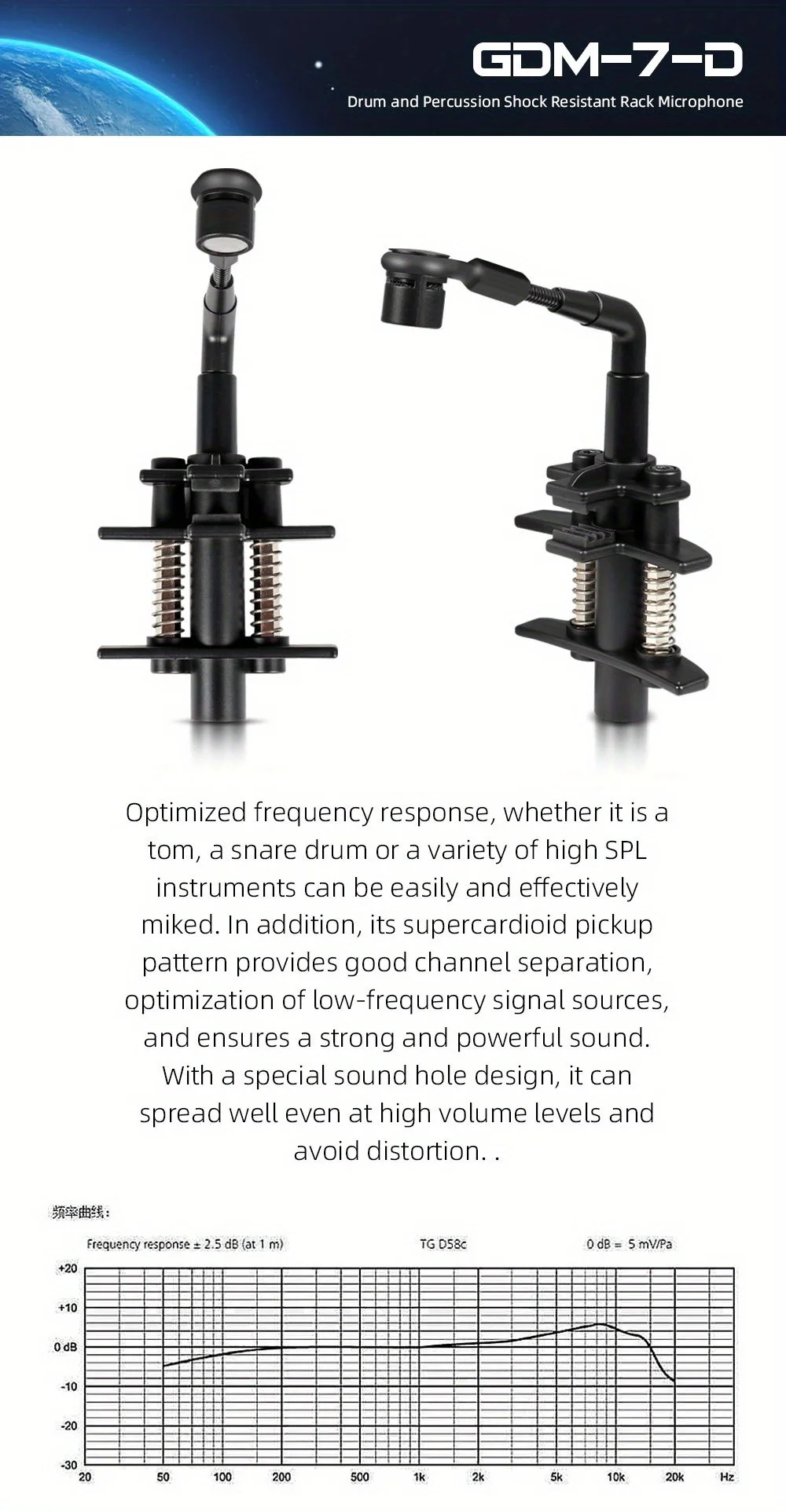

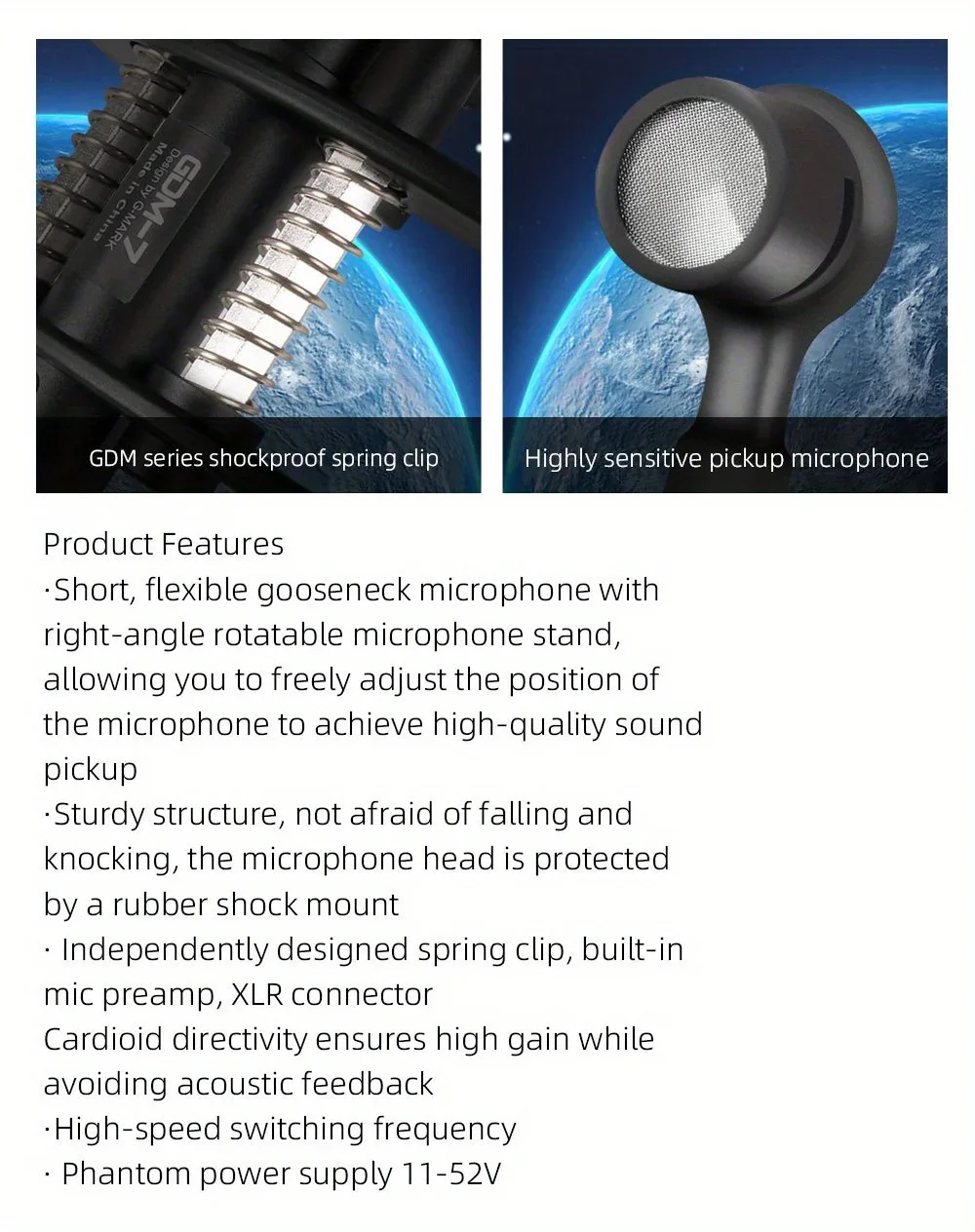

【4*Clip instrument microphone】

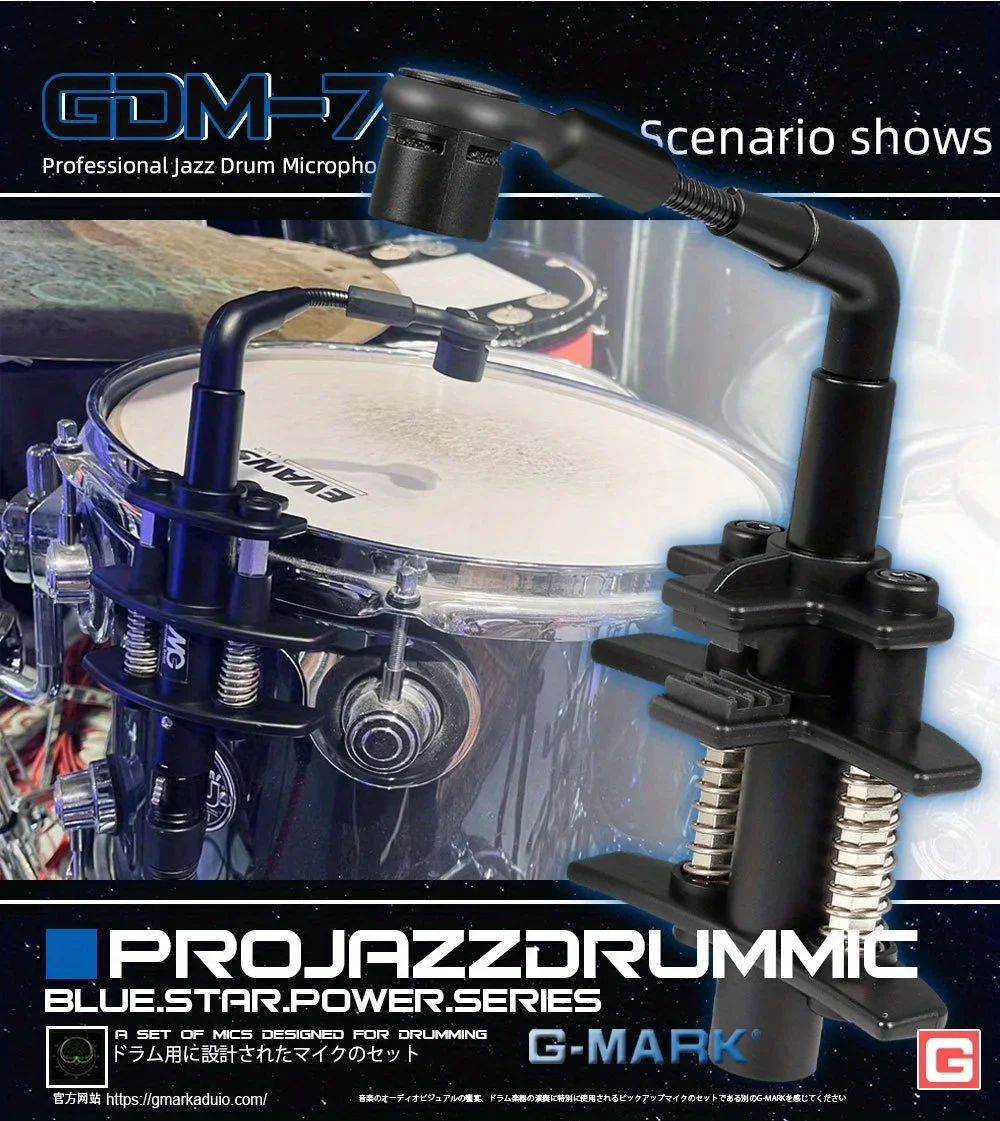

Clip on condenser microphone is suitable for toms, snares and percussion instruments. The microphone uses a cardioid micro condenser microphone head, which makes the response more smooth, natural and special. Its integrated clip support can be flexibly clamped at any position of the drum edge, making the installation more accurate and easy to adjust. Gooseneck microphones can adjust the pickup angle of the microphone, and can be accurately and firmly placed in any configuration.

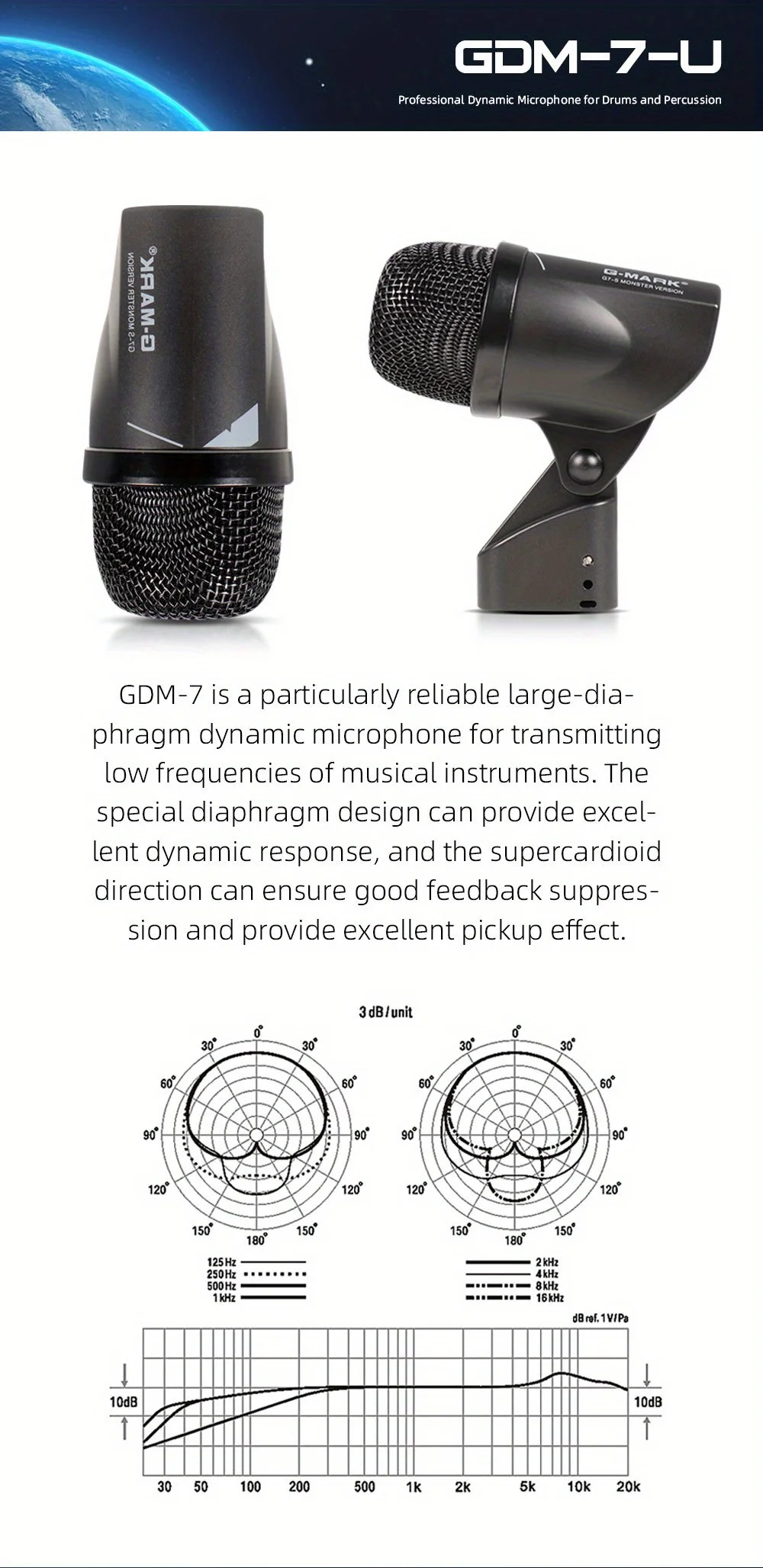

【1*Kick drum microphone】

frequency response specially corrected for kick drum and bass instrument,
The built-in dynamic locking bracket adapter with XLR connector can especially simplify the internal installation of the kick drum. With studio quality, it can maintain high performance even at high sound pressure levels. The cardioid mode ensures high gain before feedback and effectively insulates excess noise.

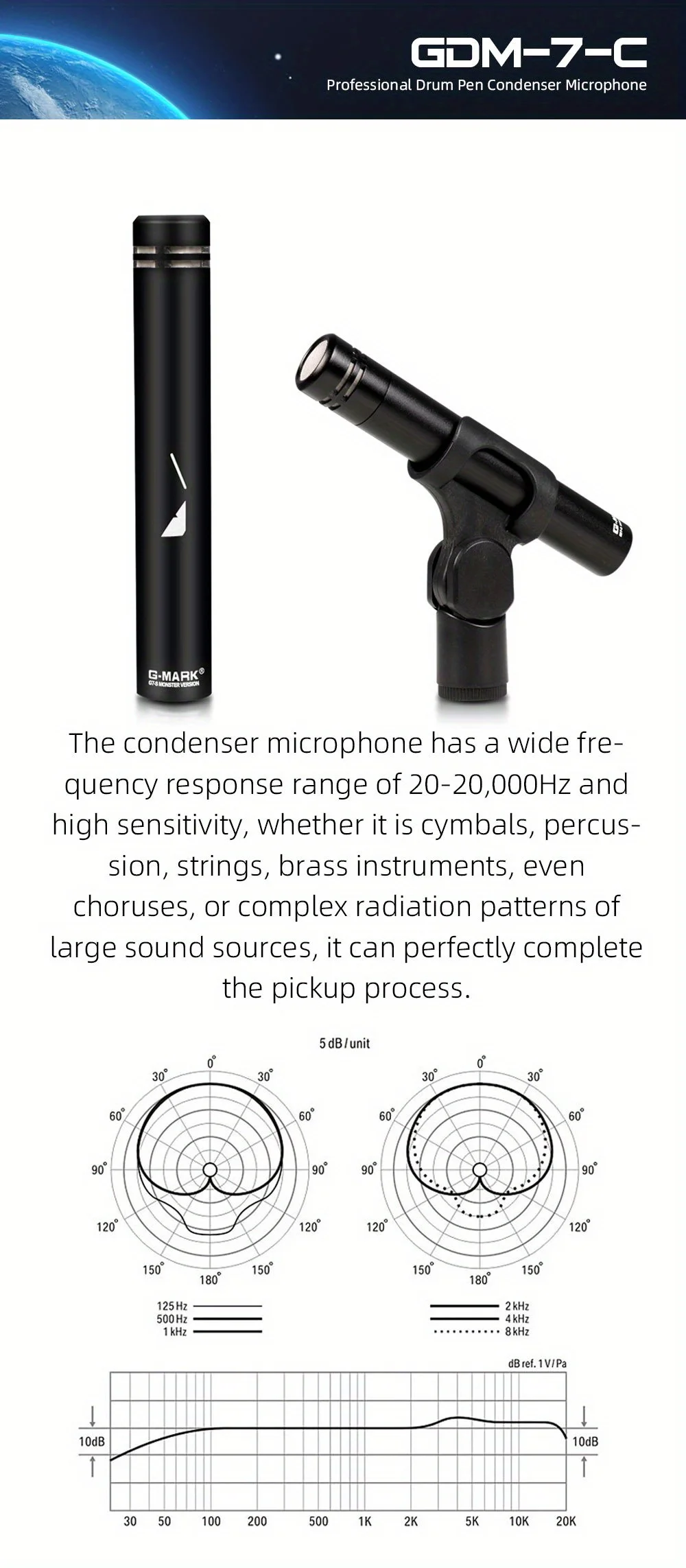

【2 * Condenser microphone】

Supercardioid permanently polarized condenser microphone for cymbals and overhead. It is used for recording instruments with high requirements, as well as performances that generate extended frequency, high SPL processing and transient response. For cymbals, woodwind instruments, strings and home recordings.

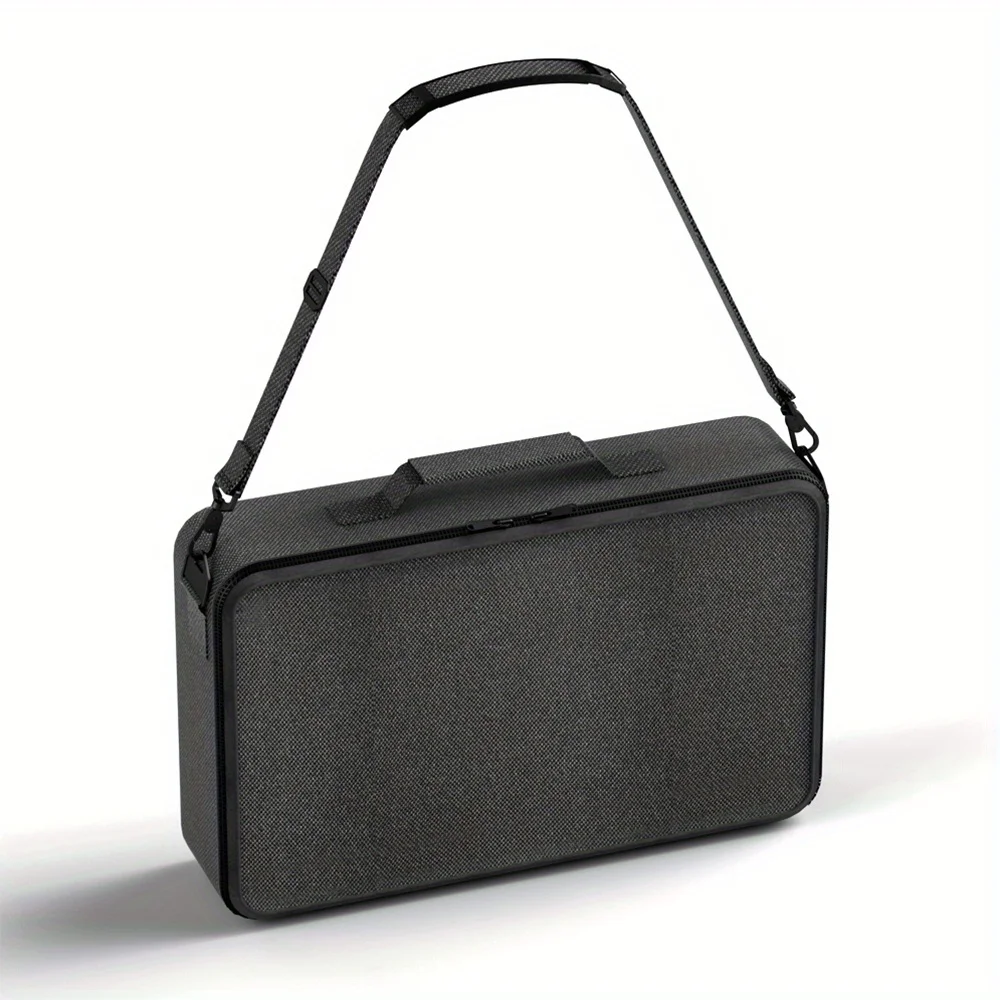

【Snap on suitcase】

G-MARK customized snap on suitcase with shockproof sponge inside, which can effectively protect the drum microphone and is easy to carry and install.

“Plug and Play” microphones, perfect for beginners
Easy mounting of tomclips on nearly every drum rim
Naturally sounding condenser microphones
Simple and easy micing of the whole drum kit

Technical parameters of drum microphone:
Frequency response： 20 – 16000 Hz
Sensitivity in free field, no load ：0,25 mV/Pa; (50 Hz) 0,9 mV/Pa
Connector ：XLR-3
Nominal impedance ：350 Ω
Transducer principle (microphone) ：dynamic
Polar pattern ：cardioid
Minimum terminal impedance ：1000 Ω

Technical Specifications

Transducer type :Condenser (back electret)
Operating principle:Pressure gradient
Polar pattern : Cardioid
Frequency response:
Close miking : 20 – 20,000 Hz
Distant miking (measured at 1 m) : 35 – 20,000 Hz
Open circuit voltage : 5 mV/Pa (-46 dBV) ±2.5 dB
Nominal impedance : 200 Ω
Load impedance : ≥ 1 kΩ
Max. SPL
at 24 V and 48 V phantom power : 140 dB
S/N ratio : 59 dB
Equivalent SPL : 35 dB
Power supply : Phantom power

Power consumption : 4.7 mA
Connection : XLR, 3-pin

Technical parameters of cymbal microphone:

Connector: XLR-3
Frequency response: 40 – 20000 Hz
Maximum sound pressure level: 139 dB/SPL
Energy conversion principle: pre polarized condenser microphone
Polar pattern: super cordoid
Sensitivity in free field, no load: 3 mV/Pa=- 50dB (0 dB=1 V/Pa)
Nominal impedance: 50 Ω
Minimum terminal impedance: 1000 Ω
Phantom power supply: 12 – 52 V/3 mA
Equivalent noise level: 24 dB (A)
Equivalent noise level weighted according to CCIR standard: 35 dB

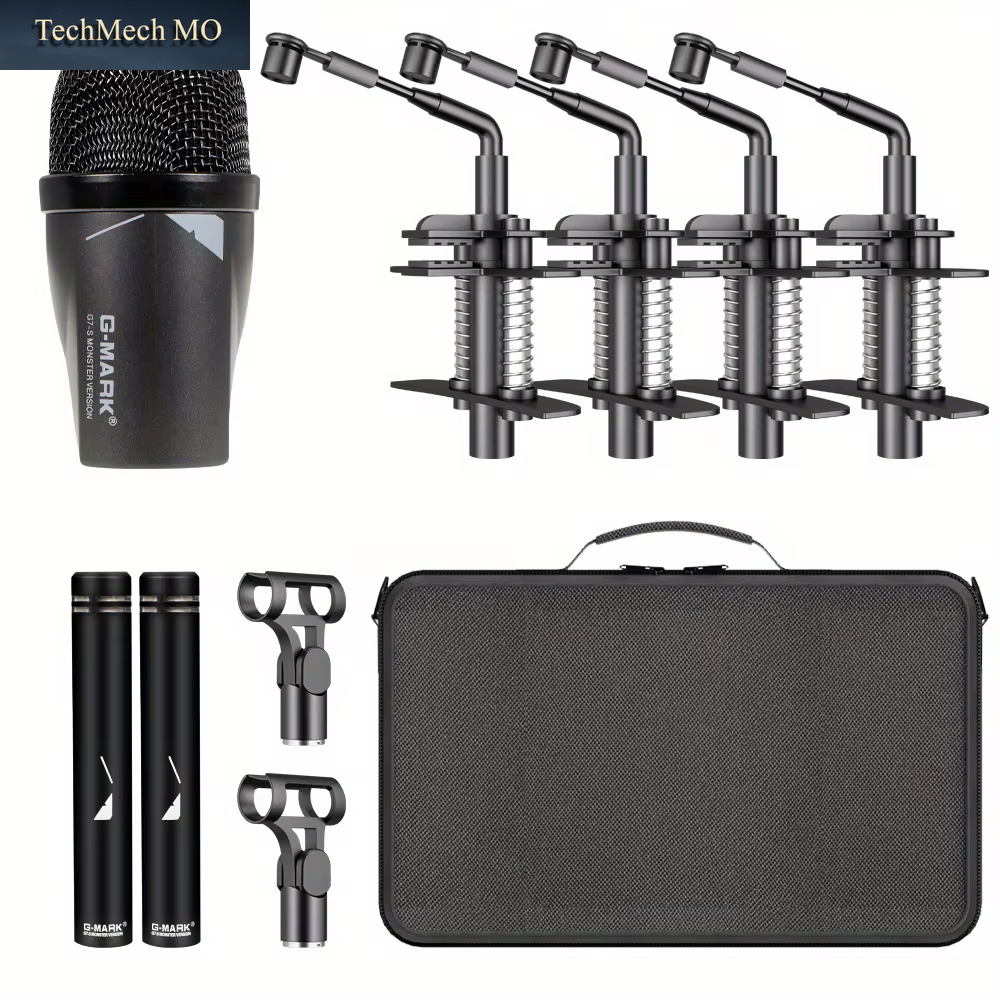

Packing List includes:

1 x Cardioid Dynamic Kick drum Microphone
4 x Clip on condenser snare/drum microphone
2 x Condenser Instrument Microphones
2 x Microphone clip
1 x Portable case
