GEYA GSP9 Überspannungsschutzgerät Spd-Ableiter 1/2/3/4 Pol Überspannungsschutz 275 V 385 V 400 V 440 V 40 KA

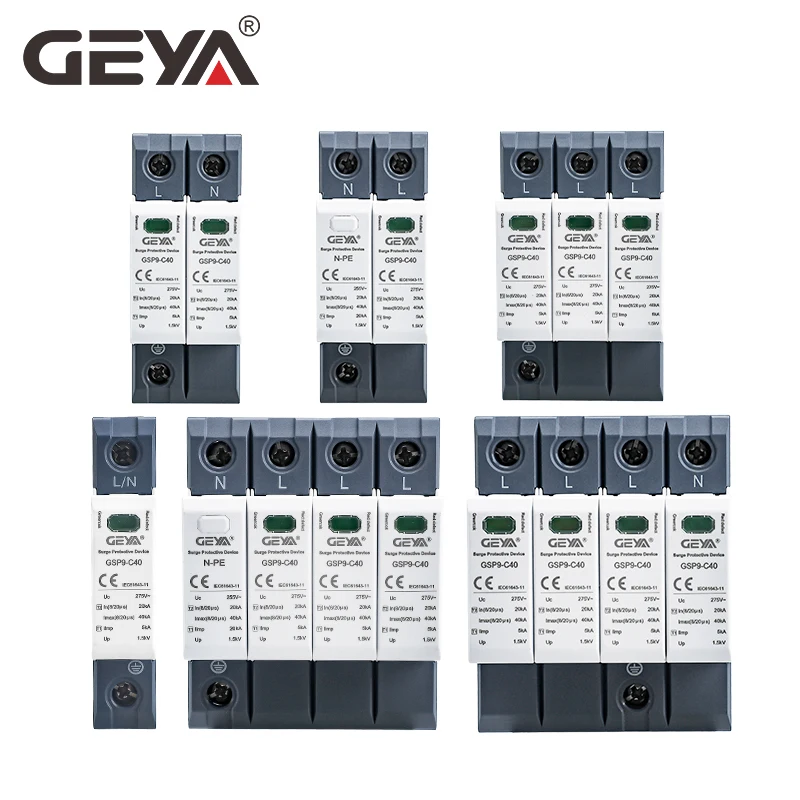

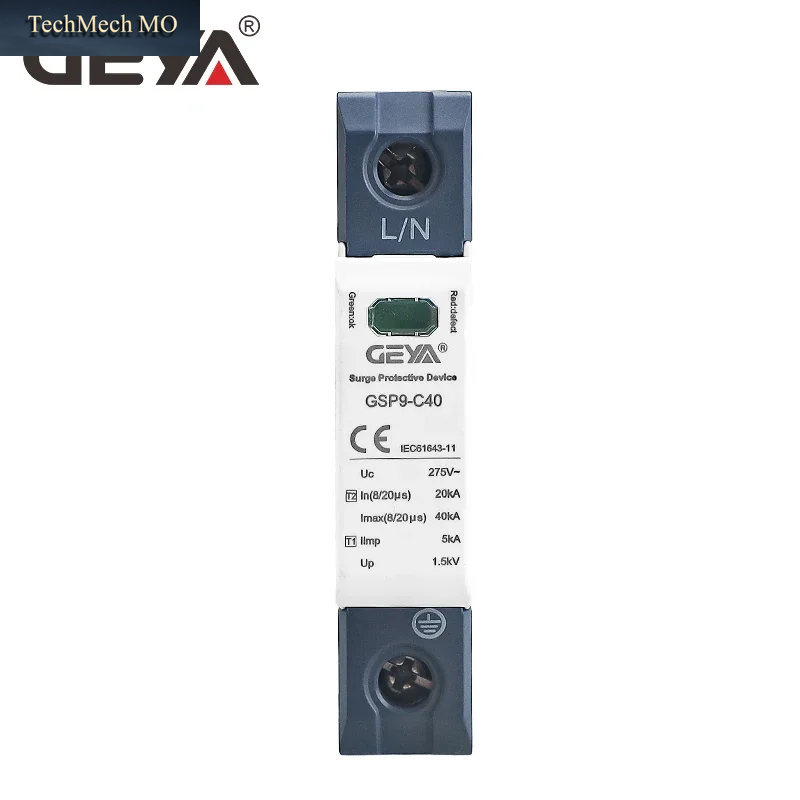

GEYA GSP9 Power Surge Protective Device SPD Arrester 1/2/3/4 Pole Surge Voltage Protection 275V 385V 400V 440V 40KA

General

GSP9-C40KA series surge protection device (in short SPD,surge suppressor surge arrester)is suitable for TN-S, TN-C-S, TT, IT etc, power supply system of AC 50/60Hz. Standard IEC61643-1, GB18802.1.
There is a failure release mounted on the module of surge protection device, When the SPD fails in breakdown for over heat and over-current, the failure rlease will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnormal, it also could be replaced for the module when has operating voltage.

Products features:

1. Multi voltage choice: 275V, 385V, 400V, 440V, 500V…

2. Pluggable module, easy for installation and maintenance

3. High discharge capacity, quick response

4. Double thermal disconnection devices, providing more reliable protection

5. Green window will change when fault and also provide remote alarm control at the same time
