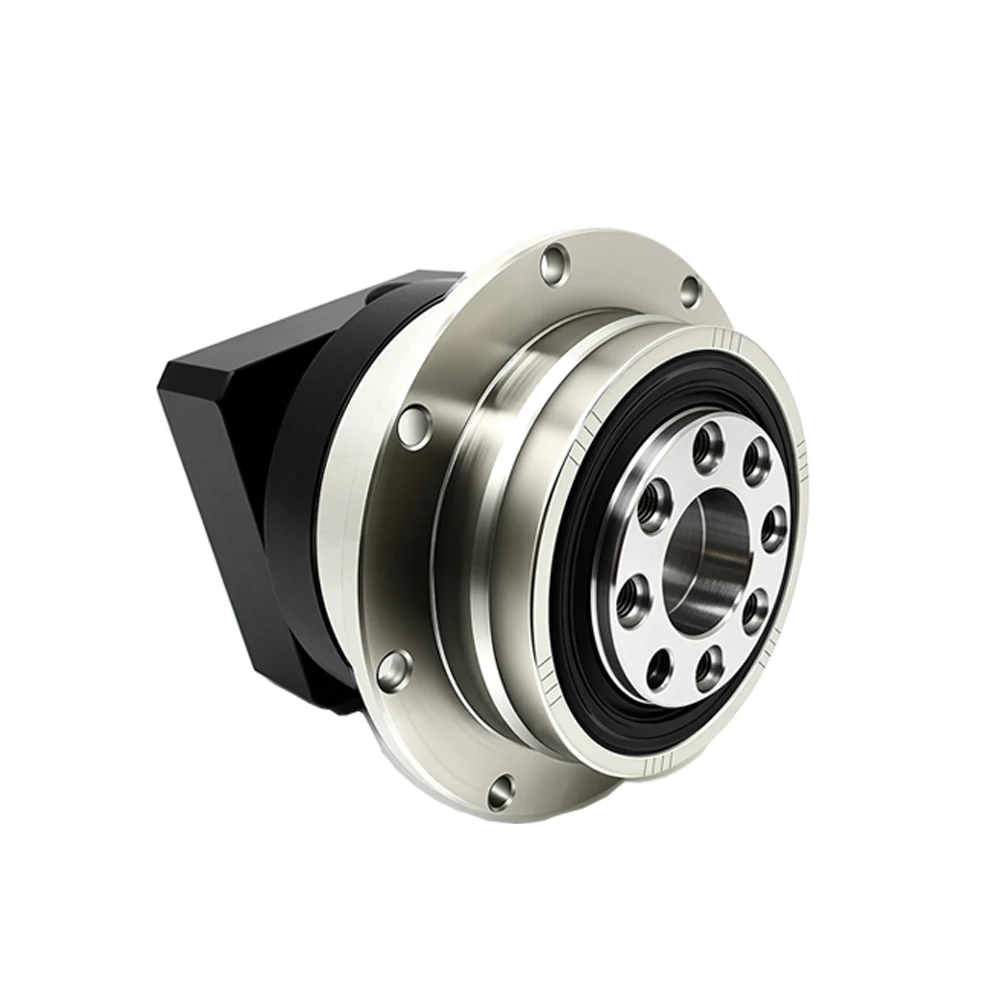

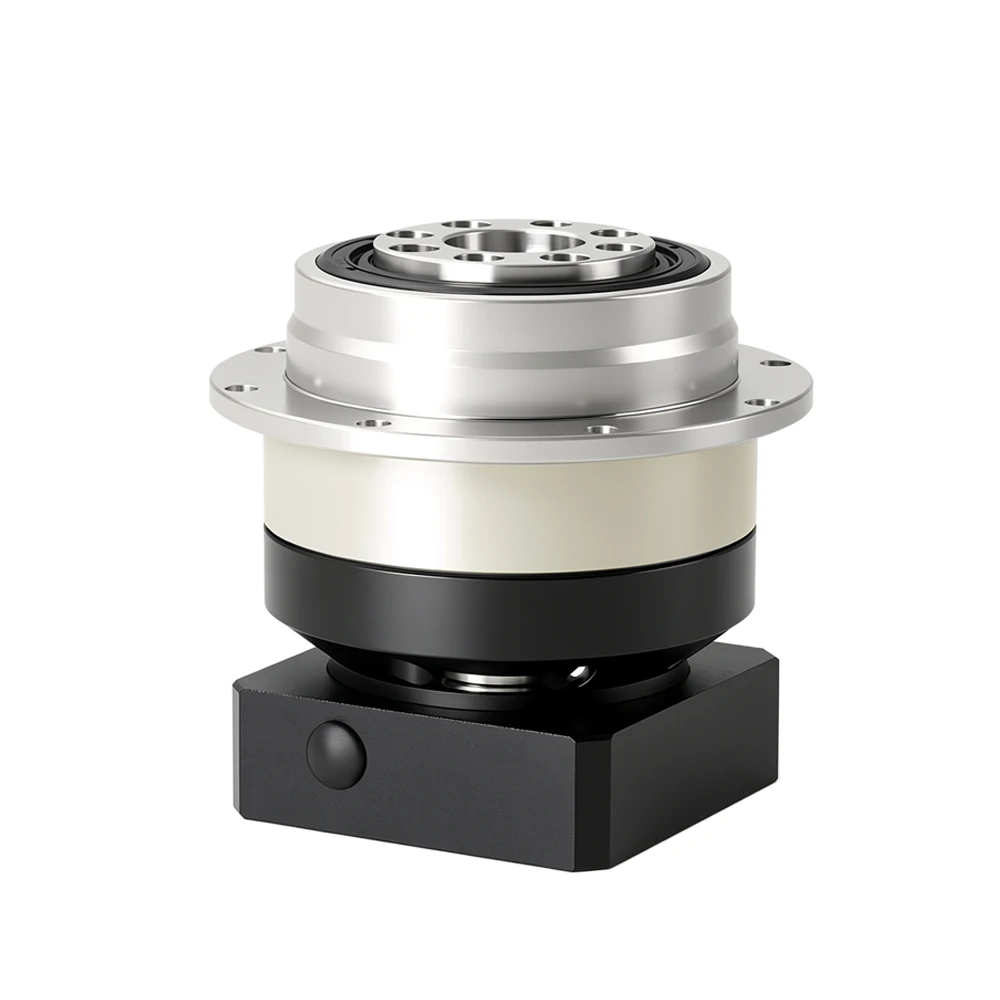

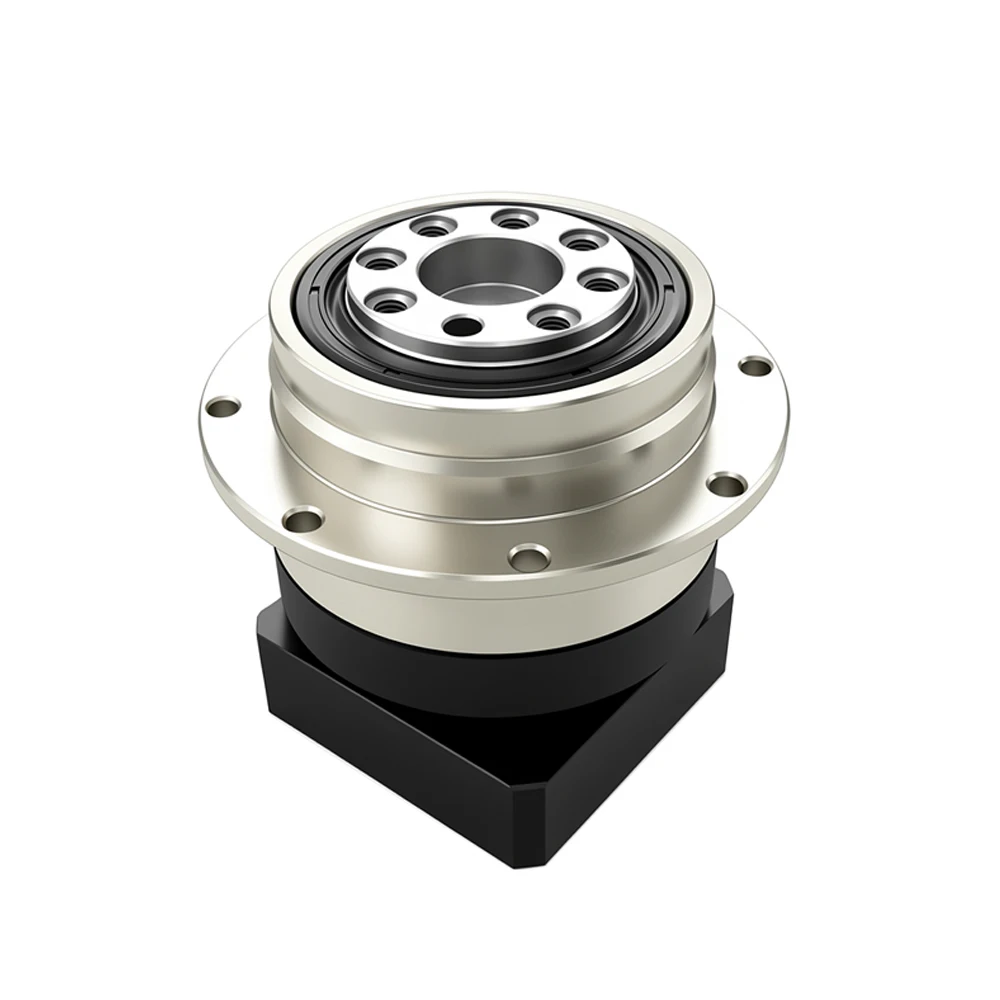

Helical Gear Planetary Gearbox for Nema34 Stepper 80/90Mm Servo Motor DC CNC round Flange Output Planetary Gearbox Gear 3Arcmin
1X Planetary reducer
1X Key
4X Install screw
Features:
1. The unique circular flange output mode provides greater installation freedom.
2. The body size is shorter and the installation space requirement is low.
3. Low return clearance, high precision and more precise positioning.
4. Double-supported cage type planet carrier structure, high reliability,
can adapt to frequent positive and negative rotation.
5. The turret is equipped with tapered roller shaft to meet the requirements of heavy load conditions.
Model: PLX090
Product type: helical gear Planetary reducer
Input Shaft: 12.7/16/19mm
Backlash Precision: Less than 5 Arcmin
Gear type: Helical Gear
Maximum torque:Three times the rated torque
Emergency braking torque:Three times the rated torque
Max radial force: 4100N
Max axial force : 1025N
Max input speed: 6000rpm
Rated input speed: 3000rpm
Transmission efficiency: L1≥ 95% L2≥90%
Noise: less than 60dB
Protection level:IP65
Additional information
| Speed Ratio | Ratio 7 To 1, Ratio 4 To 1, Ratio 10 To 1, Ratio 28 To 1, Ratio 70 To 1, Ratio 25 To 1, Ratio 50 To 1, Ratio 35 To 1, Ratio 40 To 1, Ratio 5 To 1, Ratio 16 To 1, Ratio 20 To 1 |
|---|---|
| Specification | 16Mm Input, 19Mm Input, 12.7Mm Input, 14Mm Input |
