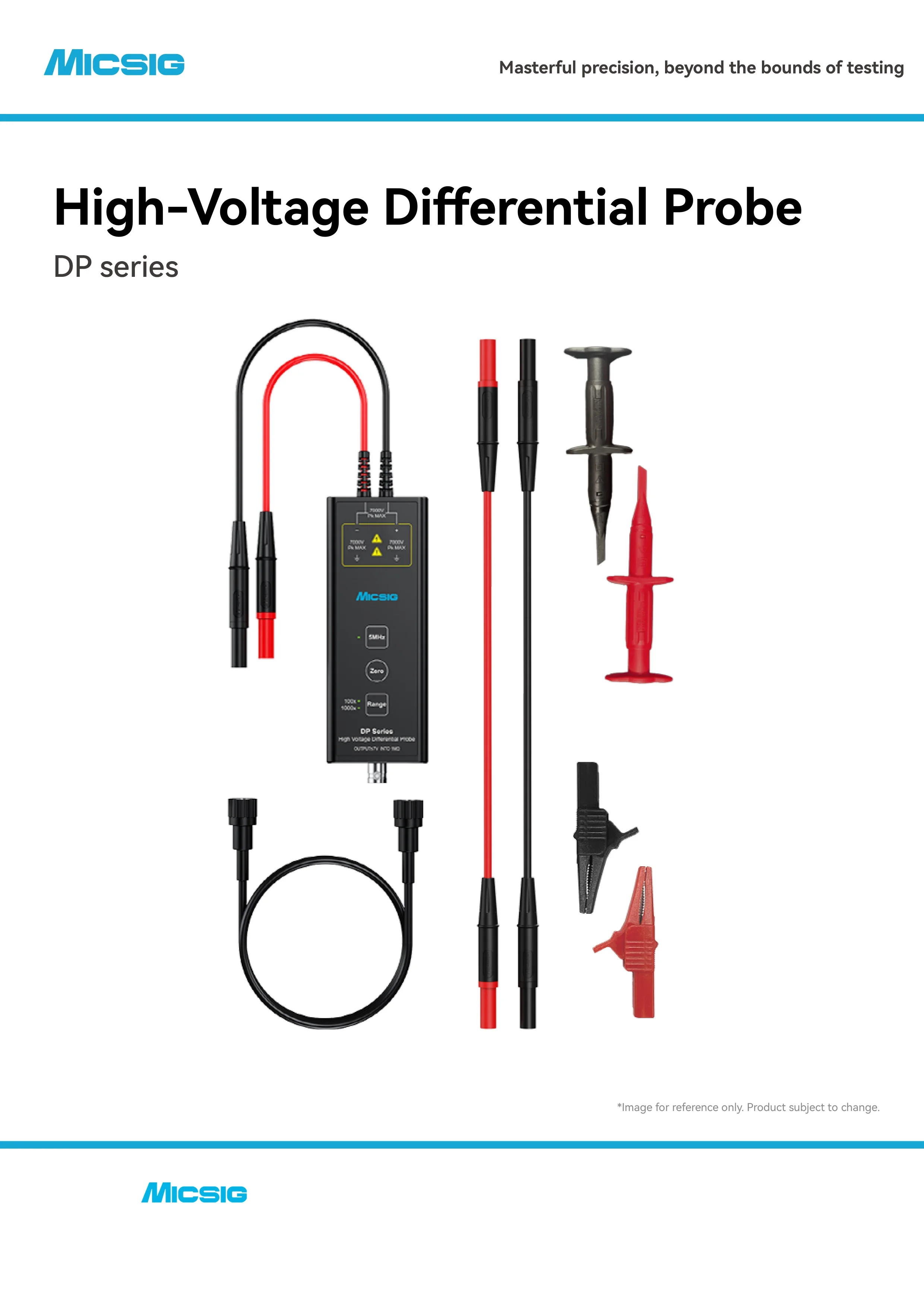

High Voltage Differential Probe DP Series DP1500/DP700/DP3000/DP701/DP1501/DP3001/DP702/DP1502/DP3002 Oscilloscope Probe

Micsig Oscilloscope High Voltage Differential Probe 100MHz-200MHz DP Series DP700/1500/3000/701/1501/3001/702/1502/3002 Oscilloscope Probe

Emotional tips:

In order to facilitate management, the factory now changes the names of all MDP series to DP series. This change is only a name change, and other changes remain unchanged, which does not affect any function of the product

Friendly reminder:

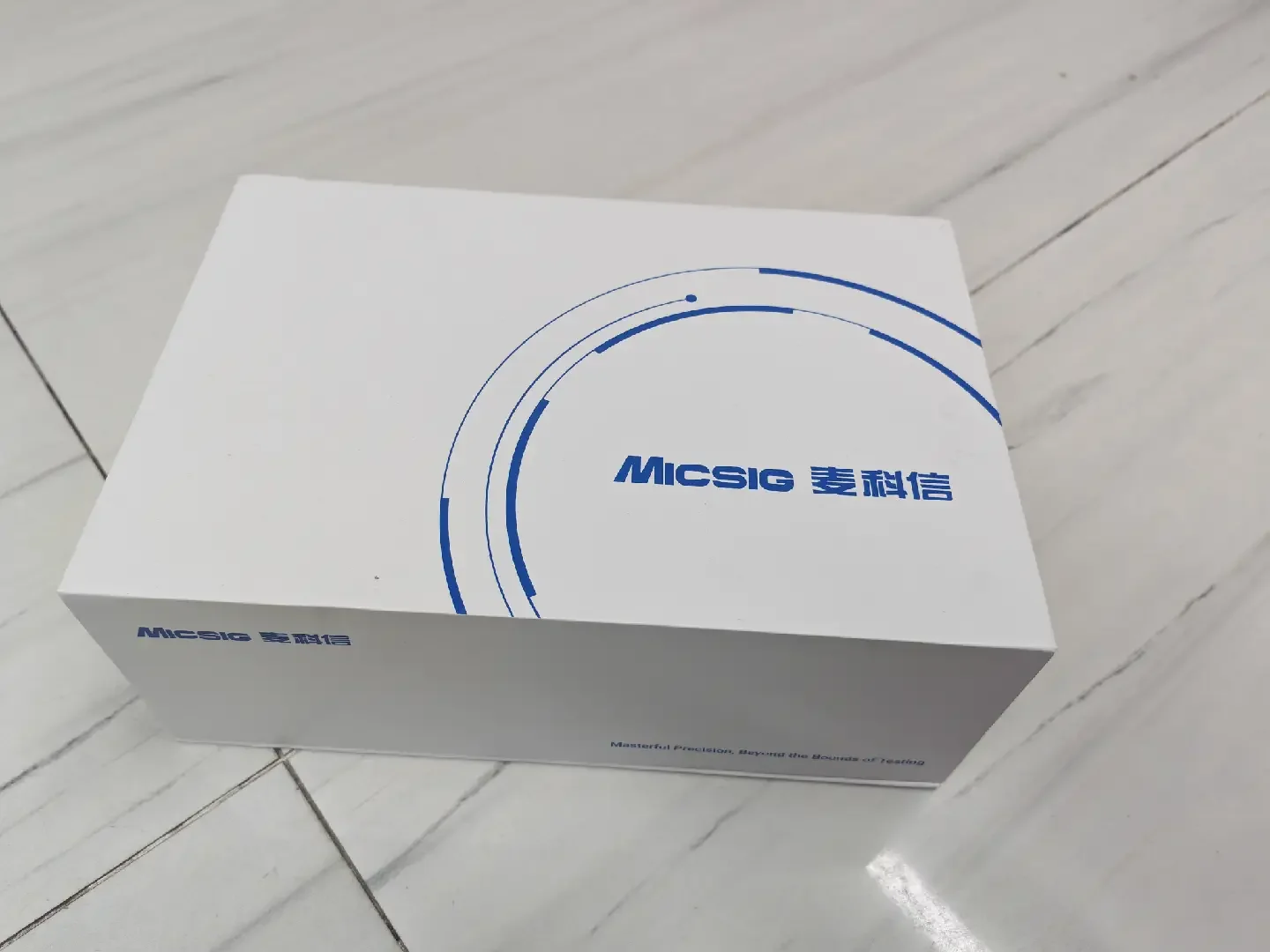

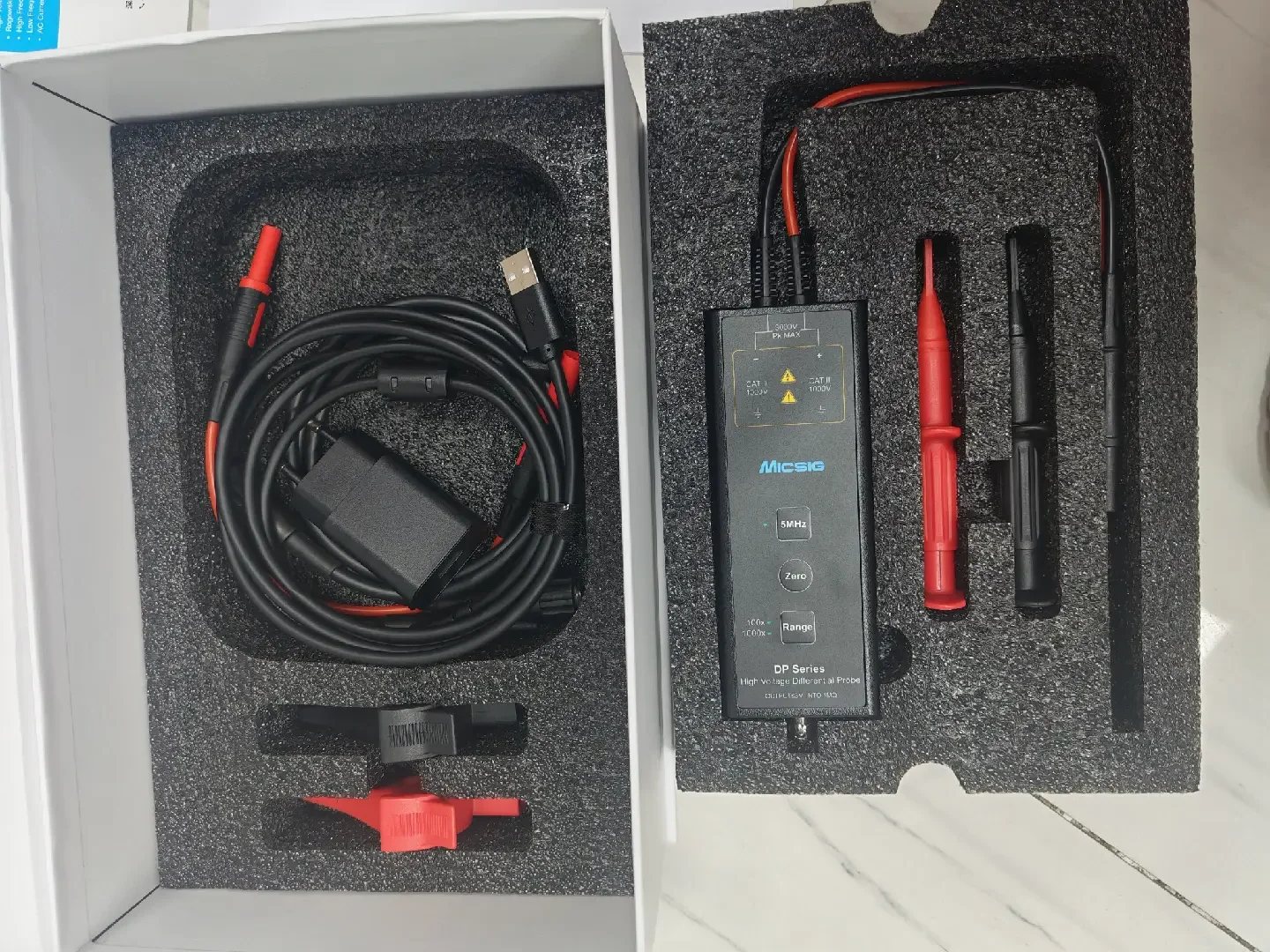

DP700, DP1500, DP3000, White cardboard box packaging.

DP702, DP1502, DP3002, New Hand luggage Packaging.

Bandwidth: 100MHz / 150MHz / 200MHz

Max. Voltage: 700Vpk / 1500Vpk / 3000Vpk

5MHz Bandwidth Limit

When measuring FET switching frequency in most switching power supplies, MDP probe effectively eliminates high-frequency noise.

Quick Zero

Short-circuit the test leads, press Zero button, the probe can be zeroed very fast.

Dual Range Selection

Improves signal-to-noise ratio, meet more test requirements.

BNC Interface

Standard BNC interface, work with any oscilloscope.

USB Power Supply

Powered directly by oscilloscope’s USB port via type-C cable.

Overvoltage Alarm

LED flashes, buzzer “beeps” rapidly, indicating an over-range alert.

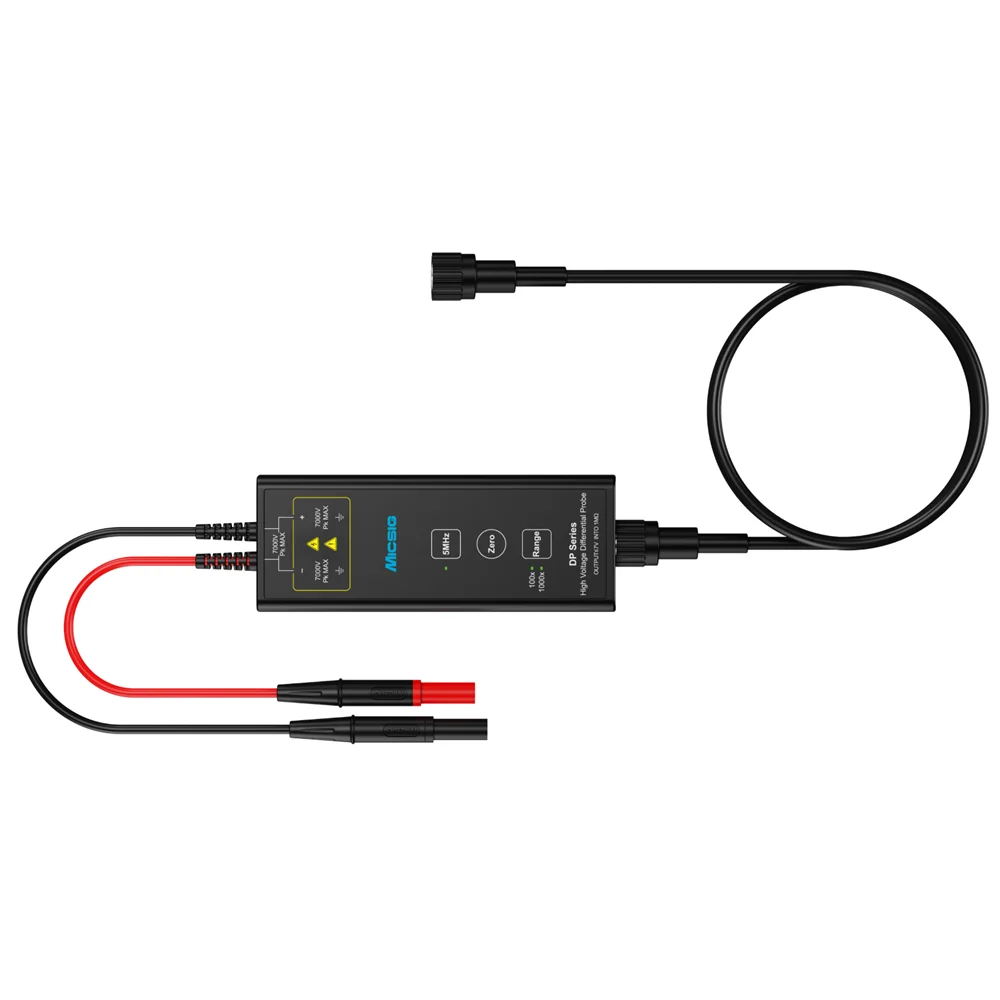

Compact & Exquisite

Much smaller than traditional differential probes.

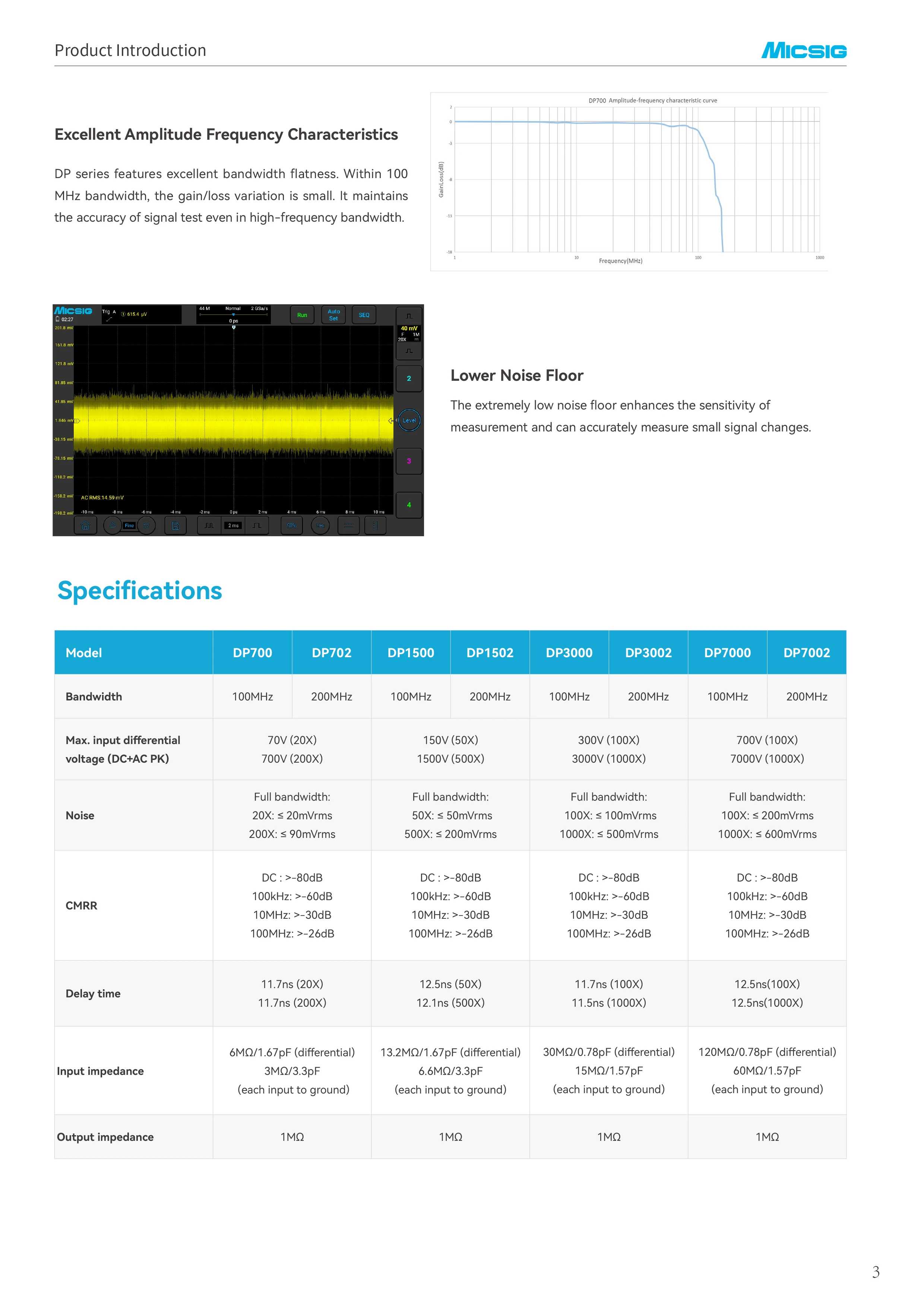

Excellent Bandwidth Flatness

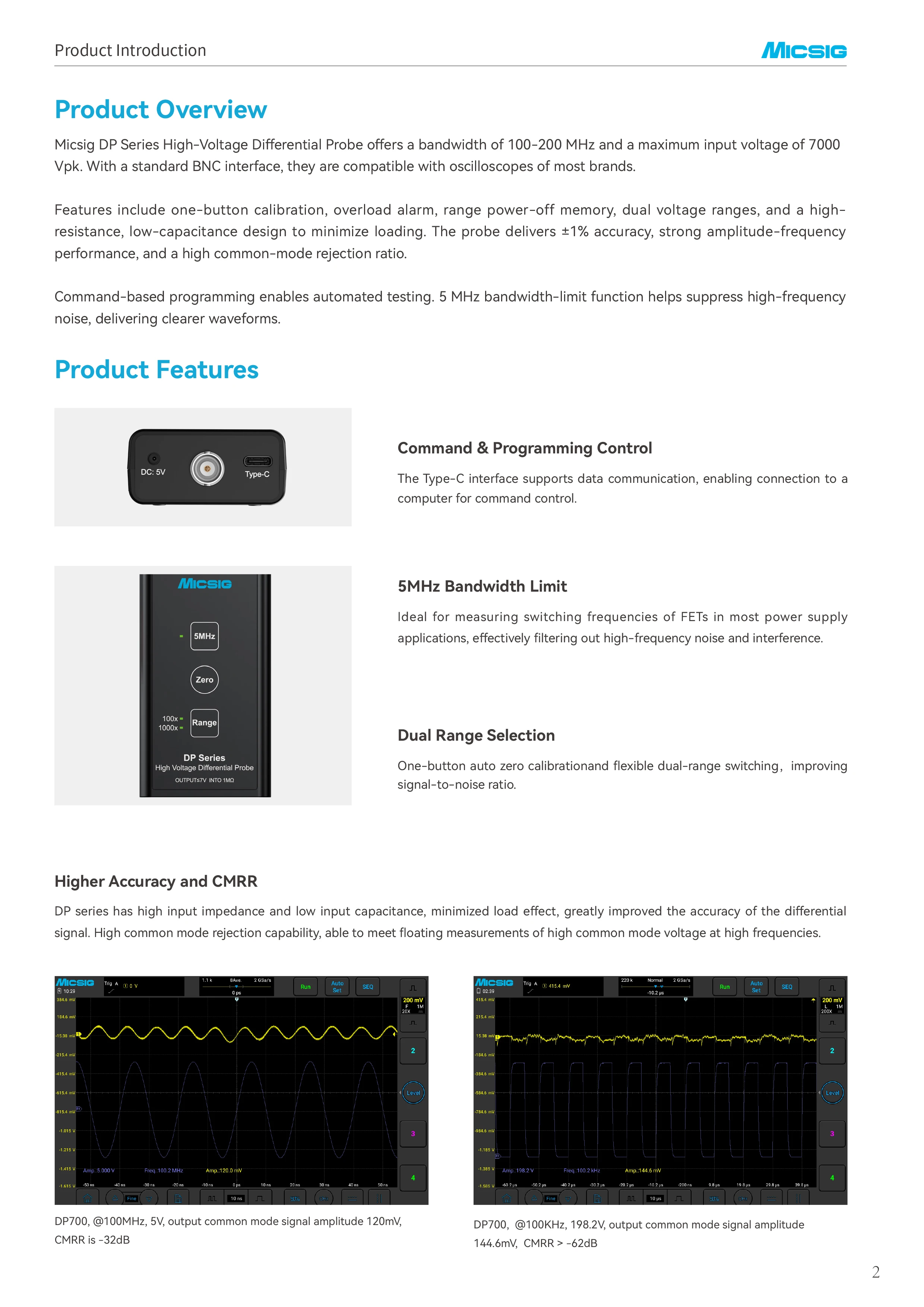

The MDP series probe has excellent bandwidth flatness, amplitude fluctuation less than 0.5dB within its half bandwidth range, even in high frequency bands can also maintain high accuracy.

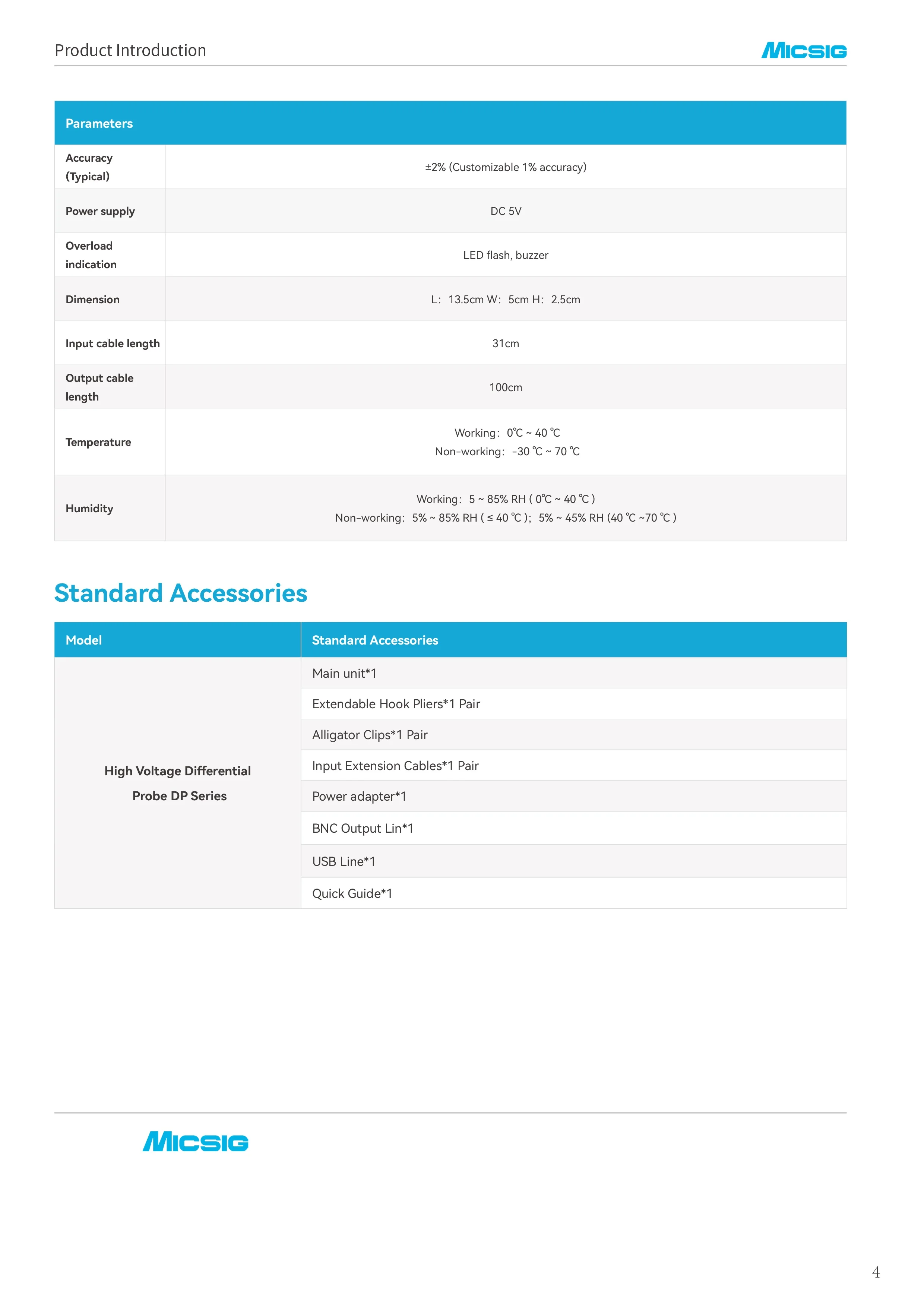

High Accuracy, High CMRR

High input impedance and low input capacitance, minimized load effect, greatly improved the accuracy of the differential signal. High common mode rejection capability, able to meet floating measurements of large common mode voltage at high frequencies.

CH1: @ 100KHz, 198.2V, output common mode signal amplitude 144.6mV, CMRR > -63dB

Applications:

1.Floating measurements
2.High voltage isolation measurements
3.Switching power supply design
4.Power converter design
5.Inverter, UPS power supply
6.Welding, electroplating power supply
7.Electronic ballast design
8.Motor drive design
9.Induction heating, induction cooker
10.CRT display design
11.Low-voltage electrical appliances
12.Electronic power and electric drive experiments
