HTD5M 24T/25T/26T/28Teeth Timing Pulley Keyless Bushing Bore 5/6/6.35/8-15 Mm 5M Synchronous Wheel for Belt Width 10/15/20/25Mm

  • SKU: N/A
HTD5M 24T/25T/26T/28Teeth Timing Pulley Keyless Bushing Bore 5/6/6.35/8-15 Mm 5M Synchronous Wheel for Belt Width 10/15/20/25Mm
Roll over image to zoom in
Click to open expanded view

Price range: 90,99 € through 107,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

Description

Specification:

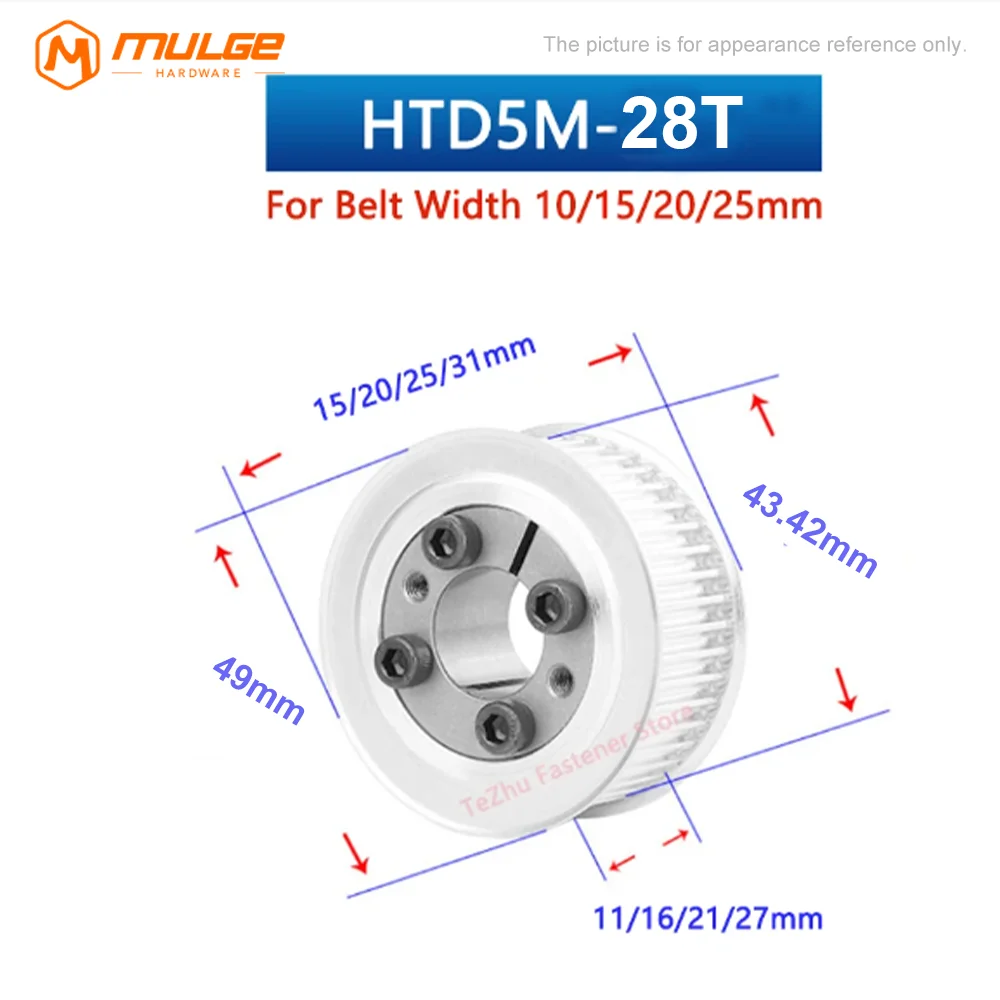

  • Name: HTD 5M 24T/25T/26T/28Teeth Keyless Timing Pulley

  • Main Material: Aluminum alloy (The edge is galvanized iron)

  • Type: AF Keyless

  • Teeth Pitch: 5mm

  • Teeth Number: 24T/25T/26T/28Teeth

  • Bore: 5/6/6.35/8/9/10/11/12/14/15mm

  • Slot Width: 11mm 16mm 21mm 27mm (suitable for timing belt width 10/15/20/25mm)

Application:

  • Suitable for transmission components

Note:

Due to different batches, the size of the timing wheel flange will be 2-3mm different, for the installation of sufficient space does not affect the use of equipment, the specific object shall prevail.

Package :

  • Packing : Plastic bag / Carton box.

  • Quantity : According to your Choose!

Additional information

Number of Pcs

25T (1Pcs), 24T (1Pcs), 28T (1Pcs), 26T (1Pcs)
Width

21Mm(For Belt 20Mm), 27Mm(For Belt 25Mm), 11Mm(For Belt 10Mm), 16Mm(For Belt 15Mm)
Bore Diameter

Bore 8Mm, Bore 9Mm, Bore 5Mm, Bore 15Mm, Bore 6.35Mm, Bore 12Mm, Bore 11Mm, Bore 10Mm, Bore 6Mm, Bore 14Mm
