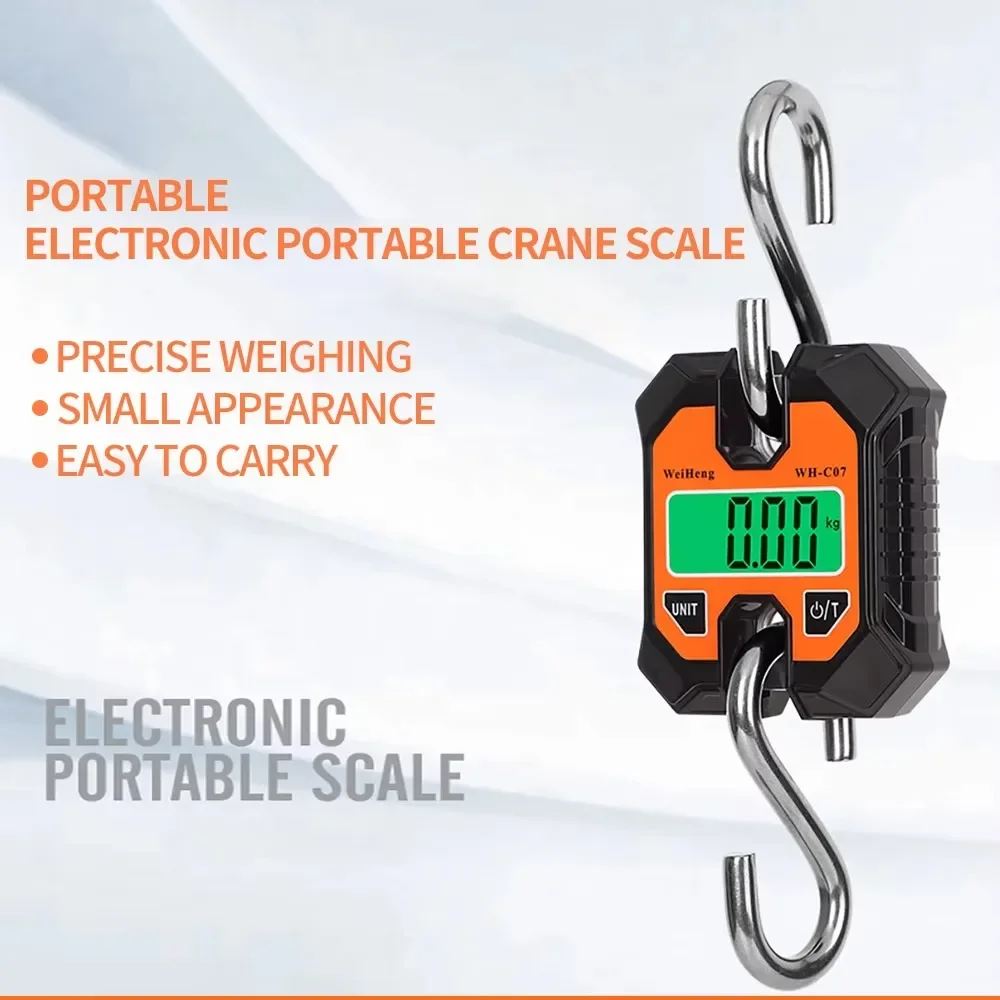

Industrial Detachable Portable Micro Crane Scale 100KG 250KG 50G Hanging Suitcase Digital Weigh Hook Electronic Scale Steel Tool
Roll over image to zoom in
250KG/100g 100KG/50gHeavy Duty Hook Scale Industrial Crane Scale LCD Digital Hanging Scale High Accuracy Luggage Fishing Scale
Type: WH-C07/WH-C08

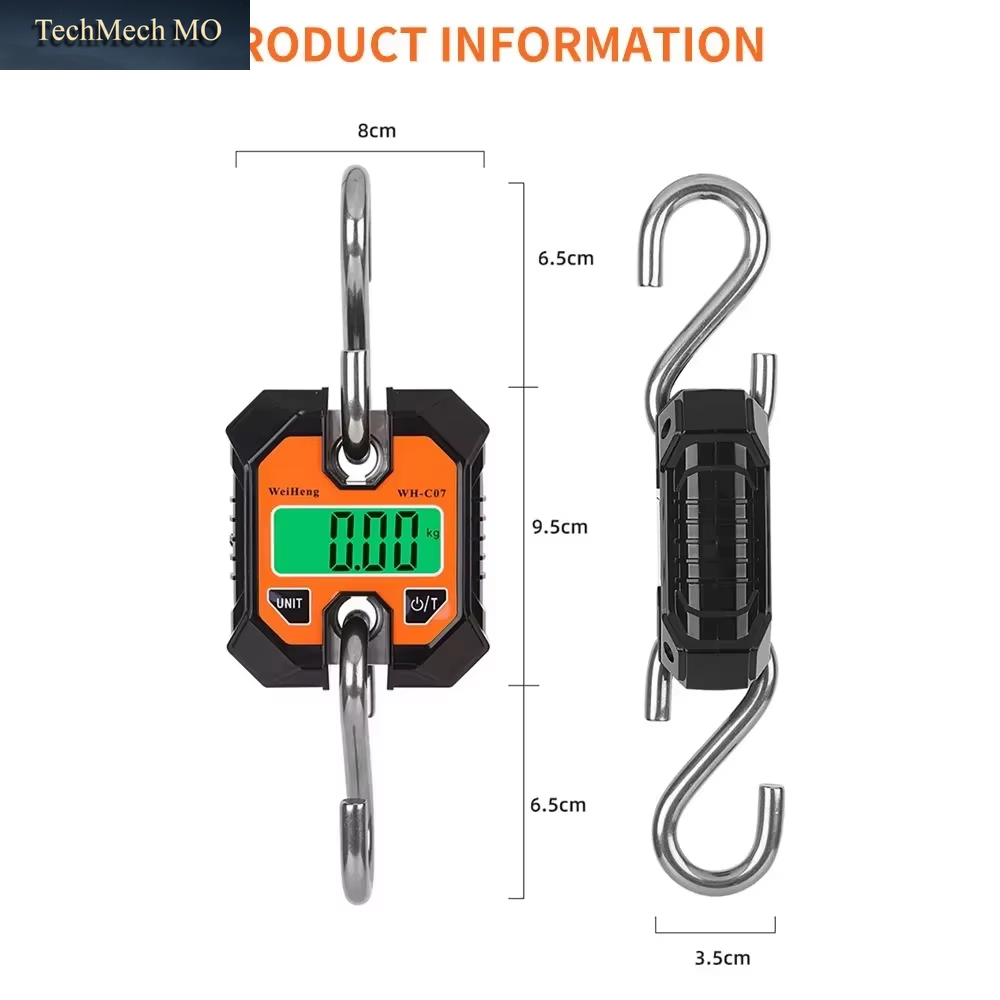

WH-C07:

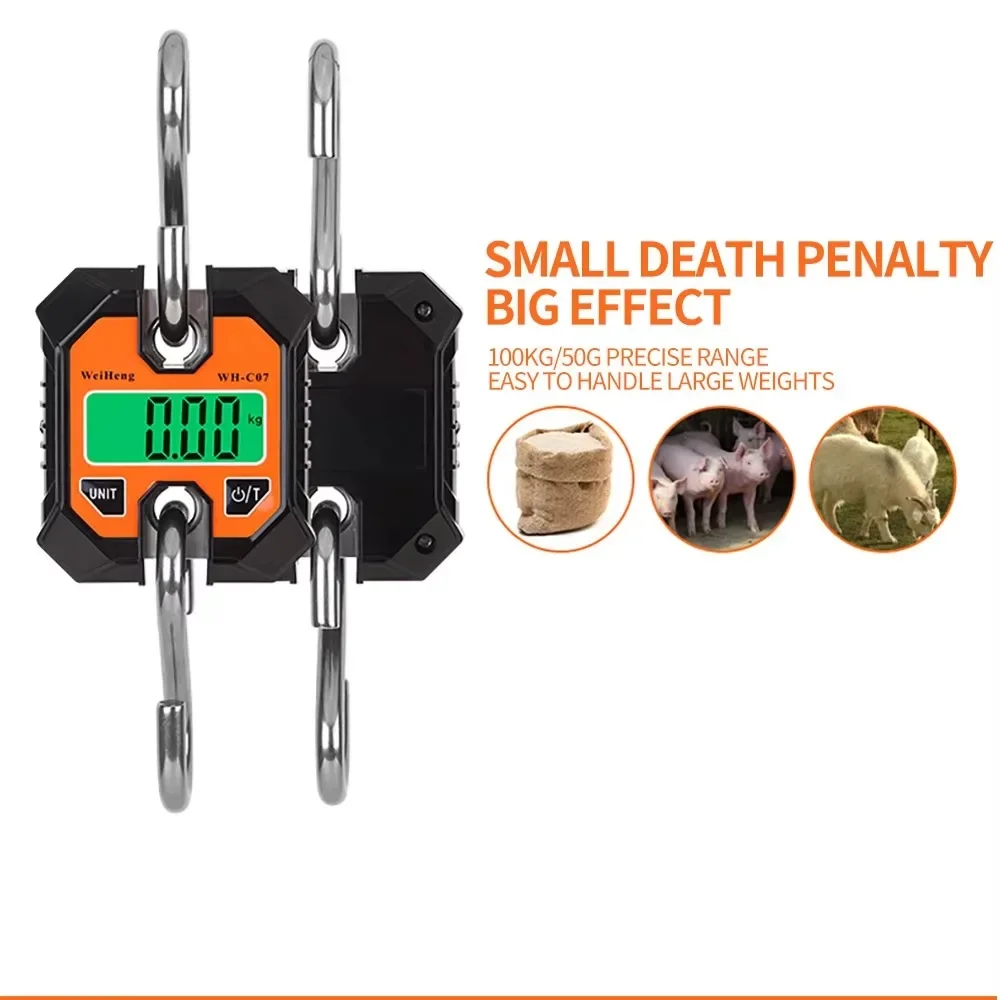

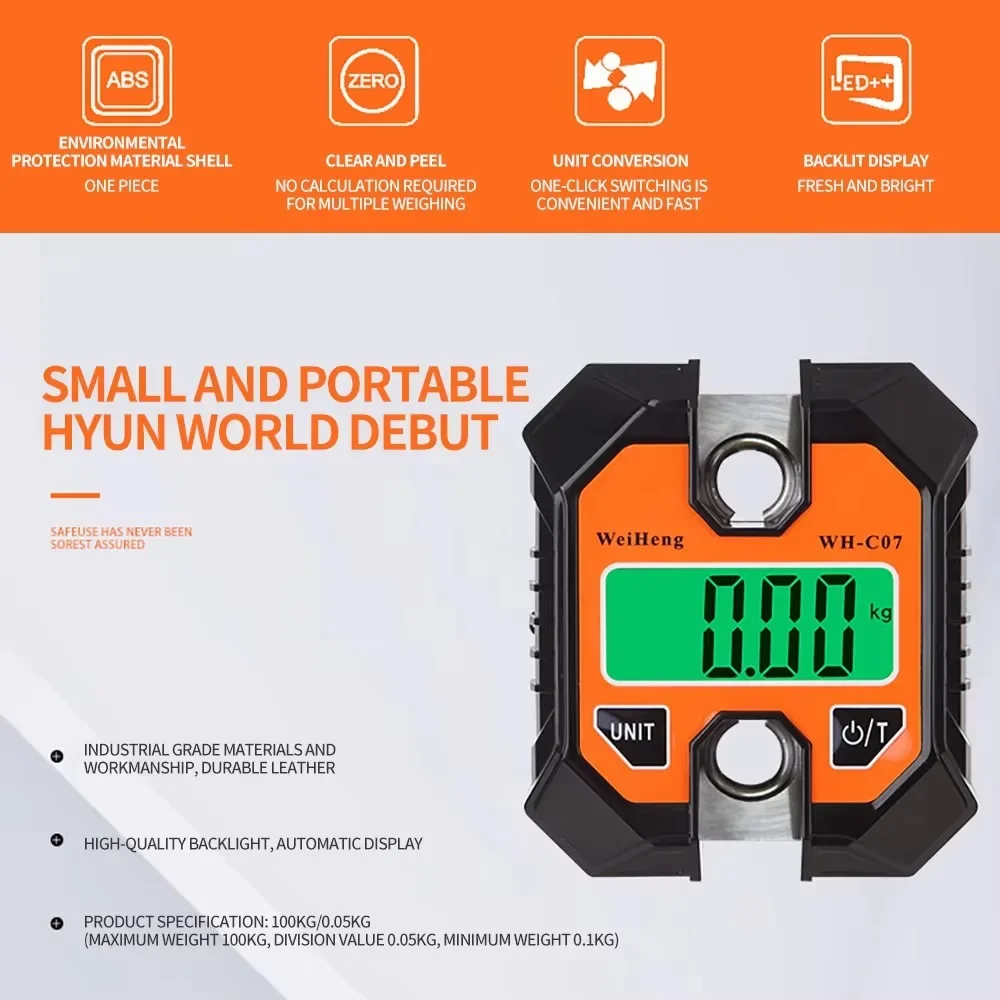

Range: 0.1KG~100KG
Dividing: 0.05KG

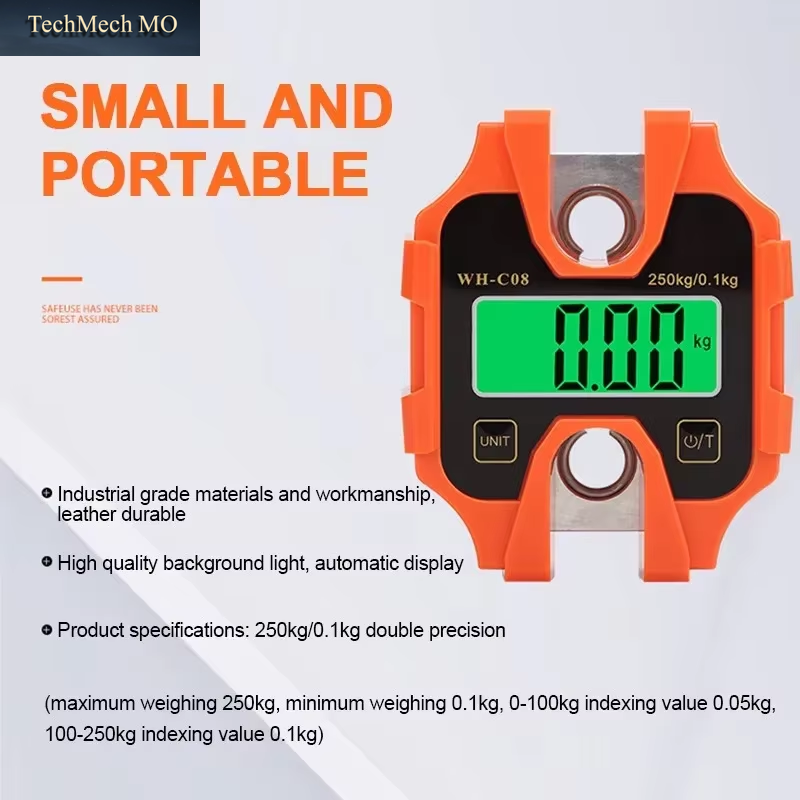

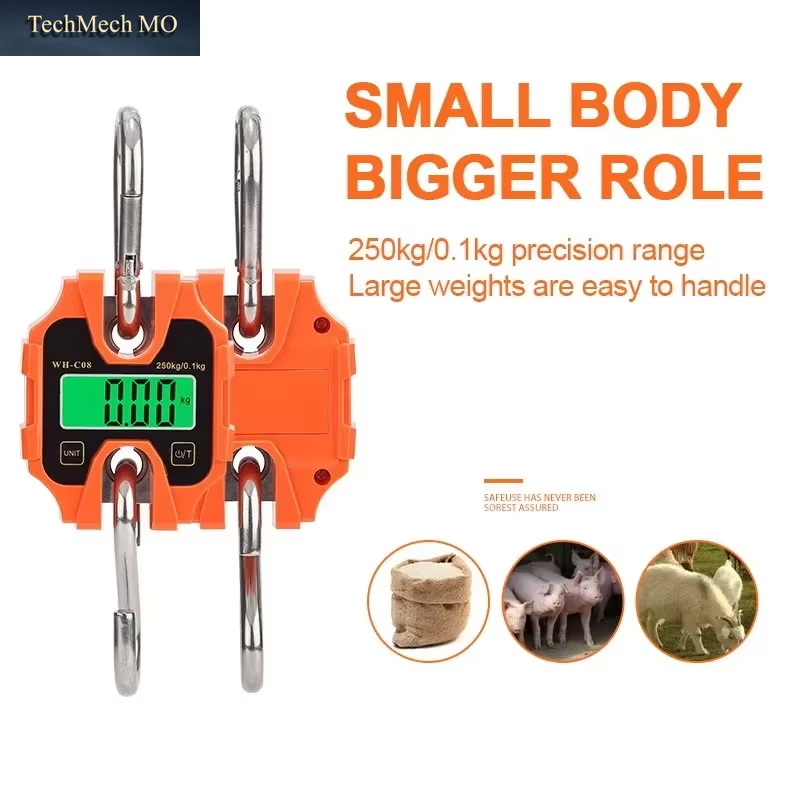

WH-C08:
Range:0.1KG～250KG
Dividing:0.1KG
Unit:Kg, JIN , Lb
Instruction:

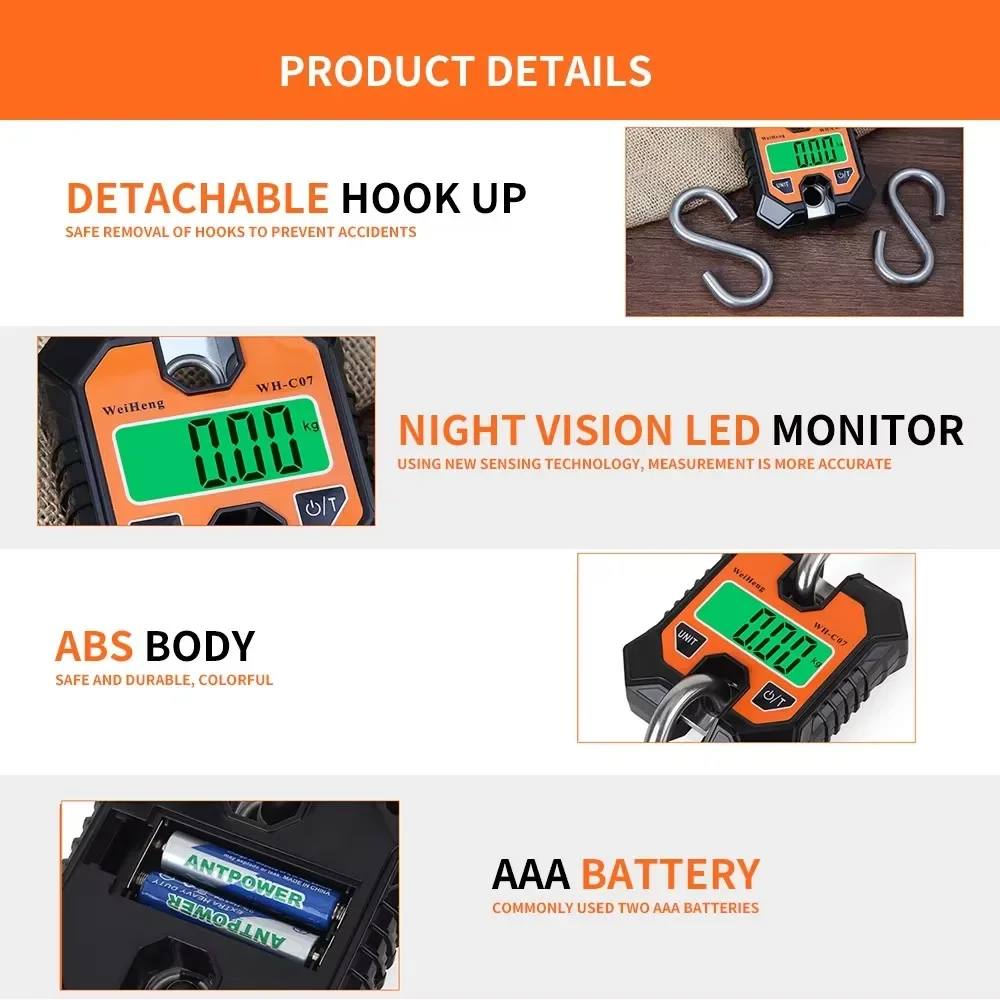

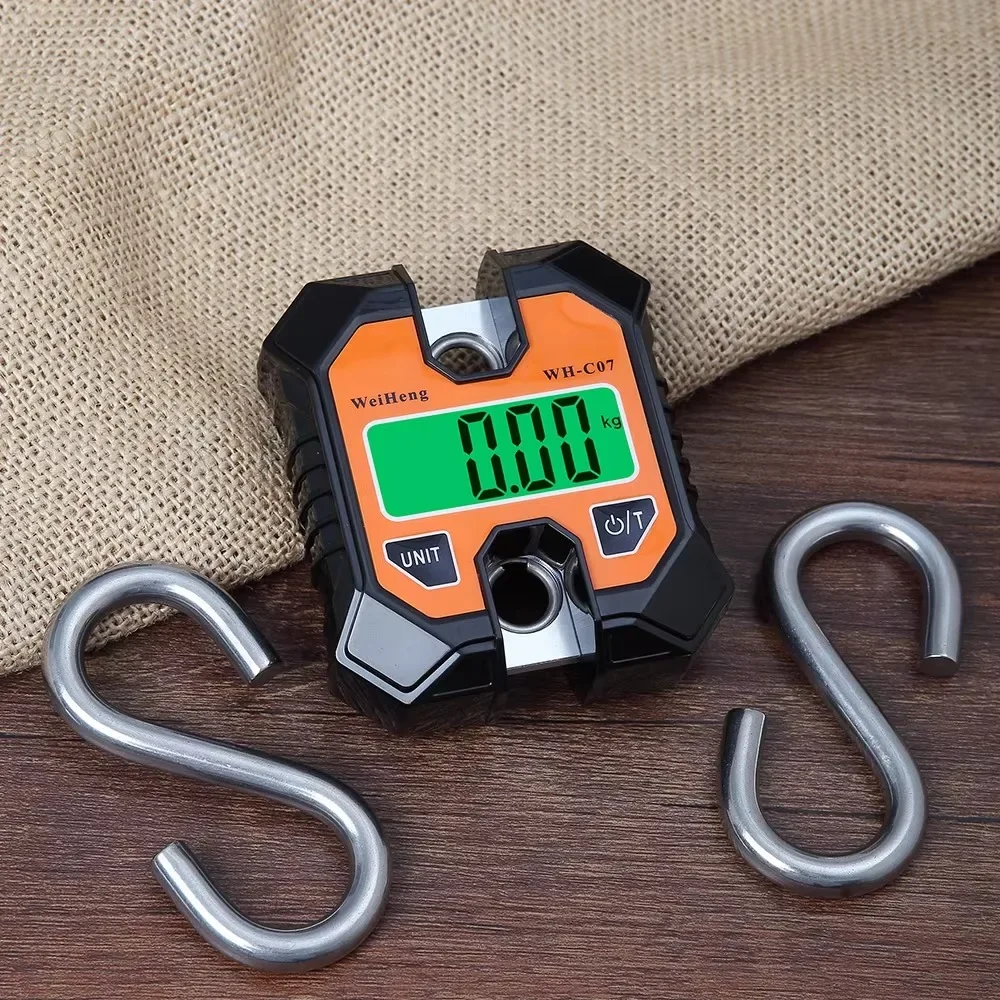

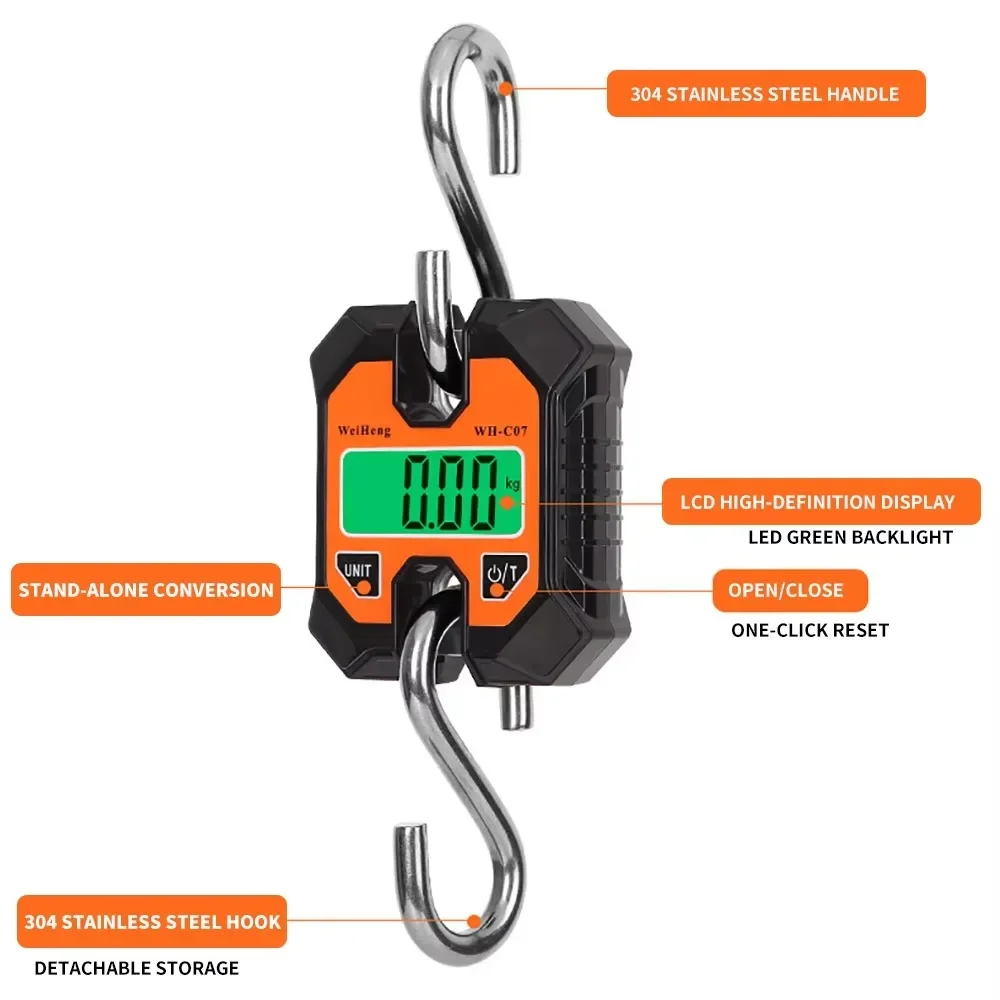

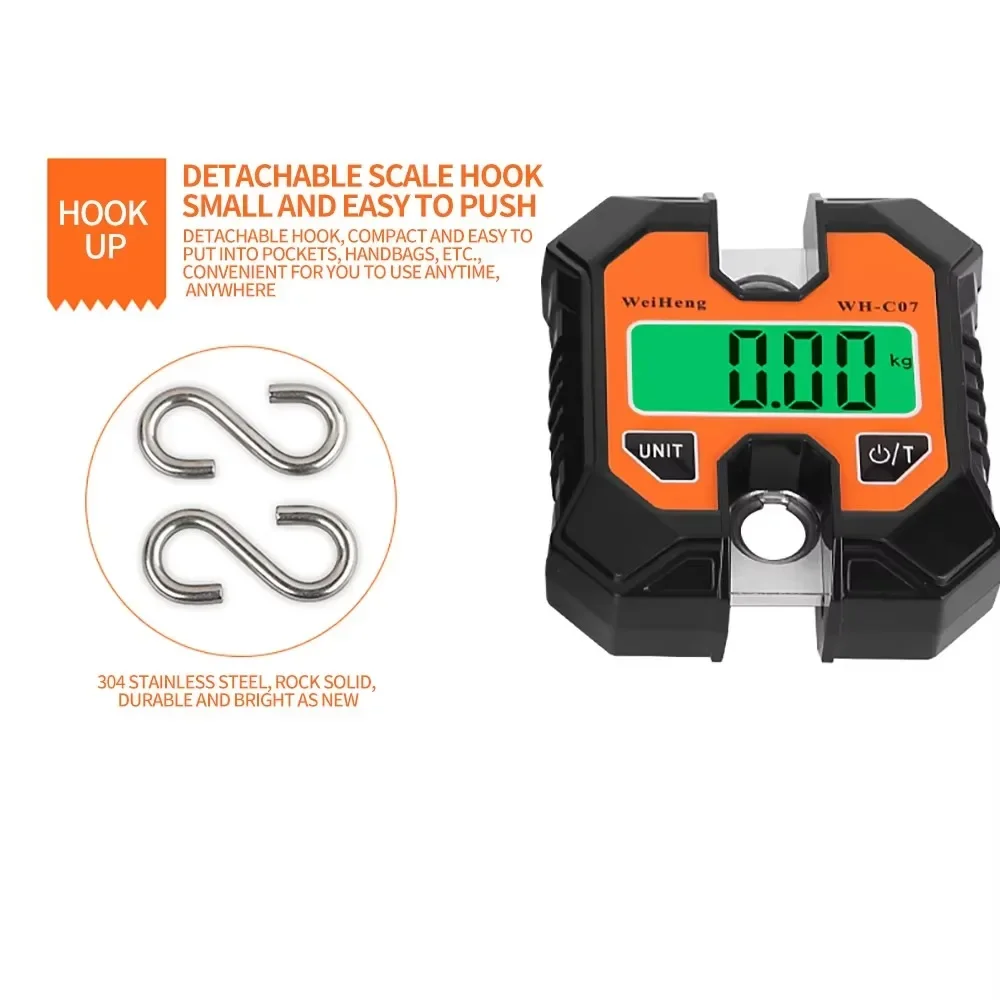

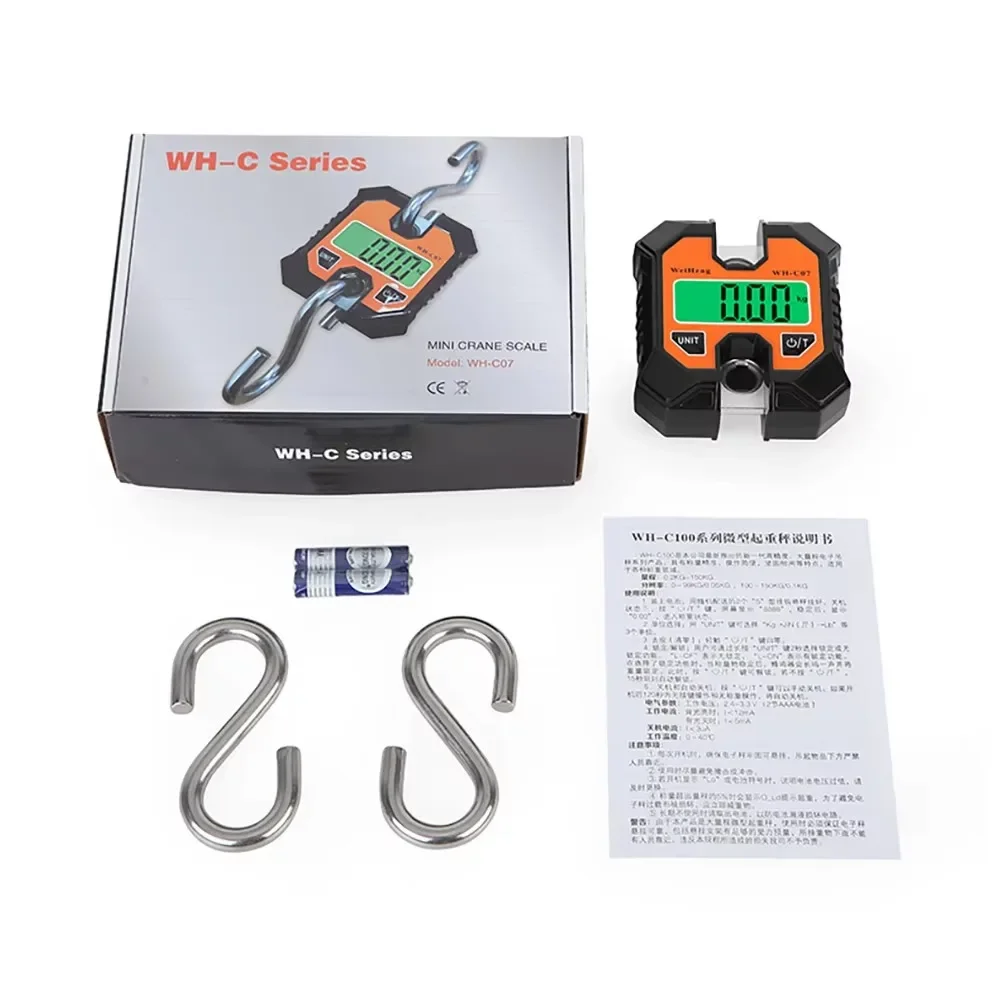

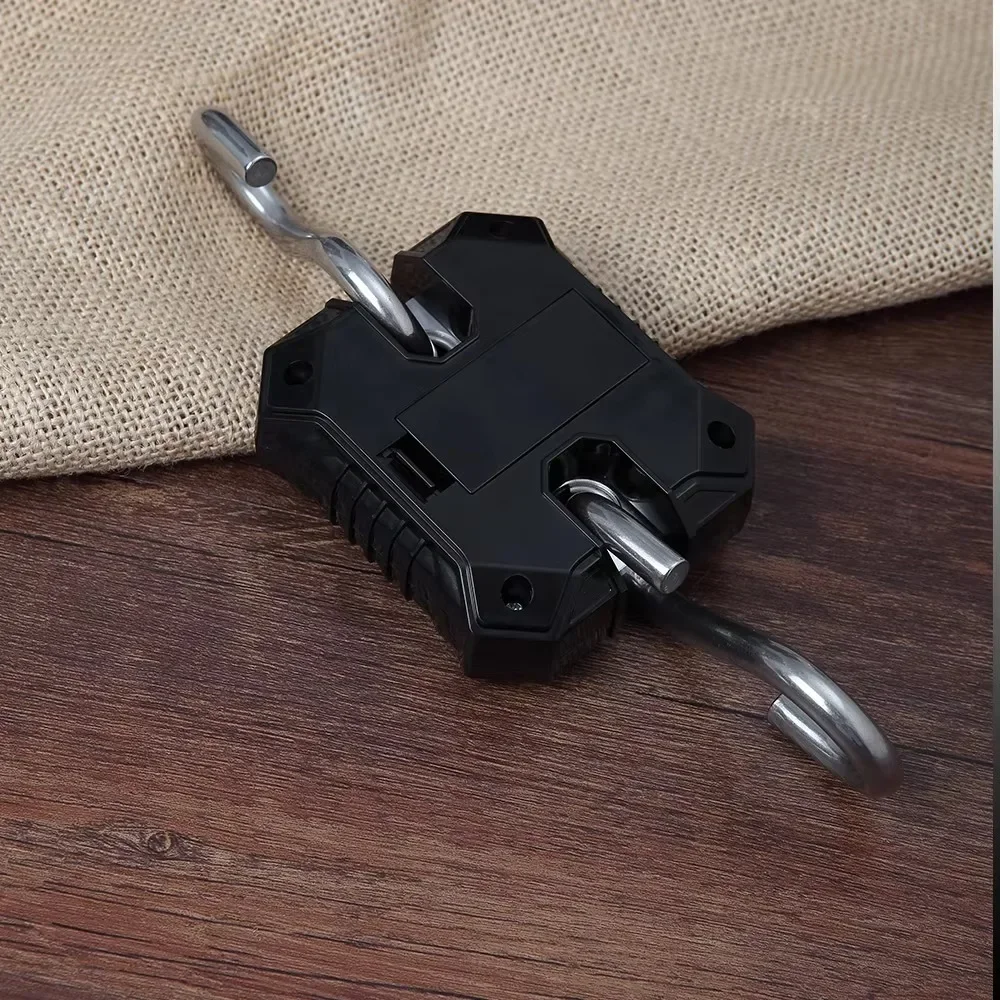

1. Put on the batteries, install the two “S” hooks to the scale and hang it well. With scale off, press the “/T” key, the screen will show “8888”, when stable, the screen shows “0.00”, then the scale is at the weighing status.

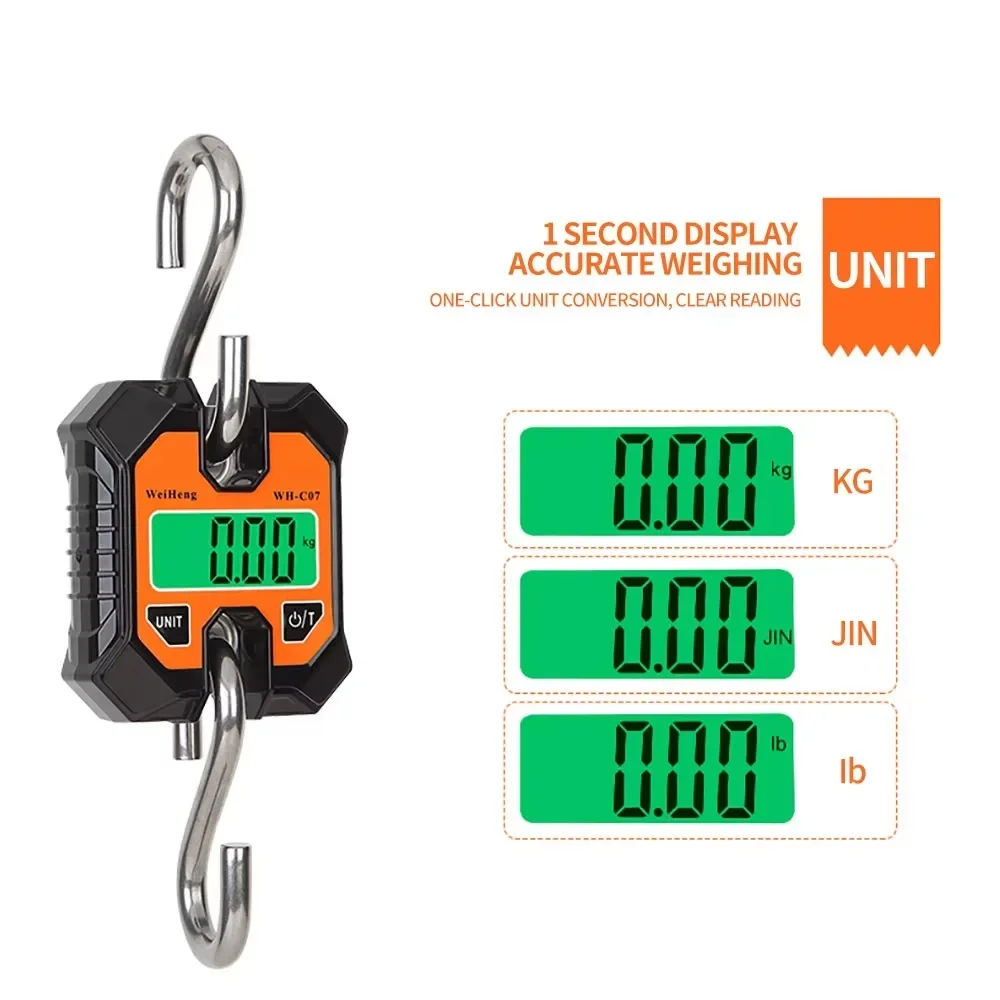

2. Units selecting: Press “UNIT” key to change “KG→JIN→Lb”, three units.
3. Tare(Zero): Lightly press “/T” key to zero clearing.
4. Lock/Unlock: Press “UNIT” lasting 2 seconds to select lock/unlock function.
“L-OF” means at the status of data locked by hand(unlock), “L-ON” means at the status of data locked automatically. With “L-ON”, when weighing stably, buzzer will make a sound of “B” and lock the weighing data. At this moment, if press “/T” key could unlock, otherwise it will unlock automatically after 15 seconds.
5. Turn off and auto turn off. Press “/T” can turn off by hand. If turn on without pressing operation or weighing operation in 120 seconds, the scale will turn off automatically.
Electric Parameter:
Working voltage: 2.4~3.3V (2×AAA batteries– not included ) Shutdown current: I＜3uA

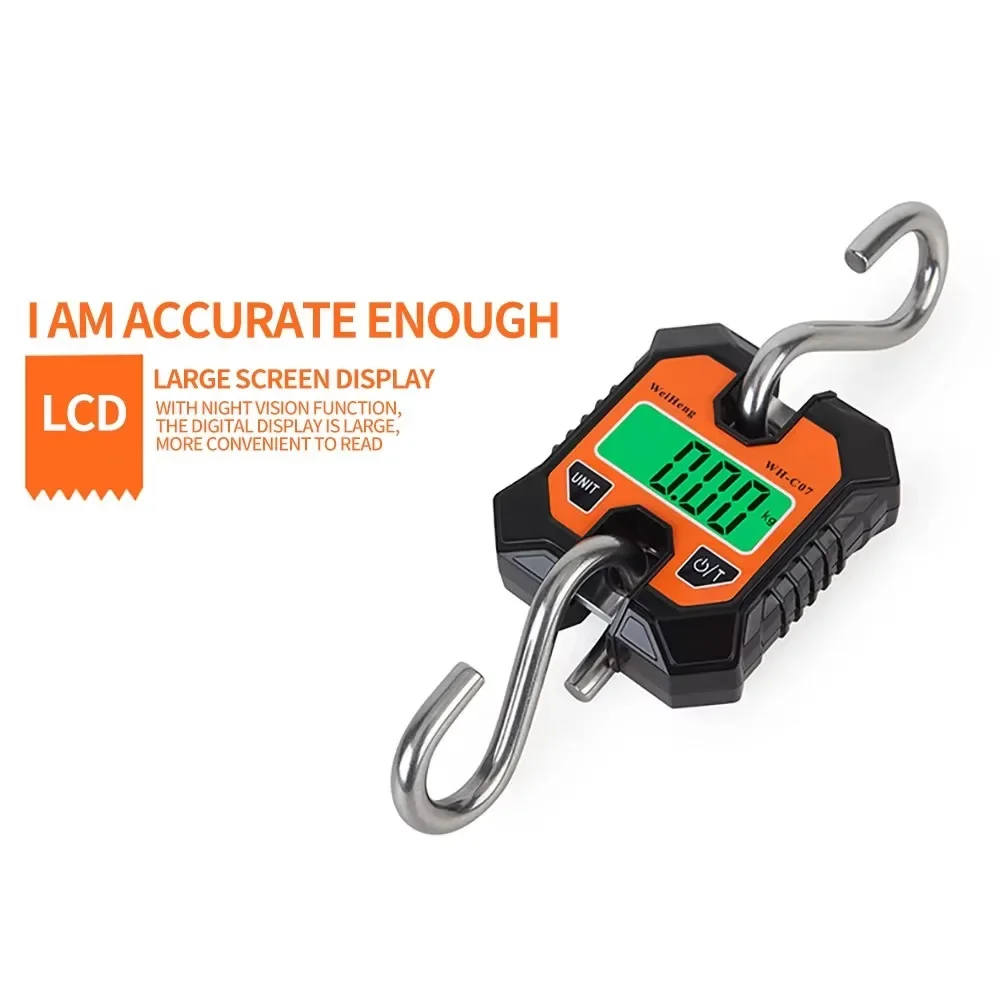

Working current: backlight is on: I＜12mA Working temperature: 0~40℃
backlight is off: I＜5mA
Notice:
1. Ensure the scale is hanging firmly and keep anybody away the goods when weighing.
2. Try to avoid impact or shock when using.
3. If “Lo” or battery sign appears on the screen when turn on the scale, it means the batteries are exhausted. Please replace the batteries in time.
4. If overweight beyong 5% of the capacity, “O_Ld” will appear on the screen. To avoid damage to the scale, please reduce the weight at once.
5. If the scale is not use for a long time, please take out the batteries to avoid leakage and damage to the circuit.
Warning:
Due to this product is large capacity micro crane scale, it must be sure that it is fastened suspension reliable, the bracket is strong enough to bear the weight, people are not allowed to get close of the goods when weighing. Guangzhou WeiHeng Electronics Co., Ltd is not responsible for any activities against the instruction.
Additional information
| Color | 100Kg 50G, 250Kg 100G |
|---|---|
| Voltage/Plug Type | No Plug |
