Product Purchase Notes:

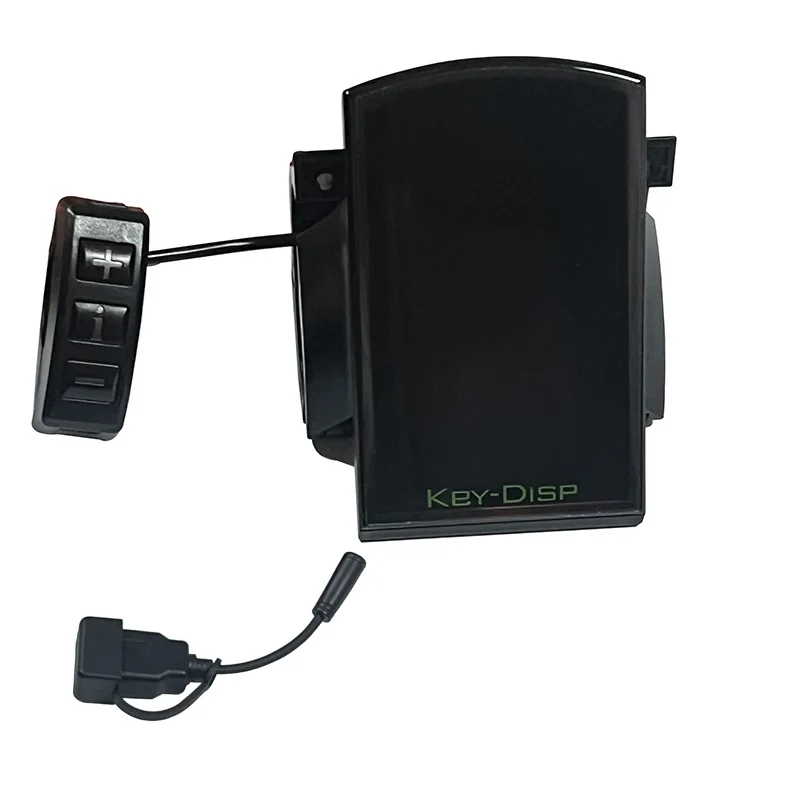

KD986 color LCD display, there are different LCD Display protocols on different brands of ebikes, please contact our online customer service to determine the LCD Display protocol you need before you buy, if you don’t determine the LCD Display protocol with our online customer service, your purchased display may not match your ebike! This is very important thing! Please contact us!

Description:

Function Overview

The KD986 model meter offers a variety of features to meet your riding needs, including:

● Intelligent power indication

●Motor power indication

●Assisted gear adjustment and indication

●Speed display (including V, MAX, AVG)

●Mileage display (including TRIP and ODO)

●Assisted push control and indication

●Ride time display

●Backlight control and display

●Error code display

USB connection indication

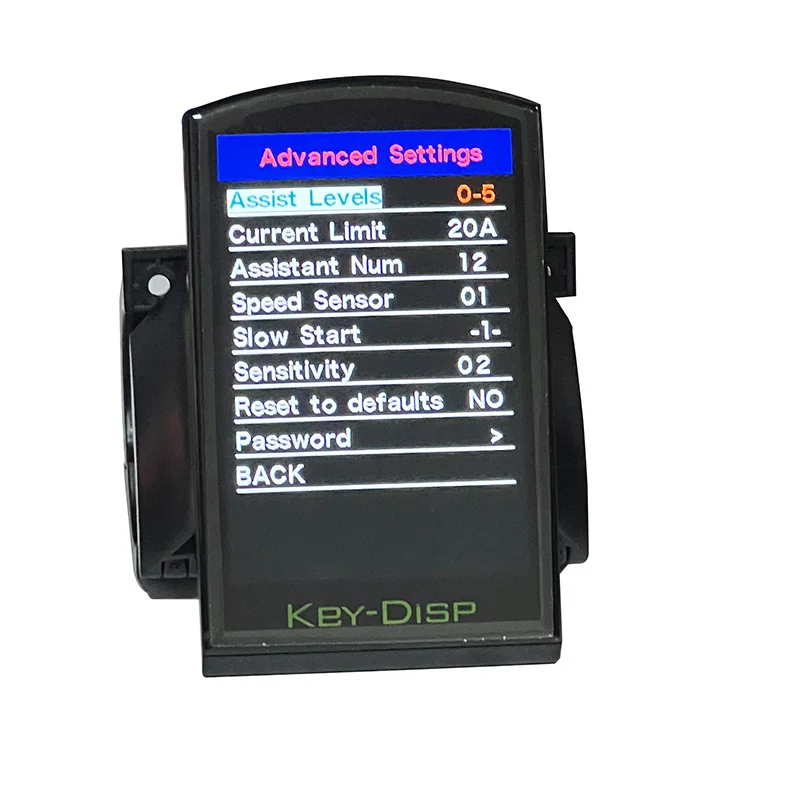

●Multiple parameter settings (e.g. wheel diameter, speed limit, battery level setting and power assist parameter setting, etc.)

Specification

●24/36V/48V power supply

●Meter rated operating current: 50mA

●Maximum operating current: 200mA

●Shutdown leakage current: <1μA

●Operating temperature: -20～60°C

●Storage temperature: -30～70°C

Operation

◆ Power on/off

Press the power button briefly to switch on the e-bike system and supply power to the controller. Press and hold the

power button for 2 seconds, the e-bike system is switched off. The e-bike system no longer uses battery power.

The leakage current is less than 1 μA when the e-bike system is switched off.

■ If the e-bike is not used for more than 5 minutes, the meter will automatically switch off. ◆Display Interface

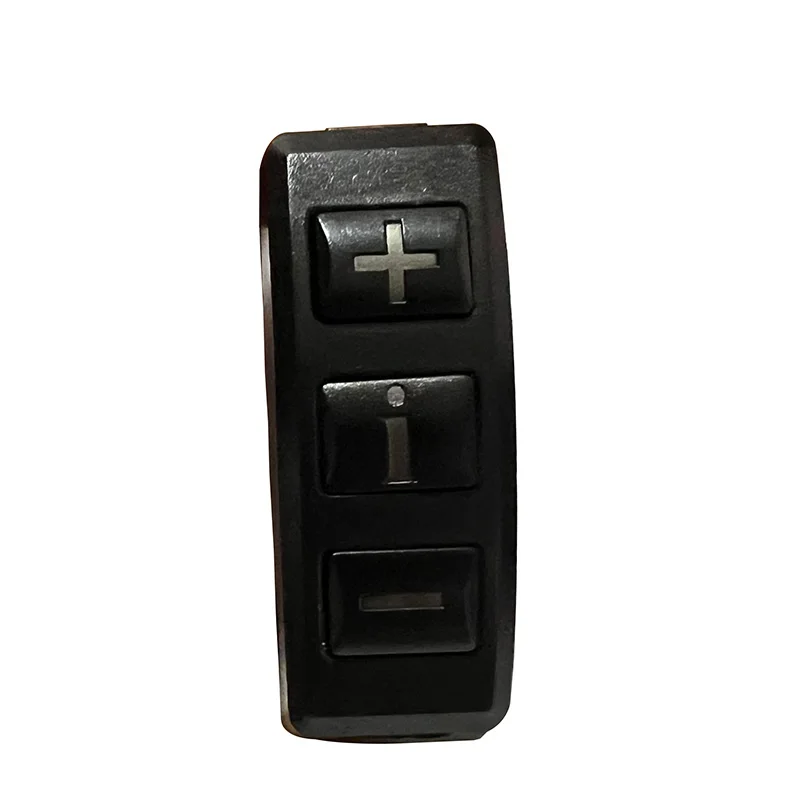

When the instrument is switched on, it displays the real-time speed and single mileage (km) by default. Press “i” button briefly.

Display information in single mileage (km), total mileage (km), maximum speed (km/h), average speed (km/h).

The display switches between single mileage (km), total mileage (km), maximum speed (km/h), average speed (km/h), and riding time.

Cautions

Pay attention to the safety during use, and do not plug or unplug the meter while it is energised.

◆ Avoid bumping the instrument as much as possible.

◆ Please do not change the background parameter settings of the instrument, otherwise normal riding cannot be guaranteed.

◆ When the instrument can not be used normally, it should be sent for repair as soon as possible.

Packaging:

1*LCD Display
