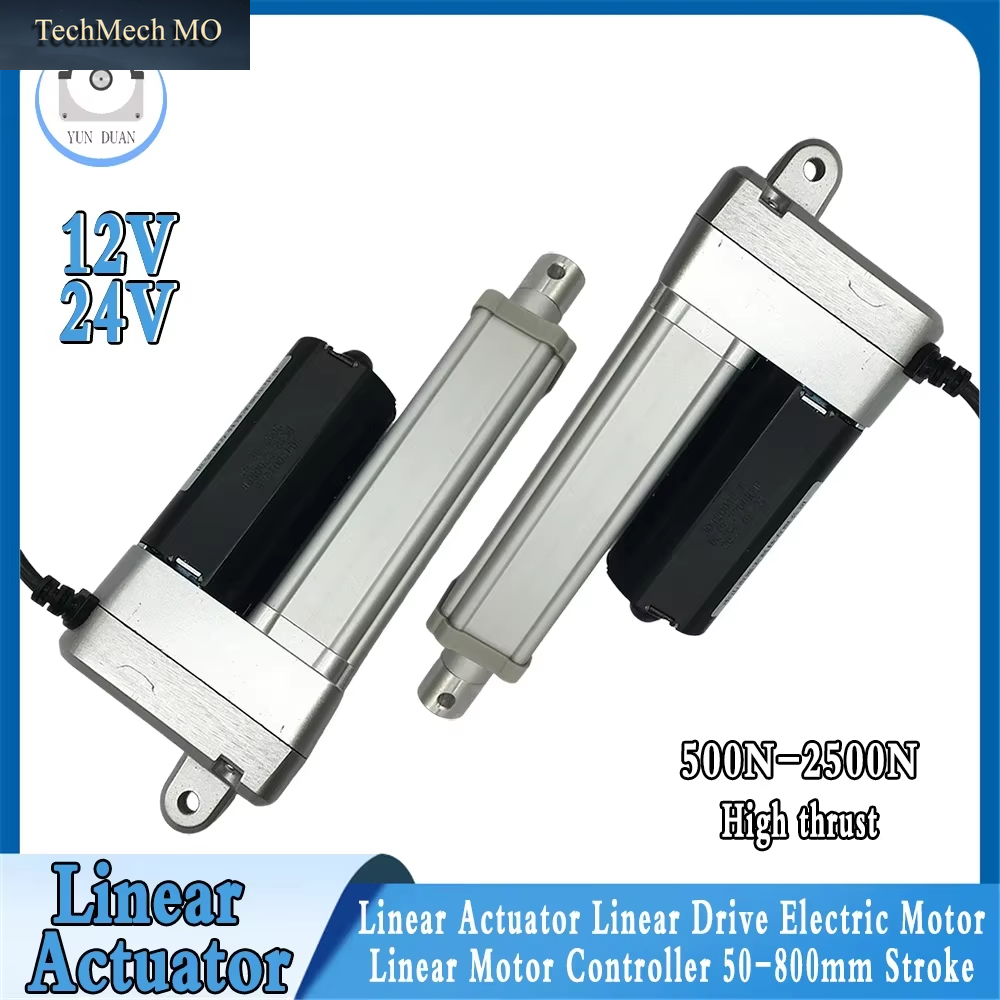

Linear Actuator 12V 24V High Thrust 2500N 2200N 1800N 1200N 500N Linear Actuator Motor 50-800Mm Stroke for Automation Equipment
1×Linear Actuator Motor

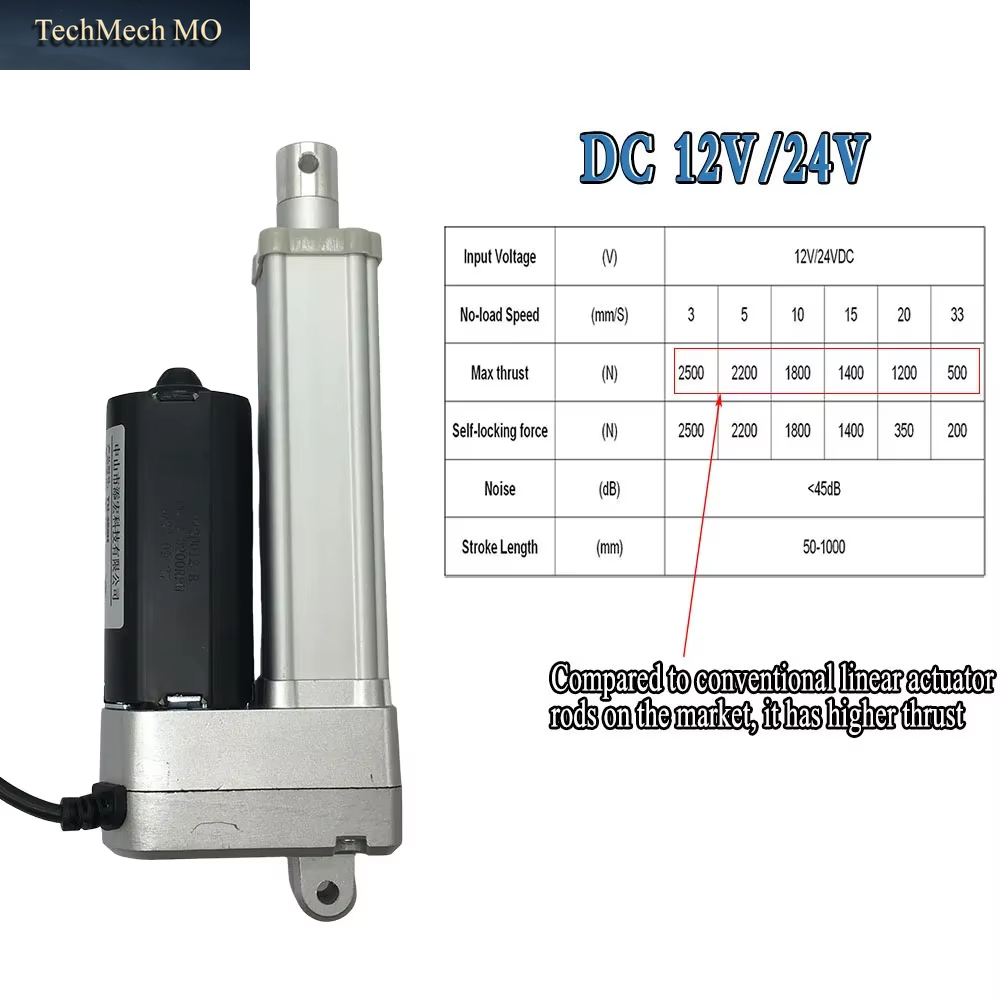

Technical Parameters:

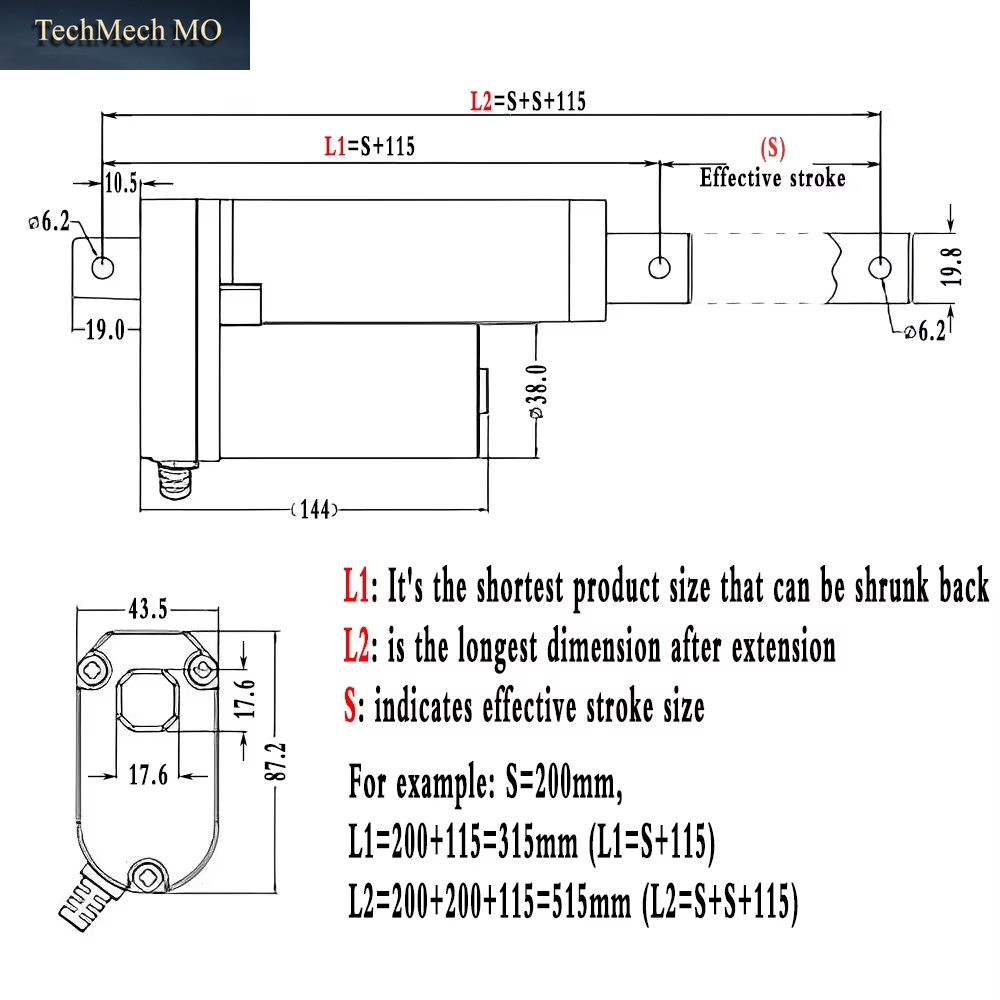

Stroke: 50mm-800mm
Permanent magnet DC motor drive;
Voltage: 12V,24V
Standard protection grade: IP54

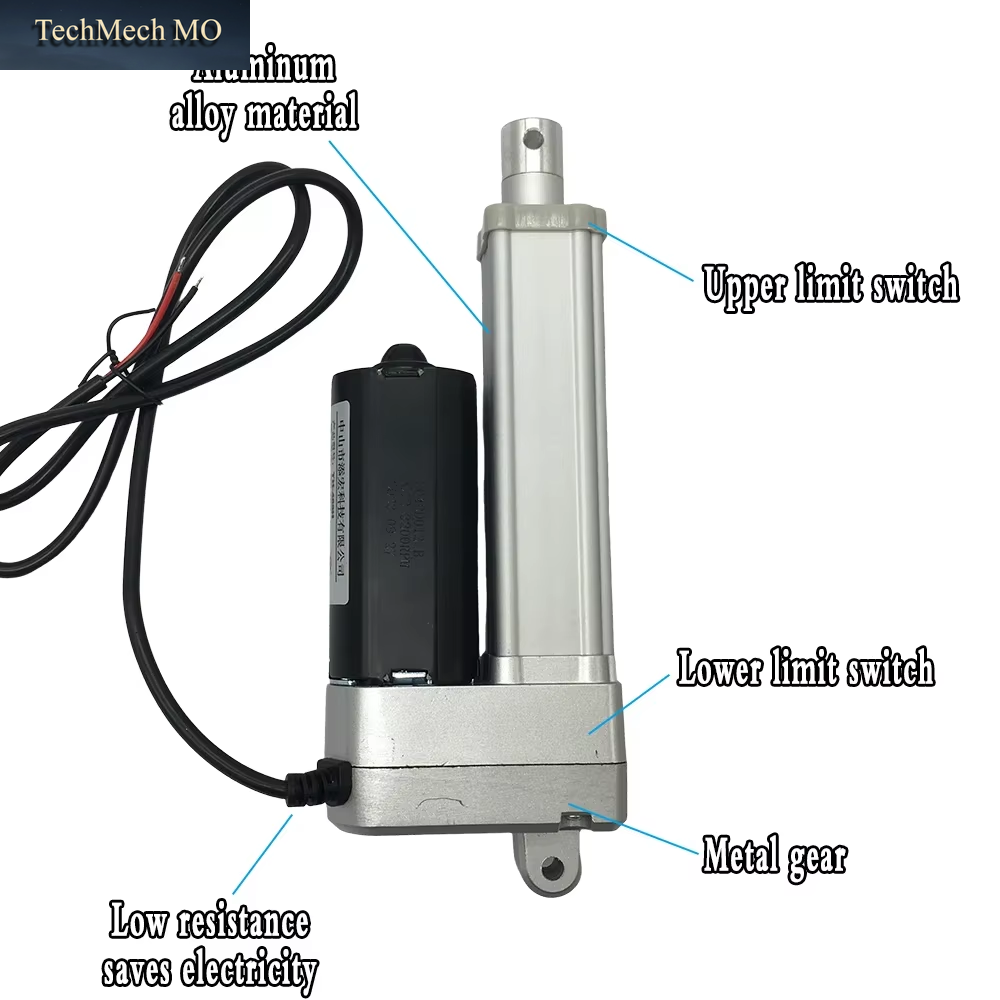

Material: aluminum alloy
Ambient temperature -20°C to +75°C.
Low noise design, noise level less than 45dB.
Working principle: The expansion of the product is controlled by the positive and negative poles of the motor (i.e. positive pole is extended or negative pole is shrunk), and the direction of expansion can be changed when switching between positive and negative wiring.
Product Applications:
TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Additional information
| Color | 150Mm Stroke, 300Mm Stroke, 800Mm Stroke, 100Mm Stroke, 450Mm Stroke, 350Mm Stroke, 700Mm Stroke, 400Mm Stroke, 250Mm Stroke, 600Mm Stroke, 650Mm Stroke, 550Mm Stroke, 50Mm Stroke, 500Mm Stroke, 200Mm Stroke, 750Mm Stroke |
|---|---|
| Dimensions | 24V, 12V |
| Set Type | 500N 33Mm-S, 2500N 3Mm-S, 1400N 15Mm-S, 1200N 20Mm-S, 2200N 5Mm-S, 1800N 10Mm-S |
