Luftpneumatikanschlüsse PU PV PY PE PM PZA PK SA 4Mm 6Mm 8Mm 10Mm 12Mm Kunststoffanschluss Schlauch Schnellkupplungen Rohrverbinder
Roll over image to zoom in

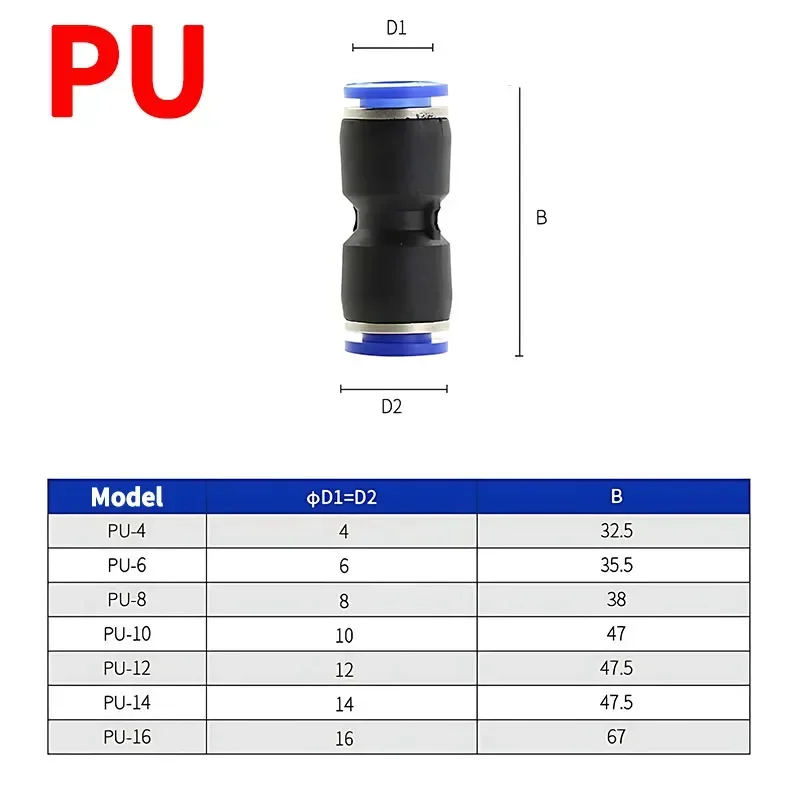

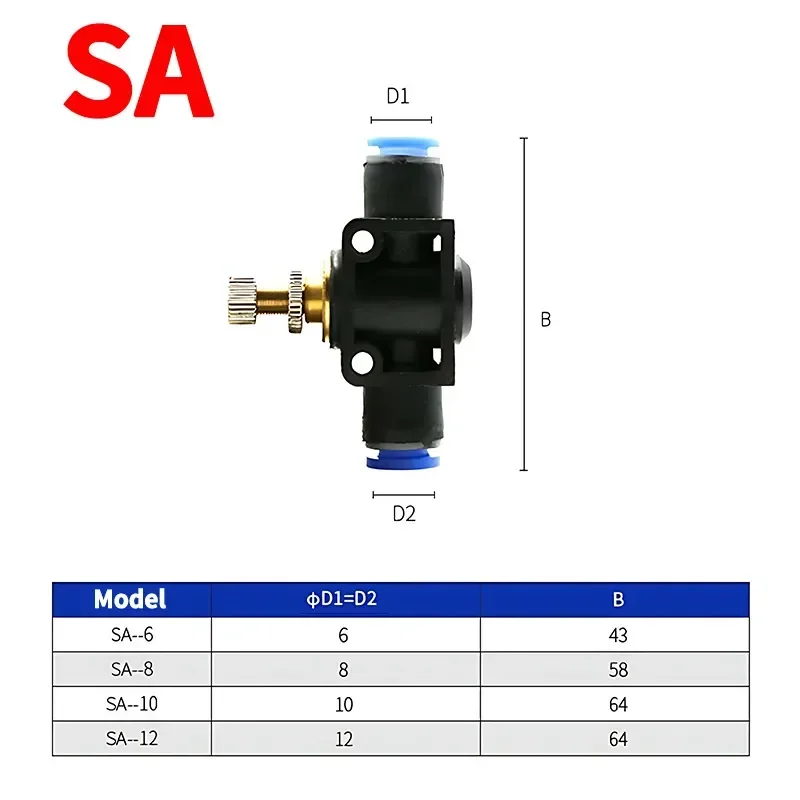

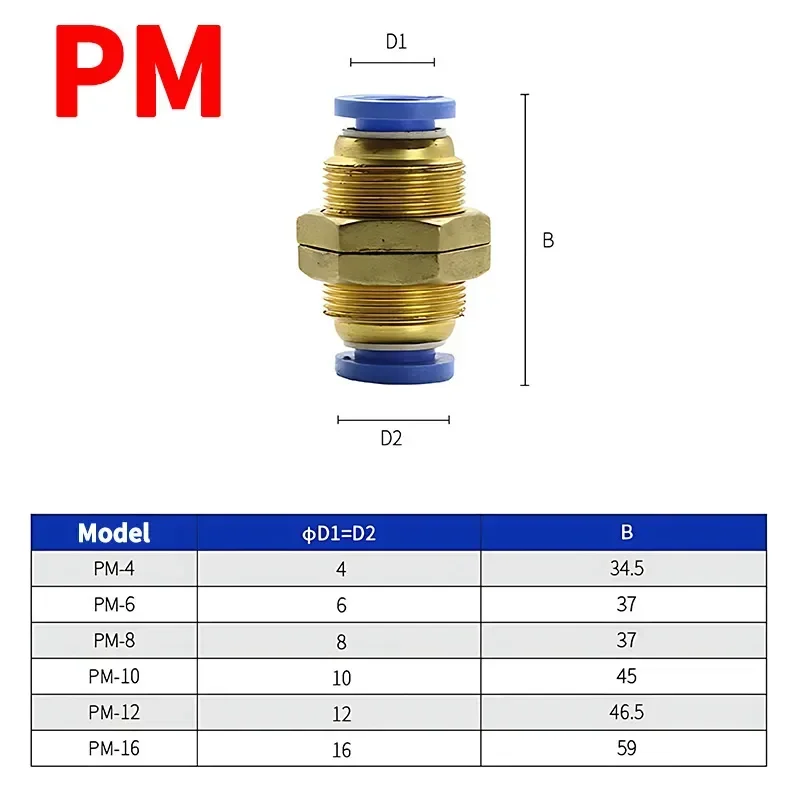

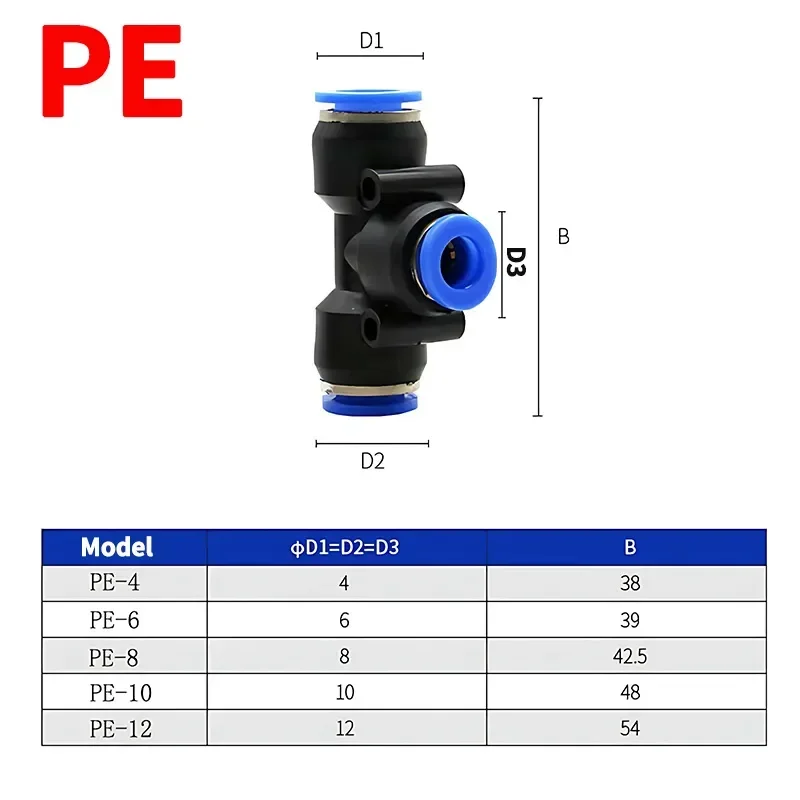

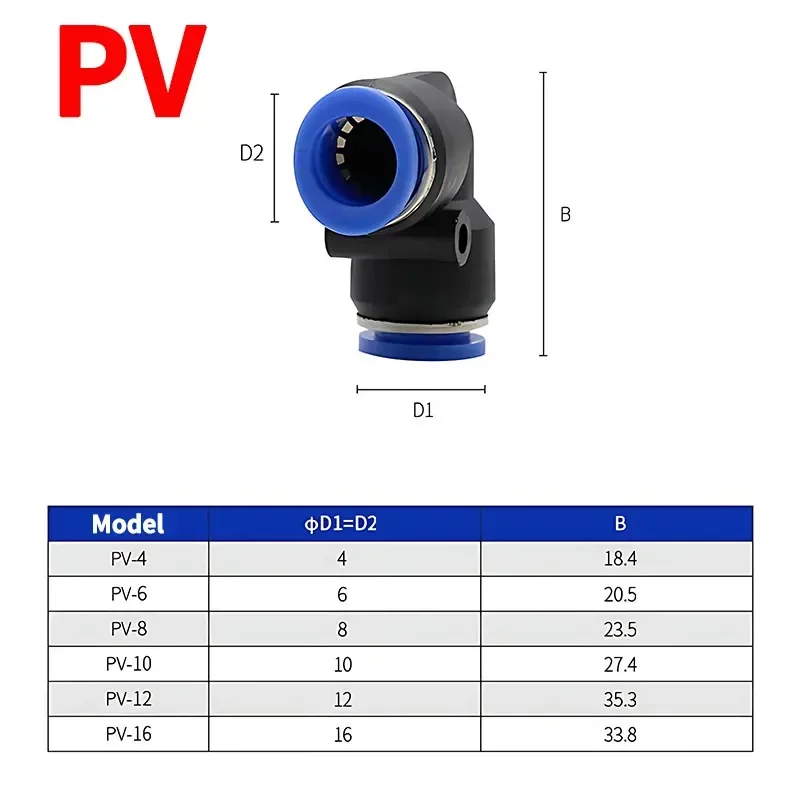

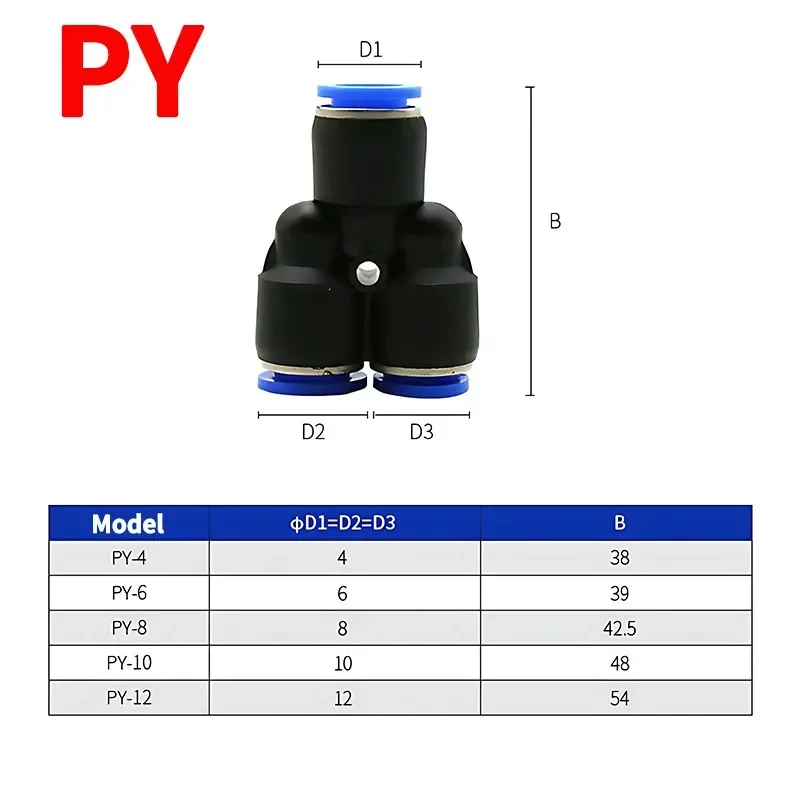

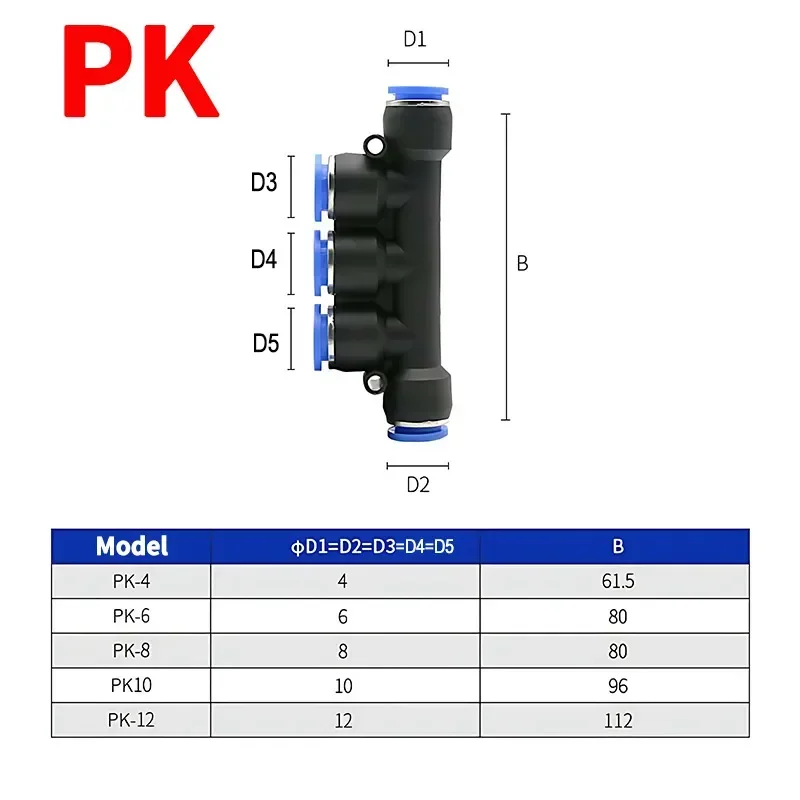

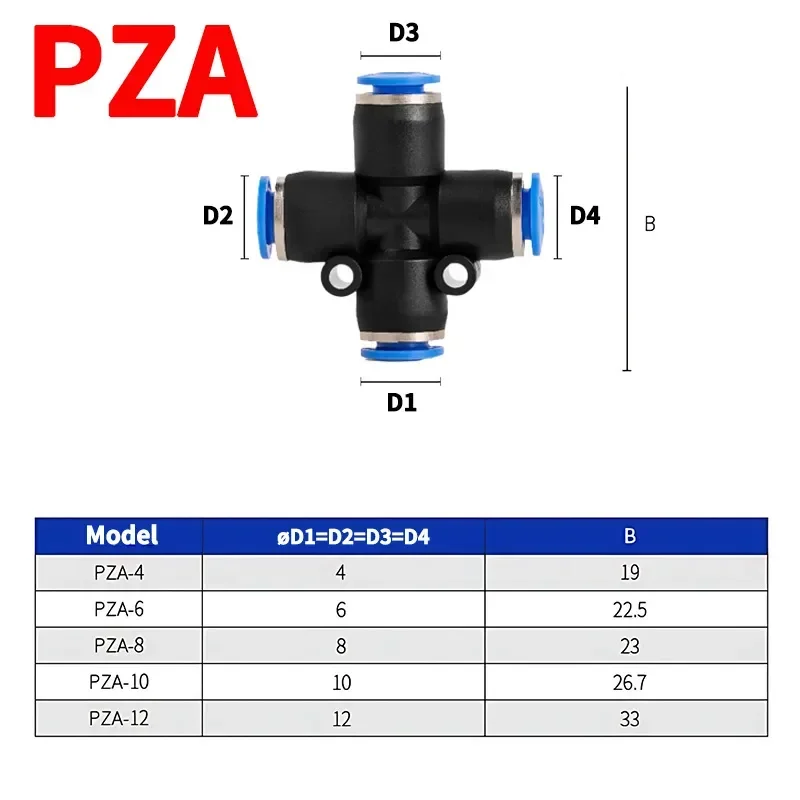

Specification:
Type:Hose to Hose
Connector Type: 4mm,6mm,8mm 10mm,12mm,14mm 16mm OD Hose
Design:Straight，Y Shape ,3 Ways
Fluid Type:Air / Vacuum
Operating Pressure: 0~10.2kgf/cm2 (0~1.0Mpa)
Negative Pressure: -750mmhg (10 Torr)
Operating Temperature Range:0~60C
Fit For Tube Material: PU / Nylon ,Polyurethane
Quick Fitting Material:Plastic
Quick Fitting Color: Black , Blue
Additional information
| Farbe | Pv, Py, Pk, Pza, Pm, Pv (Stainless Steel), Pu (Stainless Steel), Py (Stainless Steel), Pe, Sa, Pu, Pe (Stainless Steel) |
|---|---|
| Pins | Od 12Mm, Od 10Mm, Od 4Mm, Od 8Mm, Od 6Mm |
| Packungsmenge | 100 Pcs, 50 Pcs, 10 Pcs, 500 Pcs |
