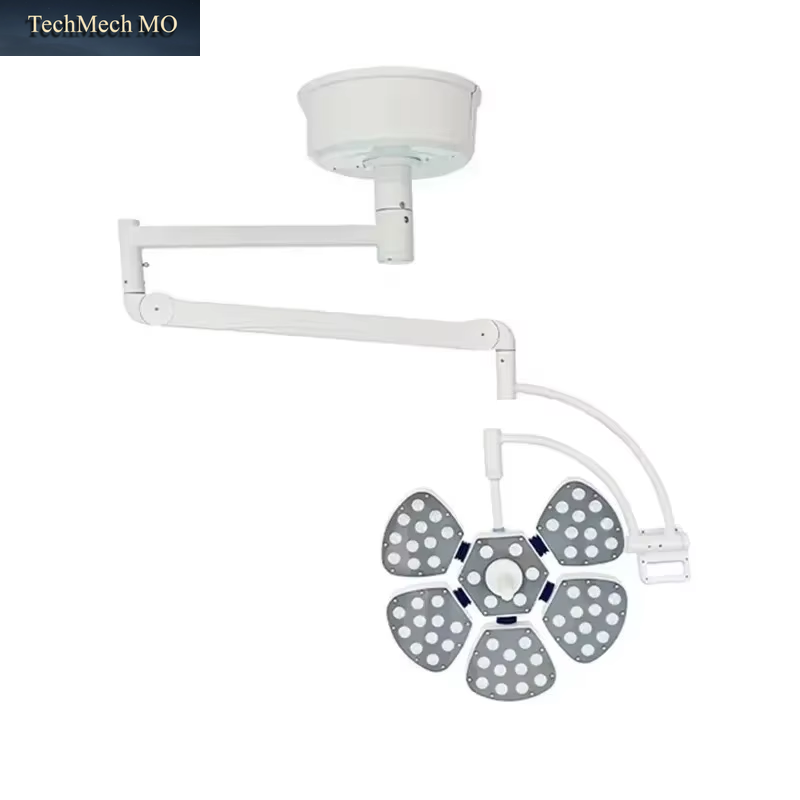

Medical Equipment Surgery Lamps Shadowless Wall Mounted Single Arms Operating Light Lamp OT Lights

Adjustment Performance

Modern LED surgical shadowless lamps usually have a variety of beam modes and brightness adjustment options, which can adjust the intensity and direction of lighting according to the needs of the operation to ensure the best visual effect during the operation.

Shadowless Technology

The professional shadowless lamp design can effectively reduce the shadows and glare in the surgical area, allowing doctors to observe and operate accurately during the operation, improving the success rate and safety of the operation

Product advantages and features:

1.Specification model: HNLED7

2.Illumination: 40000-160000LUX

3.Color temperature: 3000K~6700K (adjustable);

4.Spot diameter: 100-300 mm;

5.Illumination depth: 1000mm;

6.Brightness level dimming: 1-100% (stepless dimming);

7.Color rendering index: ≥85–98% (adjustable);

8.Power supply voltage: 220V±22V, 50Hz±1Hz;

9.Input power: 440W;

10.Minimum installation height: 2800mm~3100mm

11.LED lamp head LED lamp bead quantity: 5 petal lamp head ≥ 61.

12.LED light group life: ≥100000H

13.LED light group brand: imported Osram

14.Lamp body diameter: 5 petal lamp head ≥650mm.

(1) Excellent cold light effect: A new type of LED cold light source is used as the surgical lighting, which is a real cold light source, and there is almost no temperature rise in the doctor’s head and wound area.

(2) Good light quality: White LEDs have chromaticity characteristics that are different from shadowless light sources used in ordinary operations. They can increase the color difference between blood and other tissues and organs of the human body, making the doctor’s vision clearer during the operation. It is easier to distinguish the various tissues and organs of the human body in the human body, which is not available in the shadowless lamp for general surgery.

(3) Stepless adjustment of brightness: The brightness of the LED is adjusted steplessly by digital means, and the operator can adjust the brightness at will according to his own adaptability to the brightness, so as to achieve the ideal comfort level, so that the eyes are not easy to feel tired after working for a long time .

(4) No flicker: Because the LED shadowless lamp is powered by pure DC, there is no flicker, it is not easy to cause eye fatigue and will not cause harmonic interference to other equipment in the working area.

(5) Uniform illuminance: Using a special optical system, 360°uniform illumination on the observed object, no ghost image, high definition.

(6) Long lifespan: LED shadowless lamps have a long average lifespan (80 000 h), much longer than ring-shaped energy-saving lamps (1 500-2500 h), and their lifespan is more than ten times that of energy-saving lamps.

(7) Energy saving and environmental protection: LED has high luminous efficiency,
impact resistance, not easy to break, no mercury pollution, and the light it emits does not contain radiation pollution of infrared and ultraviolet components.
