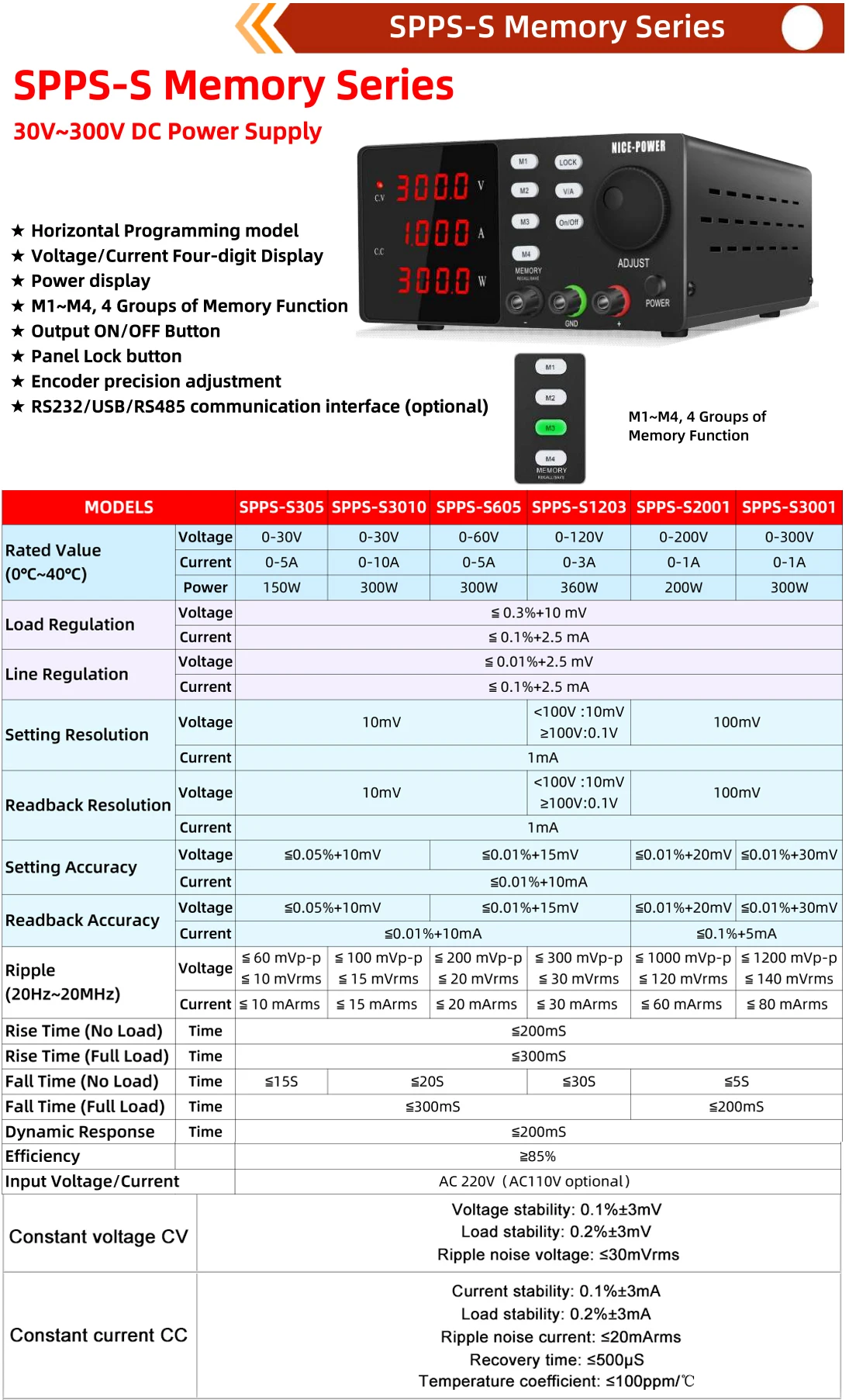

Nice-Power SPPS-S-R Series Programmable DC Adjustable Laboratory Power Supply features 4 groups of memory storage, a LOCK key, an independent OUTPUT switch, and a grounding terminal. With ultra-high precision and excellent stability, it is ideal for PCB and electronic component testing.

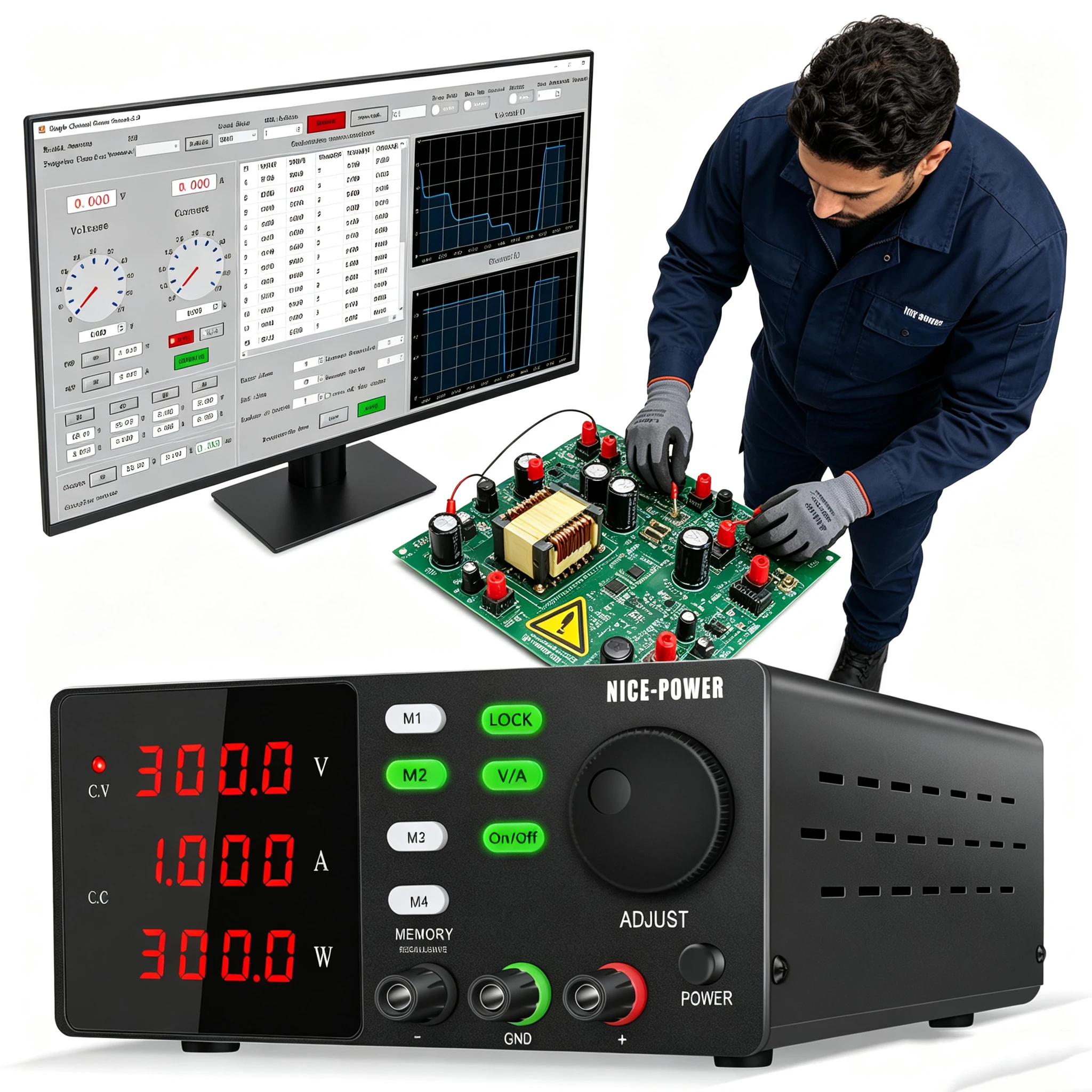

Equipped with professional PC software, it supports communication via RS232, RS485, and USB interfaces. The software provides real-time output curve monitoring, programmable voltage and current cycling output by time sequence, graph display, and data storage functions, making it suitable for electronic R&D, laboratory testing, product development, and automated test applications.

✅Control Panel

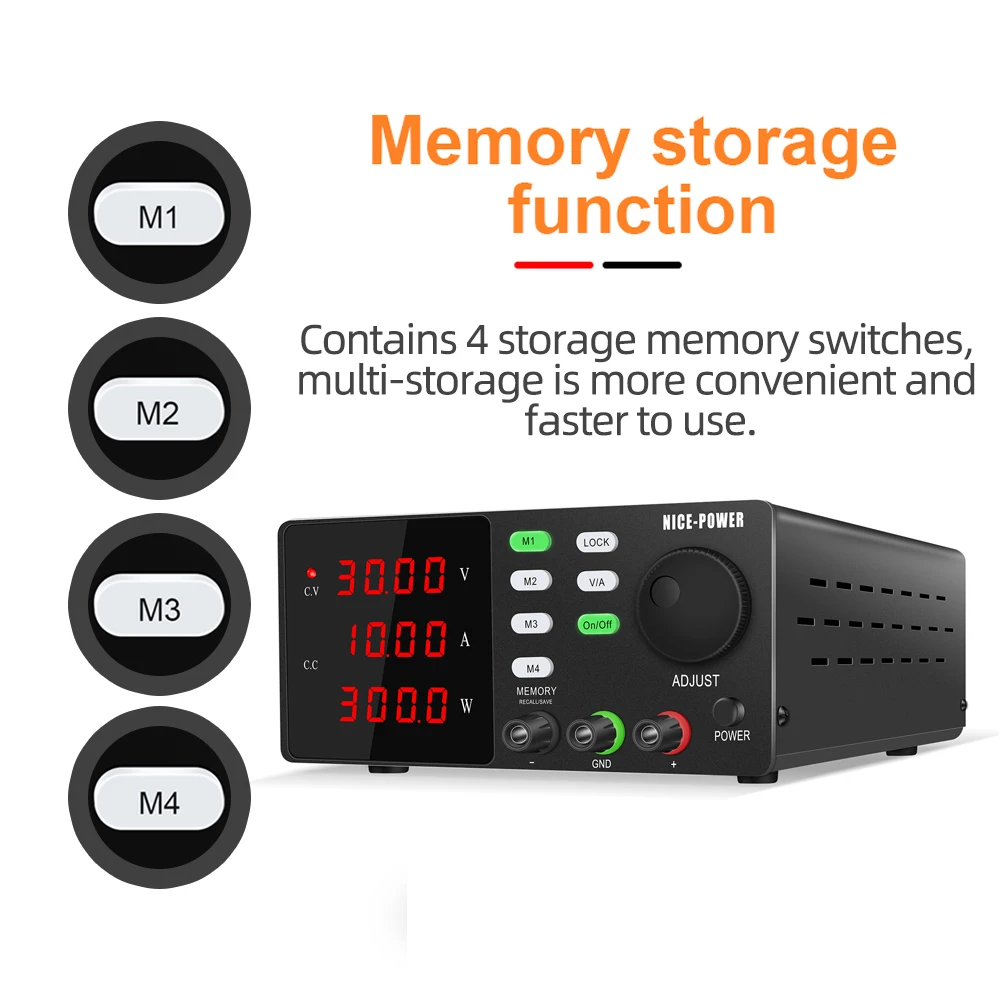

✅ Upgraded 4-Group Intelligent Parameter Storage, Equipped with M1/M2/M3/M4 Quick Access Buttons

This newly upgraded adjustable switching power supply features an 4-group intelligent parameter memory function with dedicated physical shortcut buttons M1, M2, M3 and M4, which greatly optimizes your testing and electronic maintenance workflow.
You can pre-save all your frequently-used test parameters in advance. When switching different repair projects or experimental schemes, simply press the matching memory button to instantly recall your saved voltage and current values, completely getting rid of the tedious repeated knob adjustment every time.
This function is ideal for electronic repair stores, university laboratory research and production line aging testing, effectively cutting redundant operation steps and greatly improving your work efficiency.

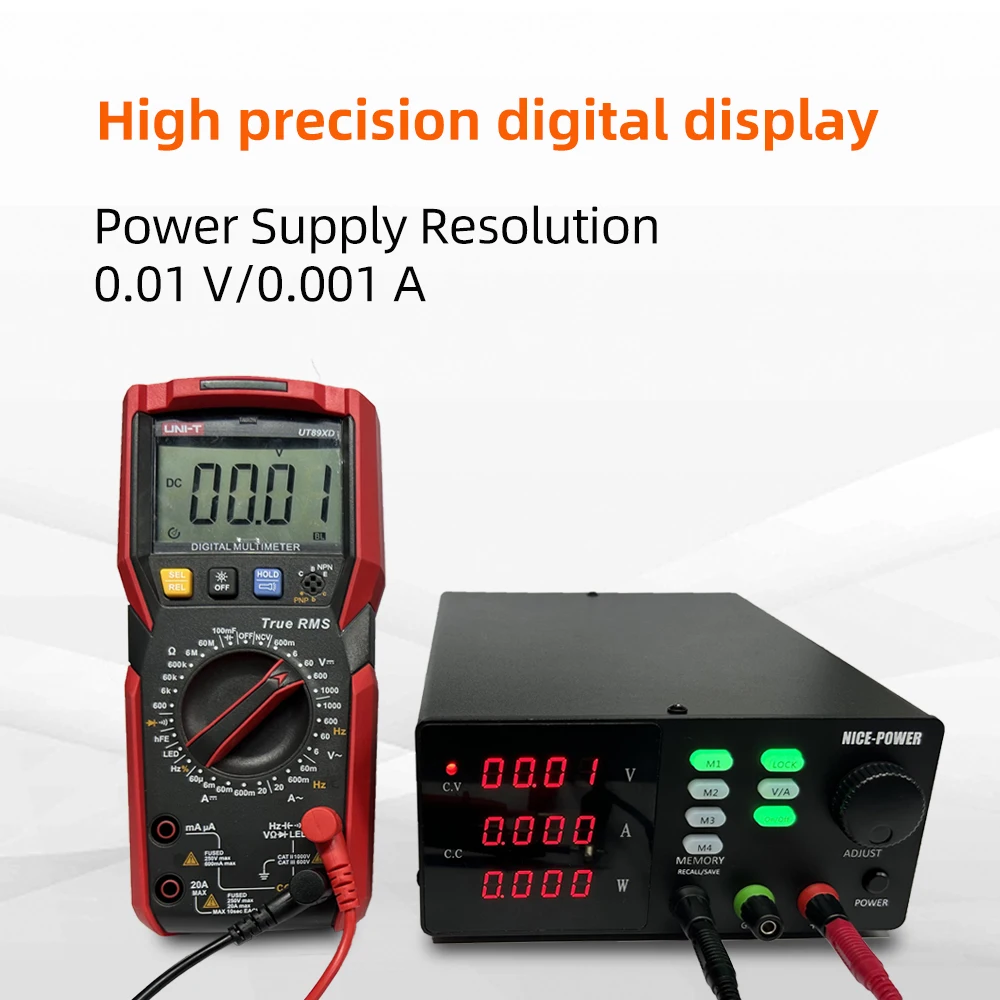

✅4-Digit High Precision LED Display, 0.01V Voltage / 0.001A Current Ultra-Fine Resolution, Multimeter Verified True Output Value

This dual-channel adjustable switching DC power supply delivers ultra-accurate output performance built for precision electronics work, equipped with high-definition 4-digit LED displays for each independent channel. It reaches an ultra-fine resolution of 0.01V (10mV) for voltage, 0.001A (1mA) for current, allowing you to tweak tiny voltage and current values with extreme subtlety.
As verified by professional digital multimeters, the real output value is highly consistent with the screen reading without virtual labeling. Whether you’re repairing delicate mobile phone motherboards, debugging sensitive sensors, conducting analog circuit lab experiments or running precise component aging tests, this high-precision power supply eliminates numerical errors effectively, preventing expensive precision chips and electronic parts from being damaged by inaccurate power supply parameters.

✅Output Switch

The DC power supply is equipped with an output switch, you can set the voltage/current value you need first, and then turn on the output switch, then the DC power supply will have output voltage/current.
The output switch prevents the connected load from being damaged.

✅Operation Instructions for Connecting the Power Supply to Upper Computer Software

1, Connect the power cord of the device properly. Connect the power supply and your computer with any one of the communication cables (USB / RS232 / RS485), and ensure a stable connection.
2, Launch the upper computer software.
3, Refresh the COM port list and select the correct COM port number (connection failure will occur if the port number is selected incorrectly). You can check the COM port number via: This PC → Manage → Device Manager → Ports (COM and LPT), as shown in the figure on the right.
4, Set the baud rate to 9600, then select the RS485 address (the address must match the address set on the power supply; press and hold the VOLTAGE button on the power supply for about 5 seconds to view and modify the address).
5, Click the Connect button with your mouse. After a successful connection, the button will turn red, the power supply will switch to Remote Mode, and all physical buttons on the device will be locked and unavailable.
6, If the connection fails, double-check whether the COM port, RS485 address and baud rate are correctly set. If you are using an RS485 cable, verify that the A / B / GND wiring terminals are wired correctly.
7, If the software fails to identify the power supply model after clicking Connect, follow the pop-up prompt and click Yes, then select your corresponding device model from the model drop-down menu.
8, Once communication is established normally, you can remotely control all functions of the power supply through the software.
9, To switch back to Local Mode for physical button operation, click Disconnect or power the unit off and restart it.
(If the power output is active when you click Disconnect, the power supply will retain its output state after switching to Local Mode.)
(If the power output is active under Local Mode when you re-establish a software connection, the upper computer will automatically send an output shutdown command to cut off the power output.)
