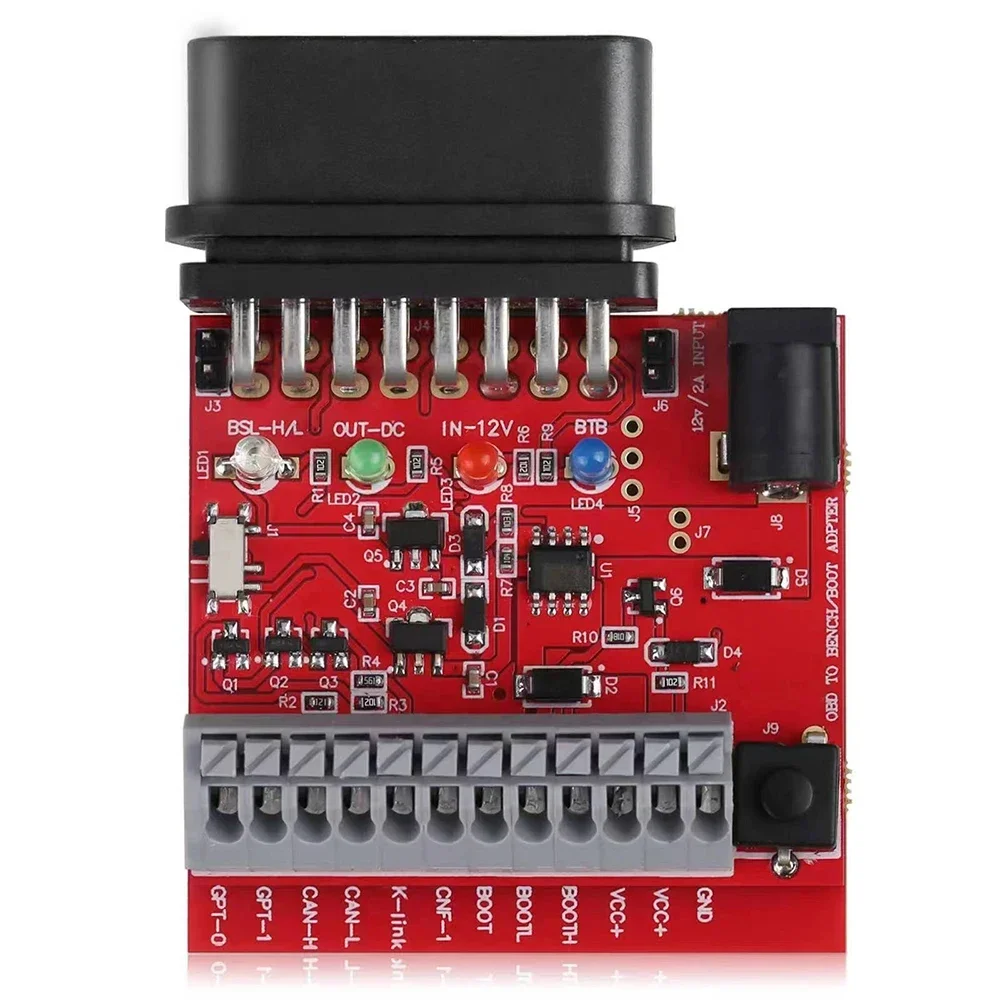

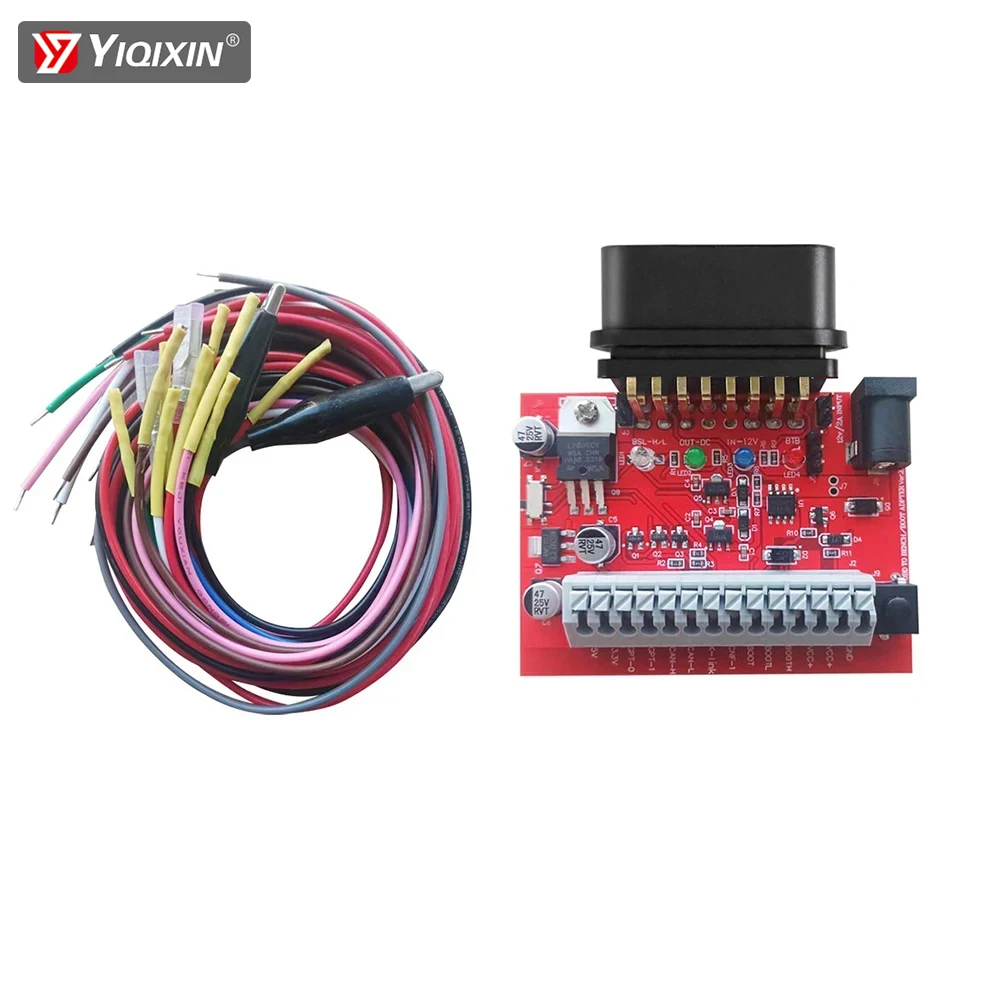

OTB 2.0 Adapter ECU Programmer Tool for KT200 KT200II Foxprog Tag Fox-Flash OBD on Bench Adapter 3 Way BOOT Upgrade to OTB Mode

OTB 2.0 Adapter ECU Programmer Tool For KT200 KT200II Foxprog Tag FOX-Flash OBD On Bench Adapter 3 Way BOOT Upgrade to OTB Mode

For DFOX programmer. Don’t need to connect with bench box.

Product Description:

OTB2.0 adapter is suitable for KT200 / KT200II extended application engine and transmission computers, and is also suitable for ACM and DCM computer modules. Ensure that KT200 / KT200II can be expanded to the OTB mode of BENCH PLUS in any OBD working mode.

OTB Adapter Design Purpose:

1. Ensure that KT200 / KT200II Foxprog can be expanded to the OTB mode of BENCH PLUS in any OBD working mode.

2. Achieve high-speed reading and writing.

3. Ensure communication security and prevent the possibility of ECU brick due to voltage instability.

4. OTB reading and writing in OBD offline mode.

5. ECM, TCM, ACM, DCM direct desktop mode reading and writing.

6. Add external power supply for ECU / TCU, you need not use excess stabilized power supply to do it.

OTB Adapter Supported Functions:

1: Dual-channel high-speed CAN

2: Three-way BOOT

3: Dual VCC power supply

4: GPT encryption and decryption function

5: Adaptive resistance

6: Adaptive CNF signal adjustment

7: Improve the reading and writing speed of some OBD drivers

8: A 3.3v power output port

9: A 5v power output port
