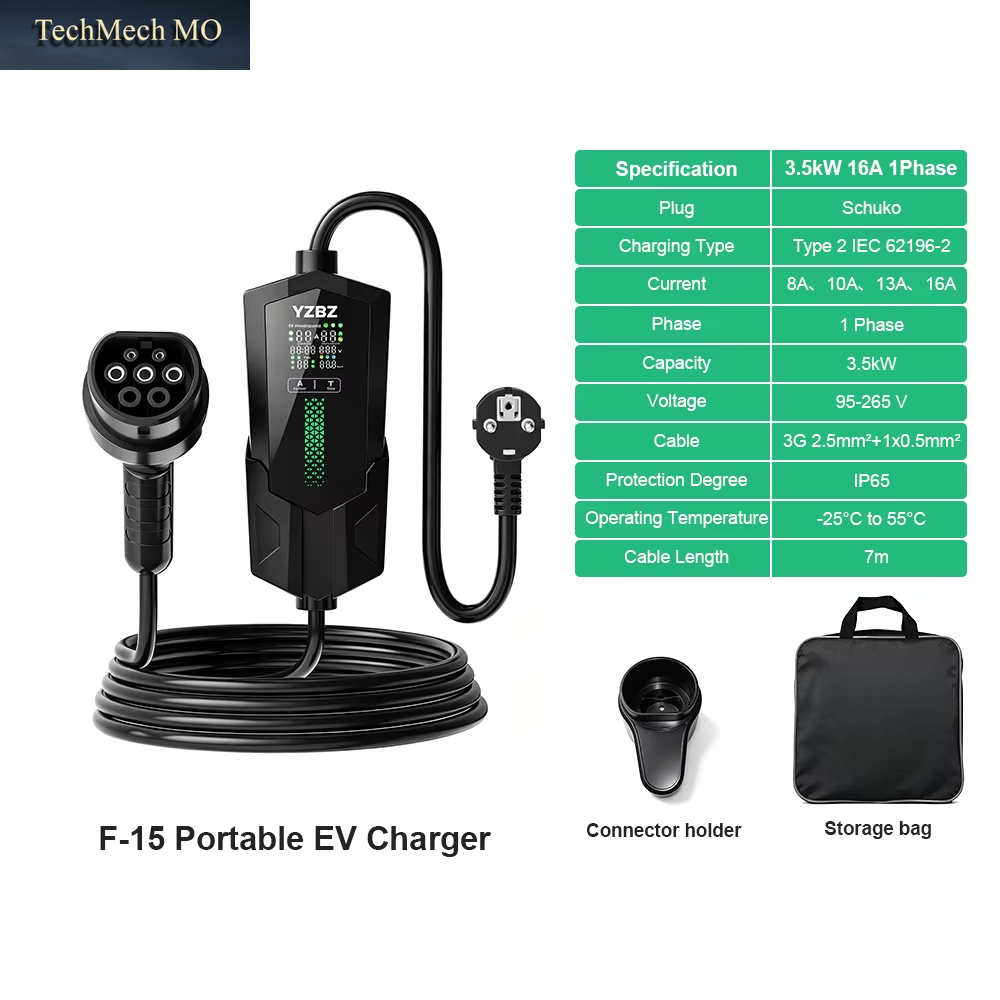

Portable EV Charger Type 2 3.5Kw 16A, 5M Charging Cable with Schuko Plug, Adjustable Current, Timer, 4 Charging Modes, F15

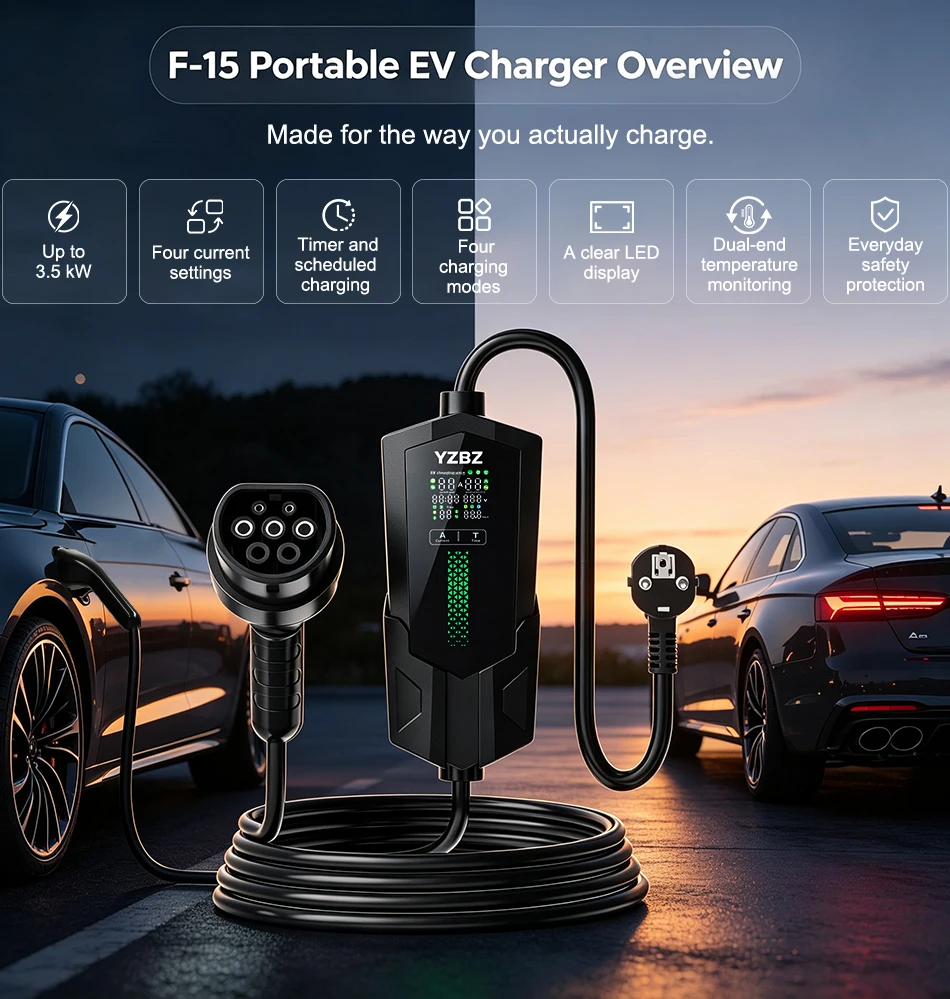

PORTABLE TYPE 2 MODE 2 CHARGER

Designed for electric vehicles and plug-in hybrids with a Type 2 / IEC 62196-2 AC inlet. Connects to a compatible grounded EU Schuko outlet for portable home, workplace or travel charging.

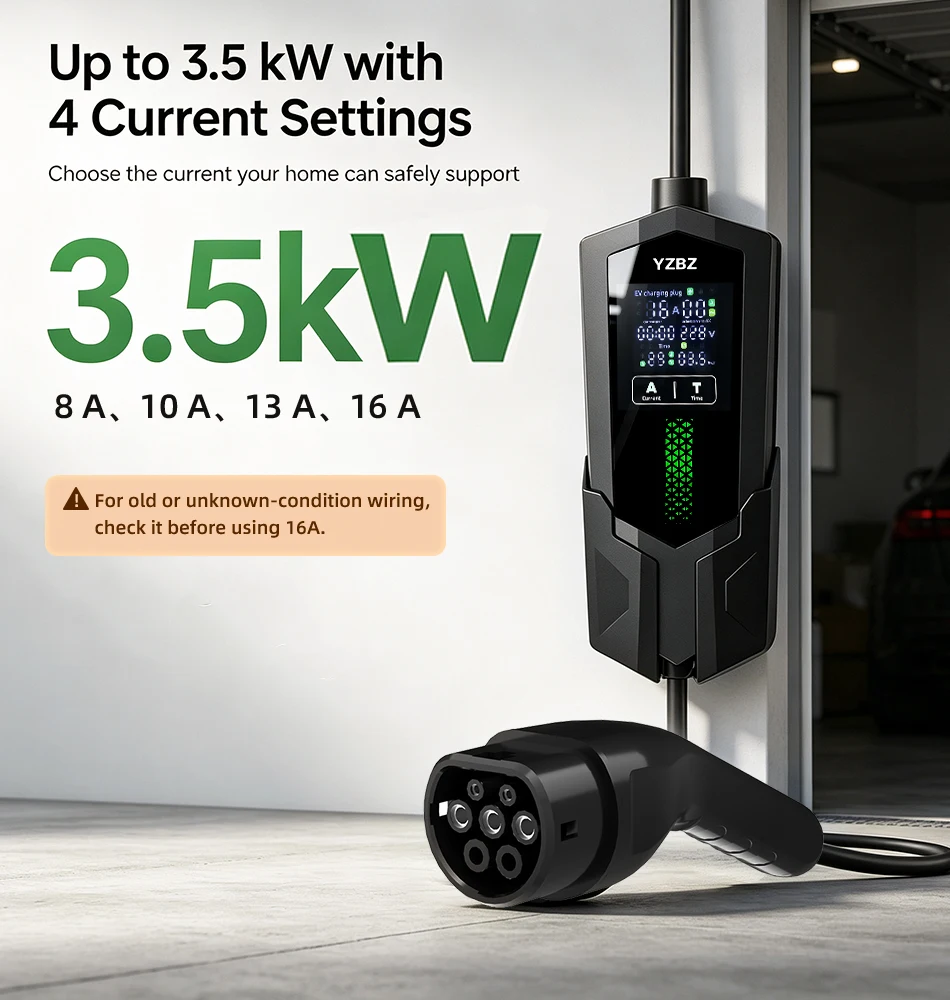

UP TO 3.5 KW · FOUR CURRENT SETTINGS

Select 8 A, 10 A, 13 A or 16 A according to the condition and continuous-current capacity of the outlet and circuit. Actual charging power depends on voltage and the vehicle’s onboard charger.

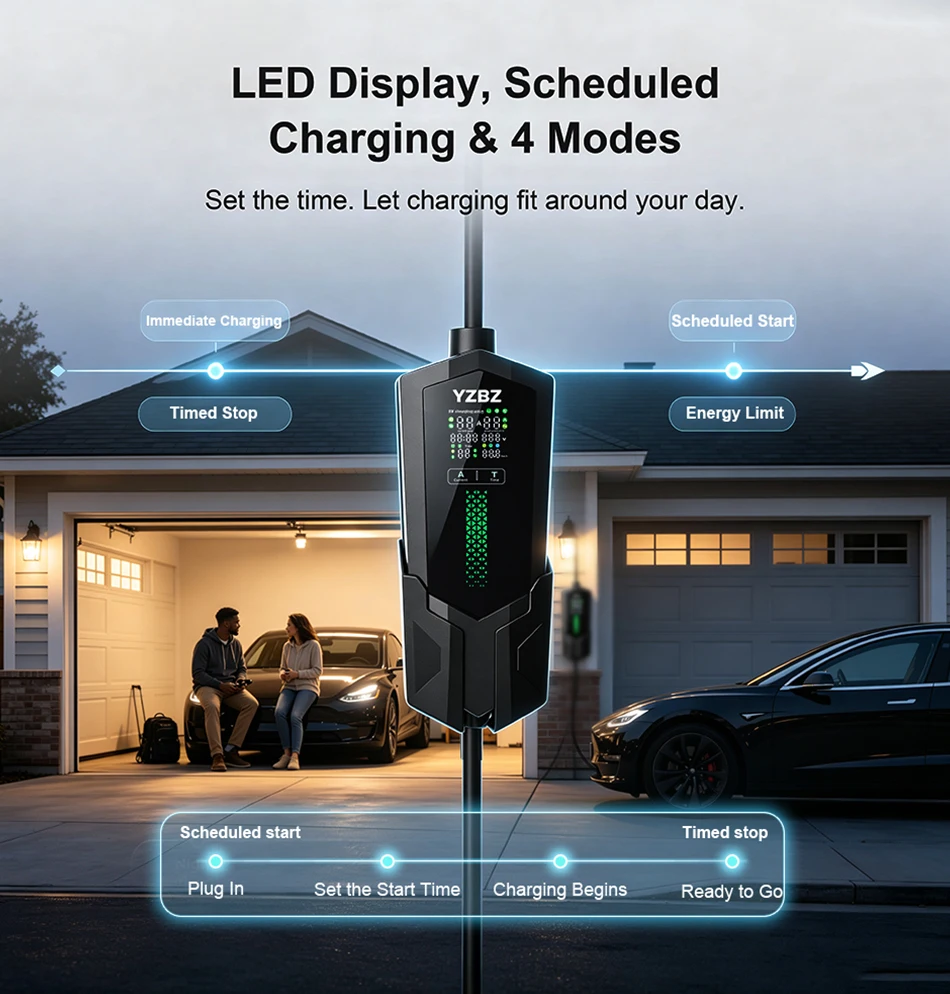

FOUR CHARGING MODES

Choose immediate charging, scheduled start, timed stop or an energy limit. Start and stop timing can be set from 0–12 hours in 30-minute steps, while the energy limit can be set from 0–99 kWh.

PLUG & CONTROL BOX TEMPERATURE PROTECTION

Temperature monitoring at the input plug and control box helps reduce plug and socket overheating risk. Above 70°C the charger reduces current; at 80°C it stops; at 70°C or below it can resume when conditions are safe.

CLEAR LED CHARGING INFORMATION

The LED screen presents charging status and key operating information such as current, voltage, charging time, energy and temperature, while the RGB indicator helps show the working condition.

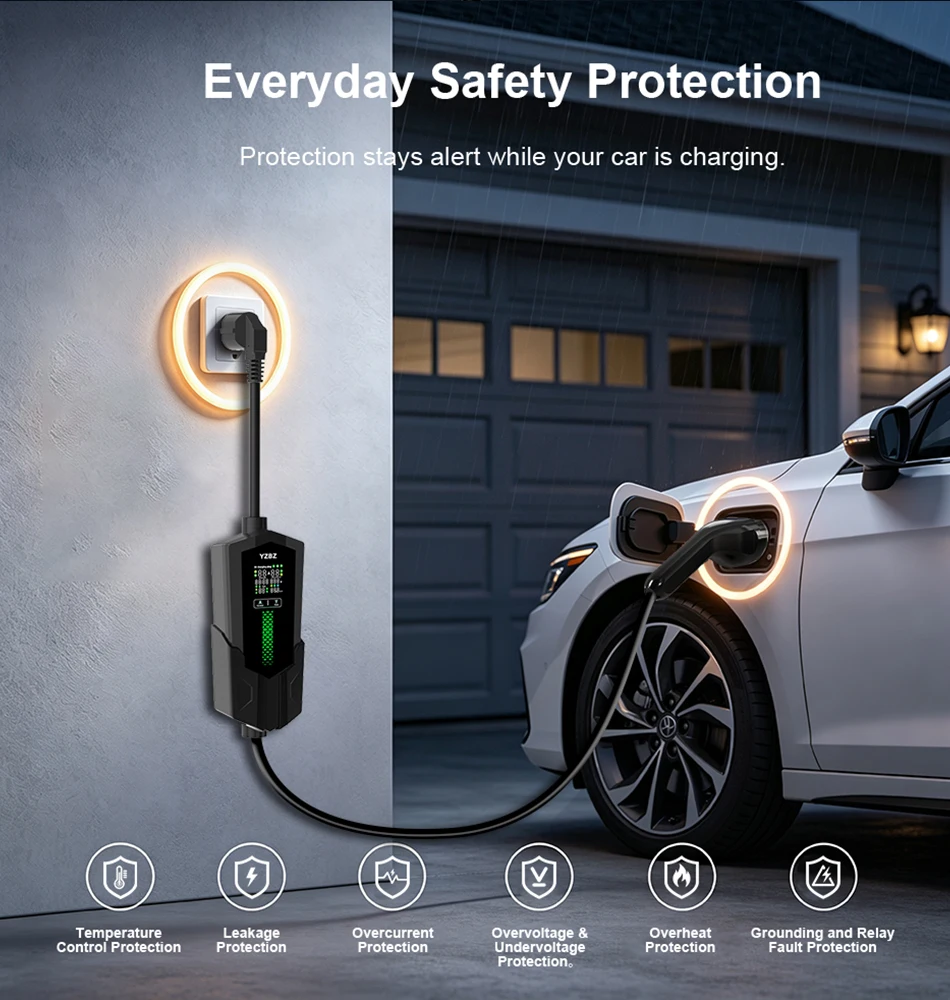

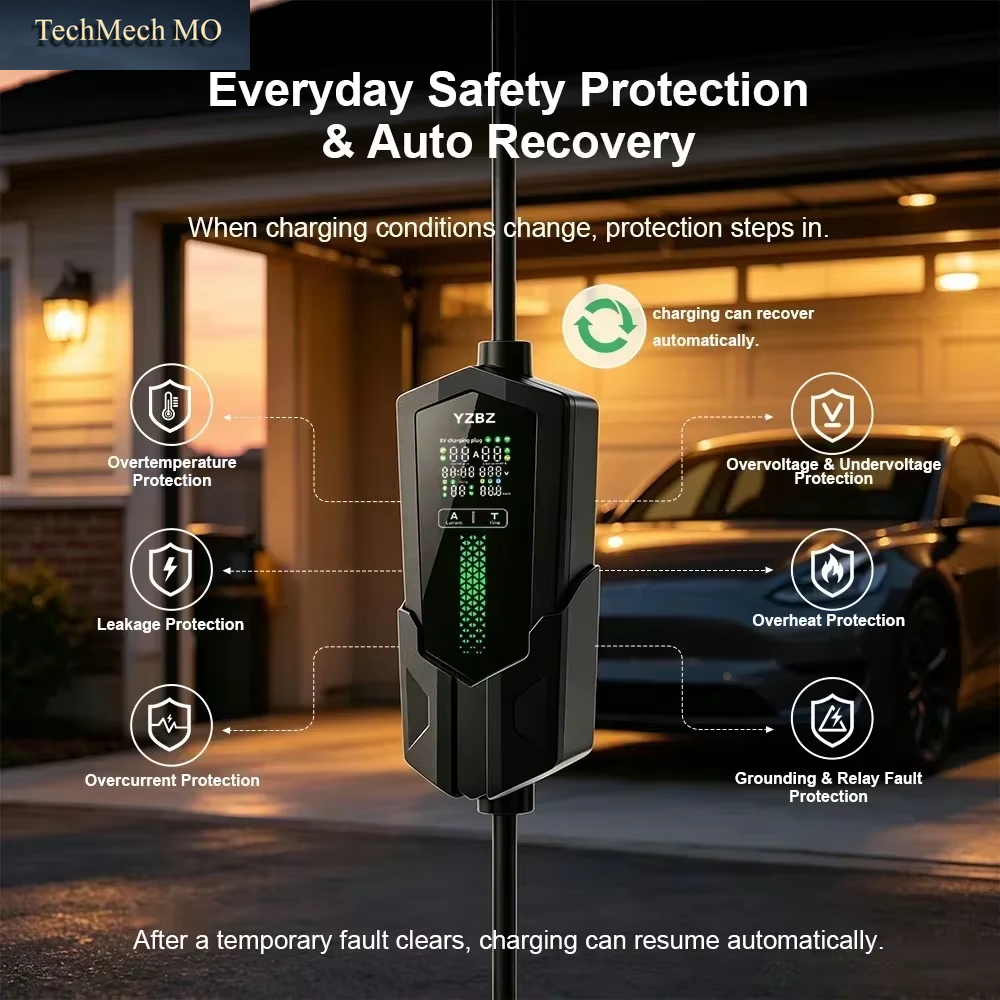

MULTIPLE ELECTRICAL PROTECTIONS

30 mA AC + 6 mA DC residual-current protection, plus overcurrent, over/undervoltage, overtemperature, grounding and relay-fault protection for everyday charging.

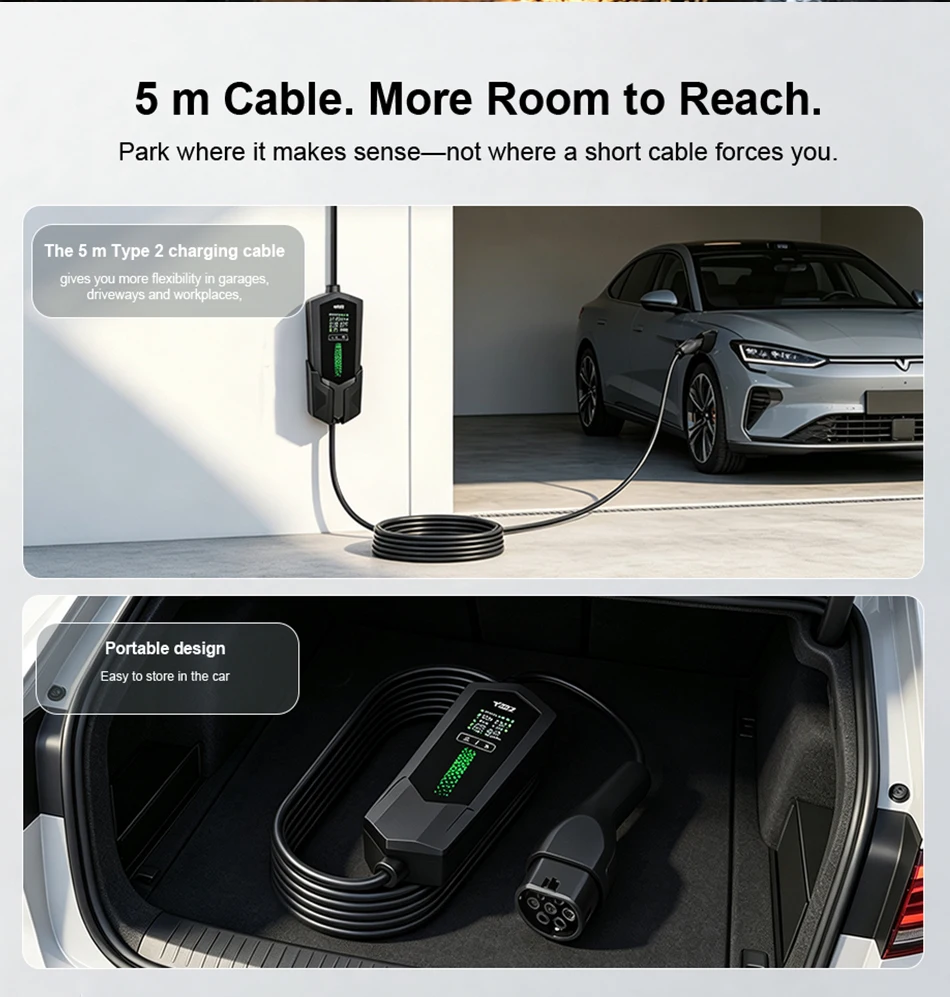

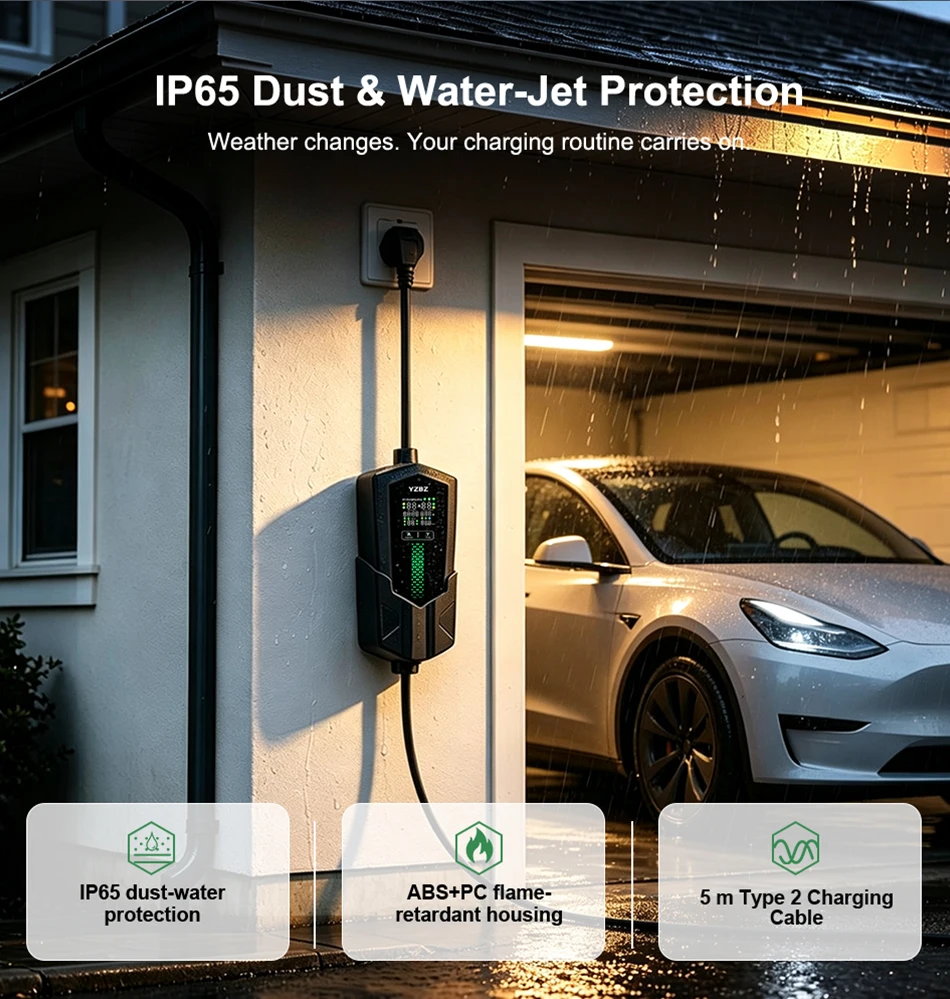

IP65 CONSTRUCTION · 5 M TOTAL CABLE

IP65 dust and water-jet protection, ABS+PC UL94-V0 flame-retardant housing and a 5 m total cable provide practical reach in garages, driveways and workplaces. Not for immersion.

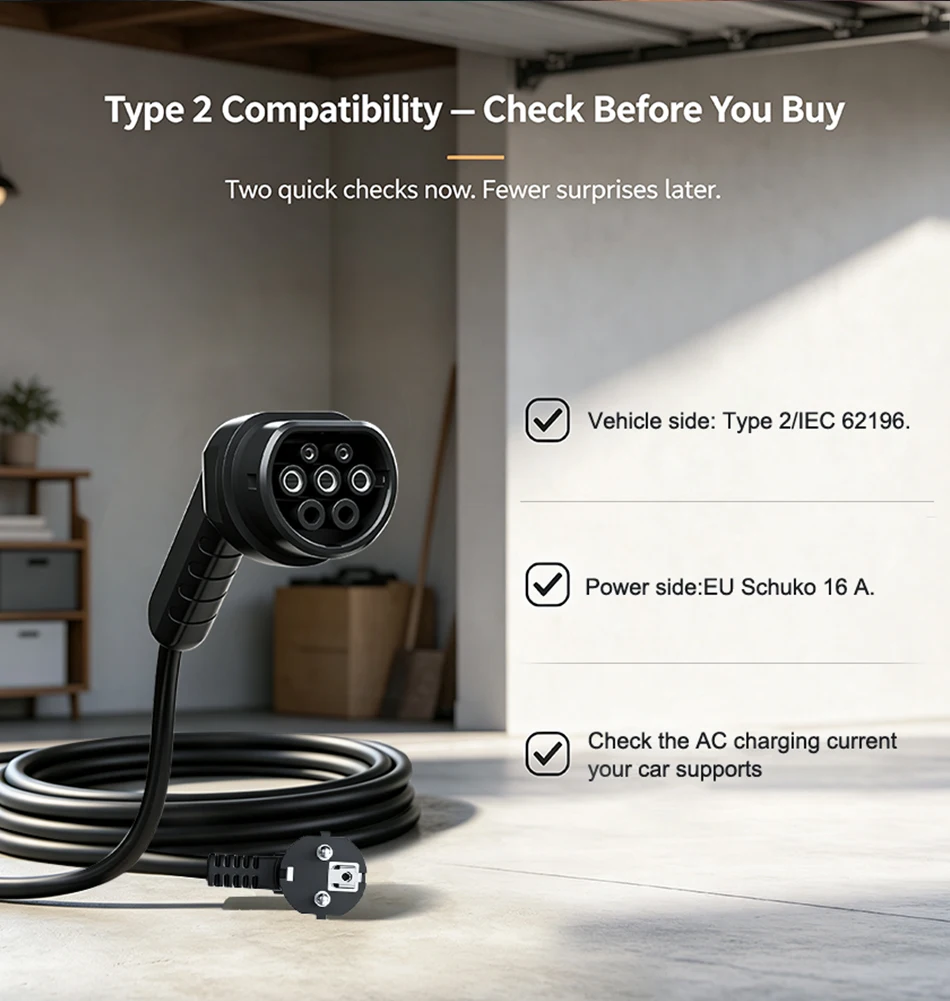

CHECK COMPATIBILITY BEFORE ORDERING

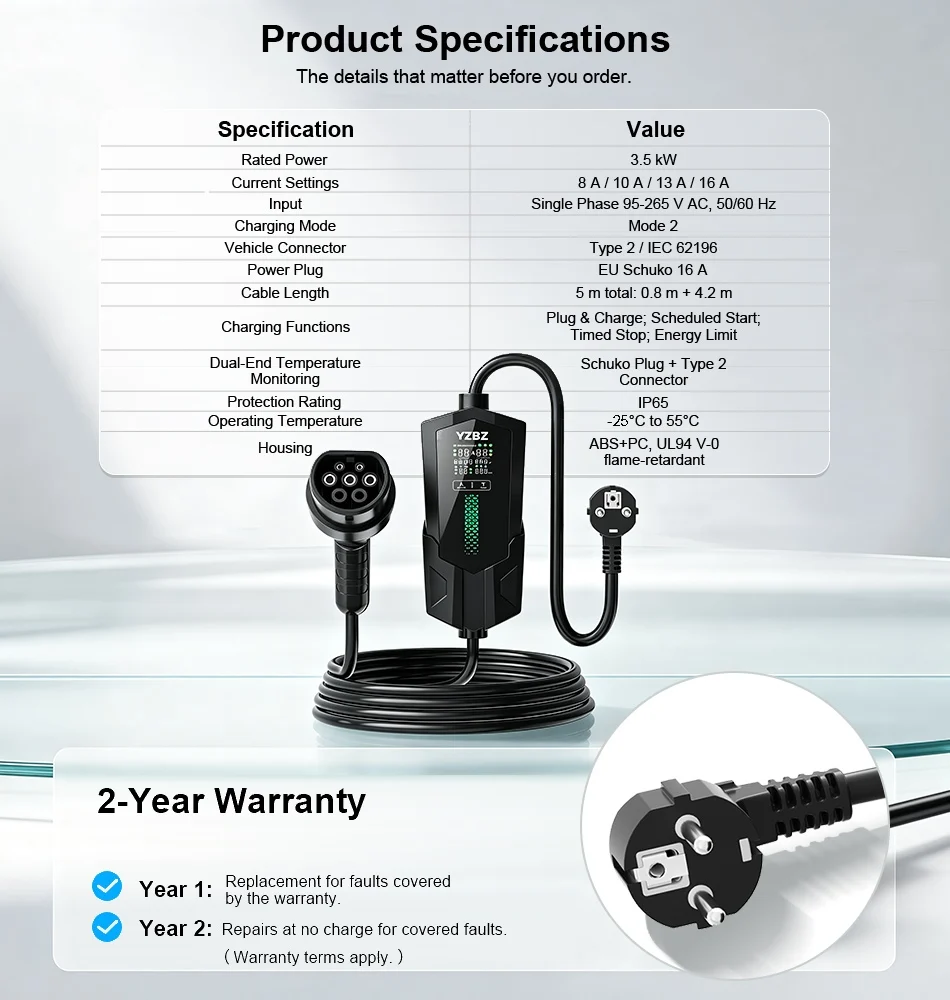

Vehicle side: Type 2 / IEC 62196-2. Power side: compatible grounded EU Schuko 16 A outlet. Confirm the vehicle inlet, outlet grounding and circuit capacity before ordering.
