PSVANE Complete Replica WE101D Vacuum Tube Replaces Shuguang Fullmusic 101D Electronic Tube Original Factory Precise Matching

Thank you for visiting our shop.

I wish you a happy life.

WE101D WE101D-L PSVANE Vacuum tube complete reproduction of the 1940s Western Electronics 101D

Regarding matching:

all our tubes are matched in the factory production workshop. The match is accurate (not all tubes are matched). We have the conditions and advantages to match multiple tubes (four, eight, ten) according to customer needs. The parameters are the same)

Buy 2 pieces, 4 pieces, 8 pieces = exact matching (matching group). No parameter drift.

Note:(After receiving the tube, please do not think it is a fake or shoddy product). The quality is guaranteed for 15 months.

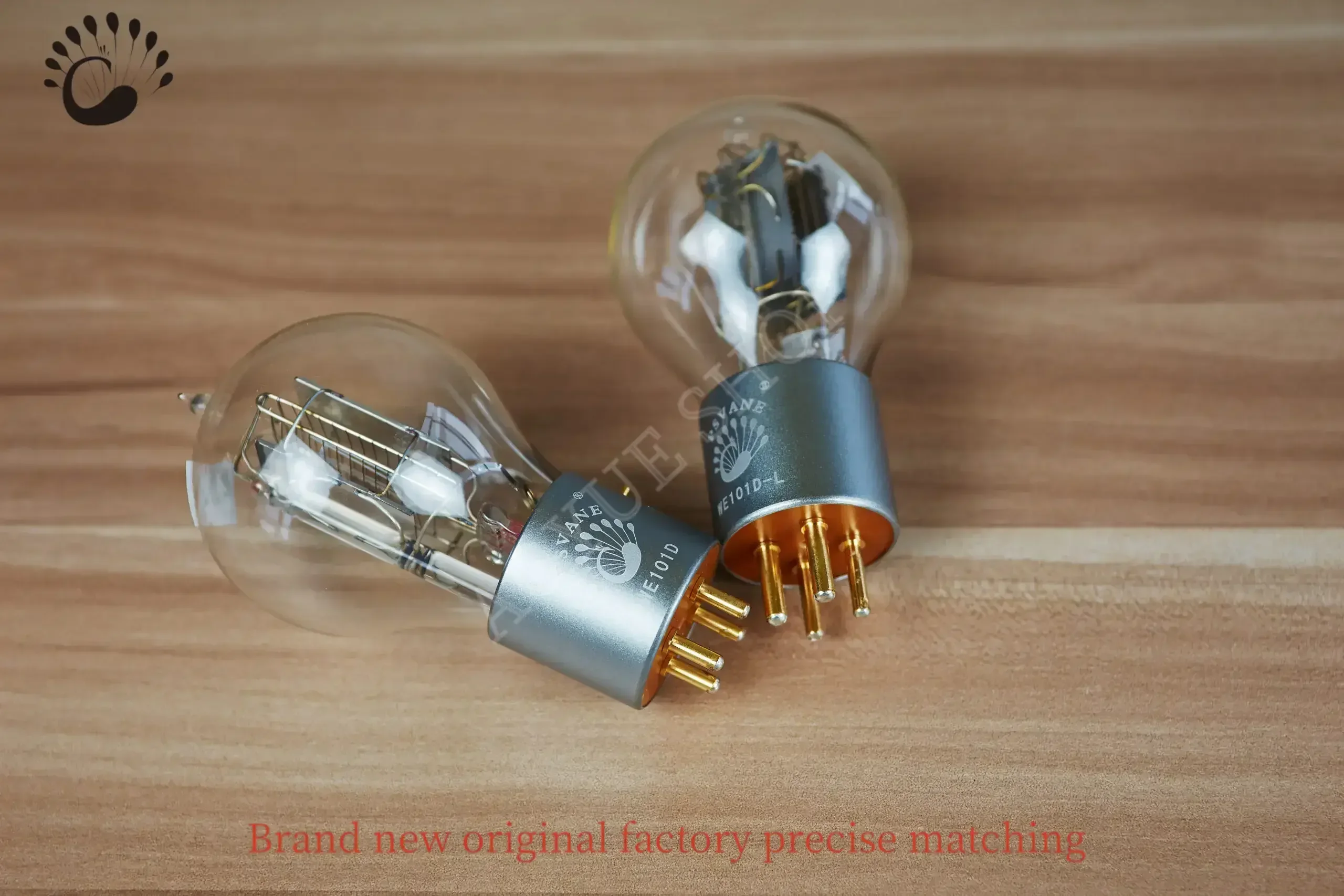

The difference between WE101D and WE101D-L is that the pins are different. WE101D needs to be equipped with original western tube style sockets, and WE101D-L only needs to be equipped with flat four-pin sockets.

Electrical parameters-rated value

Capacitance between electrodes

Input capacitance 4.8 uuF

Output capacitance 5.2 uuF

Trans-circuit capacitance ≤ 3.3 uuF

Typical working parameters

Filament voltage 4.5 V

Filament current 1.0 A

Anode voltage 190 V

Gate voltage-18 V

Anode current 6.4 mA

Electrical parameters-maximum rated value minimum maximum value unit

Filament voltage 4 5 V

Anode voltage-300 V

Anode dissipation power-15 W

Anode current-30 mA
